Daikin EcoSwing Gold 12000 BTU Inverter Split Air Conditioner

1. Introducció

This manual provides essential information for the safe and efficient operation of your Daikin EcoSwing Gold 12000 BTU Inverter Split Air Conditioner. Please read this manual thoroughly before using the unit and keep it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your air conditioner.

Característiques principals:

• Wi-Fi integrat: Control your unit remotely via the Daikin Smart AC app or voice commands with Google Assistant and Alexa.
• Inverter Technology with Procel Gold Seal: Achieves up to 70% energy savings compared to conventional models.
• Dual Filtration: Features an antibacterial Silver Ion filter for cleaner, safer air.
• Refrigerant R-32: Utilizes an environmentally friendly refrigerant with lower global warming potential.
• Corrosion-Resistant Heat Exchanger: Outdoor unit heat exchanger features copper tubes and aluminum fins with special anti-corrosion treatment.
• Funcionament silenciós: Both indoor and outdoor units are designed for low noise levels, ensuring a comfortable environment.

2. Informació de seguretat

Per evitar lesions a l'usuari o altres persones i danys a la propietat, s'han de seguir les instruccions següents. Un funcionament incorrecte a causa d'ignorar les instruccions pot causar danys o danys.

• Instal·lació professional: Installation, relocation, and maintenance of this air conditioner must be performed by a qualified service technician. Improper installation can lead to electric shock, fire, or water leakage.
• Font d'alimentació: Assegureu-vos que la font d'alimentació voltage matches the specifications of the unit (220V). Do not use extension cords or multi-outlet adapters.
• Seguretat elèctrica: Do not operate the unit with wet hands. Do not insert fingers or objects into the air inlet/outlet.
• Refrigerant: The unit uses R-32 refrigerant. Only qualified personnel should handle refrigerant.
• Neteja: Desconnecteu sempre l'alimentació abans de netejar o realitzar qualsevol manteniment.
• Nens i animals de companyia: Keep children and pets away from the unit, especially the outdoor unit, to prevent injury.

3. Producte acabatview

Your Daikin EcoSwing Gold air conditioner consists of an indoor unit, an outdoor unit, and a remote control. Familiarize yourself with these components.

Unitat interior

Figura 3.1: Frontal view of the indoor unit. This unit is installed inside your room and is responsible for circulating cooled air.

Unitat exterior

Figure 3.2: Outdoor condenser unit. This unit houses the compressor and heat exchanger, releasing heat to the outside environment.

Control remot

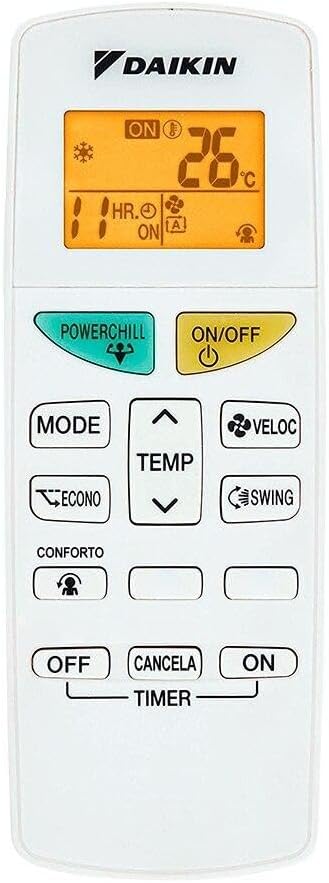

Figure 3.3: Remote control. Used to adjust settings, modes, and temperature.

4. Configuració

4.1 Instal·lació

The installation of your Daikin EcoSwing Gold air conditioner requires specialized knowledge and tools. It is mandatory that installation be performed by a certified and qualified technician. Improper installation can void your warranty and lead to serious operational issues or safety hazards.

The technician will handle:

• Mounting of indoor and outdoor units.
• Connecting refrigerant lines and electrical wiring.
• Vacuuming the system and charging with R-32 refrigerant.
• Testing the unit for proper operation.

4.2 Configuració Wi-Fi

Your Daikin EcoSwing Gold unit features integrated Wi-Fi for smart control. To set up Wi-Fi connectivity:

1. Descarrega't el Daikin Smart AC application from your smartphone's app store (available on Android and iOS).
2. Follow the in-app instructions to register your device and connect it to your home Wi-Fi network.
3. Once connected, you can monitor and control your air conditioner from anywhere, as well as integrate it with voice assistants like Google Assistant and Amazon Alexa.

5. Instruccions de funcionament

This section explains the basic functions and modes of your air conditioner using the remote control.

5.1 Funcionament bàsic

• Encès/apagat: Premeu el botó ON/OFF botó per iniciar o aturar la unitat.
• Selecció del mode: Premeu el botó MODE per anar canviant pels modes disponibles: Refrigeració, Ventilador, Deshidratació.
• Ajust de temperatura: Utilitza el TEMP ▲ i TEMP ▼ buttons to increase or decrease the desired temperature.
• Velocitat del ventilador: Premeu el botó VELOC (Fan Speed) button to adjust the fan speed (Auto, Low, Medium, High).
• Funció de swing: Premeu el botó GRONXADOR button to activate or deactivate the automatic vertical airflow swing.

5.2 Funcions avançades

• ECONO Mode: Activates energy-saving operation. Press the ECONO botó.
• POWERCHILL: Provides rapid cooling. Press the POWERCHILL botó.
• TEMPORIZADOR: Set the unit to turn ON or OFF automatically after a specified period. Refer to the detailed remote control guide for specific timer settings.
• COMFORTO (Comfort Airflow): Adjusts the airflow direction to prevent direct drafts. Press the COMFORTO botó.

6. Manteniment

Regular maintenance ensures efficient operation and prolongs the life of your air conditioner. Always disconnect power before performing any maintenance.

6.1 Neteja del filtre d'aire

The Silver Ion antibacterial filter should be cleaned regularly (approximately every two weeks, or more often depending on usage and air quality).

1. Obriu el panell frontal de la unitat interior.
2. Traieu els filtres d'aire.
3. Netegeu els filtres amb un aspirador o renteu-los amb aigua tèbia i un detergent suau. Esbandiu-los bé.
4. Allow the filters to dry completely in a shaded area before reinstalling. Do not expose to direct sunlight.
5. Torneu a instal·lar els filtres i tanqueu el panell frontal.

6.2 Neteja exterior de la unitat

Netegeu les unitats interior i exterior amb un drap suau i sec. Per a la brutícia resistent, utilitzeu un drapamp cloth with a mild detergent, then wipe dry. Do not use harsh chemicals, abrasive cleaners, or hot water.

6.3 Controls estacionals

• Before the cooling season, ensure the outdoor unit is free from obstructions (leaves, debris).
• Check for any unusual noises or odors during operation. If detected, contact a service technician.

7. Solució De Problemes

Abans de contactar amb el servei tècnic, comproveu els següents problemes i solucions habituals:

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb un tècnic de servei qualificat.

8. Especificacions

Technical specifications for the Daikin EcoSwing Gold 12000 BTU Inverter Split Air Conditioner.

9. Garantia i Suport

9.1 Informació de la garantia

Daikin offers a comprehensive warranty for your EcoSwing Gold air conditioner:

• 10 Years Warranty on Compressor: The compressor is covered for a period of 10 years from the date of purchase.
• 3 Years Total Warranty: The entire unit, including parts and labor (excluding compressor), is covered for 3 years from the date of purchase.

Please retain your proof of purchase for warranty claims. Warranty terms and conditions may apply; refer to your warranty card for full details.

9.2 Atenció al client

For technical assistance, service requests, or warranty inquiries, please contact Daikin customer support or your authorized dealer.

Daikin Official Weblloc: www.daikin.com

Línia directa del servei: Refer to your local Daikin service center contact information.
