Introducció
This manual provides instructions for the safe and efficient installation, operation, and maintenance of your WALI Laptop Mount (Model GSMP001LP). This versatile desk mount is designed to elevate your laptop and/or monitor, optimizing your workspace and improving ergonomics.
Informació de seguretat
- Llegiu atentament totes les instruccions abans de la instal·lació i l'ús.
- No supereu la capacitat màxima de pes de 19.8 lliures per braç.
- Ensure the mount is securely fastened to the desk using either the C-clamp o base d'ulleres.
- Mantingueu els nens i les mascotes allunyats durant la instal·lació.
- Use appropriate tools and follow all steps to prevent injury or damage.
Contingut del paquet
- WALI Single Monitor Desk Mount with Laptop Tray (Black) x 1
- Kit de maquinari de muntatge
- Manual d'usuari
Especificacions
| Característica | Detall |
|---|---|
| Compatibilitat amb portàtils | 10-15.6 polzades |
| Compatibilitat de monitors | 17-34 polzades |
| Capacitat de pes | Up to 19.8 lbs per arm |
| Mounting Plate (VESA) | 75x75mm i 100x100mm |
| Extensió del braç | Fins a 18.1 polzades |
| Ajust d'alçada | Up to 16 inches on a 16-inch pole |
| Inclinació | +/-90° |
| Giratòria | +/-90° |
| Rotació | 360° |
| C-clamp Gruix de l'escriptori | 0.39-3.1 cm |
| Gruix de la base de l'escriptori amb ullets | 0.39-1.77 cm |
| Material | Metall |
| Color | Negre |
| Pes de l'article | 8.84 lliures |
| Dimensions del producte | 14.27 x 9.35 x 6.2 polzades |
Configuració i instal·lació
The WALI Laptop Mount offers flexible installation options: C-clamp or Grommet Base. The assembly process is designed to be completed efficiently.
Pas 1: Trieu la vostra opció de muntatge
Decide between the C-clamp for desks with edges or the grommet base for desks with existing holes or where a hole can be drilled.
Image description: A black WALI laptop mount with its arm extended, showing both the C-clamp and grommet base options for desk attachment.
Pas 2: Assegureu la base
Follow the instructions in the included Mounting Hardware Kit to securely attach the chosen base to your desk. Ensure the base is tightened firmly to prevent movement.
Image description: A diagram illustrating the compatible desk thickness for both C-clamp (0.39"-3.1") and Grommet Base (0.39"-1.77") installations.
Step 3: Attach the Arm and Tray
Connect the gas spring arm to the secured base. Then, attach the laptop tray to the arm. The mounting plate is detachable for easier installation.

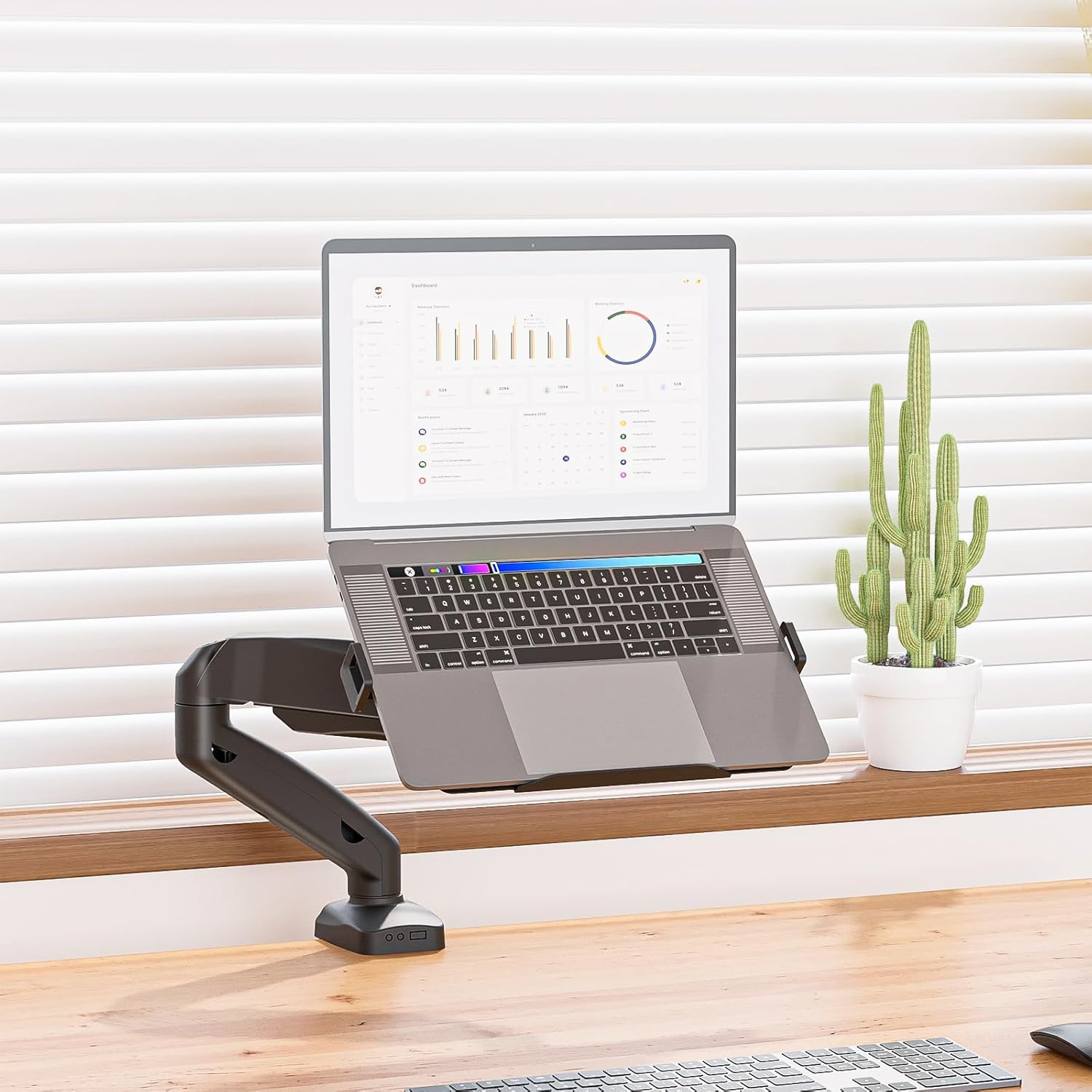

Image description: A WALI laptop mount with a silver laptop resting on its tray, positioned above a wooden desk.
Pas 4: ajusteu la tensió
Use the provided Allen wrench to adjust the tension of the gas spring arm to match the weight of your laptop. This ensures smooth and stable movement.

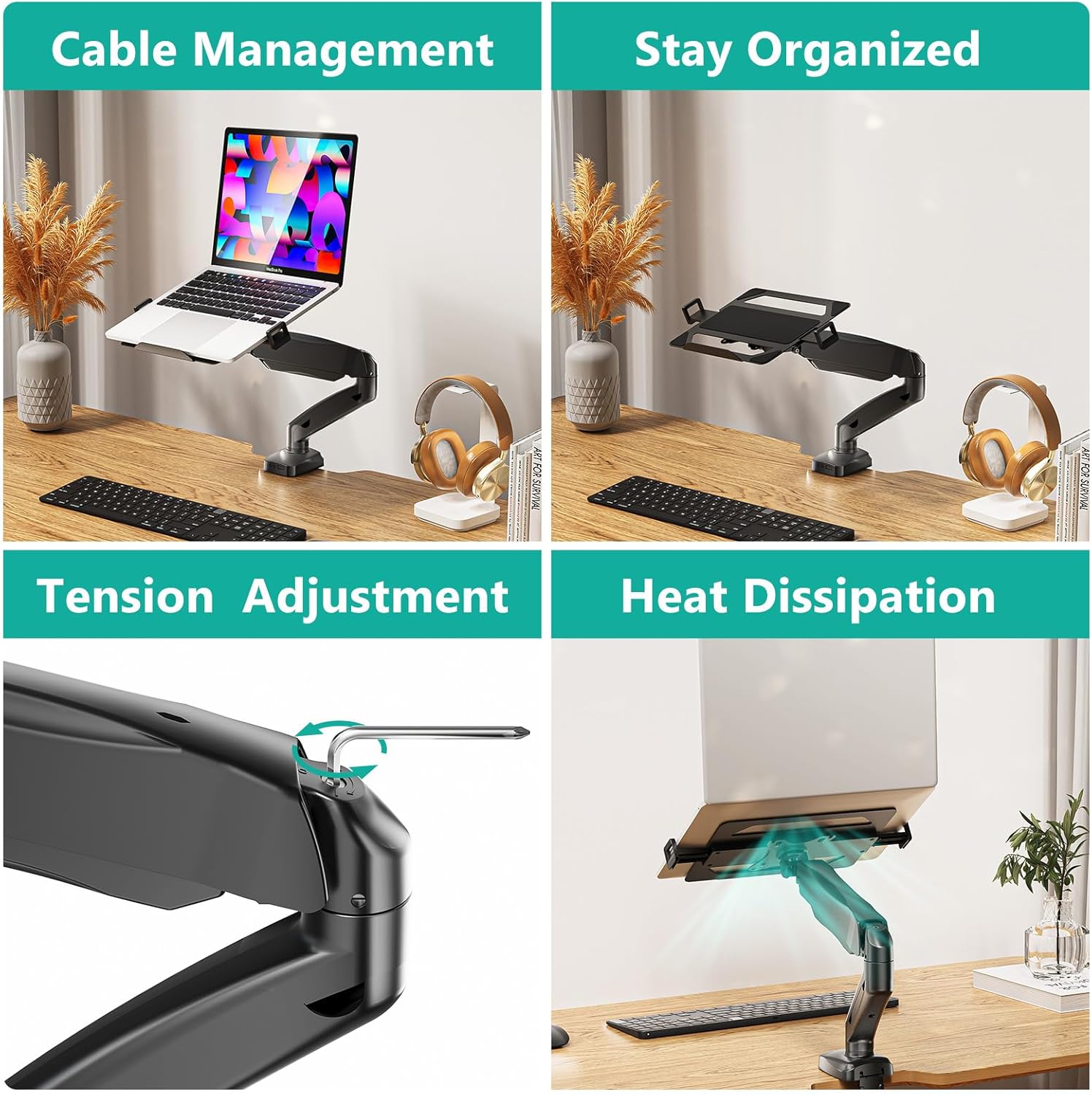

Descripció de la imatge: Un primer pla view of the WALI laptop arm, highlighting the tension adjustment screw with an Allen wrench inserted.
Guia de vídeo d'instal·lació
For a visual step-by-step guide, please watch the official installation video:
Video description: An official product video demonstrating the installation process and key features of the WALI laptop arm mount.
Instruccions de funcionament
Adjusting Your Mount
The WALI Laptop Mount features a gas spring arm for effortless adjustments.
- Ajust d'alçada: Gently push or pull the arm to raise or lower your laptop to the desired ergonomic height. The arm can rise up to 16 inches.
- Ajust d'inclinació: The laptop tray can be tilted +/-90° to reduce glare and optimize your viewangle de ing.
- Ajust de gir: Swivel the arm +/-90° to position your laptop for collaborative work or different viewnecessitats.
- Rotació: The mount allows for a full 360° rotation, enabling you to switch between landscape and portrait modes for your laptop or monitor.
Image description: A graphic illustrating the various motion adjustments of the WALI laptop mount, including 360° rotation, +/-90° swivel, and +90°/-45° tilt.
Gestió de cables
Integrated cable management clips help keep your workspace tidy by routing cables along the arm.
Image description: A split image demonstrating the cable management feature of the WALI laptop mount, showing cables neatly routed along the arm.
Dissipació de calor
The laptop tray features venting holes to prevent your laptop from overheating during extended use.
Image description: A split image showing the heat dissipation feature of the WALI laptop tray, with air flowing through the venting holes.
Manteniment
- Reviseu regularment tots els cargols i connexions per assegurar-vos que estiguin ben ajustats.
- Netegeu la muntura amb un drap suauamp tela. Eviteu els netejadors abrasius.
- Do not disassemble the gas spring mechanism.
Resolució de problemes
Arm Not Holding Position
If the arm does not stay in the desired position, the tension may need adjustment. Use the provided Allen wrench to increase the tension (clockwise) if the arm sags, or decrease it (counter-clockwise) if it is too stiff.
Falten peces
If any parts are missing from your package, please contact WALI customer support immediately.
Difficulty with Installation
Refer to the detailed installation steps and the video guide. Ensure your desk thickness is within the specified range for your chosen mounting option.
Garantia i Suport
WALI provides experienced and friendly US-based customer support available to assist 7 days a week. For any questions, concerns, or warranty claims, please contact WALI directly.
Visit the official WALI Store for more information: WALI Store
