Manual d'usuari de la cadira d'oficina ergonòmica Hbada E2
Model: 343511022
Introducció
Thank you for choosing the Hbada E2 Ergonomic Office Chair. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure you get the most out of your new chair. Designed for optimal comfort and support, the Hbada E2 features multiple adjustable components to adapt to your individual needs, promoting a healthy posture during long periods of sitting.

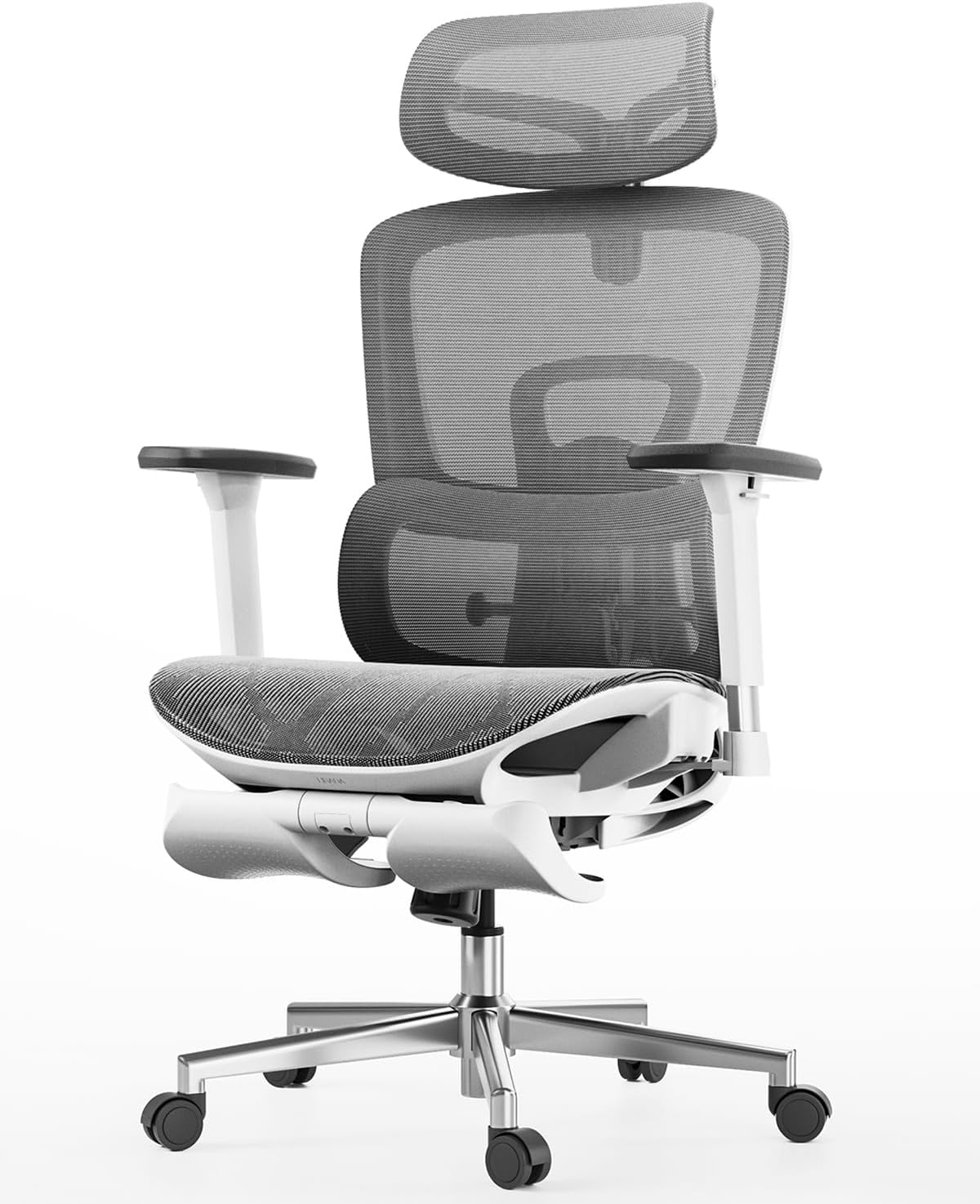

Davant view of the Hbada E2 Ergonomic Office Chair in white and grey mesh.
Muntatge i muntatge
Before beginning assembly, ensure all parts are present and undamaged. It is recommended to assemble the chair on a soft, clean surface to prevent scratches. While assembly can be done by one person, having assistance may make the process easier.
Contingut del paquet:
- Muntatge del respatller
- Muntatge del coixí del seient
- Armrests (Left and Right)
- Cilindre d'elevació de gas
- Base d’estrelles
- Casters (Rollers)
- Hardware Kit (Screws, Washers, Allen Wrench)
- Manual d'usuari
Passos de muntatge:
- Fixeu les rodes a la base: Insert each caster into the holes at the end of each leg of the star base until they click securely into place.
- Inseriu l'elevador de gas: Place the gas lift cylinder into the center hole of the star base. Ensure it is seated firmly.
- Fixar els reposabraços al seient: Secure the armrests to the underside of the seat cushion using the provided screws. Pay attention to the 'L' (Left) and 'R' (Right) markings.
- Fixar el respatller al seient: Align the backrest with the mounting points on the seat cushion and secure it with the appropriate screws.
- Connecteu el conjunt del seient a l'elevador de gas: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring the center mechanism aligns with the top of the gas lift. Press down firmly to secure.
Instruccions de funcionament
The Hbada E2 chair offers various adjustments to customize your seating experience for maximum comfort and ergonomic support.
1. Ajust de l'alçada del seient:
Locate the lever on the right side, beneath the seat. Pull the lever up to raise the seat. To lower the seat, remain seated and pull the lever up. Release the lever at the desired height.
2. 3D Adjustable Armrests:
The armrests can be adjusted in three dimensions to provide optimal elbow and forearm support.
- Ajust d'alçada: Press the button on the side of each armrest and move the armrest up or down. Release the button to lock it in place. (Adjustable by 7.5 cm)
- Ajust frontal/posterior: Slide the armrest pad forward or backward. (Adjustable by 5 cm)
- Rotació: Rotate the armrest pad left or right. (Adjustable by 45 degrees)
The armrests offer 3D adjustability for personalized comfort and support.
Detailed illustration of armrest adjustments: 7.5 cm up/down, 5 cm front/back, and 40-degree rotation.
3. Adjustable Headrest:
The headrest can be adjusted to provide precise neck support.
- Ajust d'alçada: Grasp the headrest and slide it up or down. It will click into place at different height levels. (Adjustable by 10 cm)
- Rotació: Tilt the headrest forward or backward to find your preferred angle. (Adjustable by 38 degrees)
The headrest can be adjusted for height and rotation to support your neck.
Detailed illustration of headrest adjustments: 10 cm height adjustment and 38-degree rotation.
4. Adjustable Lumbar Support:
The lumbar support can be adjusted vertically to align with the natural curve of your lower back.
- Ajust d'alçada: Gently lift the backrest to move the lumbar support up. It has 3 height levels. To reset to the lowest position, lift the backrest to its highest point until you hear a click, then lower it slowly. (Adjustable by 4.5 cm)
The lumbar support can be adjusted vertically to fit your lower back.
Instructions for adjusting the backrest and lumbar support height.
5. Recline Function:
The chair features a recline function allowing you to lean back comfortably.
- Angle d'inclinació: The backrest can recline up to 135 degrees, with common positions at 90 degrees (upright) and 110 degrees (relaxed).
- Mecanisme de bloqueig: Use the lever on the left side, beneath the seat, to lock the backrest in your desired reclined position. Push the lever in to lock, pull out to unlock.
The chair offers a recline function up to 135 degrees for relaxation.
Detailed illustration of the chair's recline range, from 90 to 135 degrees.
6. Breathable Mesh Seat Cushion:
The seat cushion is constructed from durable, breathable nylon mesh, designed for comfort and to prevent heat buildup during extended use.
The seat cushion features a breathable mesh design for comfort and ventilation.
Manteniment
Regular maintenance will extend the life and appearance of your Hbada E2 chair.
- Neteja: Wipe down plastic and metal parts with a soft, damp cloth. For mesh fabric, use a mild soap solution and a soft brush, then blot dry. Avoid harsh chemicals or abrasive cleaners.
- Rodes: Periodically check casters for hair or debris and clean as needed to ensure smooth rolling.
- Elements de fixació: Every few months, check all screws and bolts to ensure they are tight. Retighten if necessary to prevent wobbling or noise.
- Parts mòbils: Do not lubricate the gas lift cylinder. If any moving parts become stiff, a small amount of silicone spray can be applied to pivot points, avoiding the gas lift.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La cadira trontolla o se sent inestable | Loose screws or improper assembly | Check and tighten all assembly screws. Ensure all parts are correctly installed according to the manual. |
| Chair makes noise (squeaking, creaking) | Loose connections, friction between parts | Tighten all screws. Apply a small amount of silicone spray to pivot points or joints where friction occurs. |
| Gas lift not adjusting height | Lever not fully engaged or gas lift malfunction | Assegureu-vos que la palanca d'ajust d'alçada estigui completament activada. Si el problema persisteix, és possible que calgui substituir l'elevador de gas. Poseu-vos en contacte amb el servei d'atenció al client. |
| Headrest does not hold position | Mechanism wear or insufficient friction | Ensure the headrest is pushed firmly into its desired position. If it continues to slip, contact customer service. |
| Lumbar support feels uncomfortable or non-adjustable | Incorrect adjustment or individual preference | Re-adjust the lumbar support height by lifting the backrest to its highest point and slowly lowering it to find the optimal position. Experiment with different settings. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Hbada |
| Número de model | 343511022 |
| Color | Blanc |
| Dimensions del producte | 60 x 45 x 56 cm (aprox. 23.6 x 17.7 x 22 polzades) |
| Pes de l'article | 22.5 quilograms (aprox. 49.6 lliures) |
| Tipus de respatller | Esquena alta |
| Ajust de reposabraços | 3D (Height: 7.5 cm, Front/Back: 5 cm, Rotation: 45°) |
| Ajust del reposacaps | 2D (Height: 10 cm, Rotation: 38°) |
| Ajust de suport lumbar | Vertical (4.5 cm, 3 levels) |
| Angle de reclinació | Fins a 135° |
| Material del seient | Malla de niló |
Garantia i Suport
Hbada stands behind the quality of its products. Your Hbada E2 Ergonomic Office Chair comes with the following:
- 3-Year Worry-Free Warranty: Covers manufacturing defects and major component failures under normal use.
- Devolució gratuïta de 30 dies: Si no esteu satisfets amb la vostra compra, podeu retornar-la en un termini de 30 dies per obtenir un reemborsament complet.
- 15-Day Price Guarantee: If the price of the product drops within 15 days of your purchase, you may be eligible for a refund of the difference.
- Atenció al client amable: For any questions, concerns, or warranty claims, please contact Hbada customer support. Refer to your purchase documentation for specific contact details.
