Introducció
Gràcies per la compraasing the MPM MGR-12 Electric Grill. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions thoroughly before first use and keep them for future reference.
The MPM MGR-12 is a versatile 2000W electric grill designed for indoor use, offering convenient and healthy grilling options for various foods.
Instruccions importants de seguretat
Quan s'utilitzen aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat, incloses les següents:
- Read all instructions carefully before operating the grill.
- No toqueu superfícies calentes. Utilitzeu nanses o poms.
- Per protegir-vos contra les descàrregues elèctriques, no submergiu el cable, els endolls ni l'aparell en aigua ni en altres líquids.
- És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
- Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces.
- No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
- L'ús d'accessoris no recomanats pel fabricant de l'aparell pot causar lesions.
- No utilitzar a l'aire lliure.
- No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
- No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
- Cal extremar la precaució quan es mou un aparell que contingui oli calent o altres líquids calents.
- Connecteu sempre primer l'endoll a l'aparell i després el cable a la presa de corrent. Per desconnectar-lo, gireu qualsevol control a la posició "off" i, a continuació, retireu l'endoll de la presa de corrent.
- No utilitzeu l'aparell per a un altre ús que el previst.
Producte acabatview
The MPM MGR-12 Electric Grill features a robust design with adjustable temperature controls and a non-stick grilling surface. It is designed for ease of use and efficient cooking.

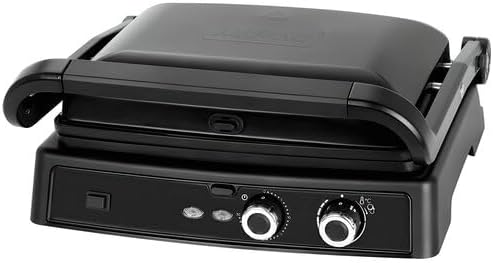

Figura 1: Frontal view of the MPM MGR-12 Electric Grill in its closed position, showing the control panel with temperature knobs and indicator lights.
Els components clau inclouen:
- Grilling Plates: Non-stick, removable for easy cleaning.
- Temperature Control Knobs: For precise heat adjustment.
- Indicator Lights: Power and ready indicators.
- Drip Tray: Collects excess fat and liquids during grilling.
- Cool-Touch Handle: For safe opening and closing.
Configuració
- Desembalatge: Traieu amb cura la graella i tots els accessoris de l'embalatge. Conserveu l'embalatge per a futurs emmagatzematges o transports.
- Neteja inicial: Abans del primer ús, netegeu les plaques de la graella amb un adamp cloth to remove any dust or manufacturing residues. Ensure they are completely dry.
- Col·locació: Place the grill on a stable, heat-resistant, and flat surface. Ensure there is adequate ventilation around the appliance. Do not place it directly against a wall or under cabinets.
- Instal·lació de la safata de goteig: Insert the drip tray into its designated slot at the front or side of the grill base. Ensure it is securely in place to collect any drippings.
- Connexió d'alimentació: Ensure the temperature control knobs are set to the "OFF" position. Plug the power cord into a grounded electrical outlet.
Instruccions de funcionament
The MPM MGR-12 grill offers versatile cooking options, including contact grilling and open-flat grilling.
Preescalfament de la graella
- Tanqueu les plaques de la graella.
- Turn the temperature control knob to your desired setting. The power indicator light will illuminate.
- Allow the grill to preheat for approximately 5-10 minutes, or until the "ready" indicator light illuminates, signaling that the grill has reached the set temperature.
Menjar a la brasa
Figure 2: The grill demonstrating both closed contact grilling and open flat grilling modes, with various foods like vegetables, burgers, and sausages.
Contact Grilling (Closed Position):
- Un cop preescalfat, obriu la graella amb cura.
- Place food evenly on the bottom grilling plate. Do not overload.
- Gently close the top plate onto the food. The floating hinge allows for even pressure on different food thicknesses.
- Grill for the recommended time based on the food type and desired doneness.
Open Flat Grilling (BBQ Mode):
- To use as an open grill, fully open the top plate until it lies flat, creating a larger grilling surface. Refer to the product's specific mechanism for opening to 180 degrees.
- Place food on both grilling surfaces.
- Cook, turning food as needed, until desired doneness is achieved.

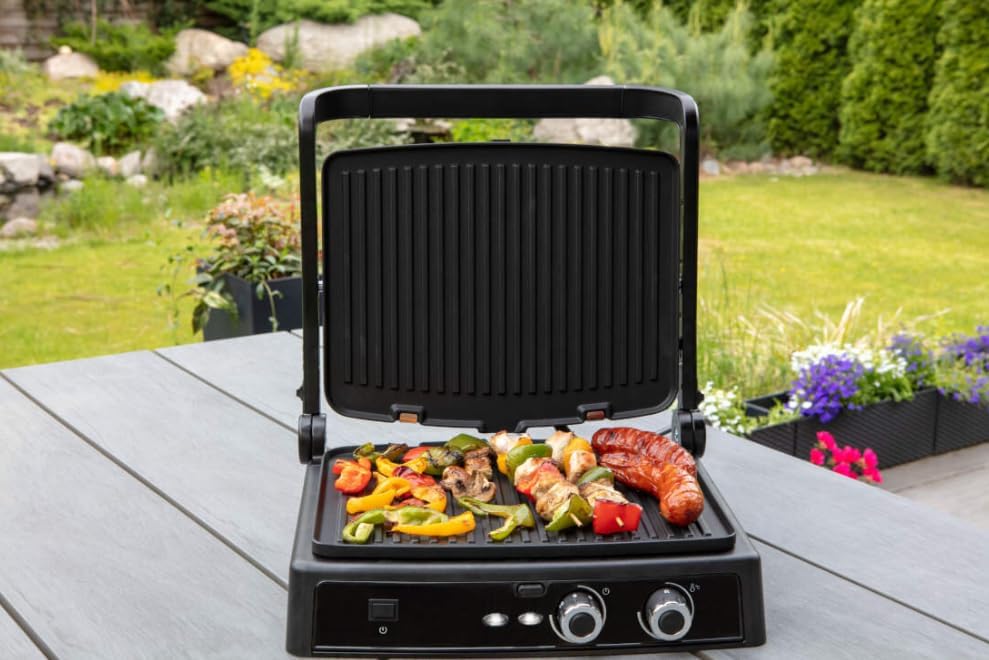

Figure 3: The MPM MGR-12 Electric Grill set up in an outdoor garden setting, demonstrating its open flat grilling mode with various foods.
Després de la graella:
- Carefully remove cooked food using heat-resistant utensils.
- Turn the temperature control knob to "OFF" and unplug the grill from the power outlet.
- Deixeu que la graella es refredi completament abans de netejar-la.
Neteja i Manteniment
Una neteja regular garanteix la longevitat i el rendiment òptim de la barbacoa.
Figure 4: The MPM MGR-12 Electric Grill showing its removable drip tray and an icon indicating that the grilling plates and drip tray are dishwasher safe.
- Refredament: Always ensure the grill is unplugged and completely cool before attempting to clean.
- Treure la safata de degoteig: Carefully slide out the drip tray and empty any collected fat or liquids. Wash the drip tray with warm, soapy water or place it in the dishwasher if indicated.
- Neteja de les plaques de barbacoa: The grilling plates are removable for easy cleaning. They can be washed by hand with warm, soapy water and a non-abrasive sponge, or placed in a dishwasher. For stubborn residue, soak the plates in warm water before cleaning. Do not use metal scouring pads or abrasive cleaners.
- Exterior net: Netegeu l'exterior de la graella amb anunciamp cloth. Do not use harsh chemicals or abrasive materials. Never immerse the main unit in water or any other liquid.
- Emmagatzematge: Un cop neta i seca, guarda la graella en un lloc fresc i sec. Pots guardar-la tancada per estalviar espai.
Nota: Assegureu-vos que totes les peces estiguin ben seques abans de tornar a muntar o guardar la graella.
Resolució de problemes
If you encounter issues with your MPM MGR-12 Electric Grill, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La graella no s'encén. | Not plugged in; power outlet issue; temperature knob not set. | Assegureu-vos que la graella estigui ben connectada a una presa de corrent que funcioni. Comproveu l'interruptor. Gireu el botó de temperatura a la configuració desitjada. |
| El menjar no es cuina de manera uniforme. | Grill not preheated sufficiently; uneven food placement; too much food. | Allow grill to fully preheat until the "ready" light illuminates. Arrange food evenly and avoid overcrowding the plates. |
| Fum excessiu. | Accumulated grease/food residue; cooking fatty foods. | Ensure grill plates and drip tray are clean before use. For fatty foods, ensure proper ventilation. |
| El recobriment antiadherent s'està desprenent. | Ús d'estris metàl·lics; neteja abrasiva. | Always use wooden, plastic, or silicone utensils. Clean with non-abrasive sponges and cleaners. |
Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
Especificacions
Figure 5: Technical drawing showing the dimensions of the MPM MGR-12 Electric Grill when fully opened, with measurements of 470mm (width) and 295mm (depth).
- Model: MGR-12
- Marca: MPM
- Potència: 2000 W
- Color: Negre
- Tipus d'acabat: Polit
- Material: Acrylic (likely referring to external casing or specific parts)
- Grilling Surface Dimensions (approximate, open): 470 mm (amplada) x 295 mm (profunditat)
- Components inclosos: Grill unit, Removable grilling plates, Drip tray
- Font d'alimentació: Elèctric amb cable
Garantia i Suport
MPM products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official MPM weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
For technical support, spare parts, or service inquiries, please contact MPM customer service through their official channels. Contact details can typically be found on the product packaging or the manufacturer's weblloc.
Recursos en línia: For additional tips, recipes, and FAQs, visit the official MPM weblloc: www.mpm.pl
