1. Introducció
The Fractal Design Meshify 3 Ambience Pro RGB is a high-performance PC case designed for optimal cooling and a fluid, aerodynamic aesthetic. This model features advanced ARGB Gen 2 integrated atmospheric lighting and powerful Momentum fans, all controllable via the intuitive web-based Adjust Pro Hub. This manual provides detailed instructions for setting up, operating, and maintaining your computer case to ensure the best possible experience.
Figura 1: Frontal view of the Fractal Design Meshify 3 Ambience Pro RGB computer case.
2. Configuració
2.1 Dimensions de la caixa
The Meshify 3 Ambience Pro RGB has dimensions of 423mm (height) x 229mm (width) x 507mm (depth). It is classified as a compact mid-tower case, designed to offer ample internal space without occupying excessive desk area.
2.2 Panel Removal and Access
2.2.1 Tauler frontal
To remove the front mesh panel, gently pull it upwards from the bottom. The panel detaches easily, allowing access to the front fans. The RGB lighting on the front panel is connected via pogo-style pins, which automatically disconnect when the panel is removed and reconnect when reattached.
Figura 2: Frontal view of the Meshify 3 case, highlighting the iconic mesh design and RGB fans.
2.2.2 Tauler superior
The top panel is ventilated and can be removed by pulling the tab located at the rear. This provides access to the top cooling bracket for installation or cleaning. The top cooling bracket is fully removable by unscrewing two thumb screws, supporting up to 2x 120mm or 140mm fans, or radiators up to 280mm.

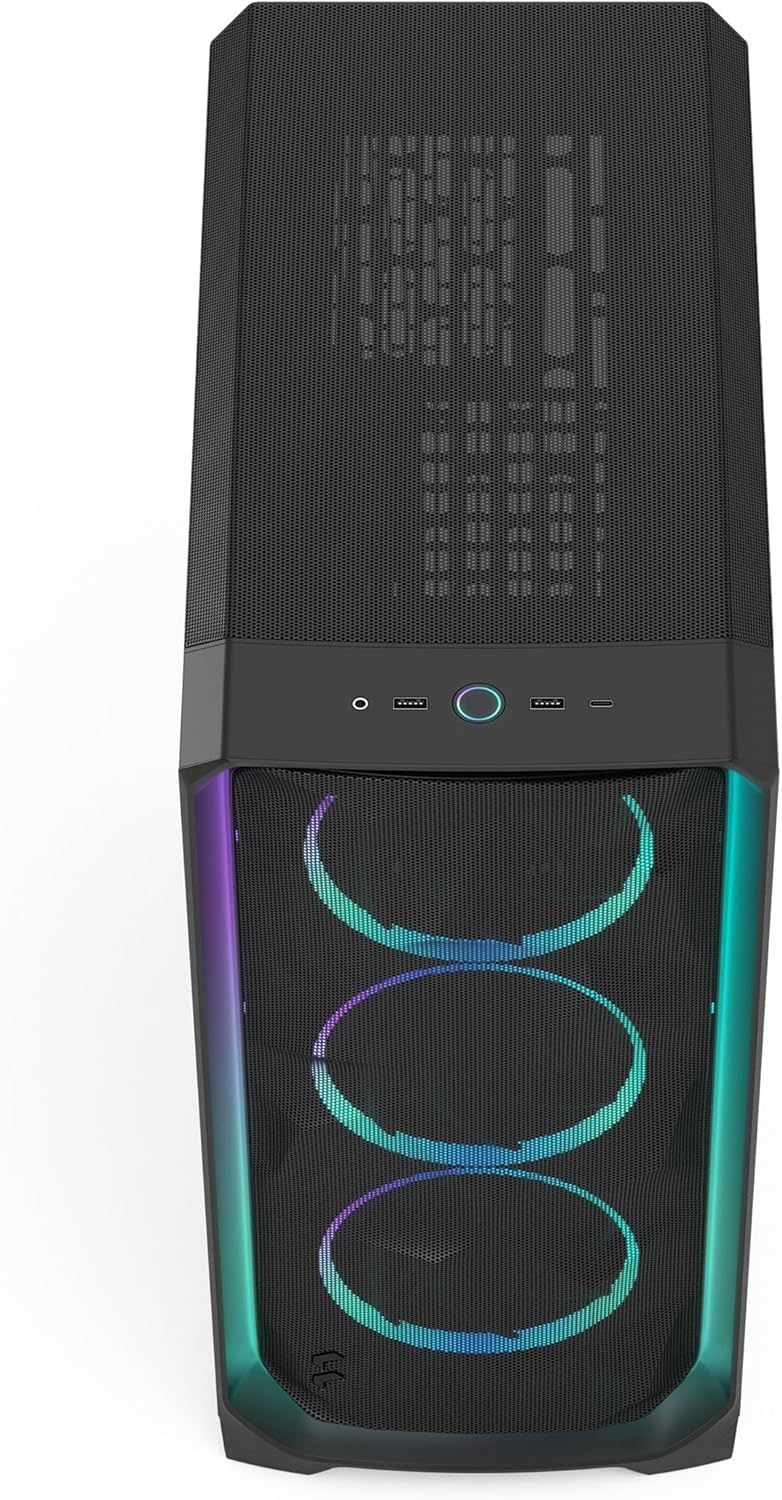

Figura 3: De dalt a baix view showing the front I/O ports and the ventilated top panel of the Meshify 3.
2.2.3 taulers laterals
The main side panel features tempered glass, allowing visibility of internal components. It is removed by pulling a tab at the top, and it will detach completely, so ensure a firm grip. The opposite side panel is a solid white steel panel, removed using the same locking mechanism.
Figura 4: lateral view of the Meshify 3 case with its tempered glass panel, showcasing components interns.
2.3 Instal·lació de components
2.3.1 Motherboard Compatibility
The Meshify 3 supports Mini-ITX, Micro-ATX, ATX, and Extended ATX motherboards up to 277mm in width.
2.3.2 Graphics Card (GPU)
This case supports graphics cards up to 349mm in length. An internal air guide directs airflow directly towards the GPU for improved cooling.
Figura 5: Interior view of the Meshify 3, showing the installed GPU and the air guide for enhanced cooling.
2.3.3 Unitat d'alimentació (PSU)
The PSU is mounted at the bottom of the case. The maximum supported PSU length is 180mm.
2.3.4 Unitats d'emmagatzematge
The case includes two 2.5"/3.5" storage brackets and two additional 2.5" SSD mounts near the power supply, allowing for a total of six storage drives. The brackets are two-piece designs, allowing for flexible configuration to accommodate either 2.5" SSDs or 3.5" HDDs.
Figura 6: Interior posterior view of the Meshify 3, detailing the storage drive mounts and cable management features.
2.4 Gestió de cables
The Meshify 3 features new cable aligners and Velcro ties on the backside of the motherboard tray to simplify cable routing and ensure a clean build. Built-in cable covers towards the front of the case also contribute to a tidy interior.
3. Instruccions de funcionament
3.1 Ports d'E/S frontals
The top front of the case provides convenient access to:
- Large Power Button
- 2x USB 3.0 Type-A Ports
- 1x USB 3.2 Gen 2x2 Type-C Port
- 1x Combination Headphone and Microphone Jack
3.2 Sistema de refrigeració
The Meshify 3 Ambience Pro RGB comes with three pre-installed 140mm Momentum RGB PWM fans in the front. These fans feature low-noise LCP blades and a true FDB bearing for quiet and efficient operation.
- Davant: Supports 3x 120mm or 140mm fans, or radiators up to 360mm.
- A dalt: Supports 2x 120mm or 140mm fans, or radiators up to 280mm.
- posterior: Supports 1x 120mm fan.
3.3 Control d'il·luminació RGB
The integrated ARGB Gen 2 atmospheric lighting and fans are controlled via the included Adjust Pro Hub, which is pre-wired and mounted on the backside of the motherboard tray. Simply connect the hub to power and the PWM cable to your motherboard. The Adjust Pro Hub uses proprietary Type-C connectors for Momentum fans. A breakout cable is included for direct motherboard connection of PWM and ARGB if the hub is not desired.
Vídeo 1: Presentació oficial del producte en vídeoasing the Fractal Design Meshify 3 computer case features and design, including RGB lighting and cooling capabilities.
4. Manteniment
4.1 Neteja del filtre de pols
Regular cleaning of dust filters is essential for maintaining optimal airflow and cooling performance.
- Front Mesh: The front mesh panel can be easily removed for cleaning by pulling it upwards from the bottom.
- Filtre superior: The top filter is integrated into the top panel, which can be removed by pulling the rear tab.
- PSU Filter: A convenient pull-out filter for the power supply is located on the side of the case, making it easy to access and clean without moving the entire system.
5. Solució De Problemes
If you encounter any issues with your Meshify 3 Ambience Pro RGB case, please consider the following general troubleshooting steps:
- Sense energia: Ensure all power connections, including the PSU and motherboard cables, are securely seated. Check the power button connection to the motherboard.
- Fan/RGB Issues: Verify that the Adjust Pro Hub is correctly powered and connected to the motherboard. If using the breakout cable, ensure proper connections to the motherboard's PWM and ARGB headers.
- Sobreescalfament: Confirm that all fans are spinning correctly and that dust filters are clean to ensure unrestricted airflow. Check component temperatures using monitoring software.
- Panells solts: Ensure all side, front, and top panels are securely latched into place after installation or maintenance.
For persistent issues or advanced troubleshooting, please refer to the official Fractal Design support resources.
6. Especificacions
| Característica | Especificació |
|---|---|
| Nom del model | Meshify 3 Ambience Pro RGB Black TG Light Tint |
| Número de model de l'article | FD-C-MES3A-03 |
| Marca | Disseny fractal |
| Tipus de cas | Torre mitja |
| Color | Ambience Pro RGB Black TG Light Tint |
| Material | Metall |
| Dimensions del producte (LxWxH) | 507 x 229 x 423 mm (17 x 20 x 9 polzades) |
| Pes de l'article | 11 kg (24.2 lliures) |
| Compatibilitat amb la placa base | Mini-ITX, Micro-ATX, ATX, E-ATX (up to 277mm) |
| Suport de longitud de GPU | Fins a 349 mm |
| PSU Length Support | Fins a 180 mm |
| Drive Bays | 2x 2.5"/3.5" (convertible), 2x 2.5" SSD mounts (total 6 drives possible) |
| Ports d'E / S frontals | 2x USB 3.0 Type-A, 1x USB 3.2 Gen 2x2 Type-C, Combo Audio Jack, Power Button |
| Fans inclosos | 3x 140mm Momentum RGB PWM fans (front) |
| Mètode de refrigeració | Aire |
| Usos recomanats | Jocs |
7. Garantia i assistència
For warranty information, technical support, or to access additional resources, please visit the official Fractal Design weblloc web o poseu-vos en contacte amb el servei d'atenció al client. Conserveu el comprovant de compra per a reclamacions de garantia.
- Fractal Design Official Weblloc: www.fractal-design.com
- Botiga Amazon: Fractal Design Store on Amazon
