1. Introducció

The DEPSTECH DS300 Industrial Endoscope is a versatile inspection camera designed for detailed visual inspection in hard-to-reach areas. It features both dual-lens and single-lens probe options, providing high-definition imaging for various applications.

2. Components del producte

The DEPSTECH DS300 Industrial Endoscope package includes the main display unit, a semi-rigid camera cable with either dual or single lens, a USB charging cable, and various accessories.

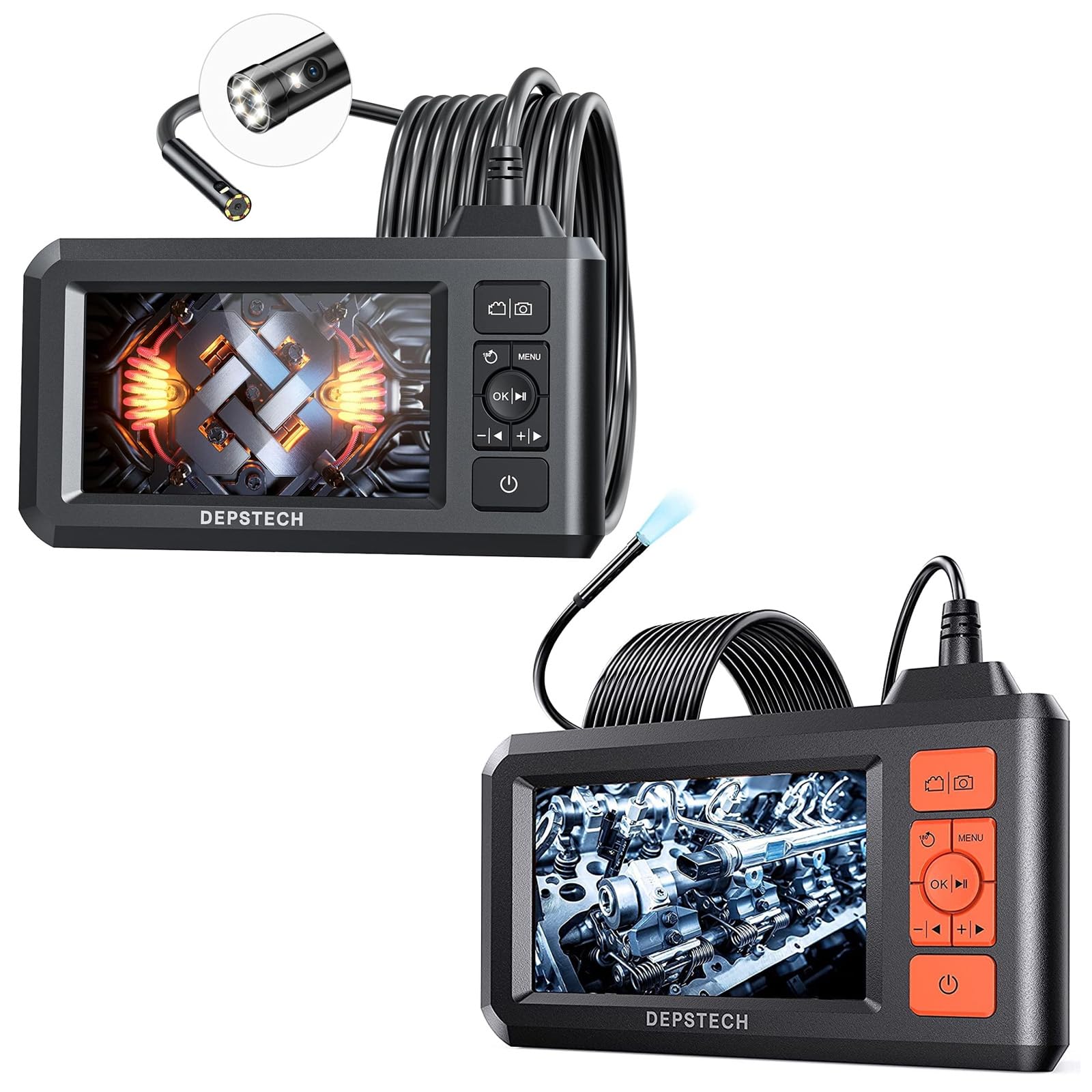

Image: The main display unit of the DEPSTECH DS300 Industrial Endoscope, featuring a 4.3-inch screen, control buttons, and a coiled semi-rigid camera cable connected to the top. Various small accessories are also visible.

Unitat de visualització principal

• Pantalla LCD TFT de 4.3 polzades: Provides a horizontal viewing angle of approximately 170°.
• Botons de control: For navigation, settings, photo/video capture, and power.
• Bateria incorporada: Rechargeable, offering approximately 4 hours of continuous operation.

Sonda de càmera

• Dual-Lens Technology (DS300 Dual Lens): Allows switching between front and side viewing angles without additional mirrors. Features FOV 70° for wider views.
• Single-Lens Technology (DS300 5.5mm Single Lens): 0.21-inch diameter for accessing very confined spaces.
• 1080P HD Video & 2.0 MP Pictures: Captures clear images and fluent video.
• Llums LED ajustables: 7 LED lights with Bluart 2.0 technology for enhanced visibility.
• Impermeable IP67: Suitable for wet environments like drains or shallow water.
• Cable semirígid: 16.5 ft (5M) in length, can be bent and hold its shape for flexible inspection.

Image: The DEPSTECH DS300 Endoscope display unit with the camera probe illustrating the three observation modes: Front Camera, Side Camera, and Dual Camera, which combines both views.

Image: A close-up of the DEPSTECH DS300 camera probe partially submerged in water, highlighting its IP67 waterproof rating. The adjustable LED lights on the probe tip are shown in various brightness settings.

3. Configuració

1. Carregueu el dispositiu: Connect the USB charging cable to the device's charging port and a power source. The built-in battery provides approximately 4 hours of use on a full charge.
2. Inseriu la targeta TF: Locate the TF card slot on the side of the display unit. Insert the provided TF card to enable photo and video recording.
3. Connecteu la sonda de la càmera: Securely connect the semi-rigid camera cable to the designated port on the main display unit.
4. Encès: Press and hold the power button on the display unit for a few seconds until the screen illuminates and the DEPSTECH logo appears.

4. Instruccions de funcionament

Controls bàsics

The display unit features intuitive buttons for easy operation:

• Botó d'encesa: Manteniu premut per encendre/apagar el dispositiu.
• Botó de menú: Accedir a la configuració i les opcions.
• Botó D'acord/Reproduir: Confirma les seleccions o reprodueix els suports gravats.
• Botons de navegació (amunt/avall/esquerra/dreta): Navegueu pels menús i ajusteu la configuració.
• Botó foto/vídeo: Premeu curt per fer una foto, premeu llargament per iniciar/aturar la gravació de vídeo.
• Lens Switch Button (for Dual Lens models): Quickly switch between front, side, and combined dual-lens views.

Ajust de la configuració

From the menu, you can adjust various parameters:

• Resolució: Select desired video/photo resolution (e.g., 1080P).
• Idioma: Trieu el vostre idioma preferit.
• Apagat automàtic: Set the device to automatically power off after a period of inactivity.
• Brillantor de la pantalla: Adjust the display's brightness for optimal viewing.
• LED Light Brightness: Use dedicated buttons on the display unit to cycle through 3 adjustable brightness levels for the camera's LED lights.

Using the Camera Probe

• Posicionament flexible: The semi-rigid cable can be bent and will retain its shape, allowing you to maneuver the camera into tight or angled spaces.
• Canvi Views (Dual Lens models): Utilize the lens switch button to toggle between the front-facing camera, side-facing camera, or a combined dual-view for comprehensive inspection.
• Rotació d'imatge de 180°: For better observation, the image on the screen can be rotated 180° with a dedicated button.

Image: The DEPSTECH DS300 display unit highlighting its 4.3-inch TFT LCD screen and a 170-degree viewing angle, ensuring clear visibility during inspections.

5. Manteniment

• Neteja: After each use, especially in wet or dirty environments, gently clean the camera probe with a soft, damp cloth. Ensure no debris obstructs the lens or LED lights.
• Cura impermeable: While the probe is IP67 waterproof, avoid prolonged submersion in deep water or exposure to corrosive liquids. Ensure the rubber cover for the charging port is securely closed when not in use.
• Cura de la bateria: Recharge the device regularly. For long-term storage, ensure the battery is partially charged (around 50%) to prolong its lifespan.
• Emmagatzematge: Store the endoscope and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures.

6. Solució De Problemes

• Sense energia: Ensure the device is fully charged. If it still doesn't power on, try resetting the device (refer to the full manual for reset instructions).
• Sense imatge a la pantalla: Check if the camera probe is securely connected to the display unit. Ensure the device is powered on.
• Mala qualitat d'imatge: Clean the camera lens. Adjust the LED light brightness. Ensure the camera is within its optimal focal range (1.96~3.93 inches or 5-10cm).
• Congela el dispositiu: Perform a soft reset by pressing the reset button (if available) or powering off and on again.

7. Especificacions

8. Garantia i Suport

For detailed warranty information, technical support, or service inquiries, please refer to the official DEPSTECH weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
