AOPICK 7" LCD Digital Microscope User Manual

Introducció

This manual provides comprehensive instructions for the setup, operation, and maintenance of your AOPICK 7" LCD Digital Microscope. Designed for detailed observation and analysis, this microscope is suitable for various applications including electronic repair, coin identification, and biological observation. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

Four images showing various applications of the digital microscope: clock repair, animal and plant observation, coin identification, and industrial inspection.

Figura 1: The AOPICK digital microscope is versatile, suitable for applications such as clock repair, observing plants and animals, coin identification, and industrial inspection.

Contingut del paquet

AOPICK 7" LCD Digital Microscope Unit
Metal Stand Assembly (Base, Pillar, Holder)
Comandament a distància sense fil
Targeta Micro SD de 32 GB
Cable USB-C
Manual d'usuari (aquest document)

Producte acabatview

Familiarize yourself with the components and key features of your digital microscope.

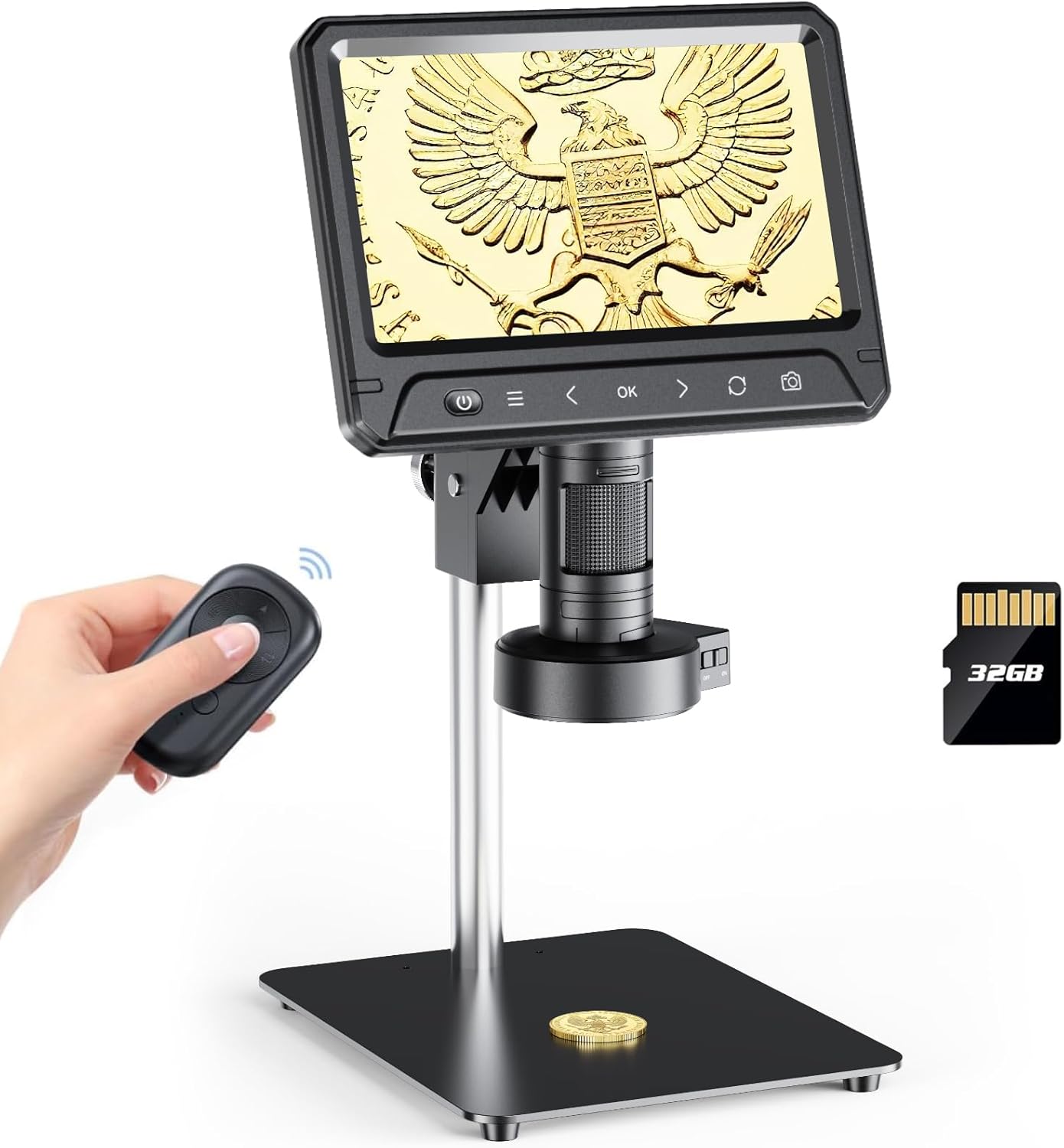

AOPICK 7 inch LCD Digital Microscope with remote control and 32GB SD card

Figura 2: Main components of the AOPICK 7" LCD Digital Microscope, including the display unit, stand, remote control, and Micro SD card.

Product dimensions of the AOPICK 7 inch LCD Digital Microscope

Figura 3: Detailed product dimensions for the AOPICK 7" LCD Digital Microscope, showing height, width, and depth measurements.

Característiques principals:

Pantalla IPS de 7 polzades: Pantalla gran per a comoditat viewing and detailed analysis.
Sensor de càmera de 12 MP: Captures high-resolution images and 1080P HD video.
30-LED Ring Light: Provides uniform and bright illumination for clear observation.
Augment de 50X-1600X: Adjustable magnification for various levels of detail.
Sensitive Touch Control & 2.4G Wireless Remote: Easy and precise operation.
6.9" Metal Workspace: Spacious and stable platform for objects.
Compatibilitat amb PC: Connects to Windows/MacOS for larger display and data analysis.
Photo and Video Functions: Records observations directly to a Micro SD card.
Disseny ergonòmic: Screen rotates 90 degrees for comfortable viewangles d'ajust.
Solid Metal Frame: Durable aluminum alloy construction for stability.

Six magnified images showing different levels of detail from 200X to 1200X magnification, including a bee, an insect eye, a circuit board, fabric, a diamond, and a leaf.

Figura 4: Examples of the 50-1200 times magnification capability, showcasing rich layers and detailed views of various objects.

Configuració

Muntar el suport: Secure the metal pillar to the base. Attach the microscope holder to the pillar.
Mount the Microscope Unit: Slide the microscope display unit into the holder and tighten the securing knob.
Inseriu la targeta Micro SD: Locate the Micro SD card slot on the microscope unit and insert the provided 32GB card until it clicks into place.
Encès: Connect the USB-C cable to the microscope and a power source (e.g., USB adapter, computer USB port). The microscope has a built-in battery; ensure it is charged for portable use.

Instruccions de funcionament

Funcionament bàsic:

Encès/apagat: Press and hold the power button on the microscope unit or remote control to turn the device on or off.
Ajust d'ampliació i enfocament: Rotate the focus knob on the microscope lens to achieve a clear image. Adjust the height of the microscope unit on the stand to change the working distance and overall magnification.
Rotació de pantalla: The 7-inch IPS screen can be rotated up to 90 degrees for optimal viewangles d'ajust.

7 inch HD screen with 90 degree rotation capability

Figura 5: The 7-inch HD screen offers clear picture quality and can be rotated 90 degrees for ergonomic viewing.

Adjusting LED Illumination: The 30-LED ring light provides uniform illumination. Use the controls on the microscope or remote to adjust brightness levels.

30-LED ring light illumination with adjustable brightness

Figura 6: The 30-LED ring light provides comfortable, even illumination without ghosting, with adjustable brightness settings.

Photo and Video Recording:

Press the "Photo" button on the microscope or remote to capture still images.
Press the "Video" button to start and stop video recording.
All captured images and videos are saved to the inserted Micro SD card.

Connexió de PC:

The microscope can be connected to a Windows or MacOS computer for a larger display and data analysis.

Connect the microscope to your computer using the provided USB-C cable.
For Windows, open the default "Windows Camera" application.
For MacOS, open the "Photo Booth" application.
The microscope should be recognized as a webcam, displaying the live feed on your computer screen.

Digital microscope connected to a PC displaying a magnified image

Figura 7: The microscope can be connected to a PC (Windows XP/Vista/7/8/10/11, MacOS X 11.0 or higher) for a larger viewexperiència.

Manteniment

Neteja de la lent i la pantalla: Use a soft, lint-free cloth specifically designed for optical surfaces to clean the lens and screen. Do not use abrasive cleaners or solvents.
Neteja del cos: Wipe the microscope body and stand with a dry or slightly damp tela.
Emmagatzematge: Store the microscope in a clean, dry, and dust-free environment when not in use.
Cura de la bateria: For optimal battery life, avoid fully discharging the battery frequently. Charge the device regularly, especially if stored for long periods.

Diagram showing high capacity lithium battery with 3000mAh, 120 minutes duration of use, and 180 minutes charging time

Figura 8: The microscope is equipped with a high-quality 3000mAh lithium battery, providing approximately 120 minutes of use on a 180-minute charge.

Resolució de problemes

Problema	Causa possible	Solució
Microscope does not power on.	Low battery or power cable not connected.	Charge the battery or ensure the USB-C cable is securely connected to a power source.
La imatge és borrosa.	Incorrect focus or working distance.	Adjust the focus knob and/or the height of the microscope on the stand.
No image on PC when connected.	Incorrect software selected or USB connection issue.	Ensure "Windows Camera" (Windows) or "Photo Booth" (MacOS) is open and the microscope is selected as the camera source. Check USB-C cable connection.
No es poden desar fotos/vídeos.	Micro SD card full, not inserted correctly, or corrupted.	Check if the Micro SD card is properly inserted. Delete old files or replace the card if full/corrupted. Ensure the card is formatted correctly (FAT32).

Especificacions

Característica	Detall
Nom del model	331B
Mida de la pantalla	IPS de 7 polzades
Sensor de càmera	12 megapíxels
Resolució de vídeo	1080P HD
Interval d'ampliació	50X - 1600X
Font de llum	30-LED Ring Light
Emmagatzematge	Micro SD Card (up to 128GB, 32GB included)
Compatibilitat amb PC	Windows XP/Vista/7/8/10/11, MacOS X 11.0 or higher
Capacitat de la bateria	3000 mAh
Material	Aluminum Alloy (Stand), Plastic (Microscope Unit)
Dimensions del producte	11.41 cm de llargada x 5.11 cm d'amplada x 13.85 cm d'alçada
Pes de l'article	4.6 lliures

Garantia i Suport

For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official AOPICK weblloc web. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.

Recursos en línia:
