vidaXL Reclining Massage Armchair Instruction Manual

Introducció

This manual provides detailed instructions for the assembly, operation, and maintenance of your vidaXL Reclining Massage Armchair. Please read this manual thoroughly before use to ensure proper function and longevity of your product.

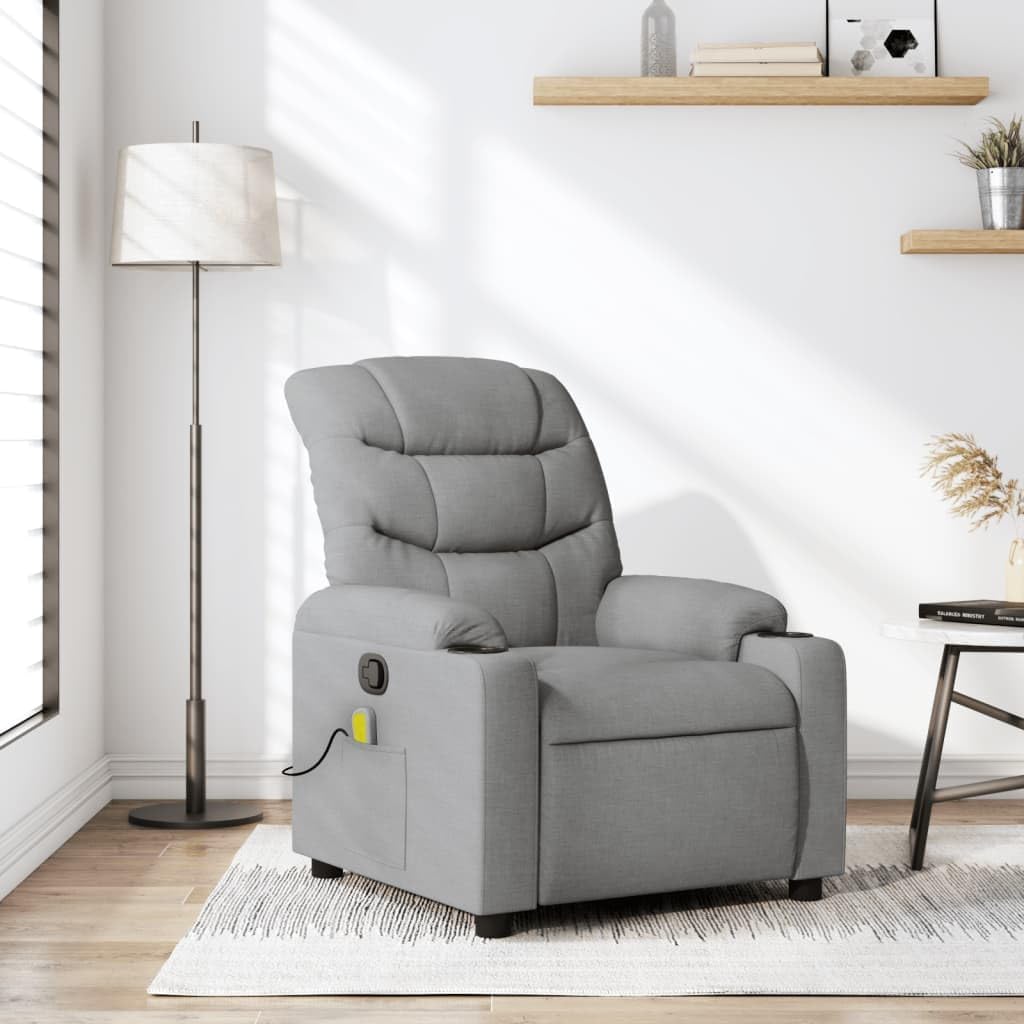

Image: The vidaXL Reclining Massage Armchair in light grey fabric, positioned in a modern living room with a floor lamp and side table.

Instruccions de seguretat

• Assegureu-vos que tots els components siguin presents i no estiguin danyats abans del muntatge.
• Follow assembly instructions carefully. Do not overtighten screws.
• Keep children and pets away from the armchair during assembly.
• Do not stand on the armchair.
• Do not expose the armchair to direct sunlight or extreme temperatures.
• Disconnect the massage function's USB power when not in use or during cleaning.
• Maximum weight capacity: 110 kg. Do not exceed this limit.

Contingut del paquet

Please verify that all parts are included in your package. Refer to the assembly diagram for a complete list of components.

• Armchair base and backrest components
• Armrests with integrated cup holders
• Reclining mechanism handle
• Massage remote control with USB cable
• Ferramenteria de muntatge (cargols, perns, etc.)
• Manual d'instruccions

Muntatge i muntatge

Assembly is required for this armchair. It is recommended to have two people for assembly. Ensure you have enough space to assemble the chair.

1. Desembaleu tots els components i col·loqueu-los sobre una superfície suau i neta per evitar ratllades.
2. Attach the backrest to the seat base, ensuring the connection points align. Secure with provided hardware.
3. Attach the armrests to the main body of the chair. Ensure the cup holders are facing outwards.
4. Connect the reclining mechanism handle to the designated slot on the side of the armchair.
5. Insert the feet into the base of the armchair.
6. Connect the USB cable from the massage unit to the remote control.
7. Once assembled, gently test the reclining function and stability before full use.

Image: A technical diagram illustrating the dimensions of the armchair in both upright and reclined positions, including the reclining angle.

Instruccions de funcionament

Funció reclinable

The armchair features a manual reclining mechanism.

• To recline: Locate the handle on the right side of the armchair. Pull the handle to release the footrest and recline the backrest. Adjust to your desired position, up to a maximum of 135 degrees.
• To return to upright position: Pull the handle again and push the backrest forward with your body weight until it locks into place.

Image: A sequence of three images demonstrating the armchair's reclining capability, showing it moving from an upright position to a fully reclined position with the footrest extended.

Funció de massatge

The armchair is equipped with a 6-point vibration massage function controlled by a remote.

• Power Source: The massage function is powered via a USB connection. A certified 5V USB power adapter (not included) is required. Connect the USB cable from the armchair to the adapter, then plug the adapter into a power outlet.
• Remote Control: Use the provided remote control to operate the massage function.
• Settings: The remote allows you to select from 3 intensity levels, target 3 different massage positions, and choose from 5 massage modes.
• Storage: The remote control can be stored in the side pocket of the armchair when not in use.

Imatge: Una imatge detallada view of the massage remote control, highlighting its buttons for adjusting massage intensity (3 levels), position (3 areas), and mode (5 types).

Manteniment

• Cleaning: For general cleaning, use a soft, damp cloth. For spills or stains, spot clean immediately with a mild fabric cleaner. Test the cleaner on an inconspicuous area first.
• Avoid harsh chemicals: Do not use abrasive cleaners or strong chemical solvents, as these can damage the fabric and finish.
• Dusting: Regularly dust the armchair with a soft cloth or vacuum with a brush attachment.
• Inspection: Periodically check all screws and bolts to ensure they are tight. Retighten if necessary.

Image: A close-up of the premium fabric upholstery, emphasizing its breathable, soft, and wear-resistant characteristics.

Resolució de problemes

• Armchair does not recline: Ensure the reclining handle is fully pulled. Check for any obstructions under the footrest or behind the backrest.
• Massage function not working: Verify that the USB cable is securely connected to both the armchair and a functional 5V USB power adapter. Ensure the power adapter is plugged into a live electrical outlet.
• La cadira sembla inestable: Check all assembly hardware (screws, bolts) and tighten any loose connections. Ensure the armchair is placed on a flat, even surface.

Especificacions

Garantia i Suport

For warranty information or technical support, please refer to the purchase documentation or contact vidaXL customer service directly. Keep your proof of purchase for any warranty claims.

You can find more information and contact details on the official vidaXL weblloc: www.vidaxl.com
