Introducció
Thank you for choosing the NPET WF220 Wireless Cat Water Fountain. This manual provides detailed instructions for the safe and efficient use, maintenance, and troubleshooting of your new pet water fountain. Please read this manual thoroughly before first use and retain it for future reference.
Producte acabatview
The NPET WF220 is a 1.5L/50oz wireless pet water fountain designed to provide fresh, filtered water for your cats. Its battery-operated design allows for flexible placement, and the multi-stage filtration system ensures water quality. Key features include a wireless pump, dual water modes, and an auto shut-off function for safety.

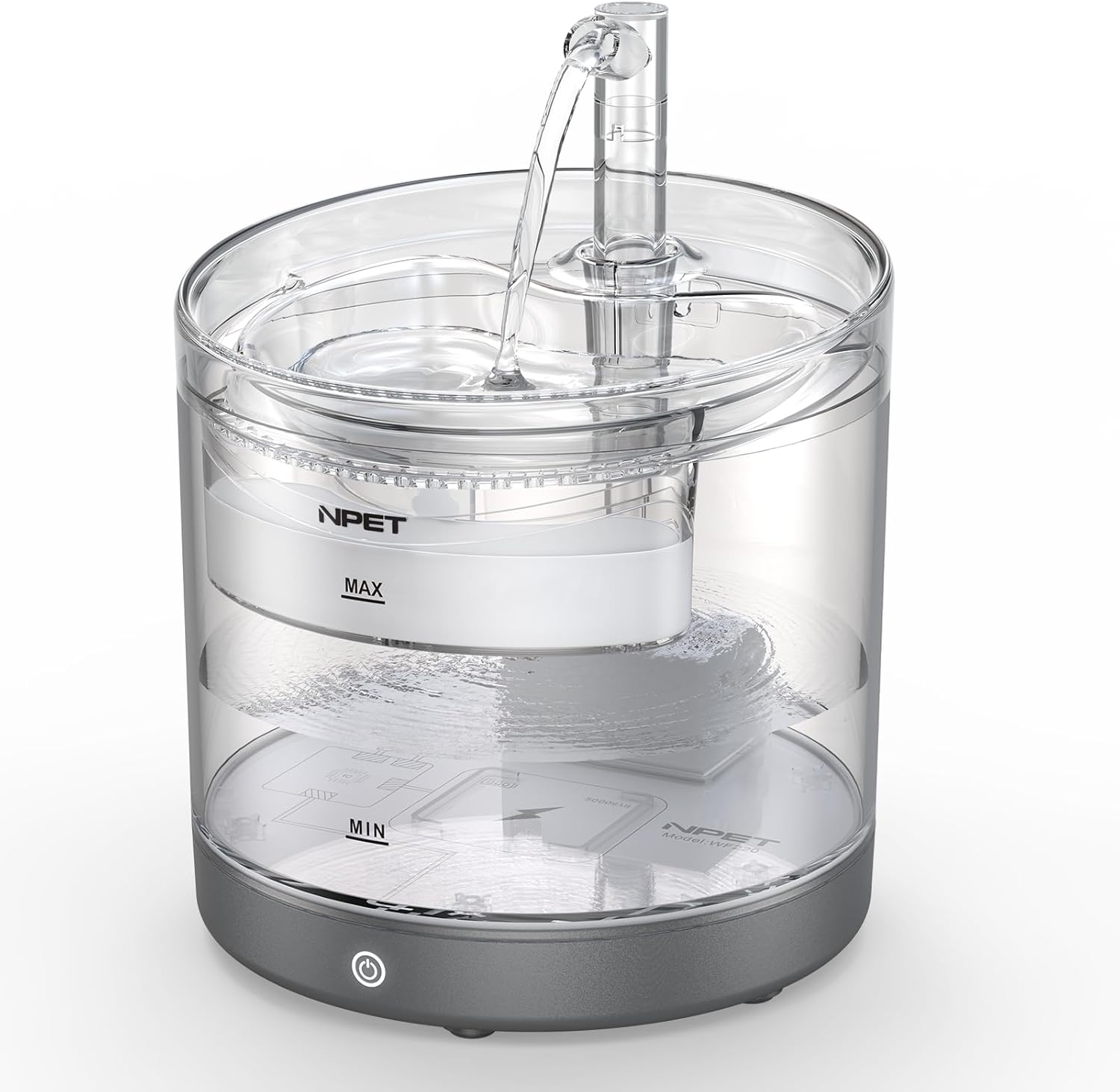

Imatge: Frontal view of the NPET WF220 Wireless Cat Water Fountain, showing its transparent reservoir and gray base.
Contingut del paquet
Si us plau, comproveu el contingut del paquet per assegurar-vos que hi hagi tots els elements:
- NPET WF220 Water Fountain Unit (Reservoir, Base, Lid)
- Bomba sense fil
- Safata de filtre
- Multi-stage Filtre
- Faucet/Spout attachment
- Cable USB-Type C
- Adaptador d'alimentació
- Manual d'usuari (aquest document)
Instruccions de configuració
Follow these steps to set up your NPET WF220 water fountain:
- Prepareu el filtre: Immerse the multi-stage filter in clean water for approximately 5-10 minutes before first use. This helps to remove any loose carbon dust and ensures optimal filtration.
- Instal·leu el filtre i la safata: Place the prepared filter into the filter tray. Ensure it is seated correctly.
- Instal·leu l'aixeta: Attach the faucet/spout to the designated opening on the filter tray.
- Col·loca la bomba: Position the wireless pump onto the charging pad located at the bottom of the fountain reservoir. Ensure it is securely placed.
- Afegeix aigua: Fill the reservoir with clean water up to the "MAX" line. Do not exceed the maximum fill line. Then, place the lid (with the filter tray and faucet assembled) onto the reservoir.
- Encès: Press and hold the power button on the base of the fountain for 2 seconds to turn it on.
Image: Visual guide illustrating the 6-step installation process, from filter preparation to powering on the fountain.
Càrrega de la font
The fountain is equipped with a 5,000mAh built-in rechargeable battery. To charge:
- Connect the provided USB Type-C cable to the charging port on the base of the fountain and the other end to the power adapter.
- Connecteu l'adaptador a una presa de corrent.
- A bicolour indicator light will flash alternately when the battery is low or charging. A full charge takes approximately 4 hours and can provide power for up to 30 days in intermittent mode.
Image: Detail of the Type-C charging port and the power indicator light on the fountain's base.
Instruccions de funcionament
The NPET WF220 offers dual water modes to suit your pet's needs:
- Mode intermitent: In this mode, the fountain will automatically run for 5 seconds every 10 minutes. This mode is designed to attract your pet's attention and conserve battery life. It also runs for 1 minute every 2 hours to keep the drinking area clean. This is the primary mode when operating on battery power.
- Mode normal: When the fountain is continuously connected to a power supply (plugged in), it will operate in normal mode, providing a continuous flow of water. This ensures constant hydration for your pets.
To switch between modes or turn the fountain on/off, briefly press the power button on the base. The indicator light will change to reflect the current mode.
Image: Illustration detailing the three operational modes of the fountain, including sensor, timed, and continuous flow options.
Wireless Placement
The wireless, battery-operated design allows you to place the fountain in various locations without external wires, such as the kitchen, bedroom, or living room. This prevents safety issues from chewed wires and offers convenience.
Imatge: Examples of the NPET WF220 fountain placed in different indoor environments like a bedroom, living room, and kitchen, highlighting its wireless design.
Manteniment
La neteja i el manteniment regulars són crucials per a la longevitat de la font i la salut de la teva mascota.
Neteja de la font
The NPET WF220 is made of BPA-free material and has an IPX6 waterproof rating, allowing for easy cleaning. However, dishwasher cleaning is strictly forbidden.
- Disassemble the fountain by removing the lid, filter tray, and pump.
- Wash all components (except the pump) with mild soap and water. Rinse thoroughly.
- The tank's bottom is not removable. Clean it manually.
- Assegureu-vos que totes les peces estiguin seques abans de tornar a muntar.
Image: A person demonstrating the manual cleaning of the fountain under running water in a sink.
Filter System and Replacement
The fountain uses a quintuple purification system:
- High-density sponge: Catches hair and food residues.
- Activated carbon: Effectively removes odors.
- Ion exchange resin: Softens tap water.
- Medical stone: Removes heavy metals.
- Non-woven fabric: Prevents mucus production.
Filters should be replaced regularly, typically every 2-4 weeks, depending on the number of pets and water quality. Rinse the filter weekly to remove accumulated fur.
Imatge: Explosió view diagram showing the five layers of the filtration system: high-density sponge, activated carbon, ion exchange resin, medical stone, and non-woven fabric.
Neteja de bombes
It is recommended to clean the pump at least once a week to ensure optimal performance and prevent blockages.
- Remove the sponge, pump cover, and impeller cap from the pump.
- Retireu amb cura l'impel·lent.
- Clean all components, including the impeller and the pump's interior, using a small brush (often included with replacement filters) and water.
- Reassemble the pump, ensuring all parts are securely in place.
Image: Step-by-step visual guide for disassembling and cleaning the pump components, including the sponge, impeller cap, and impeller.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La font no subministra aigua. |
|
|
| Red light indicator is on. |
|
|
| El flux d'aigua és feble o inconsistent. |
|
|
| La font fa soroll. |
|
|
Imatge: Una imatge detallada view of the pump with a red indicator light, signifying a water shortage and the auto shut-off feature.
Especificacions
| Nom del model | WF220 |
| Marca | NPET |
| Capacitat | 1.5 Liters / 50 Ounces |
| Material | BPA-free Resin |
| Dimensions de l'article (LxWxH) | 6.8 x 6.8 x 6.7 polzades |
| Pes de l'article | 1.3 lliures |
| Bateria | Polímer de liti de 5,000 mAh (inclòs) |
| Temps de càrrega | Aprox. 4 hores |
| Nivell impermeable | IPX6 |
| Nivell de soroll | Per sota de 30 dB |
Garantia i Suport
Informació de la garantia
The NPET WF220 Wireless Cat Water Fountain comes with a garantia d'un any des de la data de compra. Aquesta garantia cobreix els defectes de fabricació en condicions d'ús normal. No cobreix els danys causats per un mal ús, accidents, modificacions no autoritzades o incompliment de les instruccions d'aquest manual.
Atenció al client
For technical assistance, warranty claims, or any questions regarding your NPET WF220 water fountain, please contact NPET customer support. Refer to the product packaging or the official NPET weblloc web per obtenir la informació de contacte més actualitzada.
