Manual d'usuari de regleta d'endolls de paret Kungfuking amb USB (model: B0CT5QM5KD)

1. Producte acabatview

The Kungfuking Wall Mount Power Strip with USB is designed to provide convenient power access and charging capabilities for multiple devices. This unit features 3 standard AC outlets, 2 USB-A ports with QC 3.0 fast charging, and 1 USB-C port with 18W power delivery. It includes surge protection and a 6-foot extension cord, making it suitable for various mounting applications such as under desks, on walls, or on tabletops.

Característiques principals:

• 3 preses de corrent alterna: Provides standard power connections for electronic devices (100V-125V, 12A=1500W).
• 3 ports USB: Includes 2 QC 3.0 USB-A ports and 1 18W USB-C port for fast charging of compatible devices.
• Protecció contra sobretensions: Protegeix els dispositius connectats de les sobretensions.
• Disseny muntable: Features mounting holes for secure installation on various surfaces (walls, desks, table legs).
• Cable d'extensió de 6 peus: Ofereix flexibilitat en la col·locació.
• Llistat UL: Certified for safety standards.

Figura 1: Frontal view of the Kungfuking Wall Mount Power Strip, showing 3 AC outlets, 2 USB-A ports, 1 USB-C port, an on/off switch, and the coiled 6-foot power cord.

2. Instruccions de seguretat importants

Si us plau, llegiu i seguiu atentament totes les instruccions de seguretat abans d'utilitzar aquest producte per evitar lesions o danys.

• No supereu la capacitat de càrrega màxima de 12 A / 1500 W.
• This product is for indoor use only. Do not expose to moisture or use in wet environments.
• No desmunteu ni modifiqueu el reglet d'endolls. Encarregueu tot el manteniment a personal qualificat.
• Mantenir allunyat de nens i animals de companyia.
• Assegureu-vos que el cable d'alimentació estigui completament inserit en una presa de corrent amb connexió a terra.
• Avoid running the power cord under carpets or in areas where it can be tripped over or damaged.
• If the power strip shows signs of damage, discontinue use immediately.
• The surge protector feature protects against power surges; however, it is not a substitute for proper grounding or protection against direct lightning strikes.

3. Configuració i instal·lació

The Kungfuking Wall Mount Power Strip offers flexible installation options. Choose the method that best suits your needs.

Instruccions de muntatge:

1. Seleccioneu una ubicació: Choose a flat, stable surface for mounting, such as a wall, under a desk, or on table legs. Ensure the location is dry and free from obstructions.
2. Marqueu els punts de muntatge: Position the power strip in the desired location. Use a pencil to mark the positions of the four mounting holes located on the flanges at each end of the power strip.
3. Drill Pilot Holes (if necessary): Depending on the mounting surface material, you may need to drill small pilot holes at the marked points. Use an appropriate drill bit size for the screws provided (or suitable screws for your surface).
4. Fixeu la regleta d'endolls: Align the mounting holes on the power strip with the pilot holes (or marks) and secure the unit using screws. Ensure the power strip is firmly attached and does not wobble.
5. Connecteu-vos a l'alimentació: Plug the 6-foot extension cord into a standard grounded wall outlet.

Figure 2: Illustration of the power strip's mounting holes for secure installation.

Figura 3: Examples of mounting locations: tabletop, under desk, and table legs.

4. Instruccions de funcionament

Once installed and connected to power, the power strip is ready for use.

Encès/apagat:

• Locate the red ON/OFF switch on the power strip.
• Press the switch to the "ON" position to supply power to the outlets and USB ports. The switch will illuminate when power is active.
• Press the switch to the "OFF" position to cut power to all connected devices.

Ús de preses de corrent altern:

• Plug your electronic devices directly into the 3 AC outlets.
• Ensure that the total power consumption of all connected devices does not exceed 1500W.

Ús dels ports de càrrega USB:

• USB-A Ports (QC 3.0): Connect compatible devices using a USB-A cable for fast charging. These ports support Quick Charge 3.0 for accelerated charging speeds.
• USB-C Port (18W): Connect compatible devices using a USB-C cable for 18W power delivery. This port is suitable for charging smartphones, tablets, and other USB-C powered devices.
• The USB ports provide power automatically when a device is connected and the power strip is on.

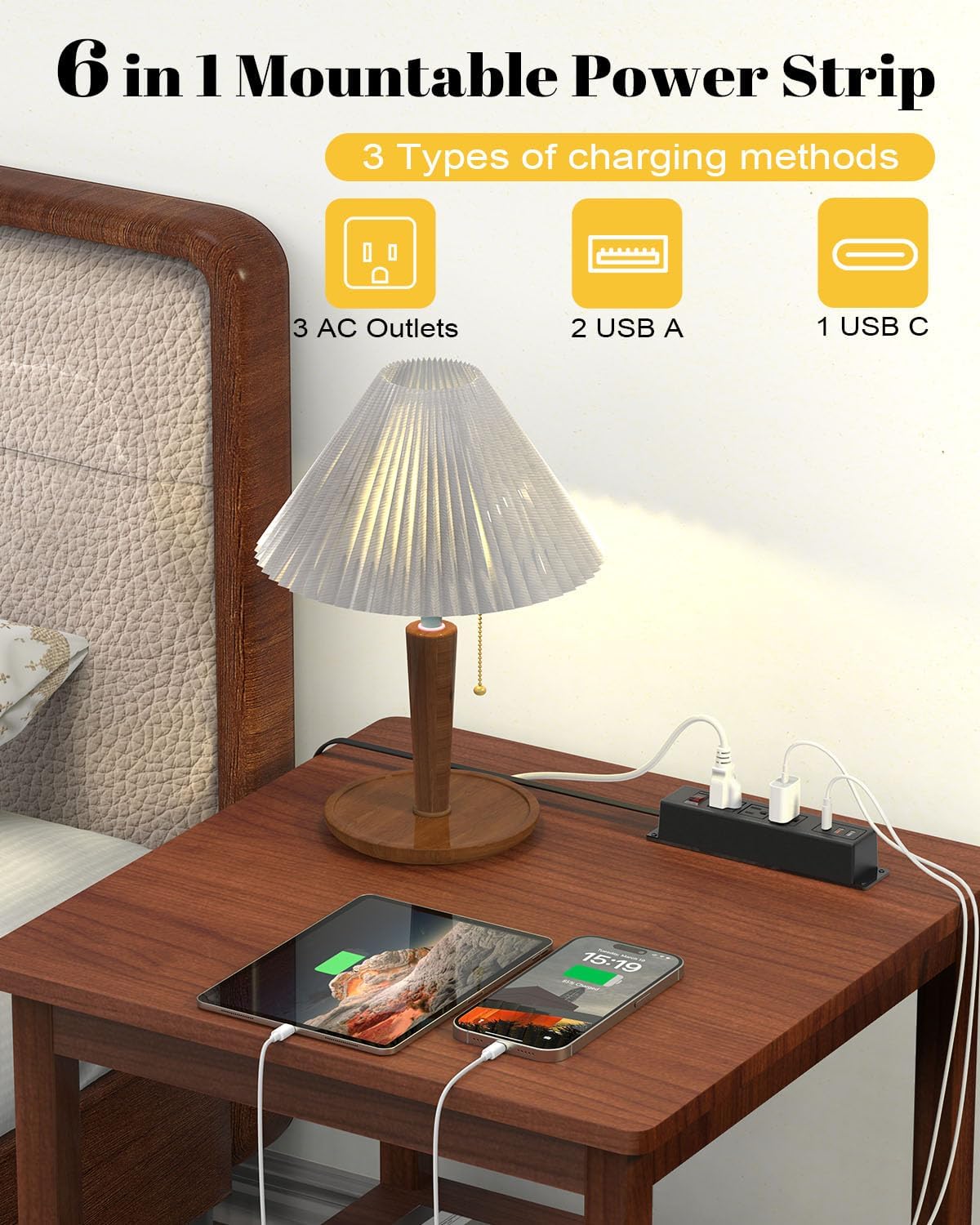

Figure 4: The power strip providing power to a lamp, phone, and tablet via AC and USB ports.

Figure 5: A device charging rapidly via the 18W USB-C port.

5. Manteniment

Proper maintenance ensures the longevity and safe operation of your power strip.

• Neteja: Desconnecteu el reglet de la presa de corrent abans de netejar-lo. Feu servir un drap sec i suau per netejar l'exterior. No utilitzeu netejadors líquids ni aerosols.
• Inspecció: Periodically inspect the power cord and the power strip for any signs of damage, such as frayed wires, cracks, or loose connections. If damage is found, discontinue use and replace the unit.
• Emmagatzematge: If storing the power strip, ensure it is disconnected from power and stored in a dry, cool place away from direct sunlight.

6. Solució De Problemes

Si teniu problemes amb el vostre reglet d'endolls, consulteu els següents problemes i solucions habituals:

7. Especificacions

8. Garantia i Suport

For warranty information or technical support, please contact Kungfuking customer service. You can find more information and contact details on the official Kungfuking store page:

Visit the Kungfuking Store on Amazon
