Bewinner A4 Thermal Printer Bluetooth - User Manual

1. Introducció

This manual provides essential instructions for the safe and efficient operation of your Bewinner A4 Thermal Printer. This portable, inkless printer utilizes thermal technology to produce high-quality prints from your mobile devices. Please read this manual thoroughly before use and retain it for future reference.

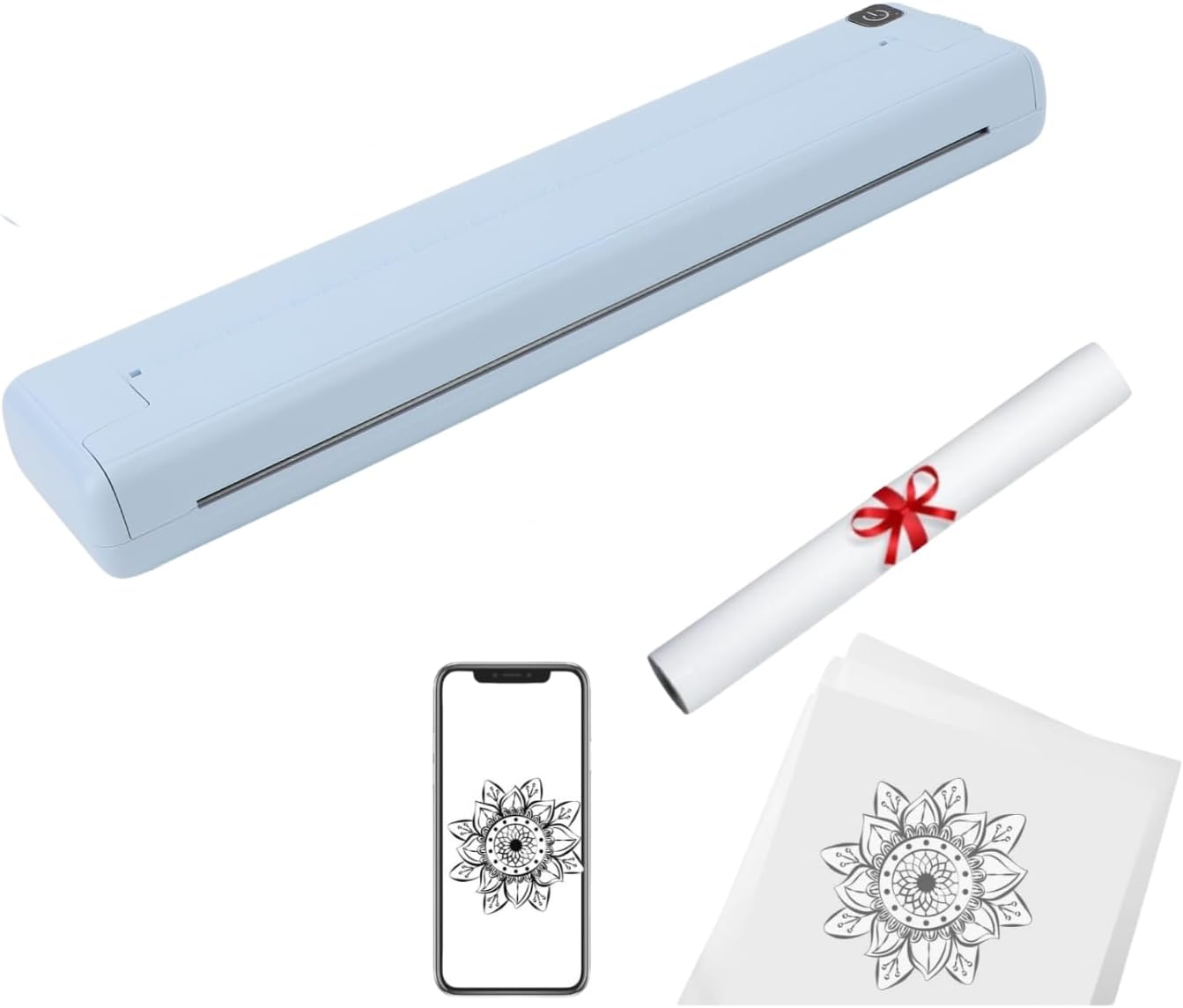

The Bewinner A4 Thermal Printer, showcasing its compact design and a roll of thermal paper, ready for use.

2. Informació de seguretat

• Do not charge or use the printer in hot, humid, or dusty environments.
• Always charge the device using a 5V/2A power adapter.
• Avoid direct contact with the print head immediately after printing, as it may be hot.
• Insert the charging cable carefully to prevent excessive force from damaging the interface.

3. Contingut del paquet

Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:

• 1 x Portable Wireless Printer (Host)
• 1 x cable de càrrega
• 1 x Manual d'usuari

The Bewinner A4 Thermal Printer along with its USB charging cable, as typically included in the package.

4. Producte acabatview

Familiaritzeu-vos amb els components principals de la vostra impressora:

• Feed Hole: Where thermal paper is inserted.
• Interruptor d'alimentació: Used to turn the printer on and off.
• Port de càrrega: Type-C port for connecting the charging cable.
• Exit Hole: Where printed paper exits the device.
• Botó Obrir: Releases the cover for paper loading or jam clearance.

The printer in operation, demonstrating paper feeding and wireless connectivity.

The printer in a typical portable setup, printing a document next to a laptop.

5. Configuració

5.1. Càrrega de la impressora

Connect the provided USB charging cable to the printer's Type-C charging port and a 5V/2A power adapter. The red pilot lamp indicates charging. A full charge takes approximately 1.5 hours.

5.2. Càrrega de paper tèrmic

1. Press the cover release button to open the flap assembly.
2. Insert the thermal paper into the feed hole, ensuring it is aligned correctly.
3. Gently push the paper until the printer mechanism grips it.
4. Close the flap assembly securely.

Important: Do not force the paper, as this may damage the printer. Use thermal paper with a width of 210mm or 218mm.

6. Instal·lació de l'aplicació

To use the printer with your smartphone, you need to install the 'iPrint' application:

• Per als usuaris d'Apple iOS: Cerca "iPrint" in the App Store and download the application.
• Per a usuaris d'Android: Cerca "iPrint" in the Google Play Store and download the application.

7. Connexió Bluetooth

Follow these steps to connect your printer via Bluetooth:

1. Ensure your printer is powered on (indicator light is steady).
2. Activa el Bluetooth al teu telèfon mòbil.
3. Open the 'iPrint' application.
4. Within the app, navigate to the "Select Device" section or similar option.
5. Click on the Bluetooth name of your printer, typically displayed as "GT08".
6. If the device is not shown, click the "Refresh" button within the app and try again.

The iPrint application interface on a smartphone, showing the device selection screen.

8. Instruccions de funcionament

8.1. Encendre/apagar

• Encès: Long press the power button for approximately 3 seconds until the indicator light illuminates.
• Tancament: Long press the power button for approximately 3 seconds until the indicator light turns off. The printer will automatically shut down after 30 minutes of inactivity.

8.2. Impressió

Once connected via Bluetooth and with paper loaded, you can initiate printing from the 'iPrint' application. Select the document or image you wish to print and follow the on-screen prompts within the app.

A close-up of the printer producing a document, demonstrating the clarity of the 200 DPI thermal print.

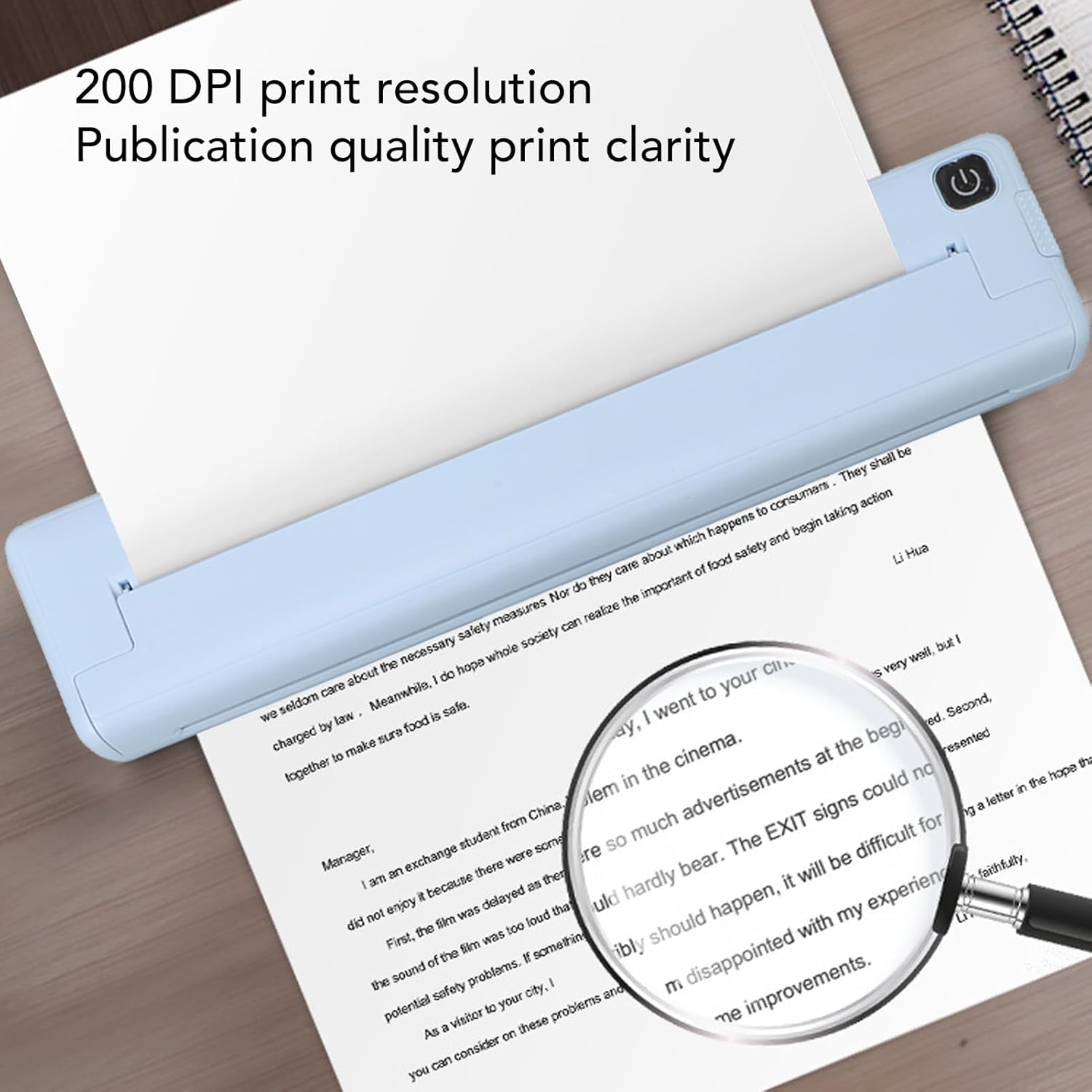

A magnifying glass inspecting a printed document, illustrating the 200 DPI resolution and print quality.

9. Manteniment

9.1. Neteja del capçal d'impressió

If print quality degrades or words appear faded, the print head may be smudged. Gently wipe the print head with an alcohol wipe to clean it. Ensure the printer is off and cooled down before cleaning.

10. Solució De Problemes

• Q: No device is found when I add a device to the APP?
  A: Please check if the device is turned on and ensure Bluetooth is working on your phone.
• P: Què puc fer si el meu dispositiu no pot imprimir?
  A: Confirm that your mobile phone's Bluetooth is enabled and that no other devices are connected to the printer. Check if thermal paper is jammed. If the print head is overheating, wait for it to cool down before attempting to print again.
• Q: Why is the printout all white, with no content?
  A: This may be due to incorrect installation of the print head. Please refer to the instructions for reinstalling the print head or paper.
• Q: Why do the printed words fade?
  A: Check if the device has low power. Also, the print head might be covered with smudges; wipe it gently with an alcohol wipe.

11. Especificacions

Detailed dimensions of the Bewinner A4 Thermal Printer.

12. Garantia i Suport

This product comes with a limited warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact Bewinner customer support. For technical assistance or further inquiries, please visit the official Bewinner weblloc web o contacteu amb els seus canals d'atenció al client.
