Manual d'usuari de la bicicleta elèctrica Razor RSF650

1. Producte acabatview

The Razor RSF650 Electric Bike is designed for riders aged 16 and up, offering an exciting electric riding experience. It features a 650-watt high-torque, chain-driven motor, a durable steel trellis-frame chassis, and a 36V rechargeable battery. This manual provides essential information for the safe assembly, operation, and maintenance of your RSF650.

Image: The Razor RSF650 Electric Bike, showcasinel seu disseny i components.

2. Informació important de seguretat

WARNING: Riding an electric bike can be a hazardous activity. Always wear appropriate safety gear, including a helmet, elbow pads, and knee pads. Adult supervision is recommended for younger riders, even if they meet the age requirement.

• Requisit d'edat: Suitable for riders aged 16 and up.
• Límit de pes: Maximum rider weight is 220 lbs (100 kg).
• Equip de protecció: Always wear a properly fitted helmet, and other protective gear.
• Entorn de conducció: Ride in safe, open areas away from vehicular traffic. Avoid riding on public roads, uneven terrain, or near water.
• Comprovació prèvia a la conducció: Before each ride, inspect the brakes, tires, and all connections to ensure they are secure and functioning correctly.
• Seguretat de la bateria: Use only the charger provided. Do not modify the electrical system. Keep the battery away from extreme temperatures.

3. Components inclosos

Your Razor RSF650 package includes the following items:

• Razor RSF650 Electric Bike
• Carregador de bateria
• Manual del propietari (aquest document)

Imatge: Lateral view of the RSF650, highlighting the frame and battery compartment.

4. Muntatge i configuració inicial

The Razor RSF650 comes largely pre-assembled. The primary assembly step involves attaching the handlebars. Ensure all connections are secure before initial use.

4.1 Instal·lació del manillar

1. Traieu amb cura la bicicleta del seu embalatge.
2. Locate the handlebars and align them with the triple clamp on the front fork.
3. Secure the handlebars using the provided bolts and tools. Ensure they are centered and tightened firmly to prevent movement during operation.

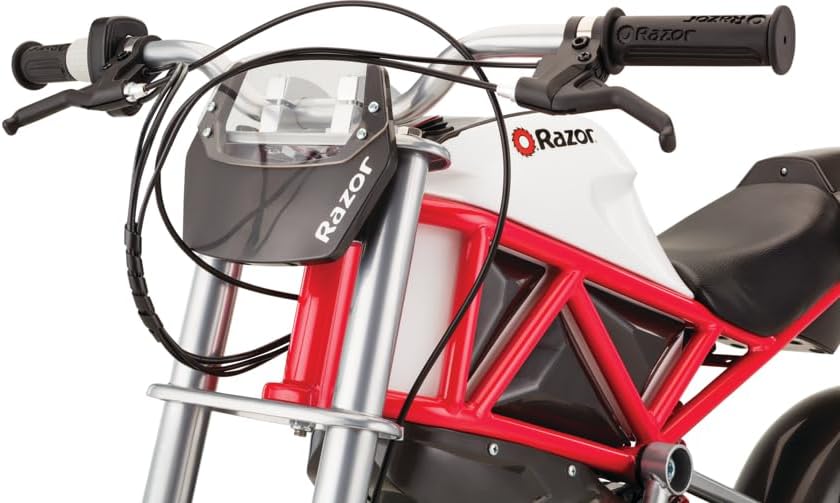

Image: Close-up of the RSF650 handlebars, showing the controls and front assembly.

4.2 Càrrega de la bateria

The RSF650 is powered by a 36V sealed lead-acid rechargeable battery. For optimal performance and battery longevity, follow these charging instructions:

1. Before first use, fully charge the battery for a minimum of 12 hours.
2. Connect the charger to the charging port, typically located near the battery compartment.
3. Plug the charger into a standard wall outlet. The charger indicator light will show the charging status (e.g., red for charging, green for fully charged).
4. Subsequent charges typically take 8-10 hours. Do not overcharge the battery.
5. The battery compartment is designed for quick access, allowing for easy battery removal if needed for charging or replacement.

5. Instruccions de funcionament

Familiarize yourself with the controls and practice in a safe, open area before attempting higher speeds.

5.1 Starting the Bike

1. Ensure the battery is fully charged and properly installed in its compartment.
2. Locate and turn on the main power switch.
3. Place both feet on the folding foot pegs.

5.2 Acceleration and Braking

1. To accelerate, gently twist the right-hand grip (variable speed twist-grip throttle) towards you.
2. To slow down or stop, release the throttle and apply the hand-operated rear disc brakes. Practice smooth acceleration and braking.

5.3 Consells per muntar a cavall

• Maintain a balanced posture.
• Mantingueu les dues mans al manillar en tot moment.
• Be aware of your surroundings and potential obstacles.
• The RSF650 can reach speeds up to 17 MPH and offers up to 50 minutes of continuous ride time, depending on rider weight and terrain.

Image: A rider demonstrating the use of the Razor RSF650 Electric Bike.

6. Manteniment

Regular maintenance ensures the longevity and safe operation of your RSF650.

• Cura de la bateria: Always recharge the battery after each use. If the bike is not used for extended periods, charge the battery at least once a month.
• Pressió dels pneumàtics: Check tire pressure regularly. The 14-inch 10-spoke mag wheels are fitted with street tires; refer to the tire sidewall for recommended pressure.
• Frens: Inspect the hand-operated rear disc brakes for proper function and wear. Adjust or replace brake components as needed.
• Cadena: Keep the chain clean and lubricated to ensure smooth power delivery.
• Neteja: Netegeu la bicicleta amb un damp cloth. Avoid using harsh chemicals or high-pressure water sprays, which can damage electrical components.
• Emmagatzematge: Store the bike in a dry, cool place, away from direct sunlight and extreme temperatures.

7. Solució De Problemes

This section addresses common issues you might encounter with your Razor RSF650.

If you encounter issues not listed here or if solutions do not resolve the problem, please contact Razor customer support.

8. Especificacions del producte

9. Garantia i atenció al client

9.1 Garantia del fabricant

The Razor RSF650 Electric Bike is covered by a Garantia limitada del fabricant d'2 any. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full details regarding warranty terms, conditions, and exclusions, refer to the official warranty documentation included with your product or visit the official Razor weblloc.

9.2 Atenció al client

For technical assistance, replacement parts, or any questions regarding your Razor RSF650, please contact Razor customer service. Contact information can typically be found on the Razor weblloc web o a l'embalatge del producte.

Razor USA, LLC
Phone: +1 866 467 2967 (for US and Canada)
Weblloc: www.razor.com
