Nilight JK-222A LED Tail Lights User Manual

1. Producte acabatview

The Nilight JK-222A LED Tail Lights are designed as a direct replacement for 2007-2018 Jeep Wrangler JK and JKU models. These DOT-approved lights feature a smoked lens and provide multiple lighting functions for enhanced visibility and safety.

Característiques principals:

• Quality LED Illumination: Each light contains 85 pieces of 2835 red LEDs for running, brake, and turn signals, and 3 pieces of 3030 white LEDs for reverse lighting.
• Multifuncionalitat: Provides low brightness red running light, high brightness red brake and turn signals, white reverse lights, and red side marker lights.
• Construcció duradora: Features a smoked PMMA lens and robust ABS housing, designed to be impact-resistant and long-lasting.
• Disseny impermeable: The lights are sealed and waterproof, ensuring reliable performance in various weather conditions.
• Instal·lació Plug and Play: Engineered for quick and straightforward installation without complex wiring modifications.

Imatge 1.1: acabatview of Nilight JK-222A LED Tail Light functions.

2. Què hi ha a la caixa

En obrir el paquet, comproveu que tots els components hi són i no estan danyats:

• 2 x Nilight JK-222A LED Tail Lights (Left and Right)
• Brackets and accessories for resistor installation

Image 2.1: Package contents showing two tail lights and installation hardware.

3. Instruccions d'instal·lació

Follow these steps for a quick and easy installation. No additional wiring is required; this is a plug-and-play system.

1. Step 1: Remove Old Tail Light
   Use a screwdriver to loosen the four screws securing the existing tail light assembly on your Jeep Wrangler.
2. Step 2: Disconnect Old Tail Light
   Carefully remove the old tail light assembly from the vehicle. Disconnect the electrical plug from the old light.
3. Step 3: Connect New Tail Light and Resistor
   Insert the new Nilight JK-222A LED Tail Light's electrical plug into the vehicle's harness. Secure the included resistor in a suitable position using the provided hardware and brackets. Ensure the resistor is not placed near plastic or wires, as it can get hot during operation and may cause damage.
4. Step 4: Secure New Tail Light
   Align the new tail light assembly and tighten the screws to secure it firmly in place. Test all light functions (running, brake, turn signal, reverse) to ensure proper operation.

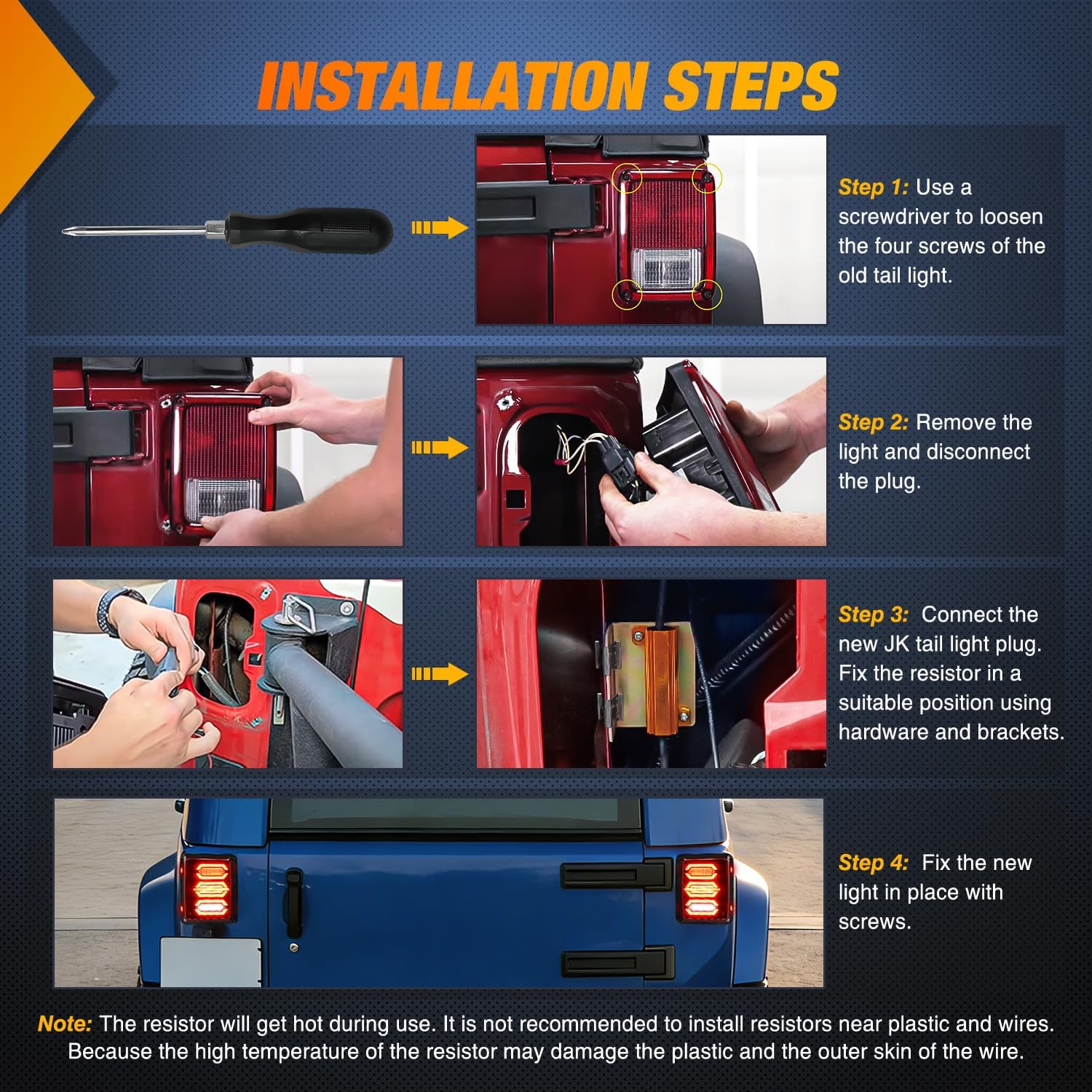

Image 3.1: Visual guide for the 4-step installation process.

Image 3.2: Plug and Play connection detail.

4. Instruccions de funcionament

The Nilight JK-222A LED Tail Lights operate automatically with your vehicle's existing lighting controls. No special operating procedures are required beyond standard vehicle operation.

Modes de llum:

• Running Light: Low brightness red light, active when headlights are on.
• Llum de fre: High brightness red light, active when the brake pedal is pressed.
• Llum de senyal de gir: High brightness red light, flashes when turn signal is activated.
• Reverse Light: 6500K white light, active when the vehicle is in reverse gear.
• Side Marker Light: Red light on the side of the assembly for additional visibility.

Image 4.1: Demonstration of various light modes.

5. Manteniment

These LED tail lights are designed for minimal maintenance. To ensure longevity and optimal performance:

• Regularly clean the lens with a soft cloth and mild soap solution to remove dirt and debris. Avoid abrasive cleaners.
• Inspect the wiring and connections periodically for any signs of wear or damage.
• The sealed design prevents moisture ingress, but ensure the housing remains intact.

Image 5.1: Tail lights operating effectively in various weather conditions.

6. Solució De Problemes

If you encounter issues with your Nilight JK-222A LED Tail Lights, consider the following common solutions:

• Llums que no funcionen: Check the electrical connection to ensure it is securely plugged in. Verify that the vehicle's fuses related to tail lights are intact.
• Llums parpellejants o tènues: This could indicate a loose connection or an issue with the resistor. Re-check connections and ensure the resistor is properly installed.
• Hyper Flashing (Rapid Turn Signals): While the product is designed to be plug-and-play, some vehicle's electrical systems may require additional load resistors to prevent hyper-flashing with LED turn signals. Ensure the provided resistors are correctly installed.
• Humitat dins de la lent: Although sealed, extreme temperature changes can sometimes cause temporary condensation. If persistent moisture is observed, inspect the housing for cracks or damage.

If problems persist after attempting these steps, please contact Nilight customer support.

7. Especificacions

Image 7.1: Material and design overview.

Image 7.2: Visual comparison of tail light appearance.

8. Garantia i Suport

Nilight products are designed for quality and durability. For specific warranty information, please refer to the product packaging or the official Nilight website. If you require technical assistance, have questions about installation, or need to report a defect, please contact Nilight customer support through their official channels.

Sovint podeu trobar informació de contacte d'assistència a la pàgina web del fabricant weblloc web o a través del venedor on es va comprar el producte.
