AEOCKY X1 Rotary Dehumidifier User Manual

1. Introducció

Thank you for choosing the AEOCKY X1 Rotary Dehumidifier. This advanced desiccant dehumidifier is designed to efficiently remove excess moisture from your indoor environment, improving air quality and comfort. Utilizing cutting-edge rotary technology, the X1 offers superior performance, quiet operation, and reliable dehumidification across various temperatures, making it ideal for bedrooms, basements, bathrooms, RVs, and other spaces up to 1200 square feet.

Unlike traditional compressor or semiconductor dehumidifiers, the AEOCKY X1 employs a rotary desiccant system that is highly effective even in low-temperature conditions and operates with minimal noise. This manual provides essential information for the safe and effective use of your dehumidifier.

Figure 1.1: The AEOCKY X1 Rotary Dehumidifier, a compact and efficient unit designed for various living spaces.

Figure 1.2: The AEOCKY X1, featuring Zeolitech Technology for effective dehumidification.

2. Informació important de seguretat

Please read all safety instructions carefully before operating the dehumidifier to prevent injury or damage. Keep this manual for future reference.

Precaucions generals de seguretat:

• Always plug the unit into a grounded electrical outlet of the correct voltage.
• Do not operate the dehumidifier with a damaged cord or plug. If the cord or plug is damaged, contact customer support.
• No col·loqueu la unitat a prop de fonts de calor com ara radiadors, registres de calor, estufes o altres aparells que produeixin calor.
• Ensure proper air circulation around the unit. Do not block air inlets or outlets. Maintain at least 8 inches (20 cm) of clearance from walls and furniture.
• No submergiu la unitat, el cable d'alimentació ni l'endoll en aigua ni altres líquids.
• Always unplug the dehumidifier before cleaning, performing maintenance, or when not in use for extended periods.
• Do not allow children or pets to play with or around the dehumidifier.
• Use the unit only on a stable, level surface to prevent tipping.
• No utilitzeu el deshumidificador en zones on s'emmagatzemen líquids o gasos inflamables.

Quadruple Security Protection:

The AEOCKY X1 is equipped with multiple safety features to ensure reliable operation:

• Protecció contra el sobreescalfament: Automatically cuts off power if the internal temperature becomes abnormal.
• Protecció de capcament: Effectively blocks combustion in case the unit is accidentally tipped over.
• V-0 Flame Retardant Material: Constructed with V-0 rated flame-retardant materials for enhanced safety.
• Endoll de seguretat millorat: Tested for durability and safety during repeated plugging and unplugging.

Figure 2.1: The AEOCKY X1's Quadruple Security Protection features.

3. Producte acabatview

Familiarize yourself with the components and controls of your AEOCKY X1 Dehumidifier.

Components:

• Reixa d'entrada d'aire: Located on the back/side, where humid air enters.
• Sortida d'aire: Located on the top/front, where dry air exits.
• Tauler de control: Intuitive buttons for operation.
• Dipòsit d'aigua: Removable tank for collected water (85 oz capacity).
• Connexió de la mànega de drenatge: Port per a drenatge continu.
• Prefiltre rentable: Located behind the air inlet grille, for capturing larger particles.
• Mànec integrat: Per a una fàcil portabilitat.

Funcions del tauler de control:

• Botó d'encesa: Encén o apaga la unitat.
• Botó de mode: Cycles through operating modes (e.g., Turbo Mode, Sleep Mode).
• Botó del temporitzador: Sets the auto shut-off timer (8H, 12H, 24H).
• Botó de velocitat del ventilador: Adjusts fan speed (if applicable).
• Indicador d'aigua plena: Illuminates when the water tank is full and needs emptying.

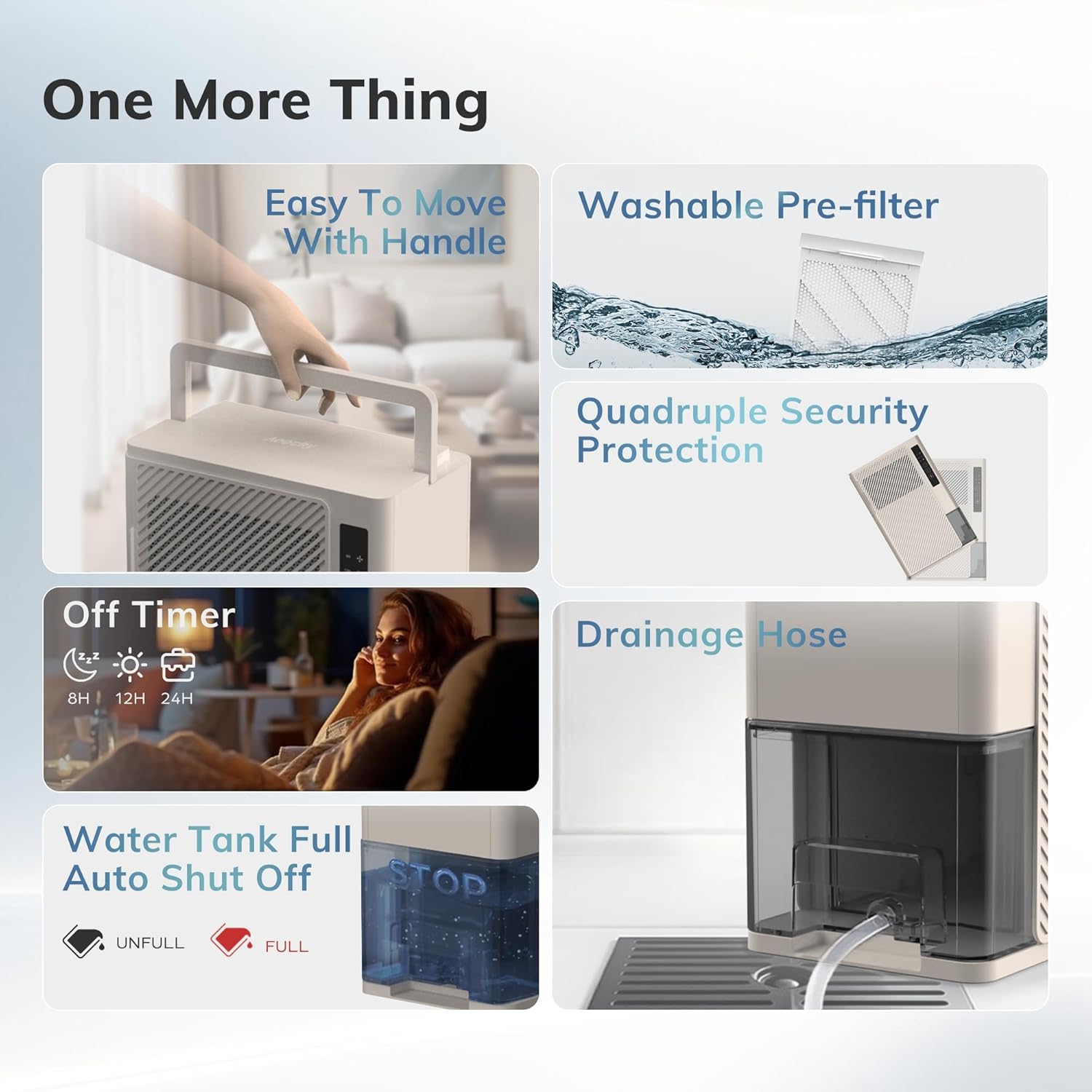

Figure 3.1: Key features and components of the AEOCKY X1 Dehumidifier.

Figure 3.2: Physical dimensions of the AEOCKY X1 Dehumidifier.

4. Configuració

Follow these steps to set up your AEOCKY X1 Dehumidifier for the first time.

4.1 Desembalatge:

• Carefully remove the dehumidifier and all packaging materials from the box.
• Comproveu si hi ha algun signe de dany durant el transport. Si està danyat, no el feu funcionar i contacteu amb el servei d'atenció al client.
• Ensure all included components are present: Dehumidifier unit, Drain Hose, Quick Start Guide, User Manual.

4.2 Col·locació:

• Place the dehumidifier on a firm, level surface in the area where you wish to reduce humidity.
• Ensure there is at least 8 inches (20 cm) of clear space around all sides of the unit for proper airflow. Do not place it against a wall or in a corner that restricts air circulation.
• Eviteu col·locar la unitat sota la llum solar directa o a prop d'aparells que generin calor.
• Per a un rendiment òptim, tanqueu totes les portes i finestres de l'habitació on funciona el deshumidificador.

4.3 Connexió d'alimentació:

• Assegureu-vos que el dipòsit d'aigua estigui correctament inserit a la unitat.
• Connecteu el cable d'alimentació a una presa de corrent de 120 V CA amb connexió a terra.

4.4 Continuous Drainage Setup (Optional):

For continuous operation without needing to empty the water tank, you can connect the included drain hose.

• Locate the drain hose connection port on the back of the unit.
• Traieu el tap de goma (si n'hi ha).
• Firmly attach one end of the included drain hose to the connection port.
• Direct the other end of the hose to a suitable drain, such as a floor drain, large bucket, or sink. Ensure the hose is sloped downwards to allow gravity drainage and is free of kinks or blockages.

5. Instruccions de funcionament

Learn how to operate your AEOCKY X1 Dehumidifier.

5.1 Encès/apagat:

• Premeu el botó Botó d'engegada (símbol: cercle amb línia vertical) once to turn the unit on. The indicator light will illuminate.
• Premeu el botó Botó d'engegada de nou per apagar la unitat.

5.2 Selecció del mode de funcionament:

The AEOCKY X1 offers different operating modes for various needs:

• Mode turbo: Provides maximum dehumidification power for rapid moisture removal. Ideal for very humid environments or when quick results are needed.
• Mode de repòs: Operates at the lowest fan speed and noise level (as low as 28dB) for quiet operation, suitable for bedrooms or quiet spaces.
• Premeu el botó Botó de mode (symbol: fan icon) repeatedly to cycle through available modes.

Figure 5.1: The AEOCKY X1's quiet operation in Sleep Mode.

5.3 Configuració del temporitzador:

The timer function allows you to set the unit to automatically shut off after a specified period.

• Premeu el botó Botó del temporitzador (symbol: clock icon) repeatedly to select the desired shut-off time: 8 hours, 12 hours, or 24 hours.
• S'il·luminarà la llum indicadora corresponent.
• To cancel the timer, press the Timer Button until no timer indicator light is on.

5.4 Water Tank Full Auto Shut-Off:

When the water tank reaches its maximum capacity (85 oz), the unit will automatically stop dehumidifying, and the Water Full Indicator will light up. The unit will resume operation once the tank is emptied and reinserted correctly.

6. Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil del deshumidificador.

6.1 Emptying the Water Tank:

• When the Water Full Indicator illuminates, carefully pull out the water tank from the unit.
• Aboqueu l'aigua recollida.
• Rinse the tank with clean water if necessary. Do not use harsh detergents or abrasive cleaners.
• Reinsert the empty water tank firmly into the dehumidifier until it clicks into place. The unit will resume operation.

6.2 Cleaning the Washable Pre-filter:

The pre-filter should be cleaned every two weeks or more frequently depending on usage and air quality.

• Apagueu i desconnecteu el deshumidificador.
• Locate and remove the pre-filter from the air inlet grille.
• Gently vacuum any dust or debris from the filter. For a deeper clean, rinse the filter under running water.
• Deixeu que el filtre s'assequi completament a l'aire abans de tornar-lo a inserir a la unitat. No utilitzeu assecadora ni calor directa.

6.3 Neteja de l'exterior:

• Netegeu l'exterior del deshumidificador amb un damp tela.
• Do not use abrasive cleaners, waxes, or solvents, as these may damage the surface.

6.4 Emmagatzematge:

• Si guardeu la unitat durant un període prolongat, assegureu-vos que el dipòsit d'aigua estigui buit i net, i que el filtre estigui net i sec.
• Enrotlla bé el cable d'alimentació.
• Guardeu el deshumidificador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.

7. Solució De Problemes

Abans de contactar amb l'atenció al client, consulteu la taula següent per veure els problemes habituals i les seves solucions.

8. Especificacions

Technical details for the AEOCKY X1 Rotary Dehumidifier.

9. Garantia i assistència

AEOCKY is committed to providing high-quality products and excellent customer service.

Informació de la garantia:

The AEOCKY X1 Rotary Dehumidifier comes with a Cobertura de 3 anys des de la data de compra. Aquesta garantia cobreix els defectes de materials i fabricació en condicions d'ús normal. No cobreix els danys resultants d'un mal ús, accidents, alteracions o reparacions no autoritzades.

Atenció al client:

If you encounter any issues or have questions regarding your AEOCKY X1 Dehumidifier, please do not hesitate to contact our customer support team. For the most up-to-date contact information and additional resources, please visit the official AEOCKY store:

Visit the AEOCKY Store on Amazon

Please have your model number (X1) and purchase information ready when contacting support to expedite assistance.
