1. Introducció i finalview
This manual provides comprehensive instructions for the safe installation, efficient operation, and proper maintenance of your Hunter Swanson 44-inch Indoor Ceiling Fan with LED Light Kit, Model 52781. This ceiling fan is designed for indoor use, featuring a 4-speed DC motor for quiet and energy-efficient performance, and an integrated LED light kit. Please read all instructions carefully before beginning installation or use.
Les característiques clau inclouen:
- 4-speed DC reversible motor for silent and powerful air movement.
- Energy Star certified for enhanced energy efficiency.
- Integrated LED light kit with three 7-Watt energy-efficient bulbs.
- Pull chains for convenient fan speed and light control.
- Designed for indoor use in various rooms such as bedrooms, living rooms, and home offices.
2. Informació de seguretat
Before installing or operating your ceiling fan, please observe the following safety precautions:
- ADVERTIMENT: To reduce the risk of electric shock, ensure the electricity is turned off at the circuit breaker or fuse box before beginning installation.
- Tot el cablejat ha de complir amb els codis elèctrics nacionals i locals. Si no esteu familiaritzat amb el cablejat, consulteu un electricista qualificat.
- L'estructura de muntatge ha de ser capaç de suportar el pes del ventilador (aproximadament 14.55 lliures).
- Ensure fan blades are installed at least 7 feet (2.1 meters) from the floor and at least 18 inches (0.45 meters) from any wall or obstruction.
- No introduïu objectes a la trajectòria de les aspes del ventilador.
- Aquest producte conté productes químics coneguts per l'estat de Califòrnia per causar càncer i defectes de naixement o altres danys reproductius. Rentar-se les mans després de la manipulació.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- Carcassa del motor del ventilador
- Pales de ventilador (5)
- Suports de fulla
- Muntatge del kit de llum
- Bombetes LED (3)
- Glass Shades (3)
- Downrod (2-inch standard)
- Dosser i suport de muntatge
- Pull Chains (for fan and light)
- Paquet de maquinari (cargols, volanderes, femelles de cable)
- Manual d'instruccions
4. Configuració i instal·lació
Follow these general steps for installing your Hunter Swanson ceiling fan. Refer to the detailed diagrams for visual guidance.
- Preparació per a la instal·lació: Turn off power at the circuit breaker. Clear the work area.
- Instal·leu el suport de muntatge: Secure the mounting bracket to the ceiling junction box. Ensure it is firmly attached and can support the fan's weight.
- Muntar la vareta de baixada: Insert the downrod through the canopy and wire the fan motor.
- Ventilador penjat: Aixequeu amb cura el conjunt del ventilador i pengeu-lo del suport de muntatge.
- Fer connexions elèctriques: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full manual. Ensure all connections are secure. Note: The light and fan cannot be wired on separate wall switches.
- Connecteu les aspes del ventilador: Secure each fan blade to its blade bracket, then attach the blade brackets to the motor housing.
- Instal·lació del kit de llums: Connect the light kit wiring to the fan motor wiring. Secure the light kit assembly to the fan.
- Install Bulbs and Glass Shades: Screw in the three included LED bulbs. Attach the glass shades to the light kit.

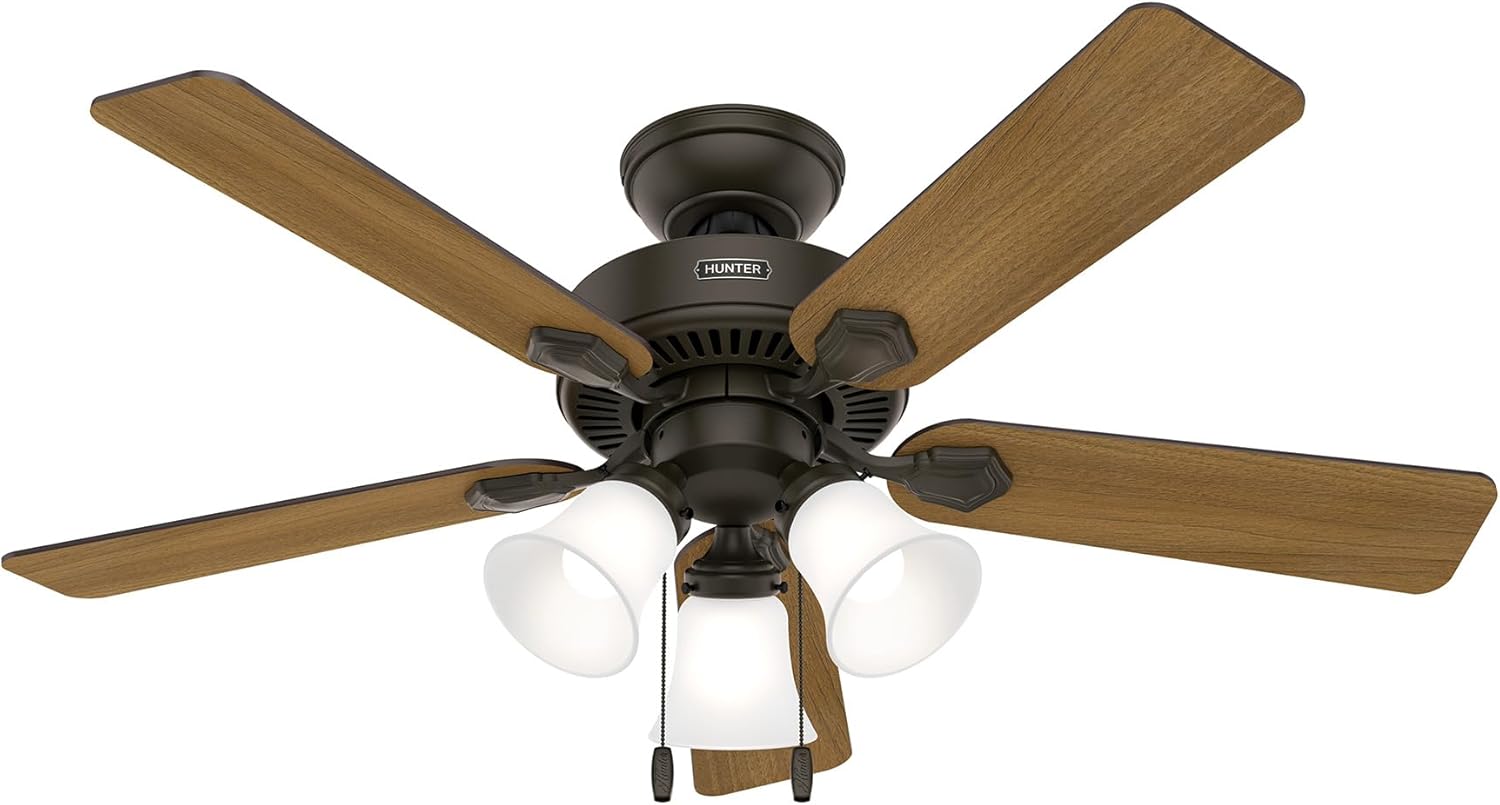

Figure 4.1: The Hunter Swanson 44-inch Indoor Ceiling Fan with LED Light Kit in New Bronze finish.
Figure 4.2: Diagram illustrating the dimensions of the Hunter Swanson ceiling fan for standard and angled installations. Standard installation with a 2-inch downrod results in a total height (A) of 17.00 inches and a blade-to-ceiling distance (B) of 9.88 inches. For angled installations, a 36-inch downrod (not included) would result in a total height (A) of 51.00 inches and a blade-to-ceiling distance (B) of 43.88 inches.
5. Instruccions de funcionament
Your Hunter Swanson ceiling fan is operated using two pull chains:
- Control de velocitat del ventilador: One pull chain controls the fan's 4 speeds. Pull the chain repeatedly to cycle through high, medium, low, and off settings. The DC motor also features a reversible function, typically controlled by a switch on the motor housing, allowing for downdraft (cooling) in summer and updraft (air circulation) in winter.
- Control de la llum: The second pull chain controls the integrated LED light kit. Pull the chain to turn the light on or off.
Figura 5.1: Primer pla view of the light kit and pull chains for operating the fan speed and light.
6. Manteniment
Regular maintenance ensures optimal performance and longevity of your ceiling fan:
- Neteja: Netegeu periòdicament les aspes del ventilador i la carcassa del motor amb un drap suau iamp drap. No utilitzeu netejadors abrasius ni dissolvents, ja que poden danyar l'acabat.
- Substitució de bombetes: The LED bulbs included are long-lasting. If replacement is needed, ensure the power is off before changing bulbs. Use only bulbs of the specified wattage i tipus.
- Apretar els elements de fixació: Check all screws and fasteners annually to ensure they are secure. Loose connections can cause wobbling or noise.
7. Solució De Problemes
If you experience issues with your Hunter Swanson ceiling fan, consult the following common troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no arrenca | No hi ha alimentació al ventilador; Connexions de cables soltes; Cablejat incorrecte | Check circuit breaker/fuse; Verify all wire connections are secure; Consult wiring diagram. |
| La llum no funciona | Bombeta solta; Bombeta defectuosa; Connexió de cable solta al kit de llums | Tighten or replace bulb; Check light kit wiring. |
| El ventilador trontolla | Cargols de la fulla solts; Fulles desequilibrades; Suport de muntatge solt | Tighten all blade screws; Ensure blades are balanced (balancing kit may be needed); Secure mounting bracket. |
| Funcionament sorollós | Cargols solts; Fregament de la carcassa del motor; Instal·lació incorrecta | Check all screws; Ensure no parts are rubbing; Re-check installation steps. |
8. Especificacions
| Especificació | Detall |
|---|---|
| Marca | Caçador |
| Nom del model | Swanson |
| Número de model de l'article | 52781 |
| Color | Bronze nou |
| Dimensions del producte | 44 "P x 44" W x 17" H |
| Pes de l'article | 14.55 lliures |
| Nombre de fulles | 5 |
| Font d'alimentació | Motor de corrent continu |
| Nombre de nivells de potència | 4 |
| Wattage | 12 watts (motor del ventilador) |
| Voltage | 120 Volts |
| Capacitat de cabal d'aire | 3712 Cubic Feet Per Minute (CFM) on high speed |
| Tipus de canvi | Estirar la cadena |
| Kit de llum | Includes three 7-Watt energy-efficient LED bulbs and clear frosted glass shading |
| Ús interior/exterior | Indoor Only (ETL rated) |
| Certificació | Energy Star, ETL |
9. Garantia i Suport
Hunter Fan Company performs extensive testing to ensure the quality and longevity of their ceiling fans. For specific warranty details and support, please refer to the warranty card included with your product or visit the official Hunter Fan Company website. For technical assistance or replacement parts, contact Hunter customer support.
Hunter Fan Company
Customer Support: [Refer to product packaging or official website for contact information]
