EMKE F22SSM01GM Shower Column User Manual

1. Introducció

Thank you for choosing the EMKE F22SSM01GM Shower Column. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower system. Please read these instructions thoroughly before installation and retain them for future reference.

2. Característiques del producte

The EMKE F22SSM01GM Shower Column is designed for modern bathrooms, offering a blend of functionality and minimalist aesthetics. Key features include:

• Minimalist Split Design: A two-piece system that optimizes space, suitable for various installations in compact areas.
• Multi-Function Hand Shower: A φ130mm hand shower with 3 distinct water distribution modes: standard shower, granular spray, and mixed flow. Silicone nozzles allow for easy cleaning of limescale and dirt.
• Integrated Shelf Platform: A 40 x 15cm shelf combined with the thermostatic faucet body, providing convenient storage for bath products and easy cleaning.
• Intelligent Constant Temperature Control: Maintains a comfortable and consistent water temperature, pre-set to 38°C, eliminating the need for frequent adjustments.
• Construcció duradora: The main valve body is crafted from high-quality, heat-resistant, and explosion-proof copper using a unique casting process, ensuring long-term durability.
• Chlorine Filter Cartridge: An integrated filter cartridge designed to remove chlorine from the water, contributing to skin care.
• Concealed Water Drainage: Practical hidden drainage at the bottom of the unit for efficient water collection.
• Estalvi d'aigua: Designed for efficiency, contributing to water conservation.

Figura 2.1: Mésview of the EMKE F22SSM01GM Shower Column. This image displays the complete shower column unit, highlighting its sleek anthracite matte finish and integrated shelf.

Figure 2.2: Detail of the 40cm shelf platform and water outlet controls. This image shows the integrated shelf, ideal for storing toiletries, and the intuitive controls for selecting water flow and temperature.

Figure 2.3: The hand shower demonstrating its three spray modes. This image illustrates the different water patterns available from the hand shower, including a standard spray, a granular spray, and a mixed flow.

Figura 2.4: Intern view of the chlorine filter cartridge. This image highlights the replaceable cartridge designed to purify water by removing chlorine.

Figure 2.5: Cross-section showing the solid copper core. This image reveals the robust internal construction of the shower column, featuring high-density, explosion-proof, and heat-resistant copper components.

3. Configuració i instal·lació

The EMKE F22SSM01GM Shower Column is designed for wall mounting and offers flexible installation options due to its split design. Professional installation is highly recommended to ensure proper function and safety.

3.1 Consideracions d'instal·lació

• Muntatge a la paret: The unit is designed to be securely mounted to a wall. Ensure the wall structure can support the weight of the shower column and water pressure.
• Col·locació flexible: The minimalist split design allows for various configurations, including parallel, corner, or vertical installations, making it suitable for diverse bathroom layouts, especially in smaller spaces.
• Adjustable Hand Shower Height: The hand shower holder can be adjusted to accommodate users of different heights, from children to adults.

For detailed step-by-step installation instructions, please refer to the separate installation guide provided with your product package. Ensure all local plumbing codes are followed during installation.

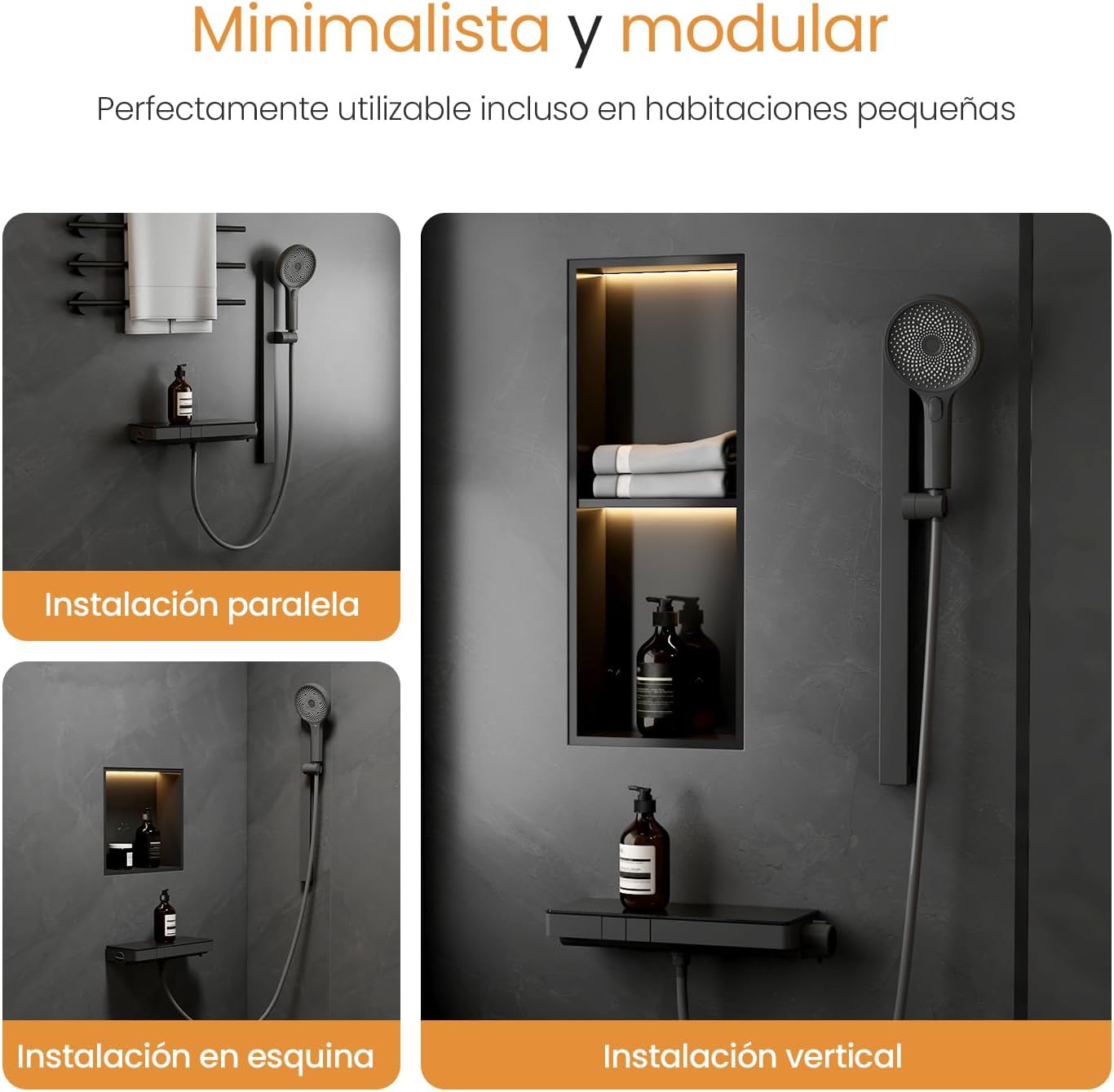

Figura 3.1: Examples of minimalist and modular installation. This image illustrates different ways the shower column can be installed, including parallel, corner, and vertical configurations, demonstrating its adaptability to various bathroom spaces.

Figure 3.2: Adjustable height feature for the hand shower. This image shows how the hand shower can be moved up and down the rail to suit the height of different users, from children to adults.

Figure 3.3: Wall mounting and concealed water drainage. This image highlights the wall-mounted design, which keeps the floor clear, and the discreet drainage system at the bottom of the unit.

4. Instruccions de funcionament

Operating your EMKE F22SSM01GM Shower Column is straightforward, designed for comfort and ease of use.

4.1 Control de temperatura

• The shower column features intelligent constant temperature control, pre-set to a comfortable 38°C.
• To adjust the temperature, use the dedicated temperature control knob. A safety lock is typically present to prevent accidental scalding, especially for children. Press and hold the safety button while turning the knob to increase the temperature above 38°C.
• Turn the knob counter-clockwise to decrease the temperature below 38°C.

4.2 Water Flow Selection

The shower column allows you to switch between the hand shower and the bottom spout, and to select different spray modes for the hand shower.

• Switching Outlets: Use the diverter control on the main unit to switch water flow between the hand shower and the bottom spout.
• Hand Shower Spray Modes: The hand shower offers three distinct spray patterns. Press the button on the hand shower head to cycle through these modes:
  1. Standard Shower Spray
  2. Granular Spray
  3. Mixed Flow Spray

5. Manteniment

Regular maintenance ensures the longevity and optimal performance of your EMKE F22SSM01GM Shower Column.

5.1 Neteja

• Hand Shower Nozzles: The silicone nozzles on the hand shower are designed for easy cleaning. Simply rub them with your thumb or a soft cloth to remove limescale and dirt buildup.
• Shelf Platform: Wipe the shelf surface regularly with a soft, damp drap i sabó suau. Eviteu netejadors abrasius o productes químics agressius que puguin danyar l'acabat.
• Neteja general: For the main unit and other surfaces, use a soft cloth and a non-abrasive bathroom cleaner. Rinse thoroughly and dry with a soft cloth to prevent water spots.

5.2 Cartutx de filtre

The integrated chlorine filter cartridge requires periodic inspection and replacement to maintain water quality. The frequency of replacement depends on water quality and usage. Refer to the filter cartridge's specific instructions for replacement guidelines.

6. Solució De Problemes

If you encounter issues with your EMKE F22SSM01GM Shower Column, please consult the following common troubleshooting tips. For persistent problems, contact customer support.

• Baixa pressió d'aigua:
  • Comproveu si la vàlvula principal de subministrament d'aigua està completament oberta.
  • Inspect the hand shower nozzles for blockages and clean them.
  • Ensure the filter cartridge is not clogged and replace if necessary.
• Temperatura de l'aigua inconsistent:
  • Verify that both hot and cold water supplies are adequately connected and flowing.
  • Ensure the temperature control knob is set correctly and not stuck.
  • If the issue persists, professional inspection of the thermostatic cartridge may be required.
• Fuites:
  • Comproveu que totes les connexions estiguin ben ajustades. No les apreteu massa.
  • Inspeccioneu les juntes tòriques i els segells per si hi ha danys i substituïu-los si cal.

7. Especificacions

Technical specifications for the EMKE F22SSM01GM Shower Column:

8. Garantia i Suport

For information regarding the product warranty, please refer to the warranty card included in your product packaging or visit the official EMKE website. For technical support, spare parts, or any inquiries not covered in this manual, please contact EMKE customer service through their official channels.

EMKE Official Weblloc: Visit EMKE Store on Amazon
