Introducció
This manual provides essential information for the proper installation, operation, and maintenance of your Franke WD-900 Colorline 4-1/2" Wide Garbage Disposal Flange Kit. Designed to complement Franke granite sinks, this mocha-finished flange kit ensures a seamless and integrated appearance in your kitchen. Please read these instructions carefully before beginning installation to ensure safe and correct usage.
Informació de seguretat
ADVERTÈNCIA: Risc de descàrrega elèctrica i lesions.
- Always disconnect power to the garbage disposal unit at the circuit breaker before installation, maintenance, or troubleshooting.
- Utilitzeu equips de protecció individual adequats, com ara ulleres i guants de seguretat, durant la instal·lació.
- If you are unsure about any part of the installation process, it is recommended to consult a qualified plumber or electrician.
- Ensure all connections are watertight to prevent leaks and potential water damage.
Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- Franke WD-900 Colorline Flange (Mocha)
- Strainer Basket/Stopper
- Junta de goma
- Junta de fibra
- Anell de muntatge
- Anell de suport
- Cargols de muntatge (3)
Configuració i instal·lació
Follow these steps for a quick and straightforward installation of your new garbage disposal flange kit.

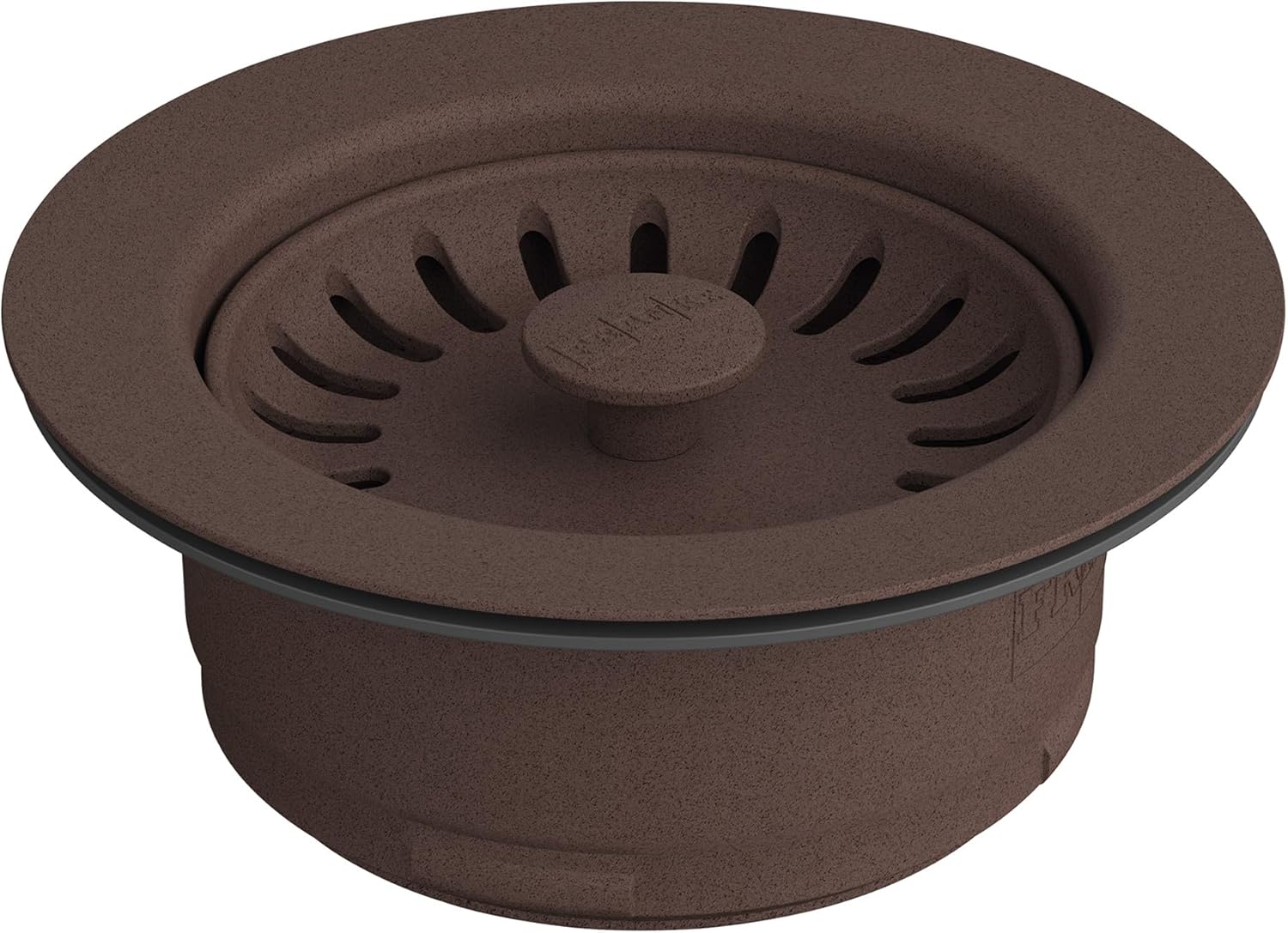

This image displays the Franke WD-900 Colorline garbage disposal flange kit. It features a rich mocha finish and a wide 4-1/2 inch flange designed to create a seamless look with granite sinks. The top view shows the strainer basket with multiple drainage slots and a central stopper.
- Preparació: Turn off the power to the garbage disposal at the circuit breaker. Clear the sink area and place a bucket under the sink drain to catch any water.
- Traieu la brida antiga (si escau): If replacing an existing flange, loosen the mounting screws and remove the old disposal unit. Detach the old flange from the sink opening. Clean the sink opening thoroughly, removing any old plumber's putty or sealant.
- Apply Plumber's Putty: Roll a 1/2-inch thick rope of plumber's putty and apply it around the underside lip of the new Franke flange.
- Insert Flange: Insert the flange into the sink drain opening from the top, pressing down firmly to create a seal with the putty.
- Assemble Under Sink: From underneath the sink, slide the rubber gasket, then the fiber gasket, followed by the support ring, and finally the mounting ring onto the flange.
- Secure Mounting Ring: Tighten the three mounting screws evenly and gradually to pull the mounting ring up against the sink bottom. This will compress the gaskets and putty, creating a watertight seal. Wipe away any excess plumber's putty that squeezes out from around the top of the flange.
- Connect Disposal: Attach the garbage disposal unit to the mounting ring according to the disposal manufacturer's instructions. Ensure it is securely locked into place.
- Prova de fuites: Turn the water on and fill the sink. Check carefully for any leaks around the flange and disposal connections. If leaks are present, tighten connections as needed. Restore power to the disposal unit.
Funcionament (ús)
The Franke WD-900 flange kit is a passive component designed to integrate your garbage disposal with your sink. Proper operation primarily involves the correct use of your garbage disposal unit.
- Always run cold water before, during, and after using your garbage disposal to help flush food particles through the drain.
- Avoid disposing of hard items like bones, fruit pits, or fibrous materials such as celery stalks and corn husks, as these can damage the disposal and potentially clog the drain.
- Use the provided strainer basket/stopper to prevent unwanted items from entering the disposal when not in use.
Manteniment
Regular cleaning and inspection will help maintain the appearance and functionality of your flange kit.
- Neteja: Clean the flange regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the mocha finish.
- Inspecció: Periodically check the flange for any signs of wear, discoloration, or looseness. Ensure the seal between the flange and the sink remains intact.
- Control d'olors: If odors develop, run citrus peels (lemon, orange) through the disposal with cold water. This can help freshen the drain and flange area.
Resolució de problemes
Aquí teniu alguns problemes comuns i les seves possibles solucions:
| Problema | Causa possible | Solució |
|---|---|---|
| Water leaking around the flange | Improperly sealed flange or loose mounting screws. | Tighten mounting screws evenly. If leaking persists, remove the flange, reapply plumber's putty, and reinstall. |
| Flange appears loose in the sink opening | Els cargols de muntatge no estan prou apretats. | From underneath the sink, tighten the three mounting screws evenly until the flange is secure. |
| Discoloration or staining on the flange | Exposure to harsh chemicals or abrasive cleaning. | Clean with mild soap and water. Avoid using abrasive cleaners. Some stains may be permanent if the finish is damaged. |
Especificacions
- Model: WD-900
- Color: Moca
- Amplada de la brida: 4-1/2 polzades
- Compatibilitat: Designed for standard garbage disposal units.
- Material: Durable composite material, color-matched to Franke granite sinks.
Garantia i Suport
Franke products are manufactured to high-quality standards. For specific warranty information and customer support, please refer to the warranty card included with your purchase or visit the official Franke weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
For technical assistance or replacement parts, please contact Franke customer service directly.
