1. Introducció
This manual provides detailed instructions for the assembly, usage, and maintenance of your EUGAD Industrial Style Over-Toilet/Washing Machine Storage Cabinet. Please read all instructions carefully before assembly and use to ensure safe and proper operation.
Producte acabatview
The EUGAD storage cabinet is designed to maximize space in bathrooms or laundry rooms. It features a robust construction with E1 engineered wood and a metal frame, offering multi-level storage with both open shelving and a closed cabinet.
Image 1.1: EUGAD Industrial Style Over-Toilet/Washing Machine Storage Cabinet.
Contingut del paquet
Verify that all components are present before beginning assembly. Refer to the included parts list in your packaging for specific quantities.
- Wooden panels (various sizes)
- Components del marc metàl·lic
- Hardware kit (screws, dowels, shelf pins, anti-tipping kit)
- Manual d'instruccions (aquest document)
2. Informació de seguretat
Please adhere to the following safety guidelines to prevent injury or damage to the product.
- Capacitat de pes màxim: The maximum weight the cabinet can support is 35 kg. Do not exceed this limit.
- Dispositiu antibolcada: Always install the included anti-tipping device to secure the cabinet to the wall. This prevents accidental tipping, especially in households with children or pets.
- Superfície estable: Place the cabinet on a flat, stable, and level surface. Uneven surfaces can compromise stability.
- Muntatge: Assemble the product according to the instructions. Ensure all fasteners are tightened securely.
- Nens: Mantingueu les peces petites i els materials d'embalatge fora de l'abast dels nens durant el muntatge.
3. Instruccions de muntatge (Configuració)
Follow these steps for assembling your EUGAD storage cabinet. An illustrated manual and accessory kit are included to facilitate the process.
Guia de vídeo de muntatge
Video 3.1: Detailed assembly steps for the storage cabinet. This video provides a visual guide to complement the written instructions.
Muntatge pas a pas
- Preparació dels components: Unpack all parts and identify them using the provided parts list. Ensure you have all necessary tools (e.g., screwdriver).
- Muntar el marc base: Connect the lower side panels and crossbars using the designated screws and dowels. Ensure the frame is stable.
- Fixeu els panells posteriors: Secure the back panels to the assembled frame.
- Instal·leu prestatgeries: Insert shelf pins into the pre-drilled holes at your desired height for adjustable shelves. Place the shelves onto the pins.
- Assemble Top Cabinet: Construct the top cabinet section, attaching the side panels, top, and bottom.
- Fixeu les portes de l'armari: Install the hinges onto the cabinet doors and then attach the doors to the cabinet frame. Ensure they open and close smoothly.
- Instal·leu les nanses: Fixeu les nanses a les portes de l'armari.
- Combine Sections: Carefully place the top cabinet section onto the lower frame. Secure them together using the provided hardware.
- Instal·leu el kit antibolcada: Attach the anti-tipping device to the top rear of the cabinet and secure it to a solid wall stud using appropriate wall anchors.
- Ajustar els peus de nivellació: Use the adjustable feet at the base to level the cabinet on uneven floors, ensuring maximum stability.
Image 3.2: Identifying the various components for assembly.
Image 3.3: Connecting the main panels of the cabinet.
Image 3.4: Securing the back panel to the cabinet structure.
Image 3.5: Installing the internal shelves.
Image 3.6: Attaching the cabinet doors to the main unit.
Image 3.7: Completing the main assembly of the cabinet.
Image 3.8: Securing the cabinet to the wall using the anti-tipping device.
4. Ús (operatiu)
The EUGAD storage cabinet is designed for versatile use in your bathroom or laundry area.
Opcions d'ubicació
This unit can be placed over most standard toilets or washing machines, utilizing vertical space efficiently.

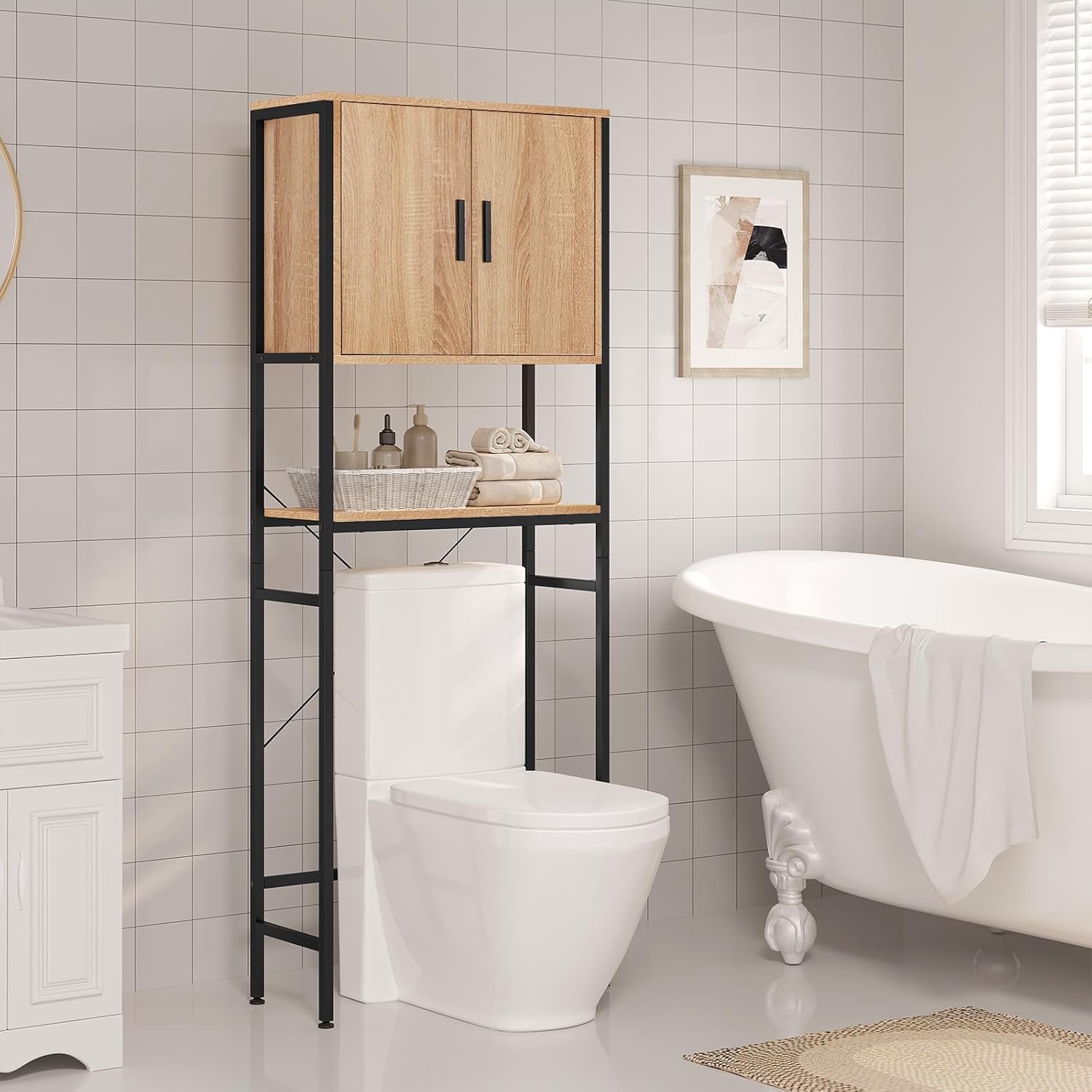

Image 4.1: Cabinet positioned over a toilet, demonstrating space-saving design.
Image 4.2: Cabinet positioned next to a washing machine, providing additional storage.
Característiques d'emmagatzematge
- Prestatge obert: Ideal for frequently used items, decorative elements, or small baskets.
- Armari tancat: Provides discreet storage for toiletries, cleaning supplies, or other personal items. The internal shelf is adjustable to three different heights, allowing customization for various item sizes.
Image 4.3: Detail of the adjustable shelf within the cabinet, showing height options.
Imatge 4.4: Ex.ample of items stored in the cabinet, demonstrating storage capacity.
5. Manteniment
To maintain the appearance and longevity of your EUGAD storage cabinet, follow these simple maintenance guidelines:
- Neteja: Netegeu les superfícies amb un suau, damp tela. Eviteu netejadors abrasius o productes químics durs que puguin danyar l'acabat.
- Vessaments: Promptly clean up any spills to prevent moisture damage to the wood.
- Inspecció: Reviseu periòdicament tots els cargols i elements de fixació per assegurar-vos que romanen ajustats. Torneu a apretar-los si cal.
- Eviteu l'excés d'humitat: While suitable for bathrooms, avoid prolonged exposure to excessive moisture or direct water spray.
6. Solució De Problemes
If you encounter any issues with your storage cabinet, refer to the following common solutions:
- El gabinet sembla inestable:
- Ensure all screws and fasteners are securely tightened.
- Verify that the cabinet is placed on a level surface. Adjust the leveling feet if needed.
- Confirm the anti-tipping device is correctly installed and secured to the wall. - Les portes no tanquen correctament:
- Check that the hinges are correctly aligned and tightened.
- Ensure the magnetic catches are properly installed and aligned with the door. - Dificultat durant el muntatge:
- Double-check the instruction manual and the parts list to ensure correct component identification and orientation.
- Refer to the assembly video (Video 3.1) for visual guidance on specific steps.
Si els problemes persisteixen, poseu-vos en contacte amb l'atenció al client.
7. Especificacions
| Característica | Especificació |
|---|---|
| Marca | EUGAD |
| Color | Black, Light Oak |
| Dimensions del producte (L x A x A) | 64.5 x 27 x 170 cm |
| Pes de l'article | 19 quilos |
| Capacitat màxima de pes | 35 quilos |
| Característica especial | Prestatge ajustable |
| Tipus de muntatge | Muntatge al terra |
| Usos recomanats | Storage and organization in a laundry area or bathroom |
| Components inclosos | Over-Toilet Cabinet, Installation Manual, Accessory Kit |
8. Garantia i Suport
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official EUGAD weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
