1. Introducció
This manual provides comprehensive instructions for the safe and effective use of the YATO YT-07087 9L Manual Oil Extraction Pump. This device is designed for the efficient extraction of various non-corrosive fluids, primarily engine oil, from vehicles and machinery. Please read this manual thoroughly before operation to ensure proper usage and to prevent damage to the unit or injury.
2. Informació de seguretat
- Always wear appropriate personal protective equipment (PPE), including gloves and eye protection, when handling fluids.
- Ensure the work area is well-ventilated to avoid inhaling fumes from extracted fluids.
- Do not use this pump for flammable liquids such as gasoline or highly corrosive chemicals.
- Keep the pump away from heat sources, open flames, and sparks.
- Dispose of extracted fluids responsibly according to local environmental regulations.
- No ompliu excessivament el dipòsit.
- Mantenir fora de l'abast dels nens.
3. Components del producte
The YATO YT-07087 oil extraction pump includes the main reservoir unit with an integrated manual pump, and a set of suction probes for various applications.

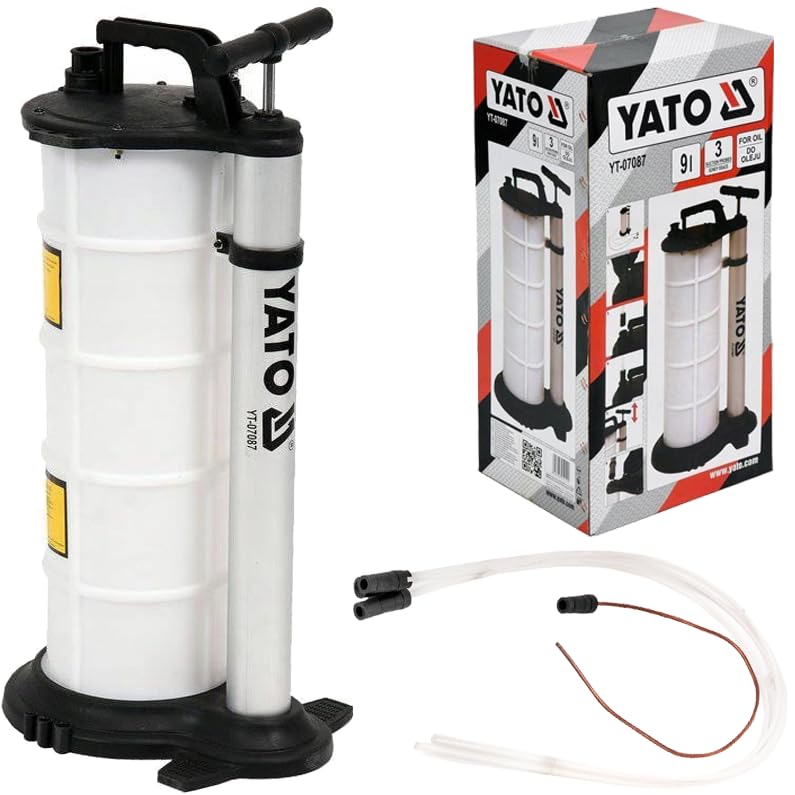

Image: Main components of the YATO YT-07087 pump, including the reservoir, pump handle, and various suction hoses.
Image: Icons detailing key features: 9-liter capacity, inclusion of 3 suction probes, and intended use for oil extraction.
- Main Pump Unit: Consists of the 9-liter reservoir, pump handle, and vacuum mechanism.
- Sondes d'aspiració: Three different probes are provided to accommodate various dipstick tube diameters and access points.
- Connectors: For attaching the suction probes securely to the pump unit.
4. Configuració
Follow these steps to prepare your oil extraction pump for use:

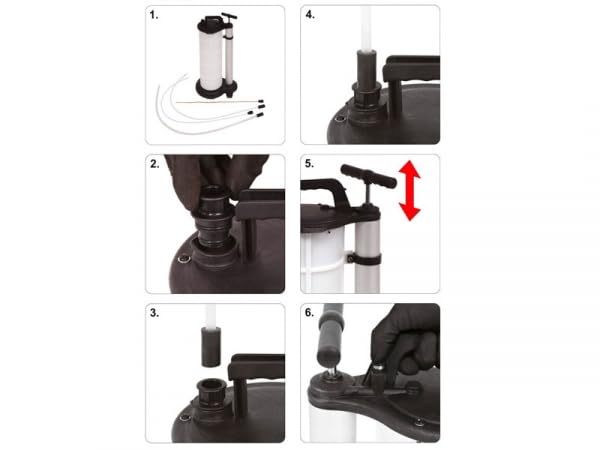

Image: Visual guide showing the six steps for assembling the pump and connecting the suction hoses.
- Desembaleu tots els components de l'embalatge.
- Select the appropriate suction probe for your application. Consider the diameter of the dipstick tube or access port.
- Connect the chosen suction probe firmly to the pump's inlet port. Ensure a tight seal to prevent air leaks, which can reduce suction efficiency.
- Verify that all connections are secure before proceeding to operation.
5. Instruccions de funcionament
To extract fluid using the YATO YT-07087 pump:
- Ensure the engine or system from which fluid is being extracted is warm, but not hot, as warm fluid flows more easily.
- Insert the selected suction probe into the dipstick tube or the fluid reservoir opening until it reaches the bottom or the lowest point where fluid can be extracted. Do not force the probe.
- Begin pumping the handle of the unit. This action creates a vacuum inside the reservoir, drawing the fluid through the probe.
- Continue pumping until fluid starts flowing into the reservoir. Once a vacuum is established, the fluid should flow continuously without constant pumping. You may need to pump occasionally to maintain the vacuum.
- Monitor the fluid level in the pump's reservoir. Do not exceed the maximum fill line (9L capacity).
- Once all desired fluid has been extracted, or the reservoir is full, remove the suction probe from the vehicle/machinery.
- Carefully transport the pump to an appropriate disposal container. Use the pour spout to empty the extracted fluid.
6. Manteniment
Proper maintenance ensures the longevity and performance of your pump:
- After each use, clean the suction probes and the inside of the reservoir if possible, especially if different types of fluids are extracted. Use a mild detergent and water, then rinse thoroughly.
- Ensure all components are dry before storage to prevent corrosion or degradation of materials.
- Store the pump in a clean, dry place, away from direct sunlight and extreme temperatures.
- Periodically inspect the hoses and connections for any signs of wear, cracks, or damage. Replace damaged parts immediately.
7. Solució De Problemes
Si teniu problemes amb la bomba, consulteu els següents problemes i solucions habituals:
- Sense succió o succió feble:
- Check all connections (probe to pump, pump lid) for air leaks. Tighten as necessary.
- Ensure the suction probe is fully inserted into the fluid and not drawing air.
- Verify the pump mechanism is operating correctly by checking the handle's movement and resistance.
- Check for blockages in the suction probe or inlet port.
- Slow Extraction:
- Ensure the fluid is warm enough to flow easily.
- Check for partial blockages in the probe or hoses.
- Confirm the vacuum is being maintained; pump the handle periodically if needed.
- Fluid Leaking from Pump:
- Inspect the reservoir and all connections for cracks or loose fittings.
- Ensure the lid is securely fastened.
- Do not overfill the reservoir beyond its stated capacity.
8. Especificacions
| Número de model | YT-07087 |
| Capacitat | 9 litres |
| Material | Polipropilè |
| Aplicació | Oil Extraction |
| Sondes d'aspiració | 3 inclòs |
| Fabricant | YATO |
| País d'origen | Xina |
9. Garantia i Suport
This product is typically covered by a warranty policy. For specific details regarding warranty coverage, duration, and terms, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or assistance with product issues, please reach out to the retailer where the product was purchased or the official YATO customer service channels.
