Introducció
This manual provides essential information for the safe and efficient operation, installation, and maintenance of the Thermo Fisher Scientific Basic Vortex Mixer, model 88882011-JP. Please read this manual thoroughly before using the device and keep it for future reference.
The Basic Vortex Mixer is designed for laboratory applications requiring efficient mixing of samples in tubes or small containers. It features a digital display for clear visibility and excellent stability, and offers both continuous and touch-start operation modes for user convenience.

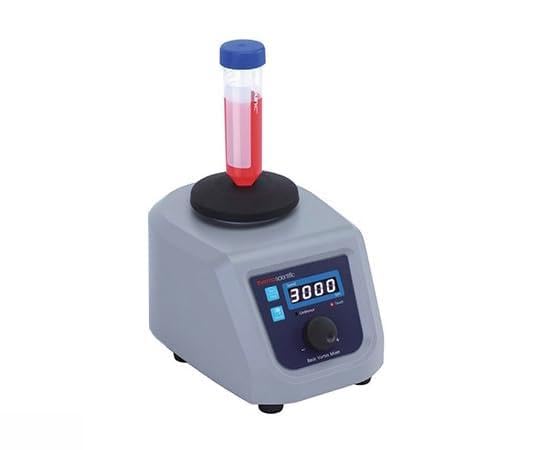

Figure 1: Thermo Fisher Scientific Basic Vortex Mixer 88882011-JP. The device features a compact design with a digital display and a platform for samples tubs.
Informació de seguretat
Observeu sempre les següents precaucions de seguretat per evitar lesions i danys al dispositiu:
- Ensure the power supply matches the device's requirements (100-240V, 50/60Hz).
- Do not operate the mixer in hazardous environments or with flammable materials.
- Place the device on a stable, level surface to prevent tipping during operation.
- Do not exceed the maximum load capacity of 0.5kg (at 800rpm).
- Mantingueu les mans i la roba solta allunyades de les peces mòbils durant el funcionament.
- Desconnecteu el cable d'alimentació abans de netejar o fer el manteniment.
- No submergiu el dispositiu en aigua o altres líquids.
Configuració
- Desembalatge: Carefully remove the vortex mixer and all accessories from the packaging. Inspect for any signs of damage during transit. Report any damage to your supplier immediately.
- Col·locació: Position the mixer on a clean, dry, stable, and level surface. Ensure adequate ventilation around the unit. Avoid placing it near heat sources or in direct sunlight.
- Instal·lació d'accessoris: Attach the included rubber plate holder (Part No. 88882120) to the mixing platform. Ensure it is securely seated.
- Connexió d'alimentació: Connect the power cord to the mixer's power inlet and then to a grounded electrical outlet. Ensure the voltage matches the device's specifications.
Instruccions de funcionament
- Encès: Plug in the device. The digital display will illuminate.
- Seleccioneu el mode de funcionament: The mixer supports two modes:
- Mode continu: Press the mode button (if available, or turn the speed knob to activate) to engage continuous mixing. The mixer will operate until manually stopped.
- Touch-Start Mode: In this mode, the mixer activates only when a tube or container is pressed onto the rubber plate holder. It stops when the pressure is released.
- Ajustar velocitat: Use the speed control knob or buttons to set the desired mixing speed within the range of 200 to 3,000 rpm. The digital display will show the current speed setting.
- Lloc SampLI: Securely place the sample tube or container onto the rubber plate holder. Ensure the sample volume and container size are appropriate for the mixer and do not exceed the maximum load capacity of 0.5kg (at 800rpm).
- Comença a barrejar: If in continuous mode, the mixer will start immediately. If in touch-start mode, gently press the sample tube onto the platform to initiate mixing.
- Atura la barreja: For continuous mode, press the stop button or turn the speed to zero. For touch-start mode, simply lift the sample tube from the platform.
- Apagar: Unplug the device from the power outlet when not in use for extended periods.
Manteniment
Neteja
- Desconnecteu sempre el cable d'alimentació abans de netejar.
- Wipe the exterior surfaces of the mixer with a soft, damp tela. Es pot utilitzar un detergent suau si cal.
- No utilitzeu netejadors abrasius, dissolvents ni productes químics agressius, ja que poden danyar l'acabat o els components interns.
- Ensure no liquid enters the device.
- The rubber plate holder can be removed and cleaned separately with water and mild soap, then thoroughly dried before reattaching.
Emmagatzematge
When not in use, store the mixer in a clean, dry, and dust-free environment at room temperature. Protect it from direct sunlight and extreme temperatures.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Mixer does not power on. | Sense font d'alimentació; cable d'alimentació fluix. | Comproveu la connexió del cable d'alimentació; assegureu-vos que la presa de corrent funcioni. |
| Inconsistent mixing. | Unstable surface; overloaded; damaged rubber plate. | Place on a stable surface; reduce sample load; inspect and replace rubber plate if damaged. |
| Soroll inusual durant el funcionament. | Foreign object; internal component issue. | Stop operation immediately. Inspect for foreign objects. If noise persists, contact customer support. |
| La pantalla digital no funciona. | Problema d'alimentació; fallada interna. | Check power. If power is present and display remains off, contact customer support. |
If you encounter problems not listed here or if the suggested solutions do not resolve the issue, please contact Thermo Fisher Scientific customer support or your local distributor for assistance.
Especificacions
| Característica | Especificació |
|---|---|
| Número de model | 88882011-JP |
| Fabricant | Thermo Fisher Scientific |
| Interval de velocitat | 200 - 3,000 rpm |
| Precisió de velocitat | ±5% |
| Capacitat de càrrega màxima | 0.5 kg (at 800 rpm) |
| Font d'alimentació | 100 - 240 V, 50/60 Hz |
| Pes | 6.5 kg |
| Dimensions (W×D×H) | 151 × 205 × 131 mm |
| Accessoris inclosos | Rubber plate holder (Part No. 88882120) |
| Piles necessàries | No |
Garantia i Suport
This product is covered by the standard warranty provided by Thermo Fisher Scientific. For detailed warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Thermo Fisher Scientific weblloc.
For technical support, service, or to order replacement parts, please contact Thermo Fisher Scientific customer service or your authorized distributor. Have your model number (88882011-JP) and serial number ready when contacting support.
Informació de contacte:
Please refer to the official Thermo Fisher Scientific weblloc web o la documentació de compra per obtenir les dades de contacte més actualitzades.
