SCHOCK Primus D100XS Kitchen Sink Instruction Manual

1. Producte acabatview

The SCHOCK Primus D100XS is a high-quality kitchen sink featuring a large bowl and a small drainer, crafted from durable Cristalite® material. This sink is designed for modern kitchens, offering both aesthetic appeal and practical functionality. Its reversible design allows for flexible installation to suit various kitchen layouts.

Cristalite® material is known for its slightly rough, stone-like finish, providing a robust, naturally antibacterial, and easy-to-clean surface. It is engineered to be stain-resistant and highly resilient to impacts and high temperatures, ensuring long-lasting performance in demanding daily use. SCHOCK, a global leader in quartz sink technology with over 100 patents, guarantees the reliability and quality of this product.

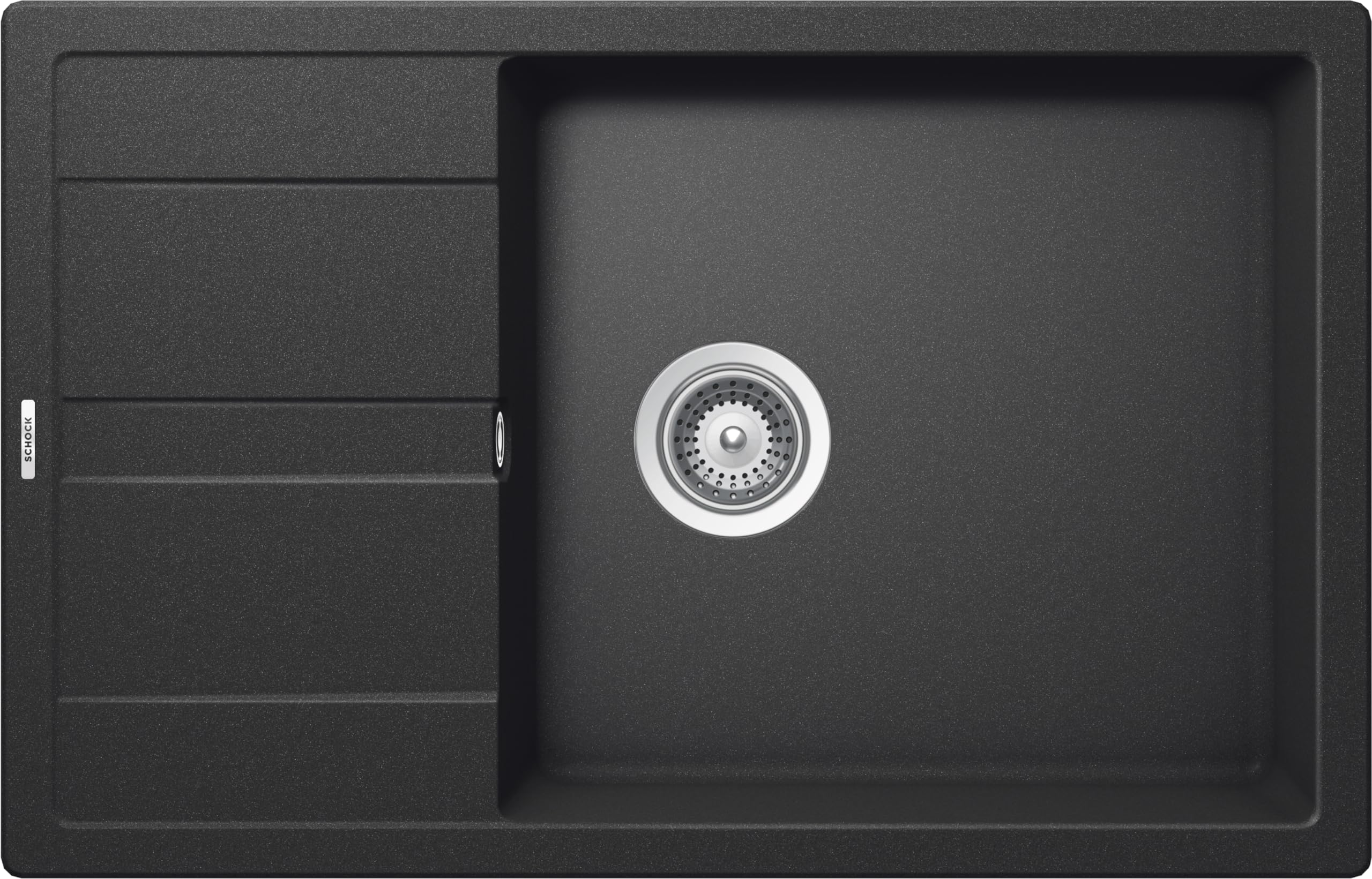

Image 1.1: The SCHOCK Primus D100XS kitchen sink in anthracite, installed with a faucet, showcasing its sleek design and integrated drainer.

2. Guia d'instal·lació

2.1 Llista de comprovació prèvia a la instal·lació

• Verify all components are present: sink, mounting accessories.
• Ensure the countertop cut-out matches the specified dimensions (760 x 480 mm for standard built-in).
• Confirm adequate space for a 600 mm base unit.
• Prepare necessary tools: sealant, measuring tape, saw (if cutting countertop), screwdriver, drill.

2.2 Instruccions de muntatge

The SCHOCK Primus D100XS sink is designed for built-in (recessed) installation. Follow these general steps:

1. Carefully place the sink into the prepared countertop cut-out.
2. Ensure the sink is properly aligned and level.
3. Secure the sink using the provided mounting clips and accessories from underneath the countertop.
4. Apply a suitable sealant around the edges of the sink to prevent water ingress.
5. Connect the plumbing for the drain and faucet according to local codes.

2.3 Disseny reversible

This sink features a reversible design, allowing you to choose whether the drainer is on the left or right side during installation. This flexibility ensures optimal integration into your kitchen layout.

Image 2.1: Technical drawing illustrating the dimensions (780x500mm overall, 465x436x195mm bowl) and standard built-in cut-out (760x480mm) for the SCHOCK Primus D100XS sink. It also shows the reversible orientation and different installation methods (SOPRATOP and SOTTOTOP POSITIVO).

3. Instruccions d'ús

The SCHOCK Primus D100XS kitchen sink is designed for standard kitchen tasks including washing dishes, preparing food, and general cleaning. Its large bowl accommodates various kitchenware, while the integrated drainer provides a convenient area for drying or thawing.

• Ensure the drain plug is properly seated when filling the bowl with water.
• Avoid placing extremely heavy or sharp objects directly onto the sink surface from a height to prevent potential damage, despite its impact resistance.
• Utilize the drainer for items that require air drying or for temporary placement of wet items.

4. Cura i Manteniment

4.1 Neteja diària

The Cristalite® material is naturally antibacterial and easy to clean. For daily maintenance:

• Wipe the sink surface with a soft cloth or sponge and mild dish soap after each use.
• Esbandiu bé amb aigua neta per eliminar qualsevol residu de sabó.
• Dry the sink with a soft cloth to prevent water spots, especially in hard water areas.

4.2 Stain and Impact Resistance

The Cristalite® material is highly resistant to stains, impacts, and high temperatures. For stubborn stains, a non-abrasive cleaner specifically designed for composite sinks can be used. Always test any new cleaning product on an inconspicuous area first.

Avoid using harsh chemicals, abrasive pads, or steel wool, as these can damage the surface finish over time.

5. Solució De Problemes

Aquesta secció tracta problemes comuns que podeu trobar amb la pica de la cuina.

• Drenatge lent: Check for food debris or blockages in the drain. Use a plunger or a drain cleaner designed for kitchen sinks. Avoid harsh chemical drain cleaners if possible, as they can sometimes affect plumbing.
• Punts d'aigua: These are common in hard water areas. Regularly dry the sink after use. For existing spots, a solution of white vinegar and water can be used, followed by thorough rinsing.
• Ratllades menors: While Cristalite is highly scratch-resistant, minor surface marks can occur with heavy use. For light marks, specialized composite sink repair kits may be available from the manufacturer.
• Fuga: If you notice leaks around the drain or faucet, check the seals and connections. Tighten any loose fittings. If the issue persists, professional plumbing assistance may be required.

6. Especificacions tècniques

7. Informació de la garantia

SCHOCK Cristalite® sinks are covered by a 5 any de garantia from the date of purchase. To validate your warranty claim, please retain your proof of purchase or receipt. The warranty covers manufacturing defects and material flaws under normal use conditions. It does not cover damage resulting from improper installation, misuse, abuse, or normal wear and tear.

For detailed warranty terms and conditions, please refer to the official SCHOCK weblloc o contacteu amb el servei d'atenció al client.

8. Atenció al client

Should you require further assistance, have questions regarding installation, operation, maintenance, or warranty, please contact SCHOCK customer support. Before contacting support, please have your product model number (PRID100SAP) and proof of purchase readily available.

You can typically find contact information for SCHOCK on their official weblloc web o a través del vostre distribuïdor local.
