1. Introducció
Thank you for choosing the MEIKEE 25W LED Floodlight with Motion Sensor. This product is designed to provide super bright, energy-efficient, and reliable outdoor lighting for various applications such as gardens, garages, and yards. Featuring advanced motion detection, remote control functionality, and robust IP66 waterproofing, this floodlight offers enhanced security and convenience. Please read this manual thoroughly before installation and operation to ensure proper use and longevity of the product.
Image: Two MEIKEE 25W LED floodlights with integrated motion sensors and their accompanying remote controls.
2. Instruccions de seguretat
To prevent personal injury or product damage, always observe the following safety precautions:
- Seguretat elèctrica: Ensure the power supply is disconnected before installation, maintenance, or cleaning. All wiring should be performed by a qualified electrician in accordance with local electrical codes.
- Voltage: Comproveu que el volum de subministramenttage matches the product's rated voltage (230 volts).
- Muntatge: Mount the floodlight securely on a stable surface that can support its weight. Avoid installing in locations prone to excessive vibration or extreme temperatures.
- Exposició a l'aigua: Although IP66 rated, avoid submerging the product in water. Ensure all connections are properly sealed to maintain waterproof integrity.
- Calor: Do not cover the floodlight or obstruct its heat dissipation fins during operation, as this may lead to overheating.
- Font de llum: Do not stare directly into the LED light source when it is illuminated, as this may cause eye strain or damage.
- Nens: Mantenir el producte i els seus components fora de l'abast dels nens.
3. Contingut del paquet
Si us plau, comproveu el paquet per veure si hi ha els elements següents:
- MEIKEE 25W LED Floodlight with Motion Sensor (2 units)
- Control remot (2 unitats)
- Cargols de muntatge i tacs de paret
- Manual d'usuari (aquest document)
Si falta algun element o està malmès, poseu-vos en contacte amb l'atenció al client.
4. Característiques del producte
- Operació de control remot: Easily switch between modes, adjust brightness, and set detection distance using the included remote control.
- Super Bright & Energy Efficient: 25W LED produces up to 2100 lumens, saving over 85% energy compared to traditional incandescent bulbs.
- IP66 Waterproof & Durable: Advanced ultrasonic die-casting technology ensures complete sealing against water and dust. Features a shock-resistant, drop-resistant, and scratch-resistant nano-material front frame.
- Enhanced Safety Cable: The cable's cross-sectional area is 1mm², exceeding the European standard of 0.75mm² for increased safety.
- Disseny ajustable: The floodlight is 180° adjustable, and the motion sensor can be adjusted 360° horizontally and 180° vertically for optimal positioning.
- Múltiples modes de funcionament: Choose between Always-On mode, 24-hour detection mode, and Night detection mode.
- Funció de temporitzador: Set the light to automatically turn off after 1, 2, or 3 hours.

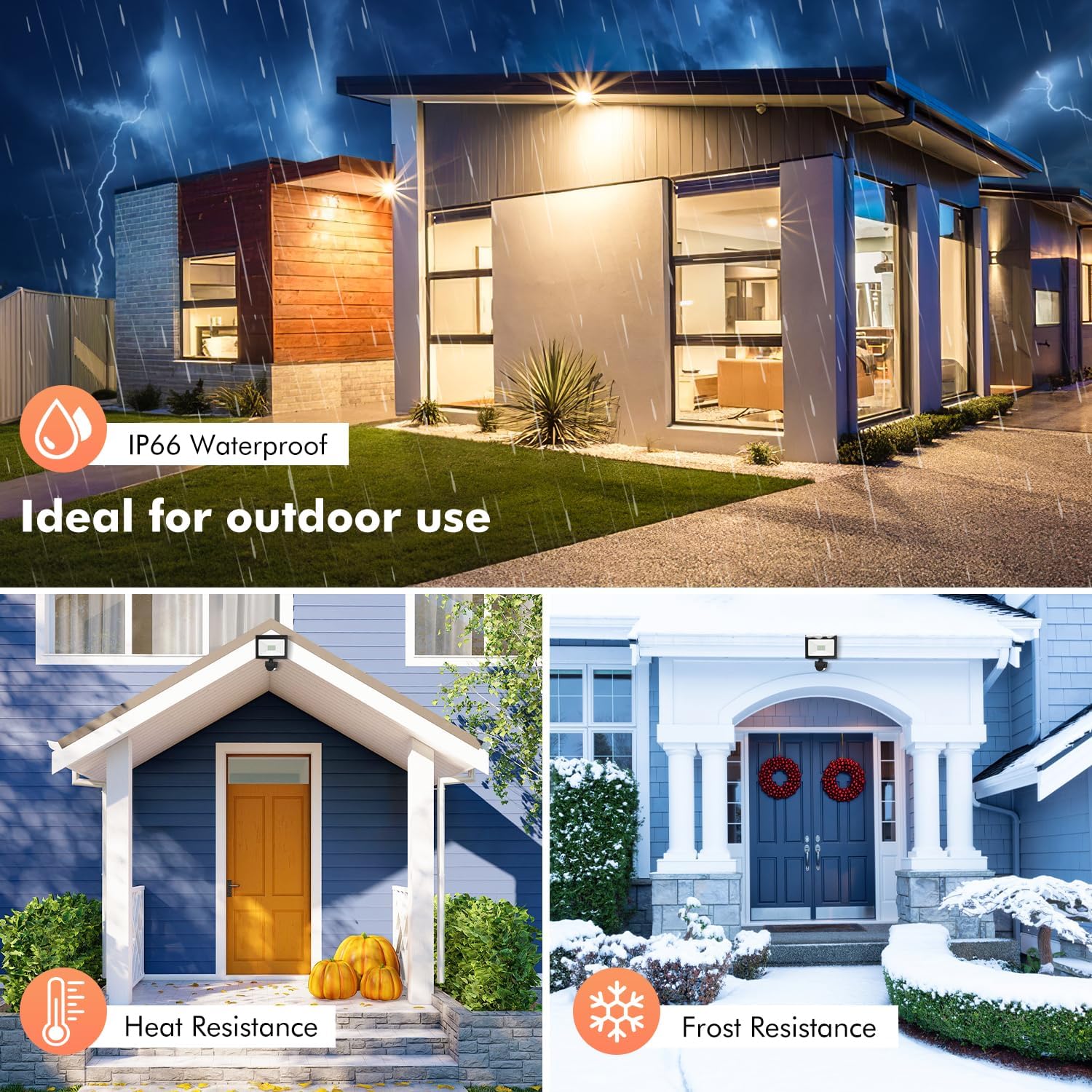

IP66 Resistent a l'aigua i a la intempèrie

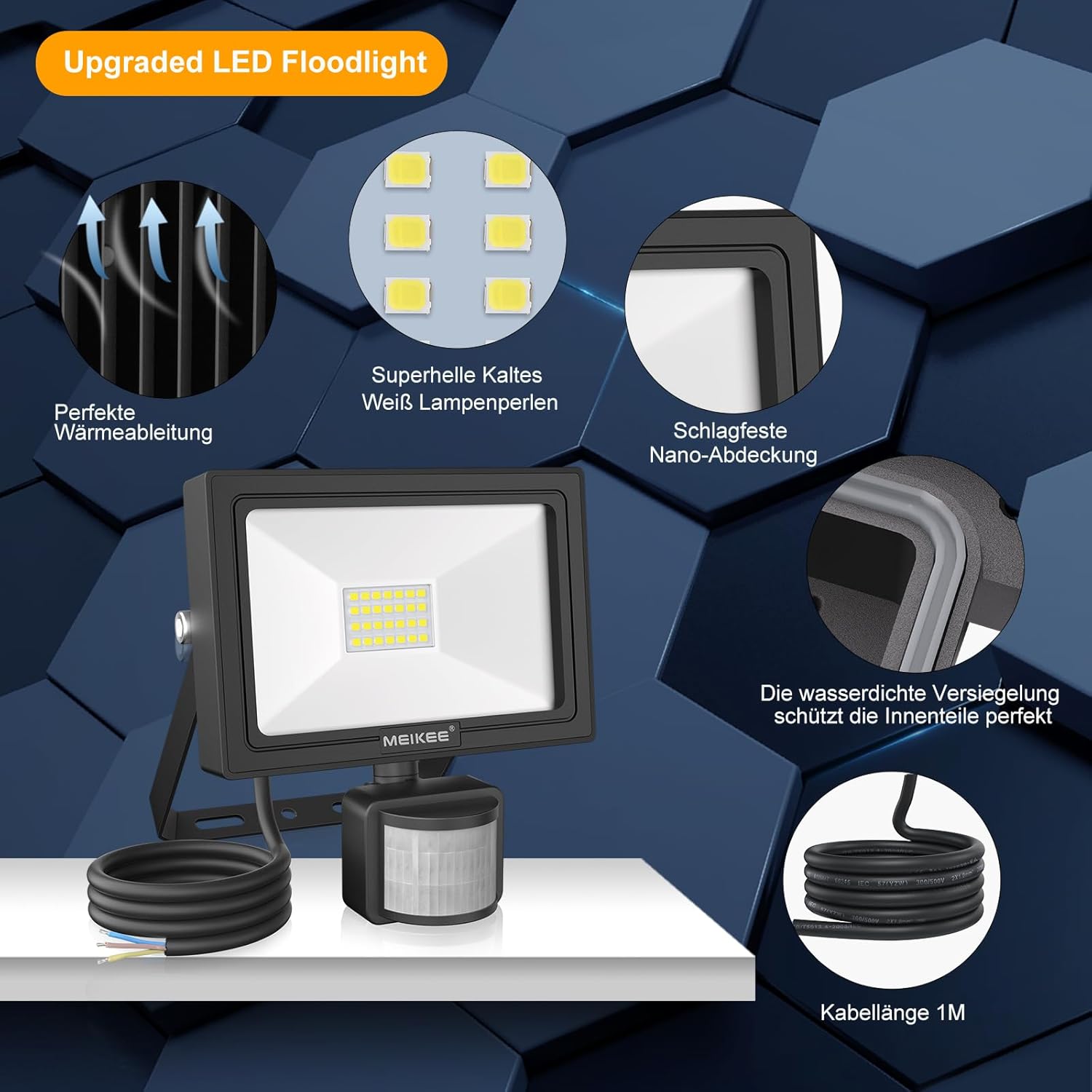

Upgraded Design for Durability and Performance
5. Especificacions
| Atribut | Valor |
|---|---|
| Marca | MEIKEE |
| Número de model | FLB025 |
| Consum d'energia | 25 watts |
| Flux lluminós | 2100 lúmens |
| Temperatura de color | 6500 Kelvin (blanc fred) |
| Classificació de protecció d'entrada (IP). | IP66 |
| Voltage | 230 Volts |
| Material | Glass (front frame: nano-material) |
| Dimensions del producte (L x A x A) | 11 x 17 x 14 cm |
| Pes de l'article | 960 g |
| Font d'alimentació | Elèctric amb cable |
| Característiques especials | Timer function, Remote control, Adjustable brightness, Multiple detection modes, Adjustable detection distance |
| Tipus d'instal·lació | Floor mount, Ceiling mount, Wall mount |

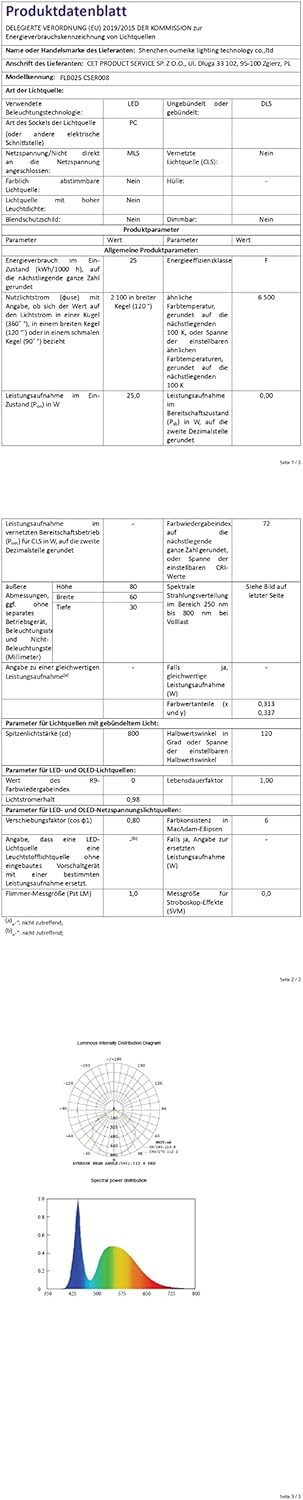

For detailed energy efficiency information, please refer to the energy label and product data sheet:
Energy Label (Class F)
Product Data Sheet (View EPREL)
6. Guia d'instal·lació
The MEIKEE LED Floodlight is designed for easy installation with its adjustable bracket. It can be securely fixed to a wall, ceiling, or floor.
6.1. Preinstal·lació
- Ensure the power supply is turned off at the main circuit breaker before beginning installation.
- Choose a suitable mounting location that provides the desired illumination area and motion detection coverage.
- Recommended installation height: 3.5 - 5 meters.
- Optimal lighting area: > 5x5 square meters.
6.2. Mounting the Floodlight
- Mark the drilling points on the chosen surface using the floodlight's bracket as a template.
- Drill holes at the marked points. Insert wall plugs if installing on masonry or concrete.
- Secure the floodlight's bracket to the surface using the provided screws. The widened and thickened steel bracket ensures a solid fixation.
6.3. Cablatge
- Connect the floodlight's power cable to your main power supply. Ensure correct polarity: Brown (Live), Blue (Neutral), Yellow/Green (Earth).
- Use appropriate waterproof connectors and junction boxes for outdoor installations to maintain the IP66 rating.
6.4. Adjusting Light and Sensor Angles
- The floodlight head can be adjusted up to 180° to direct the light beam as needed.
- The motion sensor can be rotated 360° horizontally and 180° vertically to optimize its detection area.
Dimensions and Mounting Methods
Beam Angle and Detection Range
Ajust del sensor de moviment
7. Instruccions de funcionament
The MEIKEE LED Floodlight can be operated using the included remote control.
7.1. Funcions de control remot
- ON/OFF: Encén o apaga la llum.
- Selecció del mode:
- Mode de llum constant: The light remains on continuously, regardless of motion detection.
- Night Induction Mode: The light activates only at night when motion is detected.
- 24-Hour Induction Mode: The light activates day and night when motion is detected.
- Ajust de brillantor: Increase or decrease the light intensity (up to 2100 lumens).
- Detection Distance Adjustment: Select detection ranges of 6 meters (19.68 ft), 9.6 meters (31.49 ft), or 12 meters (39.37 ft).
- Lighting Duration Adjustment: Set the duration the light stays on after motion detection to 45 seconds, 90 seconds, 120 seconds, 5 minutes, or 10 minutes.
- Funció de temporitzador: Set the light to automatically turn off after 1, 2, or 3 hours.
Modes de funcionament
Ajust de brillantor
Lighting Duration Adjustment
Funció de temporitzador
8. Manteniment
Regular maintenance helps ensure the optimal performance and longevity of your MEIKEE LED Floodlight.
- Neteja: Periodically clean the surface of the floodlight and motion sensor with a soft, damp drap. No utilitzeu productes de neteja abrasius ni dissolvents. Assegureu-vos que l'aparell estigui desconnectat abans de netejar-lo.
- Inspecció: Regularly check the power cable for any signs of damage or wear. Ensure all mounting screws are tight and the floodlight is securely in place.
- Àrea del sensor: Keep the motion sensor lens clear of obstructions (e.g., dirt, spiderwebs) per garantir una detecció precisa.
9. Solució De Problemes
If you encounter issues with your MEIKEE LED Floodlight, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | No power supply; Faulty wiring; Sensor malfunction. | Check power connection and circuit breaker. Verify wiring connections. Test in 'Constant Light Mode' to bypass sensor. |
| La llum es manté encesa contínuament. | Set to 'Constant Light Mode'; Sensor continuously detecting motion; Sensor malfunction. | Change mode using remote. Check for constant motion in detection area. Adjust sensor angle or sensitivity. |
| La llum no detecta moviment. | Incorrect sensor angle/position; Obstruction in detection path; Detection distance set too low; Sensor malfunction. | Adjust sensor angle and ensure clear line of sight. Increase detection distance setting. Clean sensor lens. |
| Remote control is unresponsive or slow. | Low battery in remote; Obstruction between remote and sensor; Remote out of range. | Replace remote control battery (1 non-standard battery required, not included). Ensure clear line of sight to sensor. Operate within 8 meters range. |
| La llum parpelleja o s'atenua. | Unstable power supply; Product defect. | Check power supply stability. If problem persists, contact customer support. |
If the issue persists after attempting these solutions, please contact MEIKEE customer support.
10. Garantia i Suport
MEIKEE is committed to providing high-quality products. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.
For technical support, troubleshooting assistance, or inquiries regarding spare parts availability, please visit the official MEIKEE brand store or contact their customer service directly.
