1. Producte acabatview
The VASTFIRE Predator Light is a high-performance LED hunting flashlight designed for optimal visibility in various night hunting scenarios. It features three interchangeable LED modules (Red, Green, and White) to adapt to different environments and target animals. The robust construction ensures durability and reliability in the field.
Característiques principals:
- Kit complet: Includes flashlight, 2 rechargeable batteries (3000mAh), USB charger, dual control remote pressure switch, Picatinny and scope mounts, and a carrying case.
- 3 LED Modules: Easily screw-in interchangeable RED, GREEN, and WHITE LED bulbs for superior brightness compared to colored lenses.
- Il·luminació potent: Deep reflectors (55mm x 42mm) provide a focused, brighter beam.
- Cobertura de feix ample: Fixed beam design offers a broad area illumination with a central hot spot.
- Durador i resistent a la intempèrie: Made from aircraft-grade aluminum with an IPX4 water resistance rating.
2. Configuració
Follow these steps to set up your VASTFIRE Predator Light:
- Instal·lació de la bateria: Unscrew the tail cap of the flashlight. Insert the two included 3000mAh 18650 rechargeable Lithium-ion batteries with the positive (+) end facing towards the head of the flashlight. Securely screw the tail cap back on.
- Càrrega de bateries: Connect the USB charger to a power source. Place the rechargeable batteries into the charger. The indicator light on the charger will show charging status. Ensure batteries are fully charged before first use.
- Interchangeable LED Module: The flashlight comes with red, green, and white LED modules. To change a module, unscrew the head of the flashlight. Carefully remove the current LED module and screw in the desired color module. Reattach the head of the flashlight.

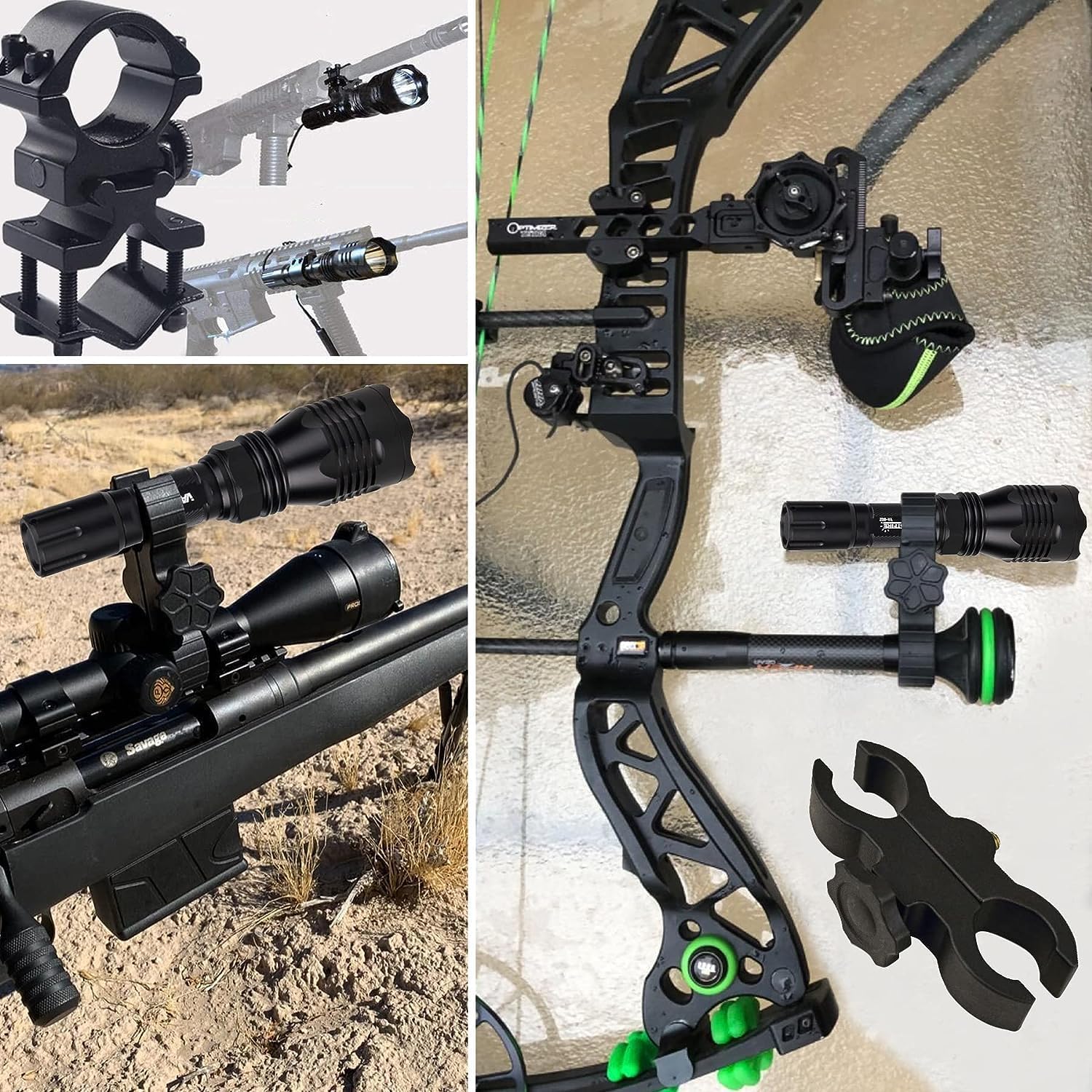

- Muntatge:
- Scope Mount: Attach the scope mount to your 1-inch to 30mm scope. Secure the flashlight into the mount.
- Picatinny Mount: Attach the Picatinny mount to your 20mm Picatinny/Weaver rail. Secure the flashlight into the mount.
- Pressostat remot: Replace the standard tail cap with the dual control remote pressure switch for remote operation.
3. Instruccions de funcionament
To operate your VASTFIRE Predator Light:
- Encès/apagat: Press the button on the tail cap to turn the flashlight on or off.
- Pressostat remot: If using the remote pressure switch, press and hold for momentary on, or click for constant on.
- Modes de llum: The flashlight features a single mode (on/off) for each installed LED module. There are no adjustable brightness levels.
- Ús òptim:
- Llum verda: Ideal for hog and coyote hunting, reaching up to 350 yards with approximately 2.5 hours runtime. Animals are less likely to be spooked by green light.
- Llum vermella: Suitable for varmint and rabbit hunting, with a range of up to 200 yards and approximately 5 hours runtime. Red light is less visible to many animals and preserves human night vision.
- Llum blanca: Provides general illumination up to 350 yards with approximately 3.5 hours runtime. Useful for tracking, spotting, and general utility.
4. Manteniment
Proper maintenance ensures the longevity and optimal performance of your VASTFIRE Predator Light:
- Neteja: Netegeu el cos de la llanterna amb un drap suauamp cloth. Do not use abrasive cleaners or solvents. Keep the lens clean for maximum light output.
- Cura de la bateria: Recharge batteries regularly, even if not in frequent use, to maintain their lifespan. Avoid overcharging or completely draining the batteries. Store batteries in a cool, dry place.
- Emmagatzematge: When storing the flashlight for extended periods, remove the batteries to prevent leakage and damage. Store in the provided carrying case to protect from dust and impact.
- Juntes tòriques: Periodically inspect and lubricate the O-rings with silicone grease to maintain water resistance.
5. Solució De Problemes
If you encounter issues with your VASTFIRE Predator Light, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La llanterna no s'encén. | Low or uncharged batteries. Incorrect battery orientation. Loose tail cap or head. Faulty LED module. | Ensure batteries are fully charged and inserted correctly. Tighten the tail cap and flashlight head. Try a different LED module. |
| La llum és tènue o parpelleja. | Bateria baixa. Connexions fluixes. | Recharge batteries. Ensure all parts are securely tightened. |
| Remote pressure switch not working. | Loose connection. Damaged wire. | Ensure the pressure switch is fully screwed onto the flashlight body. Inspect the wire for any visible damage. |
| Charger not indicating full charge. | Charger malfunction or user expectation. | Some chargers may not have clear indicators. Allow sufficient charging time (e.g., 4-6 hours). If issues persist, contact support. |
6. Especificacions
| Característica | Detall |
|---|---|
| Model | LTB108-US |
| Tipus de font de llum | LED (Red, Green, White interchangeable) |
| Brillantor | Fins a 1000 lúmens (llum blanca) |
| Distància del camí de la llum | Up to 350 Yards (Green/White), 200 Yards (Red) |
| Temps d'execució | Green: 2.5 hours, Red: 5 hours, White: 3.5 hours |
| Font d'alimentació | 2 x 3000mAh 18650 Lithium-ion batteries (included) |
| Material | Alumini de qualitat aeronàutica |
| Nivell de resistència a l'aigua | IPX4 (resistent a l'aigua) |
| Dimensions del producte | 7 cm de profunditat x 1 cm d'amplada x 1 cm d'alçada (aprox.) |
| Pes de l'article | 8.7 unces |
7. Garantia i assistència
Informació de la garantia:
- 1-year warranty for the hunting flashlight kit.
- Lifetime warranty for the coiled wire tailcap tactical switch (pressure switch).
- 2-year general warranty.
- Política de devolució de 60 dies.
Suport:
For further assistance, troubleshooting, or warranty claims, please refer to the official user manual or contact VASTFIRE customer support.
Manual d'usuari oficial (PDF): Descarrega aquí
