GAOMON TD-LED6

GAOMON King Bed Frame with RGB LED Lights, Storage Headboard & Drawers Instruction Manual

Model: TD-LED6

1. Introducció

Gràcies per la compraasing the GAOMON King Bed Frame. This bed frame is designed to provide a comfortable and functional sleeping solution, featuring integrated RGB LED lighting, a storage headboard with USB charging ports and power outlets, and two convenient storage drawers. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure optimal use and longevity of your product. Please read this manual thoroughly before assembly and retain it for future reference.

2. Informació de seguretat

Si us plau, observeu les següents precaucions de seguretat per evitar lesions i danys al producte:

  • Llegiu atentament totes les instruccions abans del muntatge.
  • Mantingueu tots els materials d'embalatge fora de l'abast dels nens per evitar riscos d'asfíxia.
  • Assemble the bed frame on a soft, clean surface (e.g., carpet) to avoid scratching the product or floor.
  • Assegureu-vos que totes les peces estiguin ben fixades abans d'utilitzar-les. Comproveu i estrenyeu periòdicament totes les connexions.
  • No supereu la capacitat màxima de pes de 1100 lliures (500 kg).
  • Keep electrical components (LED lights, USB ports, outlets) away from water or excessive moisture.
  • Use only the provided power adapter for the LED lights and charging station.
  • Do not allow children to climb on the bed frame or headboard without supervision.
  • Eliminar els materials d'embalatge de manera responsable.

3. Contingut del paquet

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact GAOMON customer support.

  • Headboard (with integrated LED lights, USB ports, and outlets)
  • Baranes laterals (esquerra i dreta)
  • Footboard (with drawer guides)
  • Biga(es) de suport central
  • Llistons metàl·lics
  • Cames de suport
  • Storage Drawers (x2) with dustproof mats
  • Maquinari de muntatge (cargols, volanderes, femelles, clau Allen)
  • Control remot per a llums LED
  • Adaptador de corrent per a llums LED i estació de càrrega

4. Muntatge i muntatge

Assembly typically requires two adults and takes approximately one hour. All necessary tools are included. Please follow the steps below carefully.

4.1. Desembalatge i preparació

Carefully unpack all components and lay them out on a soft, clean surface to prevent scratches. Identify each part using the provided parts list (not included in this text, but assumed to be in the physical manual).

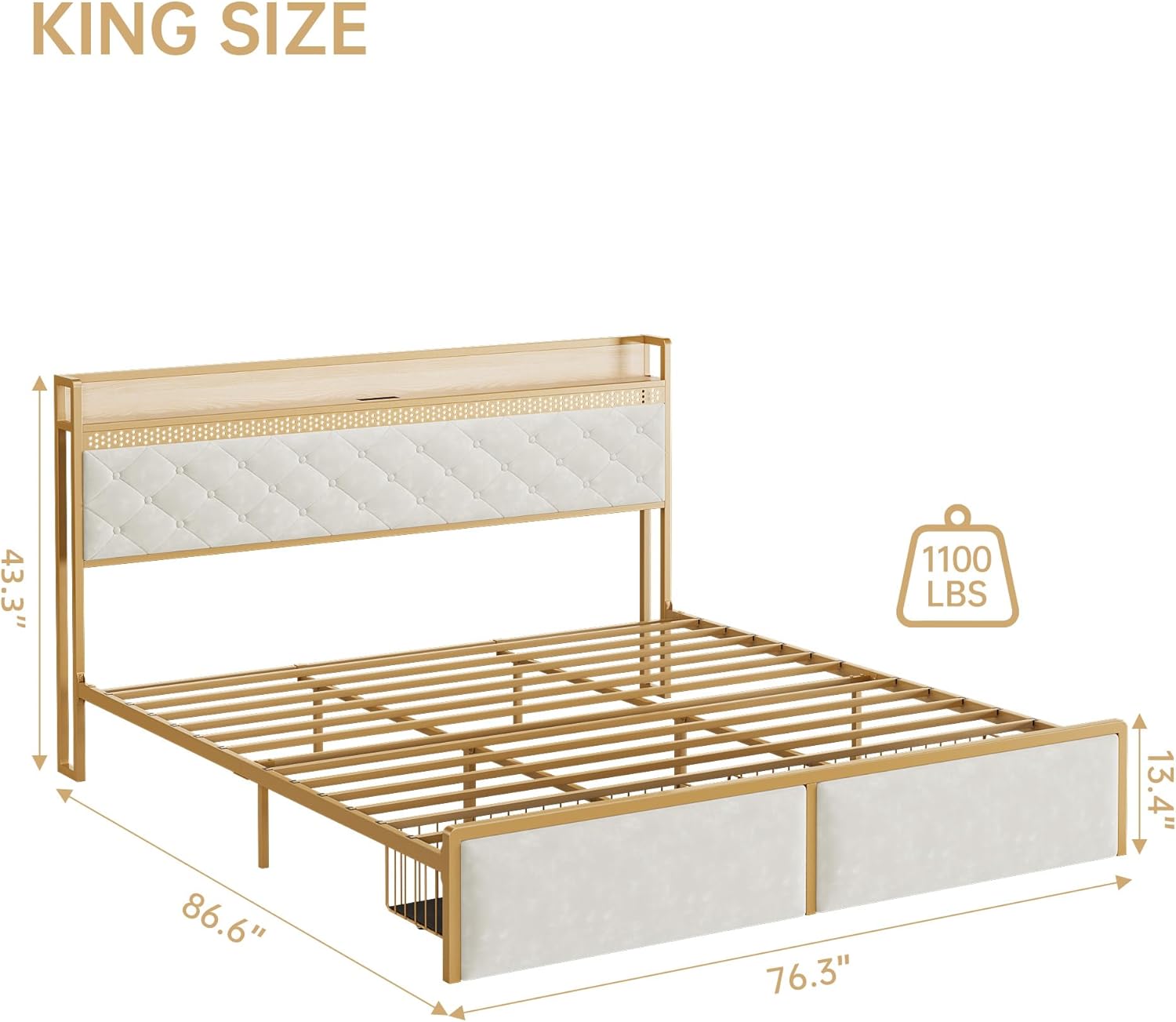

Diagram showing dimensions of the GAOMON King Bed Frame

Figura 1: Overall dimensions of the GAOMON King Bed Frame. The bed measures 86.6 inches in length, 76.3 inches in width, and 43.3 inches in height. It has a load capacity of 1100 lbs.

4.2. Assembling the Headboard and Footboard

  1. Attach the headboard support legs to the main headboard panel using the specified bolts and Allen wrench. Do not fully tighten yet.
  2. Connect the footboard panel to its support legs.

4.3. Connecting Side Rails

  1. Attach the left and right side rails to the headboard and footboard assemblies. Ensure the connection points align correctly.
  2. Insert all bolts and hand-tighten. Once all connections are made, fully tighten all bolts using the Allen wrench.

4.4. Installing Center Support and Slats

  1. Install the center support beam(s) and attach any additional support legs as indicated in the diagram.
  2. Place the metal slats onto the side rails. Each slat has EVA foam underneath to prevent noise. Simply insert them into the pre-existing slots in the bed frame.
Close-up images showing strong support slats, noise-free design with EVA foam, and easy installation method for slats.

Figura 2: Details of the bed frame's construction, highlighting strong support slats, noise-free design with EVA foam, and the simple installation process for the slats.

4.5. Assembling Storage Drawers

  1. Assemble the two storage drawers according to the separate drawer assembly instructions (if provided).
  2. Insert the assembled drawers into the designated slots under the footboard. Ensure they slide smoothly.
Image showing the two storage drawers pulled out from under the bed frame, filled with clothes and bags.

Figura 3: The bed frame features two large storage drawers, ideal for organizing clothes and other items.

4.6. Potència de connexió

  1. Locate the power cable for the headboard's LED lights and charging station.
  2. Connect the power adapter to the bed frame's power input and then plug it into a standard wall outlet.

Your GAOMON King Bed Frame is now assembled and ready for use.

5. Funcionament

5.1. RGB LED Lights

The integrated RGB LED lights are controlled by the included remote control. Point the remote at the receiver on the headboard to operate.

  • Botó d'encesa: Turns the LED lights on or off.
  • Selecció de color: Choose from various static colors.
  • Selecció del mode: Cycle through different dynamic lighting effects (e.g., flash, strobe, fade, smooth).
  • Ajust de brillantor: Augmentar o disminuir la intensitat de les llums.
  • Ajust de velocitat: For dynamic modes, adjust the speed of the effect.
GAOMON King Bed Frame with RGB LED lights illuminated, showing the bed in a bedroom setting with the lights creating an ambient glow.

Figura 4: The RGB LED lights integrated into the headboard provide customizable ambient lighting for your bedroom.

5.2. Charging Station (USB Ports & Outlets)

The headboard features a built-in charging station with 2 standard power outlets and 2 USB ports. These are active when the bed frame is plugged into a wall outlet.

  • Plug your electronic devices directly into the USB ports for charging.
  • Use the standard outlets for devices requiring AC power.
  • Avoid overloading the outlets. Refer to the power adapter's specifications for maximum load.
Close-up of the GAOMON King Bed Frame headboard showing the two-tier storage shelf with items like a tablet, phone, and alarm clock, and visible USB ports and power outlets.

Figura 5: The two-tier storage headboard includes convenient USB charging ports and standard power outlets for your electronic devices.

5.3. Calaixos d'emmagatzematge

The two large storage drawers are located under the footboard. They are designed for easy access and organization.

  • Pull the drawers out gently to access stored items.
  • Push them back in until they are fully closed.
  • The drawers include dustproof mats to protect your belongings.

6. Manteniment

Regular maintenance will help preserve the appearance and functionality of your bed frame.

  • Neteja: Netegeu les superfícies metàl·liques amb un drap suau iamp cloth. For upholstered parts, use a fabric cleaner suitable for the material, testing on an inconspicuous area first. Avoid harsh chemicals.
  • Apretament: Periodically check all bolts and connections (every 3-6 months) and tighten them as needed to maintain stability and prevent squeaking.
  • Pols: Regularly dust the headboard and frame to prevent buildup.
  • Espai lliure sota el llit: The 10.8-inch under-bed clearance allows for easy cleaning, including with robotic vacuums.
Image showing a robotic vacuum cleaning under the GAOMON King Bed Frame, highlighting the 10.8-inch under-bed clearance.

Figura 6: The generous 10.8-inch under-bed clearance facilitates easy cleaning, including with robotic vacuum cleaners.

7. Solució De Problemes

Consulteu aquesta secció per conèixer els problemes comuns i les seves solucions.

ProblemaCausa possibleSolució
El marc del llit trontolla o grinyola.Cargols solts o muntatge desigual.Ensure all bolts are fully tightened. Check that the bed frame is on a level surface.
Els llums LED no funcionen.Power cable disconnected, remote battery dead, or remote not paired.Check power connections. Replace remote battery. Ensure remote is pointed at the receiver.
USB ports/outlets are not charging.Bed frame not plugged in, or power adapter issue.Verify the bed frame's power cable is securely plugged into a working wall outlet. Check the power adapter for damage.
Els calaixos no llisquen suaument.Obstruction or improper assembly.Check for any items blocking the drawer path. Ensure drawers were assembled correctly and are aligned with the guides.

8. Especificacions

  • Model: TD-LED6
  • Mida: Rei
  • Dimensions del producte (L x A x A): 86.6" x 76.3" x 43.3"
  • Material: Metal frame, Upholstered headboard
  • Color: White (for this variant)
  • Capacitat de càrrega: 1100 lliures
  • Espai lliure sota el llit: 10.8 polzades
  • Característiques: RGB LED Lights, 2 Storage Drawers, Storage Headboard, 2 USB Ports, 2 Standard Outlets, Noise-Free Design
  • Muntatge requerit:

9. Garantia i Suport

GAOMON products are manufactured with quality and durability in mind. For specific warranty details, please refer to the warranty card included with your purchase or visit the official GAOMON website. If you encounter any issues or have questions regarding your GAOMON King Bed Frame, please contact our customer support team for assistance.

Atenció al client: Please refer to your purchase documentation or the GAOMON weblloc per obtenir informació de contacte.
