Alesis Strike Amp 8 Tambors MK2-2000W Amp Manual d'usuari de l'altaveu

1. Introducció

The Alesis Strike Amp 8 MK2 is a high-performance bi-amped speaker designed for electronic drums and multipad instruments. It delivers 2000 watts of peak power, providing clarity and headroom for various performance or rehearsal settings. This manual provides essential information for the proper setup, operation, and maintenance of your Strike Amp 8 MK2.

Figure 1: Alesis Strike Amp 8 Tambors MK2-2000W Amp Altaveu.

2. Què hi ha a la caixa

Assegureu-vos que tots els elements que s'enumeren a continuació estiguin presents al vostre paquet:

• Vaga Amp 8 MK2
• Cable d'alimentació
• Guia d'inici ràpid
• Manual de seguretat i garantia

3. Característiques clau

The Alesis Strike Amp 8 MK2 offers several features designed to enhance your electronic drumming experience:

• Potència màxima de 2000 W: Delivers high-fidelity sound with ampl'espai lliure.
• 8-inch Woofer & HF Compression Driver: Specially voiced for accurate reproduction of acoustic and electronic drum sounds.
• Connectivitat Bluetooth 5.0: Allows wireless audio streaming from mobile devices for practice or backing tracks.
• Posicionament versàtil: Can be used in wedge, upright, or pole-mounted configurations.
• Dual Combo Inputs: Two XLR + 1/4" inputs with independent volume controls for connecting multiple instruments.
• XLR Direct Output: For sending your mix to a front-of-house system, recording interface, or linking additional speakers.
• HPF EQ Switch: Helps cut through muddy stage mixes.
• Ground-Lift Switch: Eliminates unwanted grounding noise.
• Lleuger i portàtil: Weighs approximately 21 lbs for easy transport.

Figure 2: The Strike Amp 8 MK2 delivering high power performance for electronic drums.

4. Configuració

4.1 Col·locació física

The Strike Amp 8 MK2 offers flexible placement options to suit your needs:

• Wedge Position: Ideal for use as a floor monitor, directing sound upwards towards the performer.
• Posició vertical: Suitable for general amplification or when space is limited.
• Pole-Mounted: Can be mounted on a standard speaker pole for wider sound dispersion.

Figure 3: Versatile positioning options for the Strike Amp 8 MK2.

4.2 Connexions

Connect your electronic drum kit or other audio sources to the rear panel inputs.

Figura 4: Connexions i controls del panell posterior.

• Connect your drum module's main outputs to the Entrada 1 i/o Entrada 2 (XLR or 1/4" TRS combo jacks).
• Utilitza el Sortida XLR to link to another Strike Amp 8 MK2 or send the signal to a mixing console.
• Assegureu-vos que el cable d'alimentació estigui connectat correctament a Entrada de CA and a grounded power outlet.

4.3 Poder

Després de fer totes les connexions, canvieu el Poder button to the ON position. The Power LED will illuminate.

5. Funcionament

5.1 Controls de volum

Ajusteu el Volum 1 i Volum 2 knobs to set the desired levels for each input. The Signal Limit LED indicates when the signal is approaching clipping; reduce volume if it frequently lights up.

5.2 Vinculació Bluetooth

To stream audio wirelessly from a mobile device:

1. Assegureu-vos que el Bluetooth del vostre dispositiu mòbil estigui habilitat.
2. Premeu el botó Bluetooth button on the Strike Amp 8 MK2's rear panel. The Bluetooth LED will flash, indicating pairing mode.
3. Select "Alesis Strike Amp 8 MK2" from your device's Bluetooth settings.
4. Once paired, the Bluetooth LED will be solid. You can now stream audio.

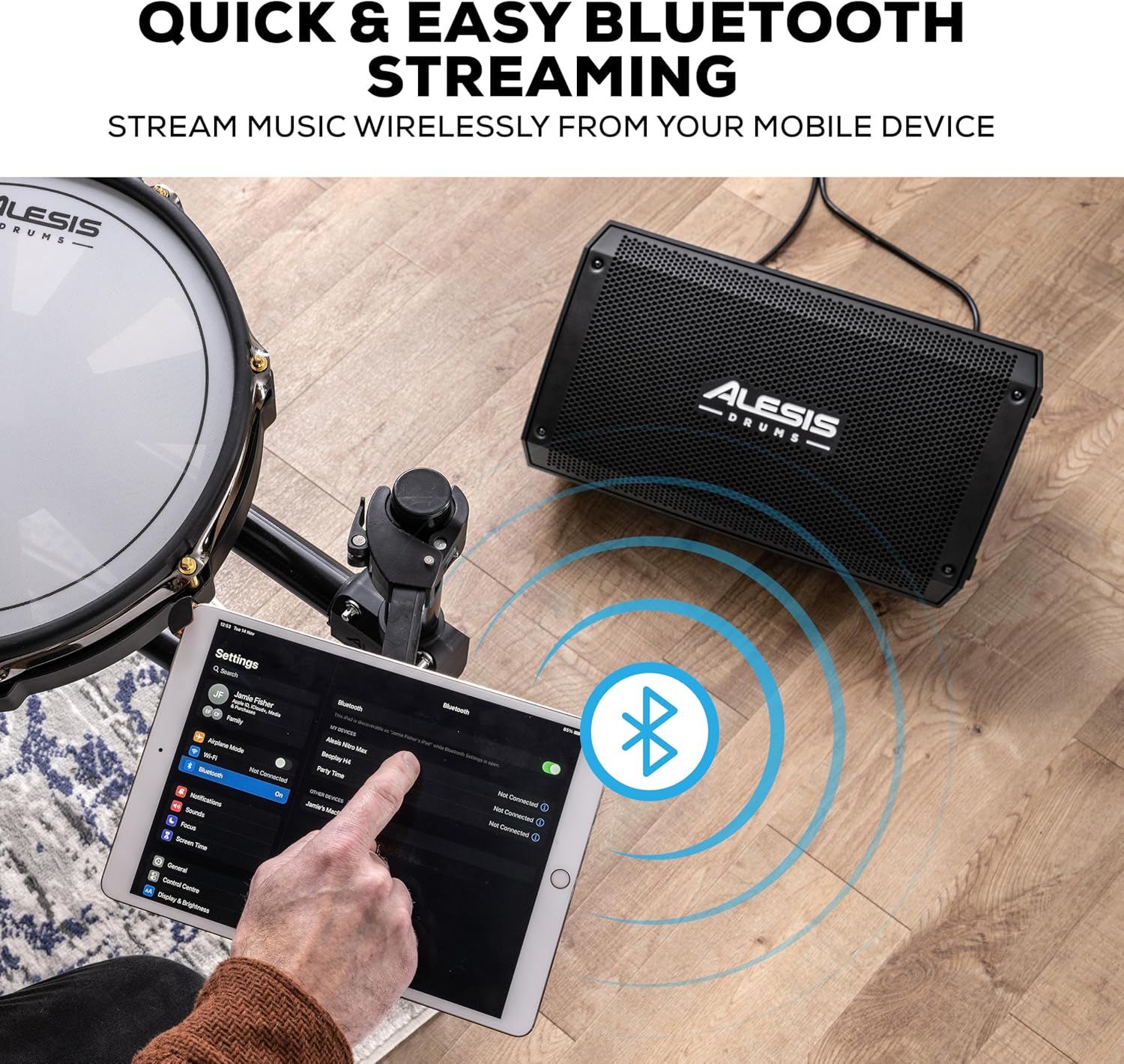

Figura 5: Transmissió per Bluetooth des d'un dispositiu mòbil.

5.3 HPF EQ and Ground-Lift Switches

• HPF EQ Switch: Activates a High-Pass Filter to reduce low-frequency rumble, which can help clarify the sound in certain environments.
• Ground-Lift Switch: Use this switch to eliminate hum or buzz caused by ground loops. Toggle it to the position that minimizes noise.

6. Manteniment

To ensure the longevity and optimal performance of your Strike Amp 8 MK2:

• Neteja: Feu servir un drap suau i sec per netejar l'exterior. Eviteu productes de neteja o dissolvents abrasius.
• Emmagatzematge: Store the speaker in a cool, dry environment away from direct sunlight and extreme temperatures.
• Ventilació: Ensure proper ventilation around the unit to prevent overheating. Do not block any vents.
• Cable de corrent: Always disconnect the power cable from the outlet before cleaning or performing any maintenance.

7. Solució De Problemes

8. Especificacions

9. Garantia i Suport

For detailed warranty information and technical support, please refer to the Safety & Warranty Manual included in your product package or visit the official Alesis weblloc.

Online resources and FAQs may also be available at www.alesis.com.
