Manual d'usuari de la llanterna OLIGHT BatonTurbo EDC

Introducció

Thank you for choosing the OLIGHT BatonTurbo EDC Flashlight. This compact and powerful LED flashlight is designed for everyday carry, offering 1000 lumens of brightness and a 510-meter beam distance. It features multiple lighting modes, magnetic charging, and a durable, waterproof design, making it suitable for various outdoor and emergency situations. This manual provides detailed instructions for proper setup, operation, and maintenance to ensure optimal performance and longevity of your device.

Image: The OLIGHT BatonTurbo EDC Flashlight, a compact black flashlight with a blue bezel and side switch, featuring a textured body for grip and a two-way pocket clip.

Què hi ha a la caixa

Upon opening your OLIGHT BatonTurbo package, please verify that all the following components are included:

• BatonTurbo Flashlight
• Customized Lithium-Ion Battery (pre-installed or separate)
• Magnetic Charging Cable (MCC)
• Belt Clip (pre-installed)
• Corda
• Manual d'usuari (aquest document)

Image: All components of the OLIGHT BatonTurbo package laid out, including the flashlight, battery, charging cable, belt clip, lanyard, and user manual.

Especificacions

Note: All data above are test results according to ANSI/NEMA FL 1-2019 standards.

Configuració

1. Instal·lació de la bateria

The OLIGHT BatonTurbo comes with a customized Lithium-Ion battery. Ensure the battery is properly inserted before first use. If replacing the battery or using an optional single-use battery, unscrew the tail cap, insert the battery with the positive (+) end facing the head of the flashlight, and then securely screw the tail cap back on.

Image: The customized rechargeable battery and an optional sleeve for a single-use battery, demonstrating flexible power sources.

2. Càrrega

The BatonTurbo features magnetic charging for convenience. Use the included Magnetic Charging Cable (MCC) to charge the flashlight.

1. Connect the USB end of the MCC to a power source (e.g., USB wall adapter, computer USB port, power bank).
2. Attach the magnetic end of the MCC to the tail cap of the flashlight. The indicator light on the MCC will turn red to indicate charging is in progress.
3. Once fully charged, the indicator light on the MCC will turn green. A full charge takes approximately 1.5 hours.

Image: The OLIGHT BatonTurbo flashlight connected to a magnetic charging cable, illustrating the charging process.

Instruccions de funcionament

The BatonTurbo is operated via a single side switch. The flashlight features a battery level indicator around the switch.

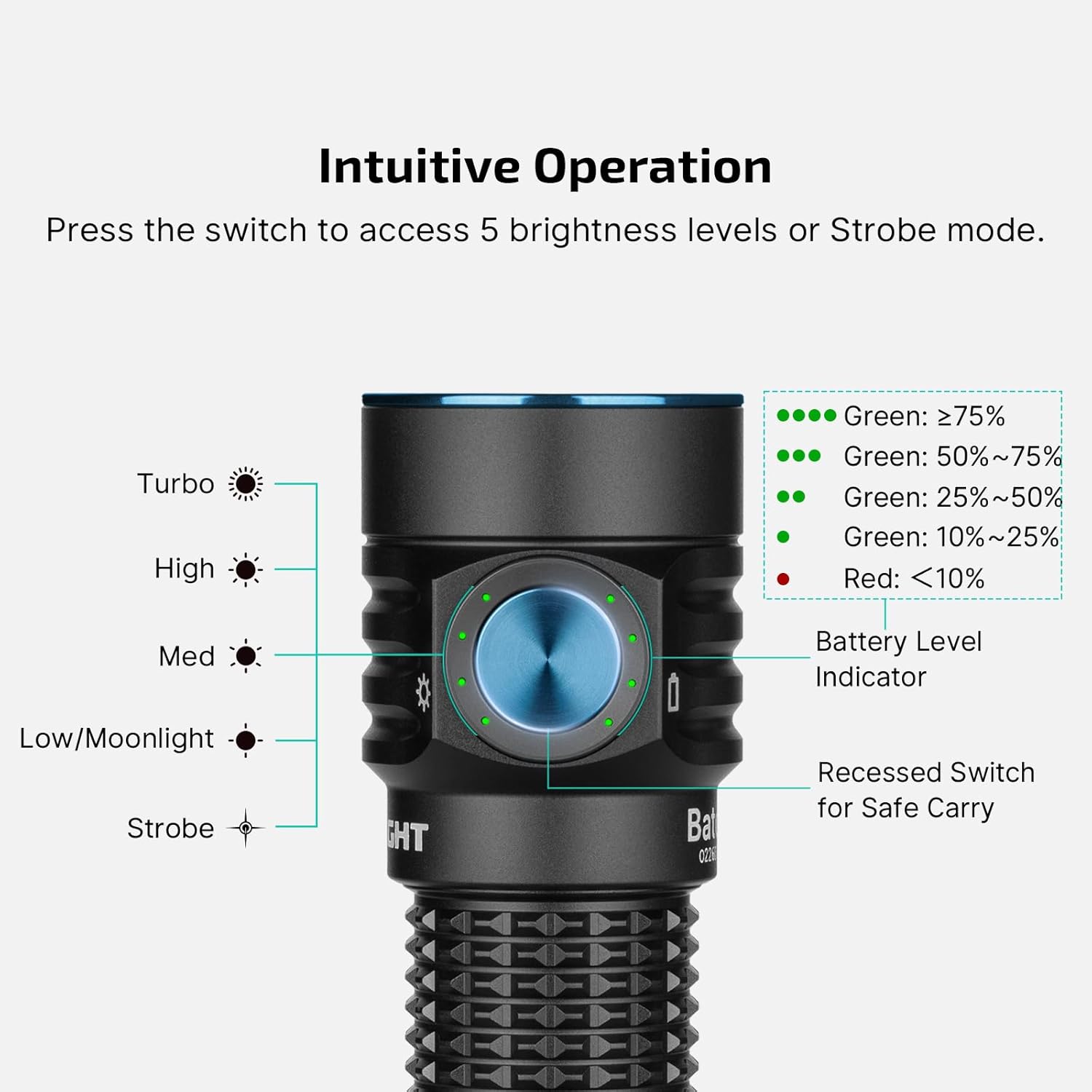

Image: Diagram illustrating the intuitive operation of the OLIGHT BatonTurbo, showing the side switch, various brightness modes (Moonlight, Low, Med, High, Turbo, Strobe), and the battery level indicator.

1. Encendre/apagar

• Encendre: Single click the side switch. The flashlight will turn on in the previously used mode (except Turbo and Strobe).
• Apagar: Single click the side switch again.

2. Selecció de mode

• Canvia la brillantor: When the flashlight is on, press and hold the side switch to cycle through Low, Medium, and High modes. Release the switch to select the desired mode.
• Mode clar de lluna: When the flashlight is off, press and hold the side switch for approximately one second to activate Moonlight mode.
• Mode turbo: Double click the side switch quickly to activate Turbo mode. Double click again to return to the previous mode.

3. Strobe Mode

• Activate Strobe: Triple click the side switch quickly to activate Strobe mode. Single click to turn off.

4. Lockout/Unlock

• Bloqueig: When the flashlight is off, press and hold the side switch for approximately two seconds until the Moonlight mode briefly turns on and then off. The flashlight is now in lockout mode to prevent accidental activation.
• Desbloquejar: Press and hold the side switch for approximately one second. The flashlight will unlock and activate in Moonlight mode.

Manteniment

Proper maintenance ensures the longevity and reliable performance of your OLIGHT BatonTurbo flashlight.

• Neteja: Regularly clean the threads and O-rings with a clean cloth. Apply a thin layer of silicone grease to the O-rings periodically to maintain water resistance.
• Cura de la bateria: Store the flashlight with a partially charged battery if not used for extended periods. Avoid fully discharging the battery frequently.
• Punts de contacte: Keep the magnetic charging port and battery contact points clean to ensure efficient charging and operation.
• Emmagatzematge: Guardeu la llanterna en un lloc fresc i sec, lluny de la llum solar directa i de temperatures extremes.

Resolució de problemes

If you encounter issues with your BatonTurbo flashlight, please refer to the following common troubleshooting steps:

• La llanterna no s'encén:
  • Assegureu-vos que la bateria estigui completament carregada.
  • Check if the tail cap is screwed on tightly. A loose tail cap can prevent electrical contact.
  • Verify the flashlight is not in lockout mode. Unlock it by pressing and holding the side switch for one second.
  • Inspect battery contact points for dirt or corrosion. Clean if necessary.
• Dim Light or Short Runtime:
  • Pot ser que la bateria estigui baixa. Recarrega la llanterna.
  • Ensure you are using the customized OLIGHT rechargeable battery for optimal performance. Optional single-use batteries may offer limited brightness.
• Problemes de càrrega:
  • Ensure the Magnetic Charging Cable (MCC) is securely connected to both the power source and the flashlight's tail cap.
  • Check if the MCC indicator light turns red during charging. If not, try a different USB power source or inspect the cable for damage.
  • Clean the magnetic charging port on the tail cap.

Si aquests passos no resolen el problema, poseu-vos en contacte amb el servei d'atenció al client d'OLIGHT per obtenir més ajuda.

Garantia i suport

OLIGHT provides a Garantia de per vida for the BatonTurbo EDC Flashlight, reflecting our commitment to quality and durability. For detailed warranty terms and conditions, please refer to the official OLIGHT weblloc o contacteu amb el servei d'atenció al client.

For product support, technical assistance, or warranty claims, please visit the official OLIGHT store or contact their customer service department:

• OLIGHT Official Store: Visit OLIGHT Store on Amazon
• Fabricant: LLUM
