Introducció
The Inglesina Quid Stroller is designed for families on the go, offering an ultra-compact and lightweight solution for travel and daily use. This manual provides essential information for the safe and proper assembly, operation, and maintenance of your stroller.

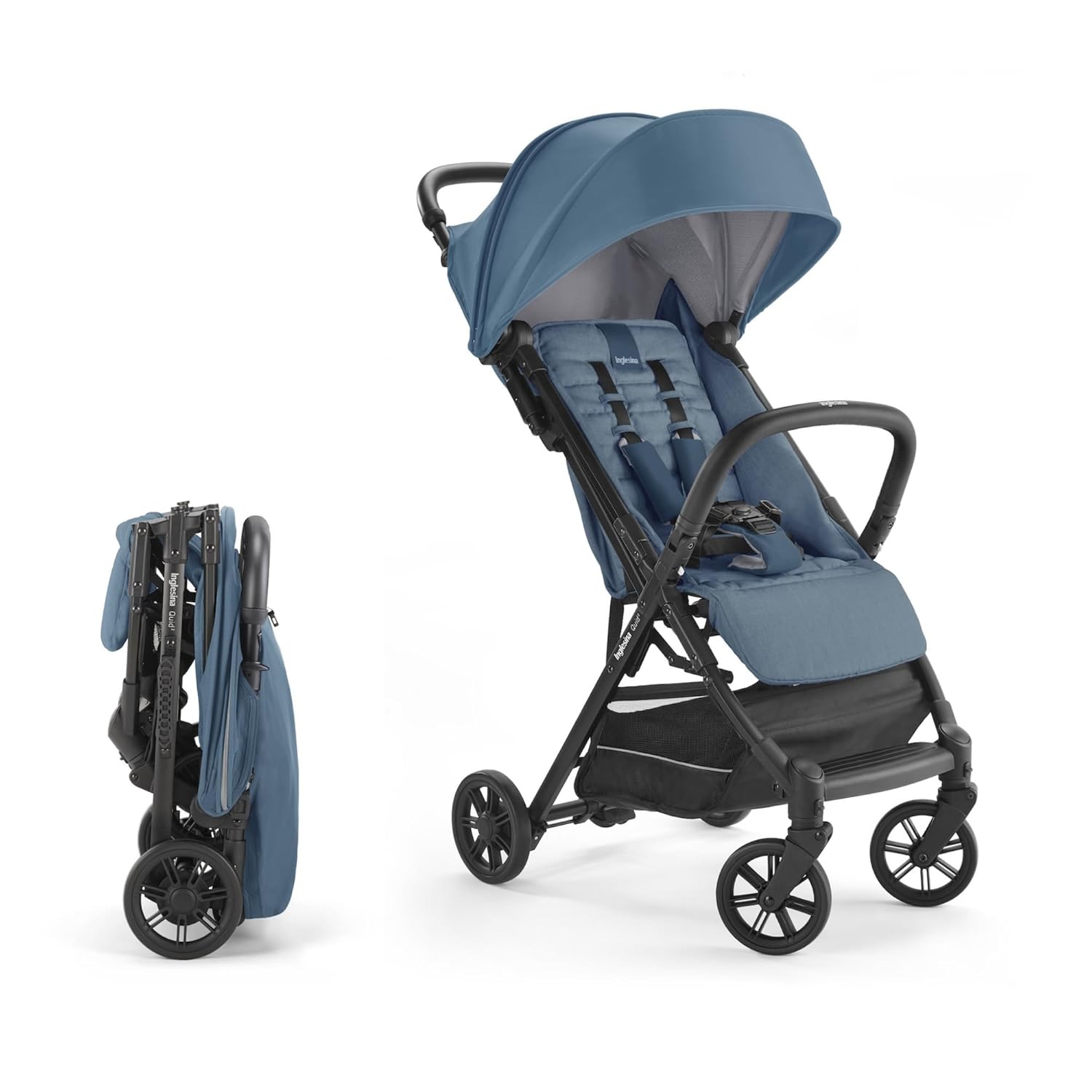

Figure 1: Inglesina Quid Stroller in Manta Blue, demonstrating its compact folded state next to its open configuration.
Informació important de seguretat
Always read and understand all instructions before using the stroller. Failure to follow these instructions could result in serious injury or death.
- No deixeu mai el vostre fill sense vigilància al cotxet.
- Feu servir sempre l'arnès de seguretat de 5 punts per assegurar el vostre fill.
- Assegureu-vos que el cotxet estigui completament obert i bloquejat abans de col·locar-hi un nen.
- Do not overload the storage basket or attach items to the handle, as this may cause the stroller to become unstable.
- No utilitzeu el cotxet a les escales o escales mecàniques.
- The stroller is suitable for children from 3 months up to 50 lbs.
- Inspeccioneu regularment el cotxet per detectar peces soltes, components danyats o teixit desgastat. Deixeu d'utilitzar-lo si detecteu algun dany.
Què s'inclou
Your Inglesina Quid Stroller package includes the following components:
- Marc de cotxet amb seient
- Dosser
- Cistella d'emmagatzematge
- 5-Point Safety Harness (pre-installed)
- Barra de para-xocs
Muntatge i muntatge
Follow these steps to assemble your Inglesina Quid Stroller:
1. Desplegar el cotxet
- Col·loqueu el cotxet plegat sobre una superfície plana.
- Locate the folding latches on the side of the frame.
- Release the latches and lift the handlebar until the stroller clicks into its fully open and locked position. Ensure all locking mechanisms are engaged.
Figure 2: The Inglesina Quid Stroller demonstrating its compact folded state and ease of opening for immediate use.
2. Attaching the Bumper Bar
- Align the bumper bar with the attachment points on both sides of the stroller seat.
- Press firmly until you hear a click, indicating it is securely attached.
- To remove, press the release buttons on each side and pull the bumper bar away.
3. Visual Assembly Guide
For a detailed visual guide on assembly and key features, please watch the official Inglesina Quid Stroller Technical Video:
Video 1: Inglesina Quid Stroller Technical Video. This video provides comprehensive instructions on assembling the stroller and highlights its various technical features.
Instruccions de funcionament
1. Folding the Stroller
- Ensure the seat is in the upright position and the canopy is folded back.
- Locate the folding mechanisms (often levers or buttons) on the handlebar or frame.
- Follow the specific folding sequence (refer to Video 1 for visual guidance) to collapse the stroller into its compact form. Ensure it locks into the folded position.

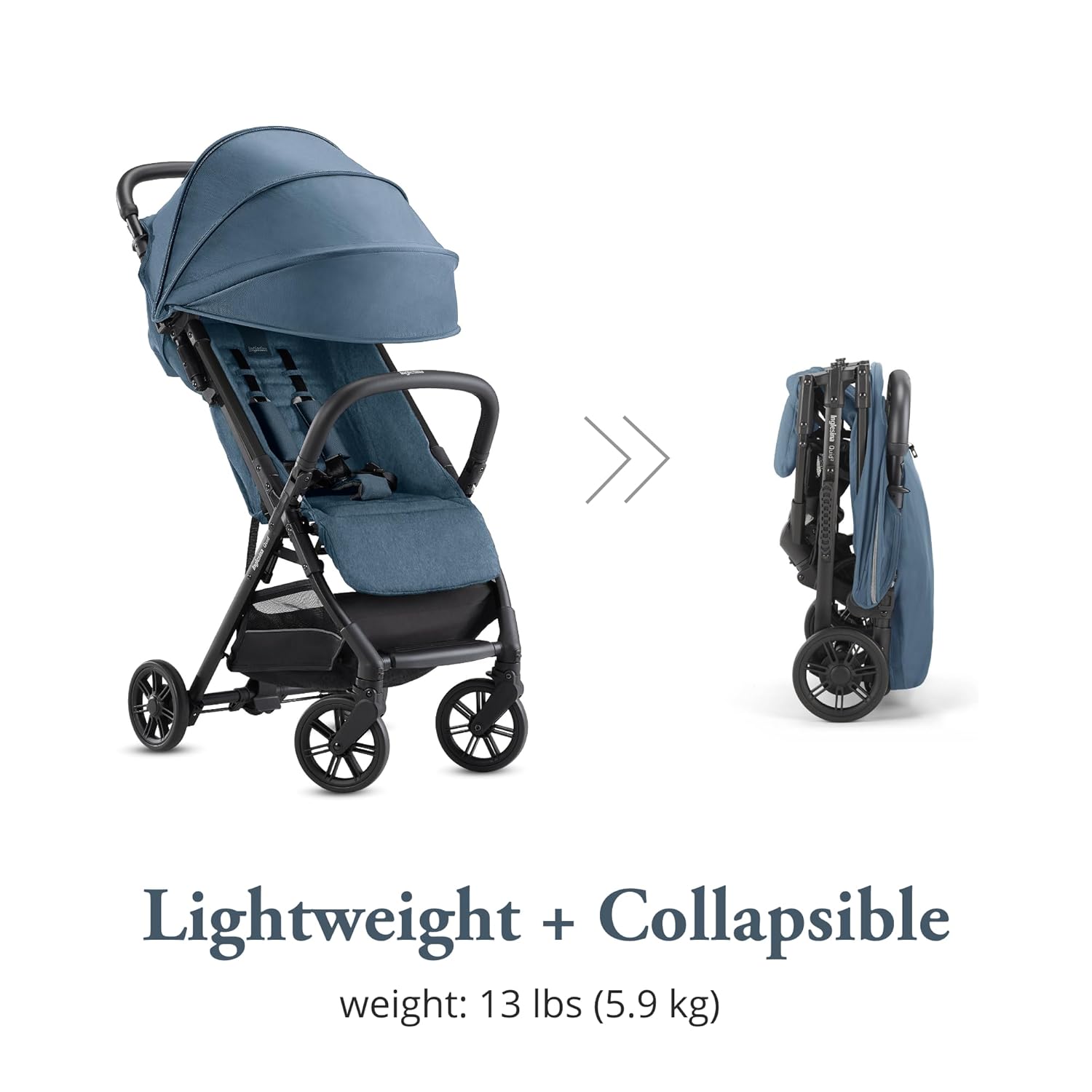

Figure 3: The stroller's lightweight (13 lbs / 5.9 kg) and collapsible design, making it easy to transport and store.
2. Reclining the Seat
The multi-position reclining seat allows for optimal comfort for your child, from active play to nap time.
- Locate the recline adjustment mechanism on the back of the seat.
- Press the release button or squeeze the lever and adjust the seat to the desired angle.
- Release the mechanism to lock the seat in place.
3. Adjusting the Leg Rest
The adjustable leg rest provides support for your child's legs as they grow.
- Press the buttons on either side of the leg rest.
- Move the leg rest up or down to the desired position and release the buttons to lock.
4. Using the 5-Point Safety Harness
Always secure your child with the 5-point safety harness to prevent falls and ensure safety.
- Col·loca el teu fill al seient.
- Bring the shoulder straps over your child's shoulders and the waist straps around their hips.
- Insert the buckles into the central buckle until they click.
- Adjust the straps to ensure a snug but comfortable fit.
5. Canopy Operation
The extendable canopy provides UPF 50+ sun protection and features a ventilation window.
- To extend the canopy, pull it forward. For maximum coverage, unzip the additional panel.
- To open the ventilation window, roll up the fabric flap on the canopy.
Figure 4: Features designed for ultimate comfort, including the extendable canopy for sun protection and adjustable seat components.
6. Sistema de frens
The stroller is equipped with a reliable brake system for secure parking.
- Per accionar el fre, premeu fermament el pedal del fre situat a prop de les rodes posteriors.
- To release the brake, lift the pedal upwards.
- Always engage the brake when the stroller is stationary.
7. Front Wheel Lock
Lockable swivel front wheels provide stability on uneven terrain.
- To lock the front wheels, push down the lever located above each front wheel.
- To unlock, lift the lever upwards.
8. Cistella d'emmagatzematge
The reflective storage basket offers convenient space for essentials.
- Access the basket from the front or rear of the stroller.
- Do not exceed the maximum weight capacity of the basket (refer to specifications).
9. General Operation Overview
Mireu aquest vídeo per a una ullada ràpidaview of the Inglesina Quid Stroller's features and operation:
Video 2: Inglesina Quid Stroller Overview. This video showcases the stroller's design and ease of use in various settings.
Manteniment i cura
Proper maintenance ensures the longevity and safe operation of your stroller.
- Neteja de teixits: Utilitza l'anunciamp cloth and mild soap to clean fabric surfaces. Do not use harsh detergents or bleach. Allow to air dry completely.
- Marc de neteja: Netegeu el marc d'alumini amb un drap suau iamp drap. Assequeu-ho bé per evitar que s'oxidi.
- Manteniment de rodes: Periodically clean debris from the wheels and axles. Lubricate moving parts with a silicone-based lubricant if necessary.
- Emmagatzematge: Store the stroller in a dry, well-ventilated area away from direct sunlight and extreme temperatures.
Resolució de problemes
Consulteu la taula següent per veure els problemes habituals i les seves solucions:
| Problema | Causa possible | Solució |
|---|---|---|
| Stroller won't fold/unfold smoothly. | Locking mechanisms are stuck or not fully disengaged/engaged. | Ensure all levers and buttons are pressed correctly. Check for obstructions. Lubricate moving parts if needed. |
| Wheels are squeaky or difficult to maneuver. | Debris in wheel axles, lack of lubrication, or locked swivel wheels. | Clean wheels and axles. Apply silicone lubricant. Ensure front swivel wheels are unlocked for maneuverability. |
| Brake is not engaging or releasing. | Debris obstructing the brake mechanism. | Clear any debris from the brake pedal and mechanism. Ensure full engagement/disengagement. |
| Child's harness feels too tight/loose. | Les corretges no estan ajustades correctament. | Adjust the shoulder and waist straps for a snug, comfortable fit. Refer to harness adjustment instructions. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Inglesina |
| Número de model | 809630009267 |
| Color | Manta Blue |
| Material (teixit) | Polièster |
| Material del marc | Alumini |
| Rang d'edat (recomanat) | De 3 mesos a 50 lliures |
| Recomanació de pes màxim | 50 lliures |
| Pes de l'article | 13 lliures |
| Dimensions de l'article (L x A x A) | 30 cm de llargada x 18.3 cm d'amplada x 40.6 cm d'alçada |
| Mida plegada | 30-18.3-40.6 Inches |
| Tipus d'arnès | 5 Punt |
| Tipus de cotxet | Paraigua Cotxet |
| Compatible amb seients de cotxe | No |
| Nombre de portavasos | 1 |
| Dosser | Extendable with UPF 50+ fabric and ventilation window |
| Rodes | Lockable swivel front wheels, suspension |
Garantia i Suport
Inglesina products are manufactured to the highest quality standards. For information regarding your product's warranty, please refer to the warranty card included with your purchase or visit the official Inglesina weblloc.
For customer support, technical assistance, or spare parts, please contact Inglesina customer service through their official channels. Keep your proof of purchase for warranty claims.
