Introducció
The Pulsar Krypton 2 Thermal Attachment Kit XG50 is a high-performance thermal imaging device designed to enhance your optical equipment. It features advanced thermal detection capabilities, a high-resolution display, and a robust build, making it suitable for various outdoor and hunting applications. This manual provides essential information for the proper setup, operation, and maintenance of your device.
Image: The Pulsar Krypton 2 Thermal Attachment Kit XG50, showing its compact design and primary lens.
Característiques clau
- High-Definition Thermal Imaging: Equipped with a 640x480 <40mK NETD sensitivity thermal imaging sensor and a 1920x1080 AMOLED display for exceptional clarity.
- Impressive Detection Range: Capable of detecting targets up to 2500 yards away.
- Llarga vida útil de la bateria: Provides up to 11 hours of operation on a single charge with quick USB-C charging.
- Adaptable Visuals: Offers 8 different color palettes for various environmental conditions.
- Resilient Build: IPX7 waterproof rating and robust aluminum alloy body ensure durability in extreme temperatures (-13°F to 122°F).
Contingut del paquet
Upon opening the package, please verify that all listed components are present:
- Krypton attachment
- Hard cover protective case
- Maleta de transport
- 3 rail mounts
- 3 scope mounts
- Cable USB
- Tapa de la lent
- IPS 7 Battery pack
- Carregador de bateria
Configuració i instal·lació
1. Carregant la bateria
Before first use, fully charge the IPS 7 Li-Ion Battery Pack using the provided battery pack charger and USB cable. The battery life is approximately 11 hours.
Image: Close-up of the device indicating the battery type (ISP7 Li-Ion Battery Pack) and its features: 11 hours battery life, USB compatibility, and IPX7 waterproof rating.
2. Attaching to Your Scope
The Krypton 2 is designed as a thermal attachment. Use the appropriate scope mount from the included accessories to securely attach the device to the objective lens of your daytime optical scope. Ensure a firm and stable connection to maintain zero.
- Select the correct scope mount size for your objective lens.
- Attach the mount to the Krypton 2.
- Securely fasten the Krypton 2 with the mount onto your scope.
Image: A user looking through the Pulsar Krypton 2 thermal attachment, demonstrating its use as an add-on to a primary optic.
Instruccions de funcionament
1. Encendre/apagar
Press and hold the power button (usually the prominent blue button) to turn the device on or off. Allow a few seconds for the device to initialize.
Imatge: Un primer pla view of the control buttons on the Pulsar Krypton 2, highlighting the blue power button.
2. Display and Imaging
The Krypton 2 XG50 features a 1920x1080 AMOLED display, providing clear and detailed thermal images. The 640x480 <40mK NETD sensor ensures high sensitivity to temperature differences.
Image: A screen capture from the Pulsar Krypton 2 display, showing two deer in a thermal view, with text indicating "DISPLAY TYPE/RESOLUTION AMOLED 1920x1080 HD".

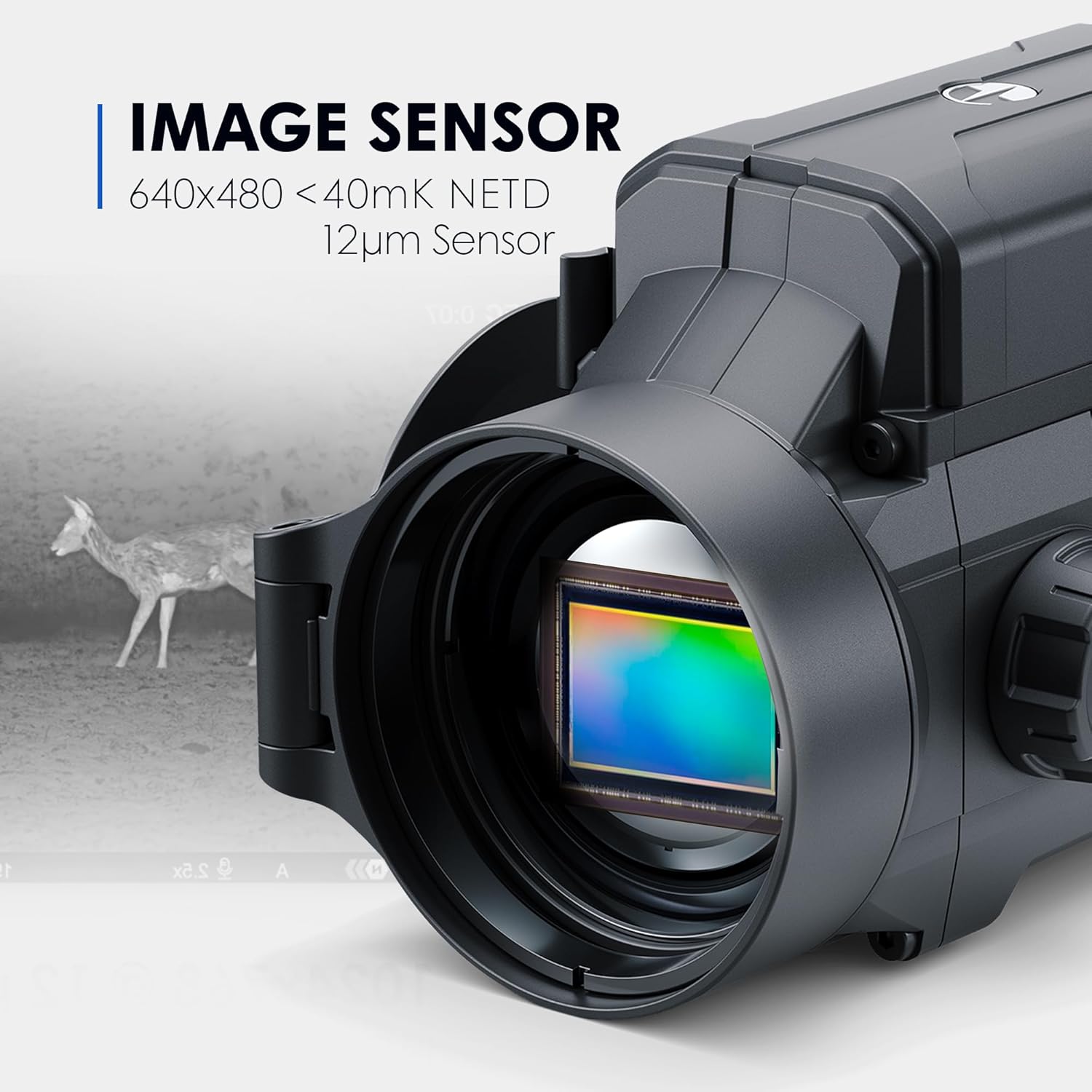

Image: A close-up of the Krypton 2's lens, showing the thermal sensor chip, with text indicating "IMAGE SENSOR 640x480 <40mK NETD 12µm Sensor".
3. Paletes de colors
The device offers 8 distinct color palettes to optimize viewing for different environments and preferences. Navigate through the menu to select your desired palette (e.g., White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Violet, Sepia).
Image: A grid displaying eight different thermal color palettes (White Hot, Black Hot, Red Hot, Red Monochrome, Rainbow, Ultramarine, Violet, Sepia) as seen through the Krypton 2, showing how different heat signatures are represented.
4. Digital Magnification
The Krypton 2 XG50 supports 3x digital magnification. Use the designated buttons to zoom in or out, allowing for closer inspection of distant targets. Note that digital magnification may reduce image quality compared to optical magnification.
Image: A split image showing the effect of 3x digital magnification on the thermal view, with a user holding the device in the lower part of the image.
Manteniment i cura
- Neteja: Use a soft, lint-free cloth to clean the lens and body of the device. For stubborn dirt, a small amount of lens cleaning solution can be applied to the cloth, not directly to the lens.
- Emmagatzematge: Store the device in its protective case in a cool, dry place when not in use.
- Cura de la bateria: Per a l'emmagatzematge a llarg termini, assegureu-vos que la bateria estigui parcialment carregada (al voltant del 50%) per allargar-ne la vida útil.
- Resistència a l'aigua: The device has an IPX7 waterproof rating, meaning it can withstand immersion in up to 1 meter of water for 30 minutes. However, avoid unnecessary exposure to water and always ensure the USB port cover is securely closed.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El dispositiu no s'encén. | La bateria està esgotada o no està inserida correctament. | Charge the battery fully. Ensure the battery pack is correctly inserted. |
| Poor image quality or blurry display. | Lens is dirty or focus is incorrect. | Clean the lens with a soft cloth. Adjust the focus ring on the device. |
| Durada de la bateria curta. | Battery not fully charged or operating in extreme cold. | Ensure battery is fully charged. Battery performance can decrease in very cold temperatures. |
| El dispositiu es bloqueja o deixa de respondre. | Error temporal de programari. | Perform a hard reset by holding the power button for an extended period (e.g., 10-15 seconds) until it powers off, then restart. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Púlsar |
| Nom del model | Krypton 2 |
| Color | XG50 |
| Pes de l'article | 20.4 unces |
| Material | Alumini |
| Dispositius compatibles | Handgun (Note: Primarily designed for rifle scopes as an attachment) |
| Tipus de muntatge | Muntatge d'anell |
| Visió nocturna | No (Thermal imaging, not traditional night vision) |
| Fabricant | Corporació Sellmark |
| UPC | 840284900289 |
| Dimensions del paquet de l'article | 12.5 x 12.25 x 6.12 polzades |
| Dimensions de l'article LxWxH | 8.5 x 3 x 3.3 polzades |
| Número de part | PL76659K |
| Primera data disponible | 28 de setembre de 2023 |
Garantia i Suport
The Pulsar Krypton 2 Thermal Attachment Kit XG50 comes with a 3 anys de garantia limitada from Sellmark Corporation. For warranty claims, technical support, or further inquiries, please contact Pulsar customer service or visit their official weblloc.
You can also explore more products and information on the official Pulsar store: Botiga Pulsar a Amazon.
Avisos importants
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfers under the authority of the International Traffic in Arms Regulations (ITAR). Diversion contrary to U.S. law prohibited.
Advertència de la proposta 65: Aquest producte pot contenir productes químics coneguts a l’Estat de Califòrnia per causar càncer i defectes congènits o altres danys reproductius.
