STRICH SBA-10 Mini Bass AmpManual d'usuari més viu

1. Introducció

The STRICH SBA-10 is a compact and portable mini bass amplifier designed for practice and personal use. Featuring dual 5W subwoofers, it delivers clear bass tones in a small form factor. This amplifier includes both Clean and Drive channels, Bluetooth connectivity, an AUX input, and a headphone output for versatile practice options. Its rechargeable battery ensures portability for extended use.

Image 1.1: The STRICH SBA-10 Mini Bass Ampvidador, espectacleasinel seu disseny compacte i el panell de control.

2. Contingut del paquet

Assegureu-vos que tots els elements siguin presents al paquet:

• 1 x STRICH SBA-10 Electric Bass Amp
• 1 x cable de càrrega USB
• 1 x Manual d'usuari

3. Característiques del producte

• Disseny compacte i portàtil: Features 2x5W subwoofers in a small size (17.20 x 9.20 x 12.60 CM / 6.77 x 3.62 x 4.96 INCH), ideal for desktop use and easy transport.
• Llarga vida útil de la bateria: Equipped with a 3000mAh battery, providing up to 4 hours of continuous operation.
• Canals duals: Switch between CLEAN and DRIVE channels for varied sound textures.
• Control de volum independent: Separate volume controls for Bluetooth/AUX input and instrument input allow for balanced mixing of background music and instrument sound.
• Sortida d'auriculars: A 1/8" (3.5mm) headphone jack enables private practice sessions.
• Baix millorat: Utilizes a professional low-frequency algorithm and specialized bass speaker for optimal bass instrument performance.
• Construcció duradora: Built with hard material edges and rubber pads for stability and protection.

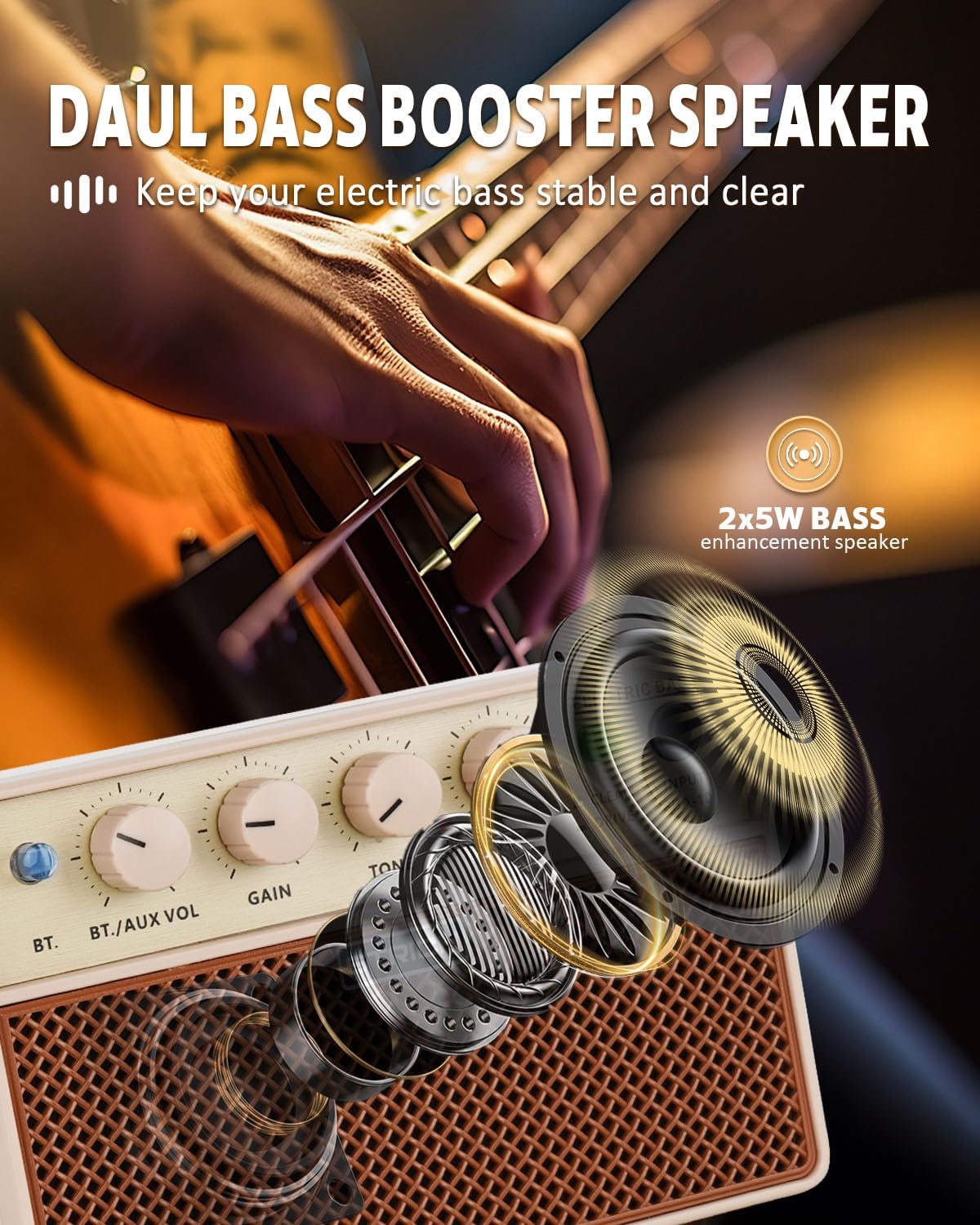

Image 3.1: Diagram illustrating the dual bass booster speaker system of the SBA-10.

4. Controls i connexions

Image 4.1: Detailed diagram of the SBA-10 amplifier's front panel controls and rear panel ports.

Controls del panell frontal:

1. Botó BT: Activa el mode d'emparellament Bluetooth.
2. BT./AUX VOL Knob: Adjusts the volume level for Bluetooth and AUX input audio.
3. Mando GAIN: Controls the input signal gain for your instrument.
4. Mando de TONE: Adjusts the tonal characteristics of your instrument's sound. Turning clockwise brightens the tone, counter-clockwise warms it.
5. POWER VOL Knob: Functions as the master volume control for the amplifier and also serves as the power ON/OFF switch.
6. CLEAN/DRIVE Switch: Toggles between the clean instrument tone and the overdriven (distorted) tone.
7. Jack d'ENTRADA: 1/4" (6.35mm) input for connecting your bass guitar or other instrument.

Ports del panell posterior:

1. 5V DC Charging Port: Port USB-C per carregar la bateria interna.
2. 1/8" Headphone Output: Jack de 3.5 mm per connectar auriculars.
3. 1/8" Audio Input (AUX): Jack de 3.5 mm per connectar fonts d'àudio externes.

5. Configuració

5.1 Càrrega inicial

Before first use, fully charge the SBA-10 amplifier. Connect the provided USB charging cable to the 5V DC Charging Port on the rear of the amplifier and to a standard USB power adapter (not included). The charging indicator light will show the charging status.

5.2 Connexió de l'instrument

Plug your bass guitar or other instrument into the ENTRADA jack on the front panel using a standard 1/4" instrument cable.

6. Instruccions de funcionament

6.1 Engegada/apagada

Per encendre el amplifier, rotate the POTÈNCIA VOL knob clockwise until it clicks and the power indicator light illuminates. To power off, rotate the POTÈNCIA VOL el botó en sentit antihorari fins que faci clic.

6.2 Selecció de canals

Utilitza el NETEJA/CONDUCIR switch to select your desired sound:

• NETEJA: Provides a normal, uncolored instrument tone.
• CONDUIR: Produces an overdriven or distorted tone, suitable for rock music and other genres requiring saturation.

Image 6.1: Illustration of the two working modes, Clean and Drive, available on the SBA-10 ampmés viu.

6.3 Ajust del so

• GUANY: Ajusteu el GUANYA knob to control the input sensitivity and the amount of overdrive (especially in Drive mode).
• TO: Utilitza el TO knob to shape the frequency response of your instrument.
• POWER VOL: Ajusteu el POTÈNCIA VOL knob for the overall output volume of the ampmés viu.

6.4 Connectivitat Bluetooth

The SBA-10 allows you to connect a Bluetooth device to play backing tracks or music.

1. Premeu el botó BT button on the front panel. The Bluetooth indicator light will flash, indicating pairing mode.
2. On your device (smartphone, tablet, etc.), enable Bluetooth and search for "SBA-10".
3. Select "SBA-10" to pair. Once connected, the Bluetooth indicator light will remain solid.
4. Adjust the volume of the Bluetooth audio using the BT./AUX VOL perilla.

Image 6.2: Diagram showing how to connect a smartphone via Bluetooth to the SBA-10 ampmés viu.

6.5 Ús de l'entrada AUX

To connect an external audio source via cable:

1. Connect your audio device (e.g., MP3 player, laptop) to the 1/8" Audio Input (AUX) on the rear panel using a 3.5mm audio cable.
2. Adjust the volume of the AUX audio using the BT./AUX VOL perilla.

6.6 Ús d'auriculars

For silent practice, plug your headphones into the 1/8" Headphone Output on the rear panel. The internal speakers will automatically mute when headphones are connected.

Image 6.3: A musician practicing with headphones connected to the SBA-10 amplifier, demonstrating quiet practice capability.

7. Carregant la bateria

The SBA-10 features a built-in 3000mAh lithium battery. When the battery is low, the power indicator light may change color or flash. To charge:

1. Connect the USB charging cable to the Port de càrrega de 5 V CC a la part posterior de la ampmés viu.
2. Connecteu l'altre extrem del cable USB a una font d'alimentació USB compatible (per exemple, un adaptador de paret, un port USB de l'ordinador).
3. The charging indicator will show the charging status. A full charge typically provides 3-4 hours of continuous use.

Image 7.1: Visual representation of the SBA-10's 3000mAh battery, indicating 3-4 hours of continuous play time.

8. Manteniment

• Netegeu el amplifier with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Eviteu exposar el amplifier to extreme temperatures, humidity, or direct sunlight.
• No obstruïu les obertures de ventilació.
• Emmagatzemar el amplifier in a dry, cool place when not in use.

9. Solució De Problemes

10. Especificacions

11. Garantia i Suport

STRICH is committed to providing quality products and customer satisfaction.

• Serveis de garantia: The STRICH SBA-10 amplifier comes with up to a 12-month warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
• Política de devolució: A 30-day free return policy is available for eligible purchases.
• Atenció al client: For any inquiries, technical assistance, or warranty claims, please contact STRICH customer service. We aim to provide a prompt response to email chat assistant requests within 24 hours.

For further assistance, please visit the official STRICH weblloc o poseu-vos en contacte amb el vostre distribuïdor.

Imatge 11.1: acabatview of STRICH customer care services, including prompt response, warranty, and return policy.
