HyperMotion Garden Swing Nest with Frame - Instruction Manual

1. Informació important de seguretat

Please read this entire manual carefully before assembling, installing, or using the HyperMotion Garden Swing Nest with Frame. Keep this manual for future reference.

• Supervisió d'un adult requerit: This product is intended for use under direct adult supervision at all times.
• Normes de seguretat: The HyperMotion SWING HYP1 complies with EN71 safety standards. It features smooth surfaces and rounded edges to minimize potential hazards.
• Límit de pes: Do not exceed the maximum weight capacity of 150 kg (approximately 1-2 users, depending on age and size).
• Edat recomanada: Apte per a nens de 3 anys o més.
• Instal·lació: Ensure the swing is installed on a level surface, at least 2 meters away from any structures or obstacles. Securely anchor the frame to the ground as instructed.
• Comprovacions periòdiques: Periodically inspect all components for wear, damage, or loose connections. Tighten bolts and replace worn parts as necessary.
• Condicions meteorològiques: Avoid using the swing during strong winds, heavy rain, or other adverse weather conditions.

2. Producte acabatview

The HyperMotion Garden Swing Nest with Frame (Model SWING HYP1) is designed for outdoor recreational use, providing a safe and enjoyable swinging experience. It features a robust A-frame metal construction, a comfortable nest swing seat, and adjustable ropes.

Figure 2.1: Fully assembled HyperMotion Garden Swing Nest with Frame in an outdoor setting.

Característiques principals:

• Construcció duradora: Sturdy A-frame metal structure ensures stability and safety.
• Adjustable Ropes: Swing ropes can be adjusted from 0.85 m to 1.4 m to suit different user heights.
• Resistència a la intempèrie: Made with water-resistant, quick-drying materials and UV protection for outdoor durability.
• Alta capacitat de pes: Supports up to 150 kg, suitable for one or two children.
• Disseny modern: Features a minimalist style in dark green and grey tones.

3. Instruccions de muntatge (Configuració)

Assembly requires at least two adults. Ensure all parts are present before beginning. A hammer or mallet may be required for ground anchors.

3.1. Contingut del paquet

Verifiqueu que tots els components que s'enumeren a continuació s'inclouen al paquet:

• Metal A-frame components (legs, crossbar, connectors)
• Swing nest seat
• Adjustable ropes with carabiners
• Ground anchors
• Assembly hardware (bolts, nuts, washers)
• Manual d'instruccions

3.2. Muntatge del marc

1. Desembaleu tots els components i col·loqueu-los sobre una superfície neta i plana.
2. Assemble the A-frame legs by connecting the metal tubes using the provided connectors and hardware. Ensure all bolts are securely tightened.
3. Attach the horizontal crossbar to the top of the assembled A-frames. Secure with bolts and nuts.
4. Once the frame is upright, position it in the desired location, ensuring a minimum clearance of 2 meters around the swing.

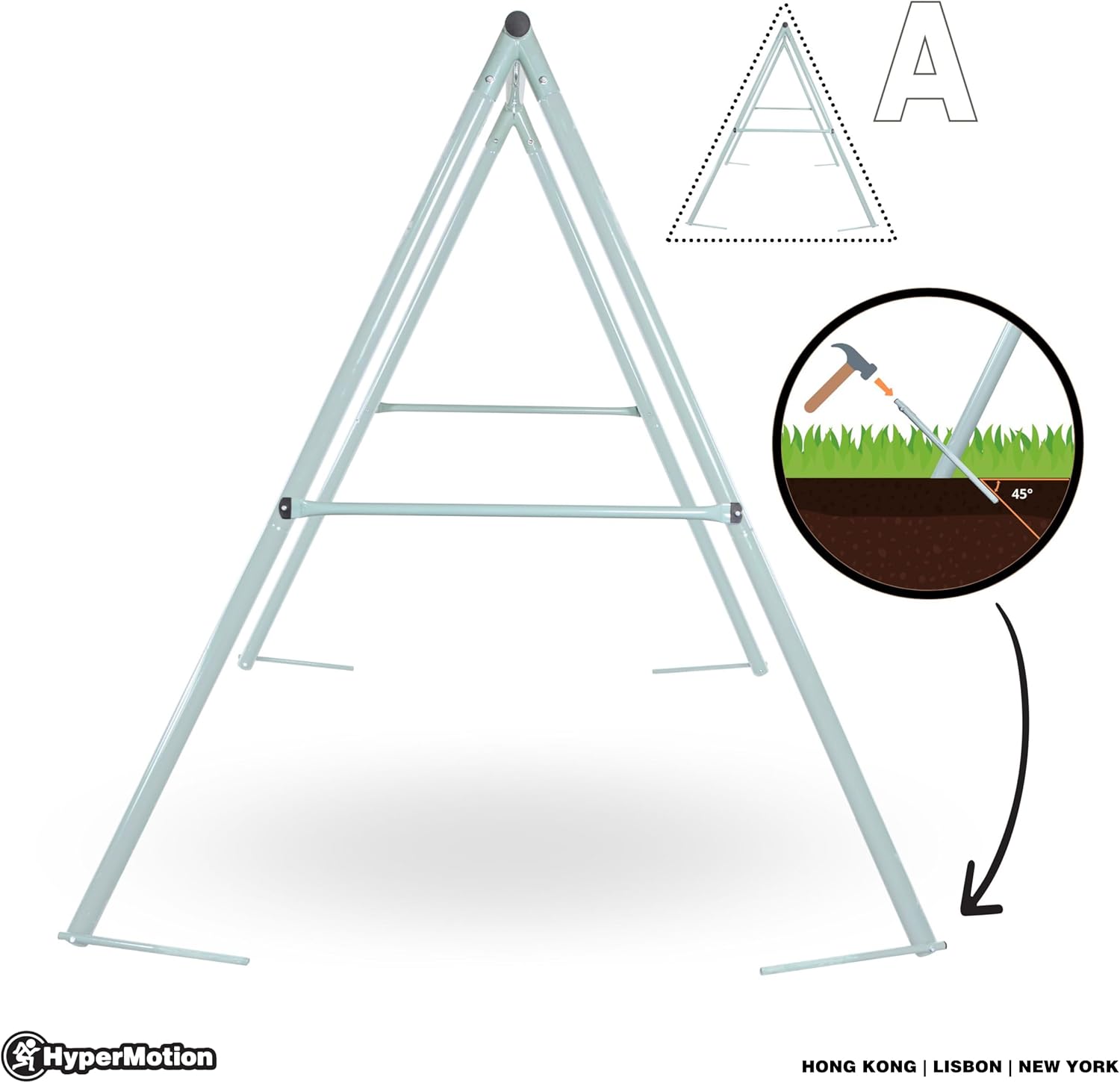

Figure 3.1: Illustration of the A-frame structure and recommended ground anchoring technique at a 45-degree angle.

Figure 3.2: Detail of a secure joint connection within the A-frame structure.

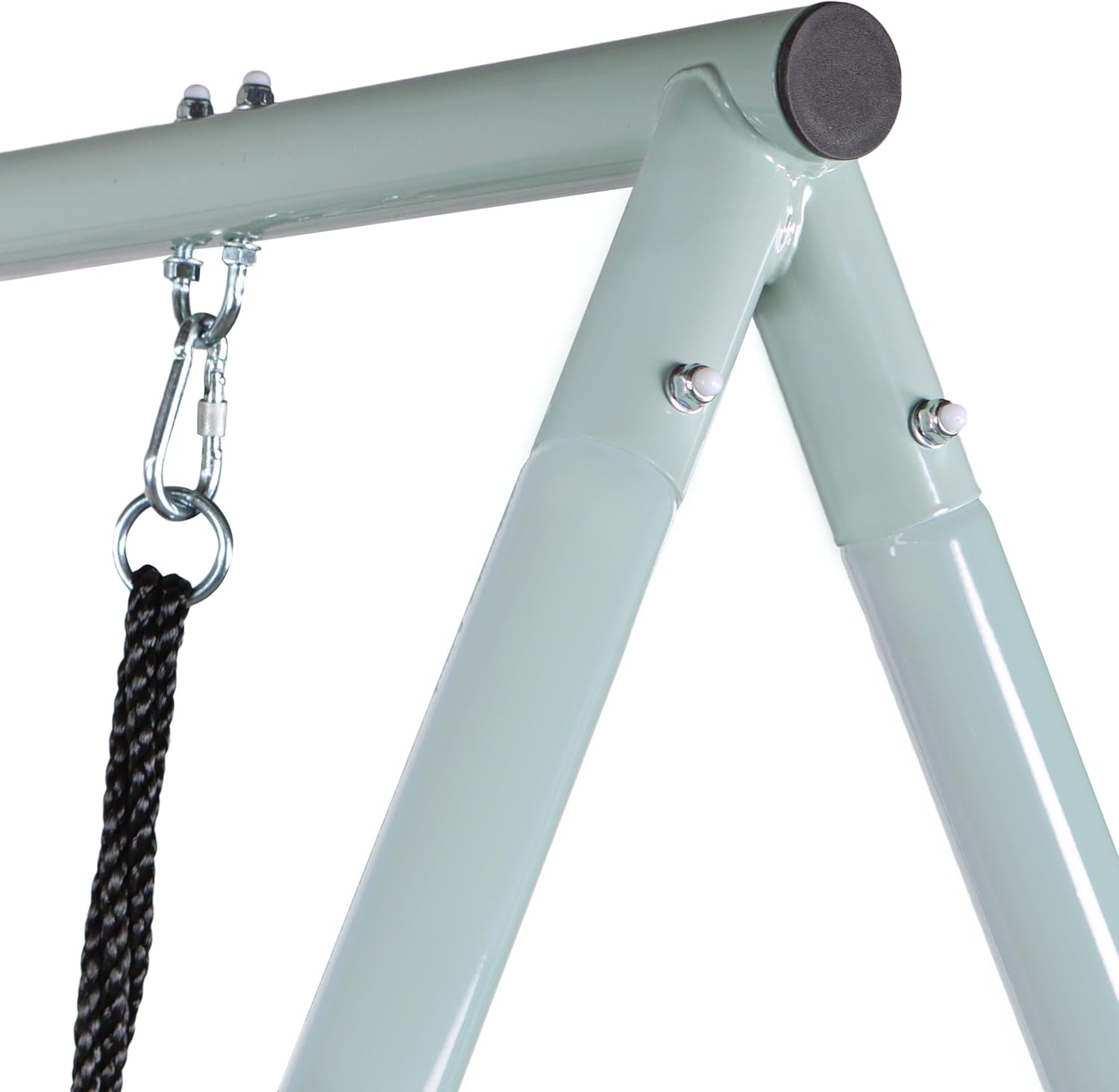

Figure 3.3: Detail of the connection point for the swing ropes on the top crossbar.

3.3. Securing the Frame

5. Use the provided ground anchors to firmly secure each leg of the A-frame to the ground. Drive the anchors into the ground at a 45-degree angle for maximum stability.
6. Ensure the frame is stable and does not wobble before proceeding.

3.4. Attaching the Swing Seat

7. Attach the ropes of the swing nest seat to the carabiners on the crossbar. Ensure the carabiners are securely closed.
8. Adjust the rope length to the desired height. The ropes are adjustable from 85 cm to 140 cm. Ensure both sides are adjusted to the same length for balanced swinging.

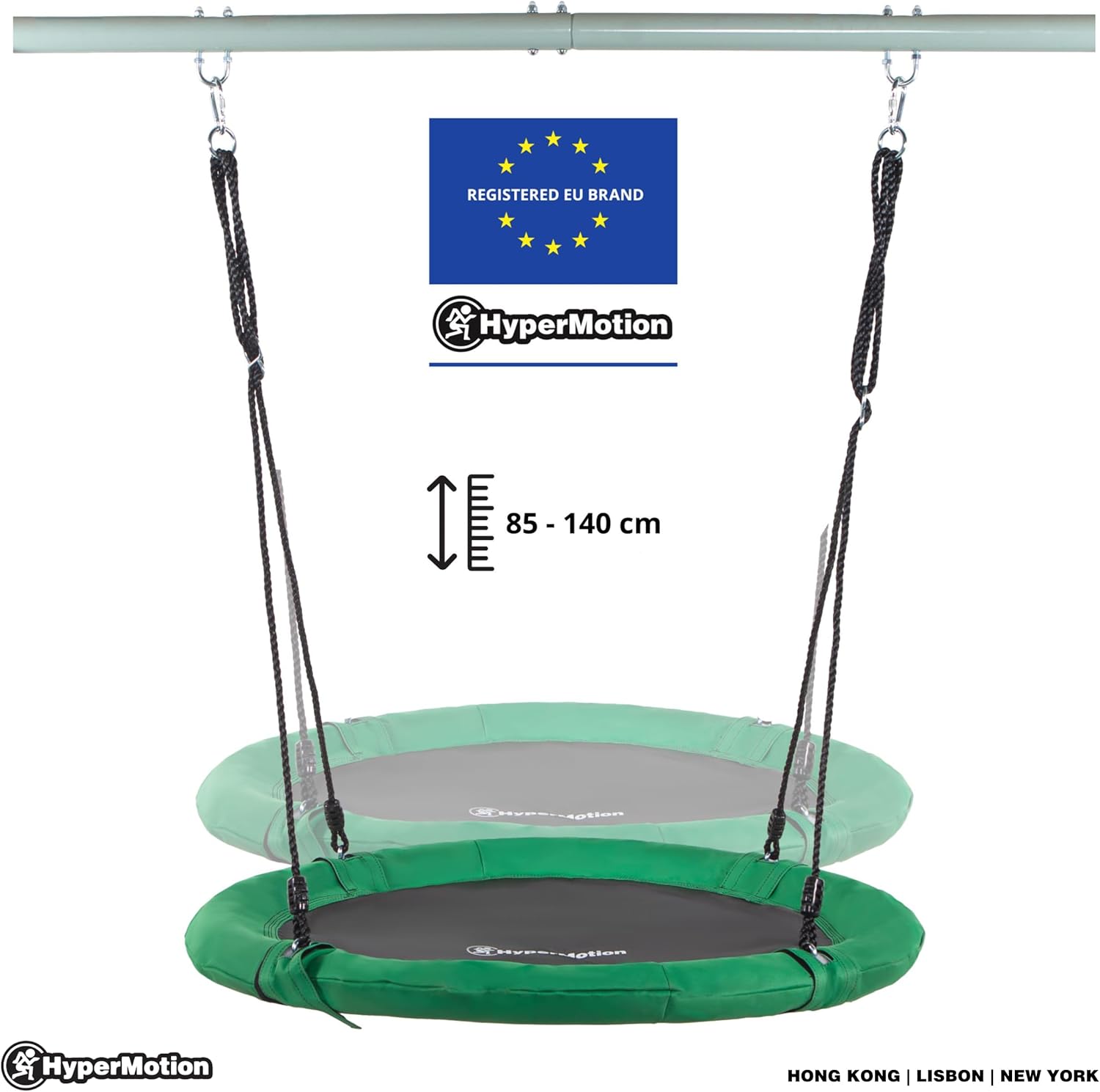

Figure 3.4: Illustration of the adjustable rope length feature, ranging from 85 cm to 140 cm.

Figure 3.5: Detail of how the swing rope attaches to the frame using a carabiner and ring.

4. Instruccions de funcionament

Per garantir una experiència segura i agradable, seguiu aquestes pautes operatives:

• Supervisió d'adults: Always ensure an adult is supervising children while they are using the swing.
• One or Two Users: The swing is designed for 1 to 2 users, not exceeding the 150 kg weight limit.
• Seient adequat: Children should sit in the center of the nest swing, holding onto the ropes.
• Àrea clara: Ensure the area around the swing is clear of other children, pets, or obstacles during use.
• Balanceig suau: Encourage gentle swinging. Excessive or aggressive swinging can cause instability or damage.
• No Standing: No permeteu que els nens s'aixequin al seient del gronxador.
• No Twisting: Avoid twisting the ropes, as this can weaken them over time.

5. Manteniment

Regular maintenance will extend the life of your HyperMotion Garden Swing Nest with Frame and ensure continued safety.

• Neteja: Clean the metal frame and swing seat with a damp cloth and mild soap. Rinse thoroughly and allow to air dry. Avoid harsh chemicals.
• Inspecció:
  • Mensual: Check all bolts, nuts, and connections for tightness. Re-tighten as necessary.
  • Estacionalment: Inspect ropes for fraying, cuts, or excessive wear. Check the swing seat fabric for tears or damage.
  • Abans de cada ús: Quickly check the stability of the frame and the condition of the swing seat and ropes.
• Prevenció de l'òxid: While the frame is designed to be weather-resistant, minor surface rust may occur over time. Treat any rust spots with a rust-inhibiting primer and paint.
• Emmagatzematge: During prolonged periods of non-use (e.g., winter), consider disassembling and storing the swing indoors or covering it to protect it from extreme weather.
• Peces de recanvi: If any part becomes damaged or excessively worn, discontinue use immediately and replace the part. Information on spare parts availability is currently unavailable.

6. Solució De Problemes

This section addresses common issues you might encounter with your swing.

7. Especificacions

Detailed technical specifications for the HyperMotion Garden Swing Nest with Frame, Model SWING HYP1.

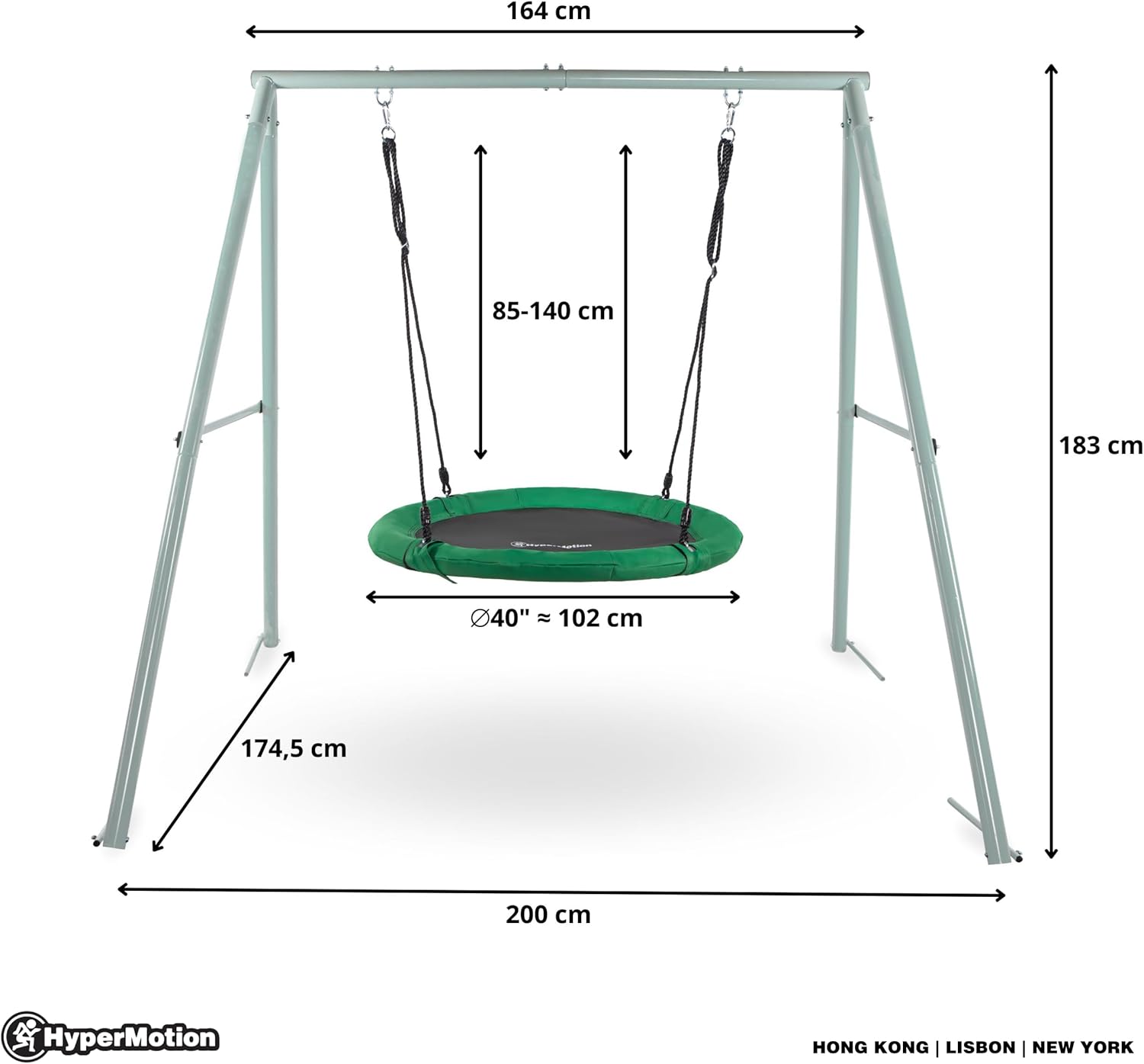

Figure 7.1: Detailed dimensions of the assembled swing frame and nest seat.

8. Garantia i Suport

For warranty information or technical support, please contact HyperMotion customer service. Details regarding specific warranty periods or support channels are typically provided with your purchase documentation or on the official HyperMotion weblloc.

Si us plau, conserveu el comprovant de compra per a qualsevol reclamació de garantia.

Nota: Spare parts availability information is currently unavailable. For any issues, please contact the seller directly.
