Introducció
This manual provides essential instructions for the installation, operation, and maintenance of your BAFANG BBS01B 36V 250W Mid-Drive Ebike Motor Conversion Kit. Please read this manual thoroughly before installation and use to ensure proper function and safety. This kit is designed to convert standard bicycles into electric bicycles, offering three driving modes: pure electric, power-assisted, and manpower.
Informació important de seguretat
- Always wear a helmet when riding an electric bicycle.
- Ensure all connections are secure and waterproof before riding.
- Do not modify the motor or battery system. Unauthorized modifications can lead to malfunction and void warranty.
- Regularly check brakes, tires, and all components for wear and damage.
- Adhere to local traffic laws and regulations for electric bicycles.
- Keep children and pets away from the motor and battery during installation and charging.
Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats en obrir l'envàs.
- BAFANG BBS01B Mid-Drive Motor (36V 250W)
- C961 Display (with 9 levels of pedal assist and automatic backlight)
- Brake Levers (compatible with mechanical brakes)
- Acelerador del polze
- Braços de biela
- Speed Sensor with Magnet
- 1T4 Main Cable Harness
- Cargols i accessoris de muntatge
- Chainring (specific size may vary)
Especificacions tècniques
| Característica | Especificació |
|---|---|
| Tipus de motor | Motor de tracció mitjana |
| Model | BBS01B |
| Voltage | 36 Volts |
| Potència nominal | 250 watts |
| Max Torque | 80 Nm |
| Velocitat màxima (assistiva) | 25 km/h |
| Pes del motor | 3.8 quilograms (8.38 lliures) |
| Bottom Bracket Compatibility | 68mm (JIS standard turret) |
| Mostra | C961 (9 levels PAS, auto backlight) |
Compatibilitat

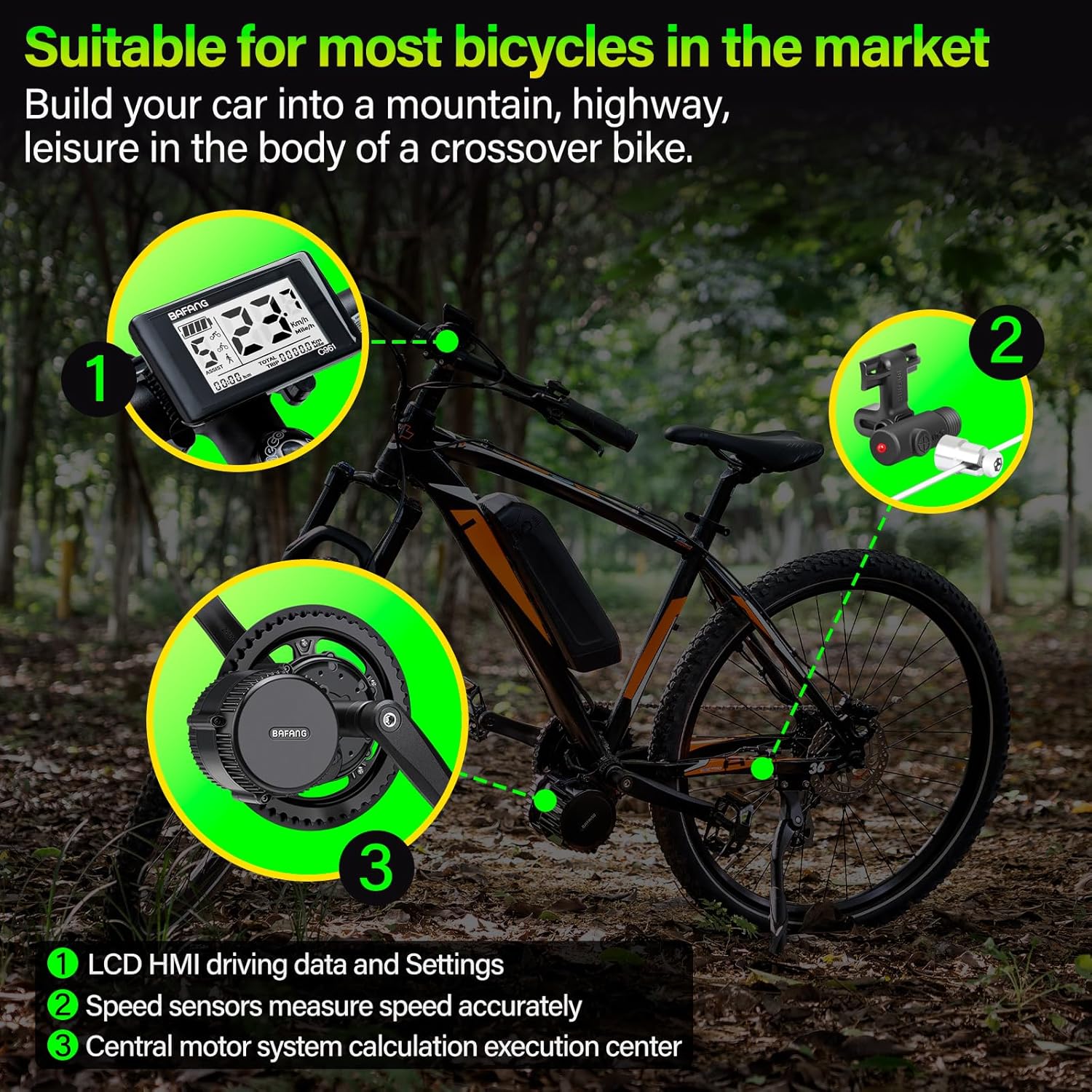

The BAFANG BBS01B kit is designed for bicycles with a standard JIS 68mm bottom bracket. This includes most mountain bikes, road bikes, commuter bikes, and folding bikes. It is crucial to measure your bicycle's bottom bracket length to ensure compatibility before installation.
Ensure sufficient space is available on your bicycle frame for the motor and battery placement.
Guia de configuració i instal·lació
Installation of the BAFANG mid-drive motor kit requires basic mechanical skills and appropriate tools. If you are unsure about any step, it is recommended to seek professional assistance.
Acabatview of Components and Connections
Passos d'instal·lació (resum)
- Prepare the Bicycle: Remove the existing bottom bracket, crankset, and chain.
- Instal·leu el motor: Insert the BAFANG mid-drive motor into the bottom bracket shell. Secure it with the provided fixed bracket, nuts, and screws.
- Attach Crank Arms and Chainring: Install the new chainring and crank arms onto the motor spindle.
- Mount Display and Controls: Attach the C961 display, brake levers, and thumb throttle to the handlebars.
- Install Speed Sensor: Mount the speed sensor on the rear chainstay and attach the magnet to a spoke on the rear wheel. Ensure proper alignment and gap.
- Connecteu el cablejat: Connect all components to the 1T4 main cable harness, then connect the harness to the motor. Ensure all connections are firm and correctly oriented.
- Instal·la la bateria: Mount your compatible 36V battery securely on the bicycle frame and connect it to the motor system.
- Gestió de cables: Secure all cables neatly with zip ties to prevent snagging or damage.
Instruccions de funcionament
Encès/Apagat
To power on the system, press and hold the power button on the C961 display. To power off, press and hold the same button until the display turns off.
C961 Display Functions
The C961 display provides real-time information and allows you to adjust settings.
- Visualització de velocitat: Shows current, average, and maximum speed.
- Nivell de bateria: Indica la càrrega restant de la bateria.
- Pedal Assist System (PAS) Level: Adjust assistance levels (1-9) using the '+' and '-' buttons. Higher numbers provide more motor assistance.
- Trip Distance/Odometer: Displays current trip distance or total mileage.
- Il·luminació de fons: Automatic backlight for visibility in varying light conditions.
Modes de conducció
The BAFANG BBS01B kit offers three distinct driving modes:
- Manpower Mode: The motor provides no assistance. The bicycle operates like a standard pedal bike.
- Power-Assisted Mode (PAS): The motor provides assistance based on your pedaling input and the selected PAS level. This is the primary mode for electric cycling.
- Mode elèctric pur (accelerador): The motor provides power directly via the thumb throttle, without requiring pedal input. This mode is typically used for short bursts of speed or starting from a stop.
Manteniment
- Neteja regular: Keep the motor, battery, and display clean. Use a damp drap; eviteu rentar a alta pressió directament sobre els components elèctrics.
- Comproveu les connexions: Periodically inspect all electrical connections for corrosion or looseness.
- Lubricació: Keep the chain and other moving parts of the bicycle properly lubricated.
- Cura de la bateria: Guardeu la bateria en un lloc fresc i sec. Eviteu descarregar-la completament i carregueu-la regularment, fins i tot quan no la feu servir, per allargar-ne la vida útil.
- Inspecció professional: Consider a professional inspection of the motor and electrical system annually.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Motor not powering on | Battery not connected or discharged; loose wiring; display issue. | Check battery connection and charge level. Inspect all cable connections. Try restarting the display. |
| No pedal assist | PAS level set to 0; speed sensor misaligned or damaged; brake levers engaged. | Increase PAS level on display. Check speed sensor alignment and magnet. Ensure brake levers are not stuck. |
| L'accelerador no funciona | Throttle cable loose or damaged; system error. | Check throttle cable connection. Consult a technician if problem persists. |
| La pantalla mostra el codi d'error | Mal funcionament d'un component específic. | Refer to the C961 display manual for specific error code meanings and solutions. |
Garantia i Suport
BAFANG products typically come with a manufacturer's warranty covering defects in materials and workmanship. Please refer to your purchase documentation or the official BAFANG weblloc web per conèixer els termes i condicions específiques de la garantia.
For technical support, spare parts, or warranty claims, please contact your authorized BAFANG dealer or the BAFANG customer service department. Keep your purchase receipt and product serial number readily available.
Fabricant: Bafang
Data de primera disponibilitat: 18 de març de 2024
