Introducció
This manual provides detailed instructions for the assembly, operation, and maintenance of your RELAX4LIFE Swivel Barber Chair, model NF54441FOIT. Designed for professional use in salons, barbershops, and tattoo studios, this chair offers comfort, durability, and versatility with its 360° swivel, adjustable height, reclining backrest, and adjustable headrest.
Muntatge i muntatge
The RELAX4LIFE Swivel Barber Chair is designed for intuitive assembly. Please follow these general steps. It is recommended to have an additional person for assistance during assembly. Ensure all components are present before starting.
Imatge: Acabatview of RELAX4LIFE Swivel Barber Chair components. Key parts include the detachable headrest, comfortable backrest, armrest, robust metal structure, manual push rod, and wide foot pedal.
- Desempaquetar components: Carefully remove all parts from the packaging and verify against the parts list (if provided in your package).
- Muntar la base: Attach the hydraulic pump to the chair base. Ensure all connections are secure.
- Fixeu el seient: Secure the seat to the hydraulic pump mechanism.
- Instal·leu el respatller: Connect the backrest to the seat frame. This step may require significant force to engage the reclining mechanism with the hydraulic pump.
- Attach Armrests and Footrest: Secure the armrests and footrest to the main chair structure.
- Inserir reposacaps: Place the detachable headrest into its designated slot on the backrest.
Nota: Some users have reported that the provided tools may not be sufficient for tightening all bolts, particularly for the base and backrest mechanism. Using a ratchet wrench for larger bolts may facilitate assembly. Ensure all bolts are securely fastened to guarantee stability and safety.
Instruccions de funcionament
Funció giratòria de 360°
The chair is designed to rotate 360 degrees for optimal positioning. To lock the swivel function, keep the foot bar raised. To allow free rotation, lower the foot bar.

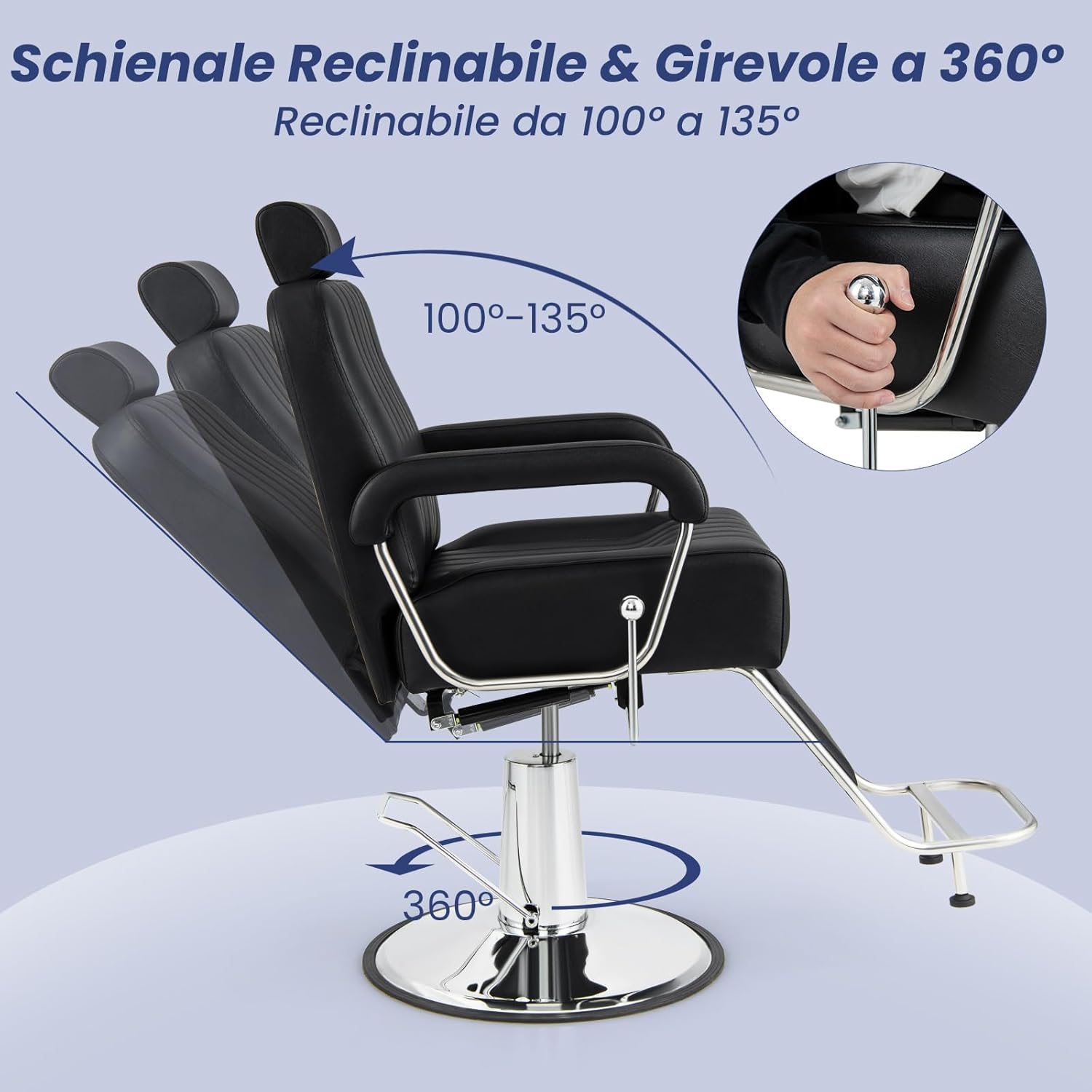

Imatge: The chair features a 360° swivel and a backrest that reclines from 100° to 135°.
Ajust d'alçada
The chair's height can be adjusted by approximately 13 cm using the hydraulic pump mechanism operated by the foot bar.
- To Raise the Chair: Repeatedly press the foot bar downwards.
- To Lower the Chair: Press and hold the foot bar downwards.

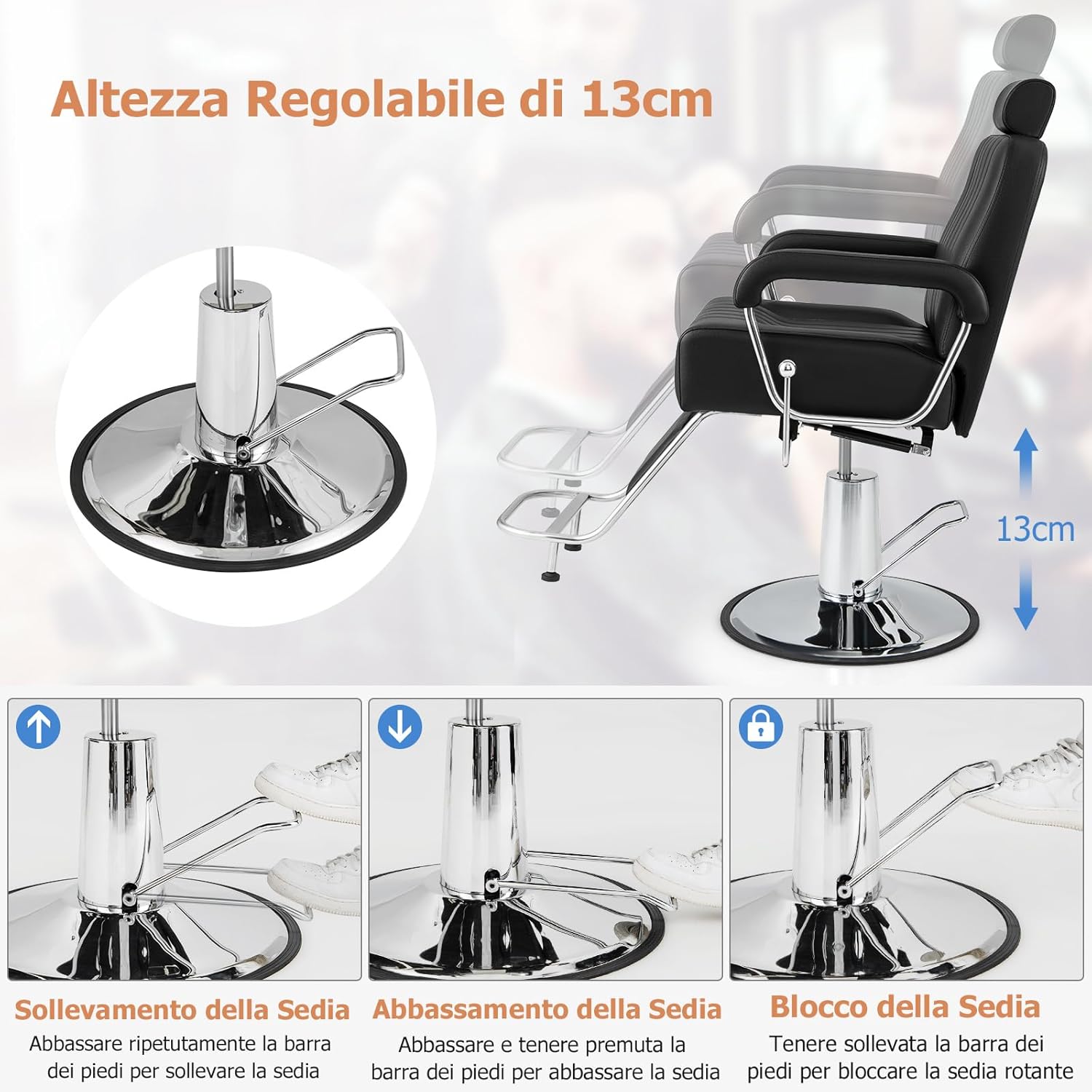

Imatge: Detailed instructions for chair height adjustment. Repeatedly press the foot bar to raise the chair, press and hold to lower it, and keep the foot bar raised to lock the swivel function.
Reclinació del respatller
The backrest can be reclined from 100° to 135° for client comfort. Use the manual push rod (lever) located on the side of the chair to adjust the recline angle. Release the lever to lock the backrest in the desired position.
Ajust del reposacaps
The headrest is adjustable in 8 different height positions to accommodate various client heights and preferences. Simply pull the headrest upwards or push it downwards to adjust its position.
Imatge: The chair features an ergonomic design with adjustable seat height and an 8-position adjustable headrest, supported by a heavy-duty hydraulic pump.
Manteniment
Proper maintenance ensures the longevity and optimal performance of your barber chair.
- Neteja: The chair's PVC leather upholstery is waterproof and easy to clean. Wipe surfaces with a damp cloth and mild soap. Avoid abrasive cleaners or solvents that could damage the material.
- Inspecció periòdica: Periodically check all bolts and connections to ensure they are tight and secure. Retighten if necessary.
- Sistema hidràulic: The hydraulic pump is designed for heavy-duty use. If you notice any issues with height adjustment, consult a professional.
Imatge: The chair features a high-density foam cushion for comfort, waterproof PVC leather for easy cleaning, and a stable metal base designed for a 150 kg load capacity.
Resolució de problemes
If you encounter any issues with your RELAX4LIFE Swivel Barber Chair, please refer to the following common solutions:
- La cadira no ajusta l'alçada: Ensure the foot bar is being operated correctly (repeated presses to raise, press and hold to lower). Check for any obstructions around the hydraulic pump.
- La cadira sembla inestable: Verify that all assembly bolts are securely tightened, especially those connecting the base, seat, and backrest. Ensure the chair is on a flat, stable surface.
- Respatller no reclinable/bloquejable: Check the manual push rod (lever) for proper engagement. Ensure no foreign objects are obstructing the reclining mechanism.
- Swivel Function Issues: Ensure the foot bar is in the correct position to allow or lock rotation.
Per a problemes persistents, poseu-vos en contacte amb l'atenció al client.
Especificacions

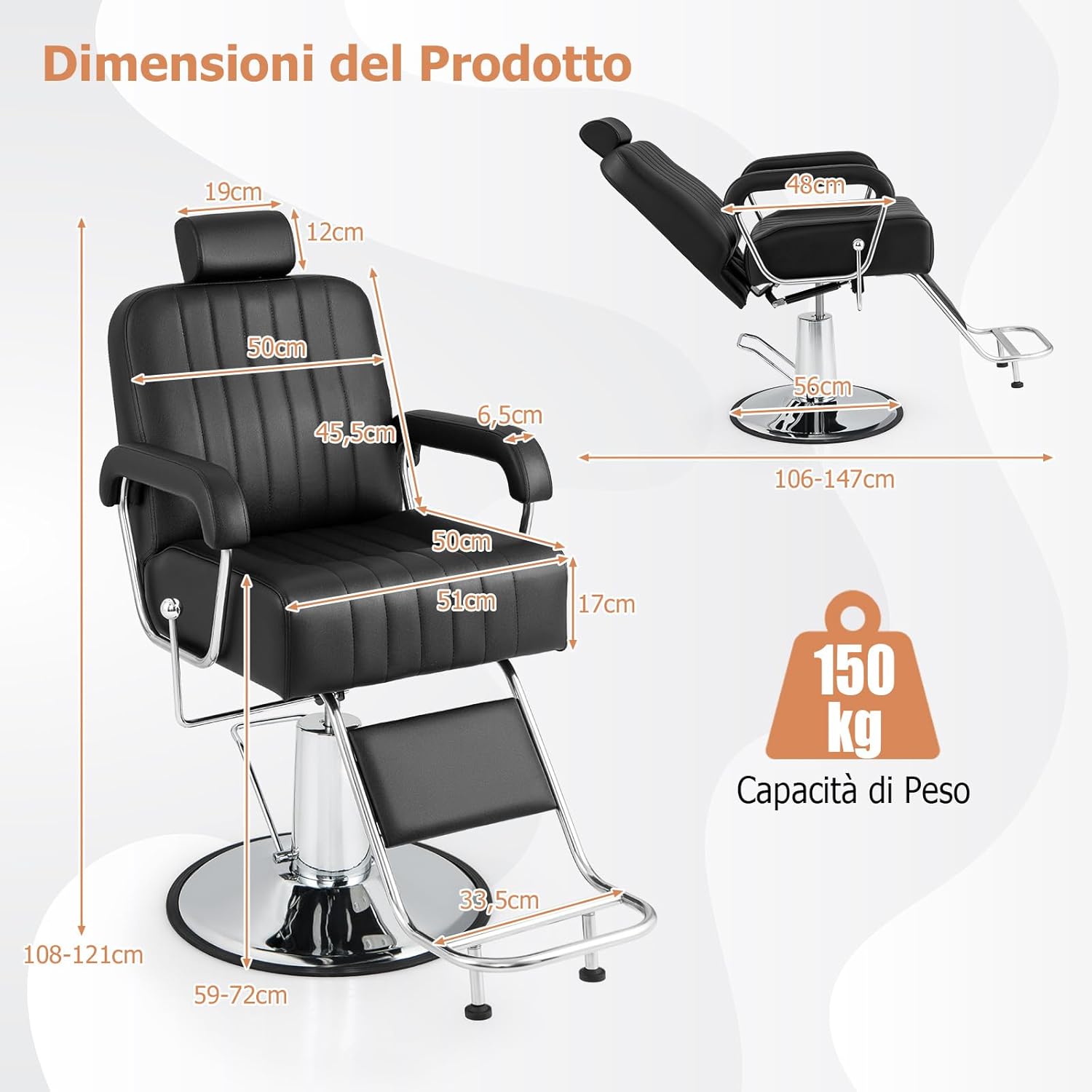

Imatge: Detailed product dimensions of the RELAX4LIFE Barber Chair, illustrating various measurements and indicating a 150 kg weight capacity.
| Marca: | RELAX4LIFE |
| Model: | NF54441FOIT |
| Color: | Negre |
| Material: | Iron, PVC, Sponge, Wood |
| Dimensions del producte (L x A x A): | (106-147) x 63.5 x (108-121) cm |
| Capacitat de càrrega: | 150 kg |
| Pes net: | 30 kg |
| Característiques especials: | Adjustable Height, Armrest, Ergonomic, Footrest, Adjustable Headrest, Reclinable |
Informació de seguretat
Avís: Do not use the chair with a weight exceeding 150 kg (330 lbs) to ensure the safety and stability of the product. Exceeding this limit may result in damage to the chair or injury.
Always ensure the chair is on a stable, level surface before use. Keep hands and feet clear of moving parts during adjustment.
Garantia
This product comes with a standard manufacturer's warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your purchase or contact RELAX4LIFE customer support.
Atenció al client
If you have any questions, require assistance with assembly, or need troubleshooting support, please contact RELAX4LIFE customer service. Refer to your purchase documentation for contact details or visit the official RELAX4LIFE weblloc.
Imatge: The RELAX4LIFE Barber Chair is suitable for various professional scenarios, including barber shops, dressing rooms, beauty salons, and tattoo shops.
