tectake® Rectangular Cantilever Parasol User Manual

1. Producte acabatview

The tectake® Rectangular Cantilever Parasol, model Apollon, is designed to provide extensive shade and protection from the sun and light rain. Its offset pole design maximizes usable space underneath, making it ideal for terraces, gardens, and patios. Key features include a smooth crank mechanism for easy opening and closing, adjustable tilt angle, and a robust, water-repellent polyester canopy. The parasol also comes with a protective cover for storage.

Figura 1: Mésview of the tectake® Rectangular Cantilever Parasol (Grey).

2. Contingut del paquet

Before assembly, ensure all components are present and undamaged. Refer to the following list:

• Parasol Canopy with Frame
• Muntatge del pal principal
• Base creuada
• Maneta de manovella
• Funda protectora
• Maquinari de muntatge (cargols, volanderes, femelles)
• Manual d'instruccions (aquest document)

Figure 2: Key features and components of the parasol.

3. Instruccions de seguretat

Read all safety warnings and instructions carefully before using the parasol. Failure to follow these instructions may result in property damage or injury.

• Always close the parasol during strong winds, heavy rain, or storms to prevent damage or tipping.
• Ensure the base is adequately weighted down with paving slabs or a dedicated parasol base (not included) to ensure stability.
• Do not hang objects from the parasol frame.
• Keep children and pets away from the parasol during opening and closing operations.
• Avoid placing the parasol near open flames or heat sources.
• Regularly inspect all parts for wear and tear. Replace damaged components immediately.

4. Muntatge i muntatge

Follow these steps for proper assembly of your tectake® Rectangular Cantilever Parasol. It is recommended that two people perform the assembly.

1. Step 1: Assemble the Cross Base


   Place the cross base on a flat, stable surface. Secure the two cross sections together using the provided hardware. Ensure all bolts are tightened securely.
2. Step 2: Attach the Main Pole


   Carefully insert the main pole assembly into the central opening of the cross base. Secure it with the appropriate bolts and nuts. Ensure the pole is vertical and stable.

3. Pas 3: Assegureu la base


   Place heavy paving slabs or a suitable parasol base (minimum weight recommended: 50kg) onto the cross base to provide adequate stability. Note: Base weights are not included.

4. Step 4: Attach the Canopy Frame


   With assistance, lift the parasol canopy frame and attach it to the main pole assembly. Follow the specific instructions in the included diagram for securing the canopy arm to the pole. Ensure the locking pin or mechanism is engaged.



   Figure 3: The parasol providing ample shade in a garden setting.

5. Step 5: Install the Crank Handle


   Attach the crank handle to the designated mechanism on the main pole. This handle will be used for opening and closing the parasol.

5. Instruccions de funcionament

Learn how to effectively open, close, and adjust your parasol.

5.1 Opening the Parasol

1. Ensure the parasol base is stable and weighted.
2. Locate the crank handle on the main pole.
3. Turn the crank handle clockwise to extend the canopy. Continue cranking until the canopy is fully open and taut. Do not overtighten.


Figure 4: The crank mechanism for opening and closing the parasol.

5.2 Closing the Parasol

1. Turn the crank handle counter-clockwise to retract the canopy.
2. Continue cranking until the canopy is fully closed and folded neatly against the pole.
3. For long-term storage or during adverse weather, use the provided protective cover.

5.3 Ajust de l'angle d'inclinació

The parasol features an adjustable tilt mechanism to adapt to the sun's position throughout the day.

1. Locate the tilt adjustment lever or handle on the main pole.
2. Press or release the lever to unlock the tilt mechanism.
3. Carefully adjust the canopy to the desired angle (ranging from approximately 90° to 135°).
4. Release the lever to lock the canopy in place. Ensure it is securely locked before leaving it unattended.

Figure 5: Adjusting the tilt angle of the parasol.

6. Manteniment i cura

Proper maintenance will extend the life of your parasol.

• Neteja de la capota: Wipe clean with a dry cloth as per manufacturer's instructions. For stubborn dirt, use a mild soap solution and a soft brush, then rinse thoroughly with clean water. Allow to air dry completely before closing or covering.
• Manteniment del marc: Regularly inspect the steel frame for any signs of rust or damage. Clean with a damp cloth and dry thoroughly. If necessary, apply a rust-inhibiting paint to scratched areas.
• Mechanism Lubrication: Periodically apply a silicone-based lubricant to the crank and tilt mechanisms to ensure smooth operation.
• Emmagatzematge: When not in use for extended periods or during off-season, close the parasol, ensure it is dry, and cover it with the provided protective cover. Store in a dry, sheltered location.

Figure 6: Wind protection strap for added stability.


Figure 7: Water-repellent canopy and protective cover.

7. Solució De Problemes

Problemes comuns i les seves solucions.

8. Especificacions

Detailed technical specifications for the tectake® Rectangular Cantilever Parasol.

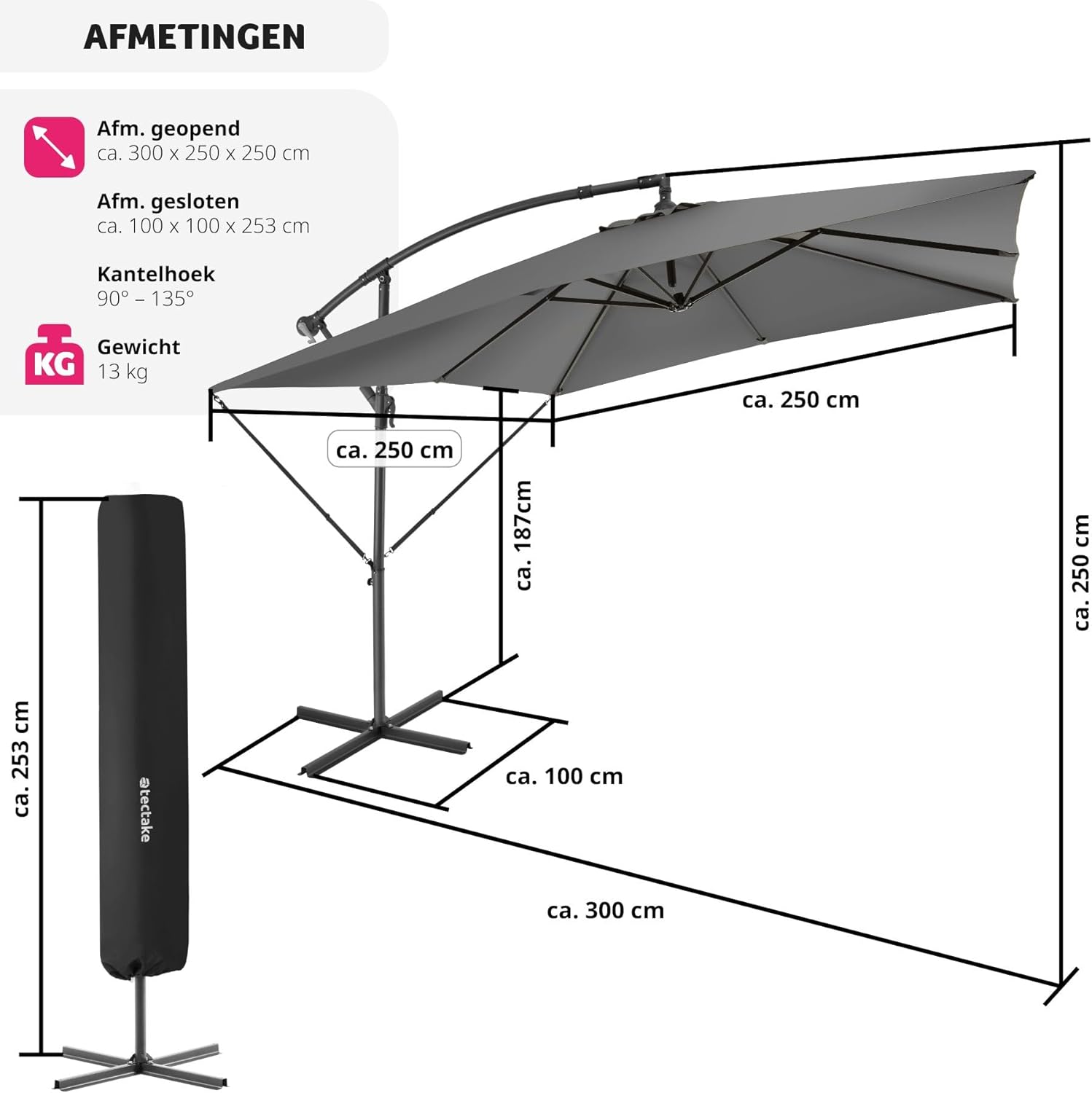

Figure 8: Detailed dimensions of the parasol.

9. Garantia i Suport

For warranty information or technical support, please contact tectake customer service. Keep your purchase receipt as proof of purchase.

Contact information may be found on the manufacturer's official weblloc web o a través del vostre punt de compra.
