1. Introducció
This manual provides essential instructions for the installation, operation, and maintenance of your SOOPYK FYT530-1-FBM Countertop Bottleless Water Cooler Dispenser. Please read this manual thoroughly before using the appliance to ensure safe and efficient operation.
Image 1.1: The SOOPYK FYT530-1-FBM water cooler dispenser shown with its included installation kit components.
2. Informació important de seguretat
WARNING: To reduce the risk of injury and property damage, read all instructions and warnings before assembling, installing, and operating this water dispenser.
- Connecteu sempre el dispensador a una presa de corrent amb connexió a terra.
- No feu funcionar el dispensador si el cable d'alimentació està danyat.
- Mantingueu el dispensador allunyat de la llum solar directa i de fonts de calor.
- Assegureu-vos una ventilació adequada al voltant de la unitat.
- Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
- Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.
- The dispenser features a child safety lock for the hot water spout.
3. Característiques del producte
The SOOPYK FYT530-1-FBM water cooler dispenser offers several advanced features for convenience and water quality:
- Disseny sense ampolla: Connects directly to your water line, eliminating the need for heavy water bottles.
- Tri-Temperature Dispense: Provides hot, room temperature, and cold water on demand.
- 4-Stage Sistema de filtració: Includes PP, CTO, UF, and CTO filters to reduce contaminants and improve taste.
- Funció d'auto-neteja: An automated sanitization process ensures clean water.
- Pany de seguretat infantil: Evita el subministrament accidental d'aigua calenta.
- Llum nocturna integrada: Il·lumina la zona de dispensació per facilitar-ne l'ús en condicions de poca llum.
- Construcció duradora: Features a stainless steel hot water tank.
Image 3.1: Key features of the dispenser, including three temperature options, child safety lock, nightlight, and UV sterilization.
4. Contingut del paquet
Si us plau, comproveu el paquet per veure si hi ha els elements següents:
- SOOPYK FYT530-1-FBM Water Cooler Dispenser
- 1/4" Tubing
- Integrated Valve with 1/4" PT Taper Pipe
- Cinta de PTFE
- Manual d'usuari (aquest document)
- 4-Stage Filter Set (pre-installed or separate)
5. Configuració i instal·lació
Follow these steps to set up your water cooler dispenser:
- Desembalatge: Carefully remove the dispenser from its packaging. Retain packaging for future transport or storage.
- Col·locació: Place the dispenser on a flat, stable countertop surface. Ensure there is adequate space around the unit for ventilation (refer to dimensions).
- Connexió de la línia d'aigua:
- Locate a cold water supply line (e.g., under your sink).
- Tanqueu el subministrament d'aigua principal.
- Install the integrated valve onto the cold water line using PTFE tape for a watertight seal.
- Connect the 1/4" tubing from the integrated valve to the water inlet on the back of the dispenser. Ensure connections are secure.
- Filter Installation (if not pre-installed): Open the filter compartment (usually at the back or side) and install the 4-stage filters according to the markings. Refer to Image 5.2 for an internal view of the filter setup.
- Connexió d'alimentació: Plug the power cord into a grounded 115V~ 60Hz electrical outlet.
- Buidat inicial: Before first use, dispense several cups of water from each temperature spout to flush the system and filters. Discard this water.
Image 5.1: Dispenser dimensions for proper placement on a countertop.
Imatge 5.2: Interna view mostrant les 4-stage filtration system and water tubing.
6. Instruccions de funcionament
Your SOOPYK water dispenser is designed for easy operation:
- Encès: Locate the ON/OFF switches at the back of the unit (refer to Image 6.1). Turn on the switches for heating and cooling functions as desired.
- Distribució d'aigua:
- Place a cup under the desired spout.
- For cold or room temperature water, press the corresponding dispense button.
- For hot water, engage the child safety lock (if applicable, usually a button or lever) and then press the hot water dispense button.
- Funció de llum nocturna: The built-in nightlight automatically illuminates the dispensing area for convenience in low-light conditions.
Imatge 6.1: posterior view of the dispenser showing power switches and specification label.

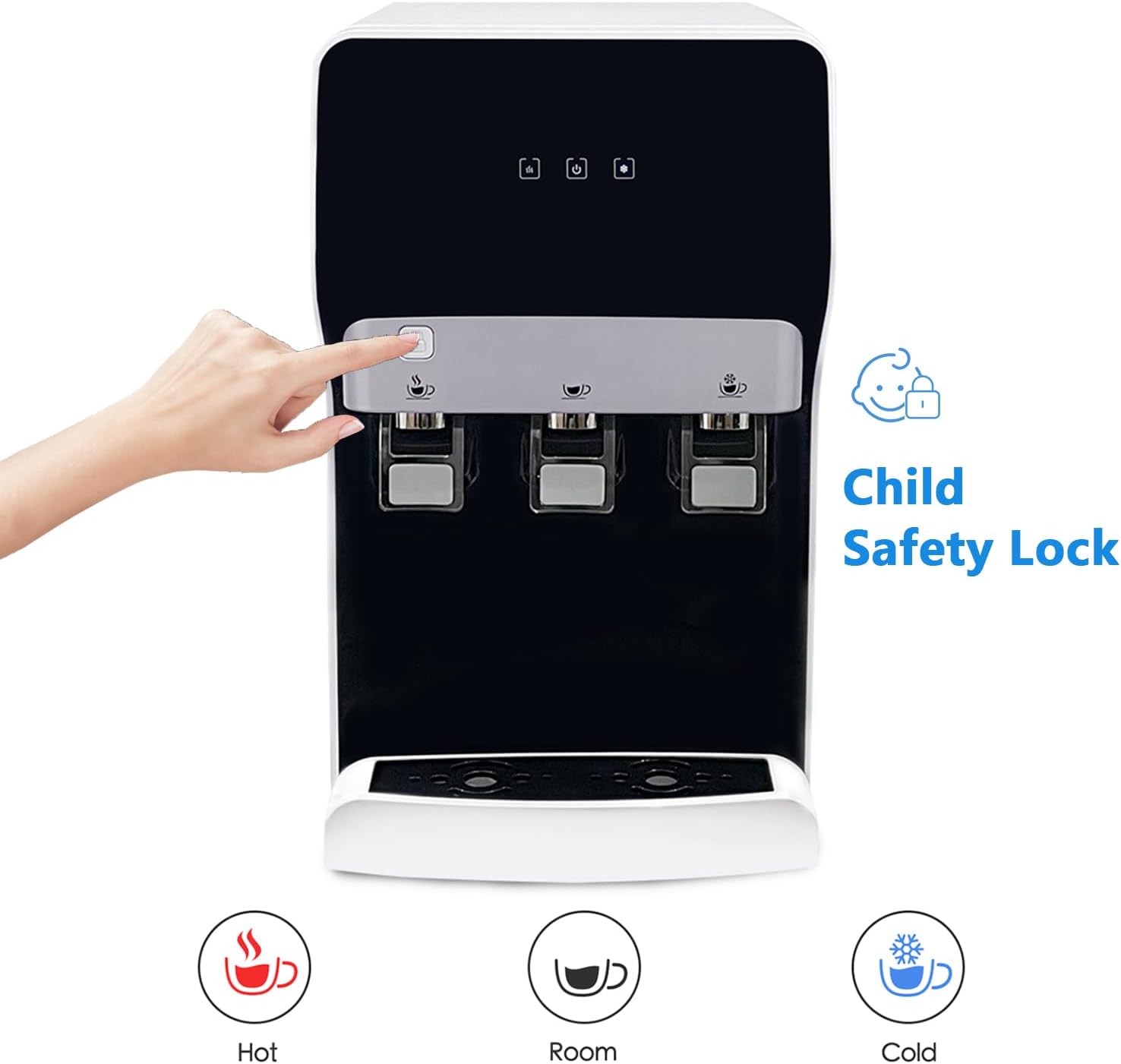

Image 6.2: Dispensing water with emphasis on the child safety lock for hot water.
Image 6.3: The dispenser's nightlight feature in operation.
7. Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga vida útil del dispensador.
7.1. Funció d'auto-neteja
The dispenser is equipped with an automated self-cleaning function. Refer to the control panel for activation instructions. This feature sanitizes and purifies the internal water paths.

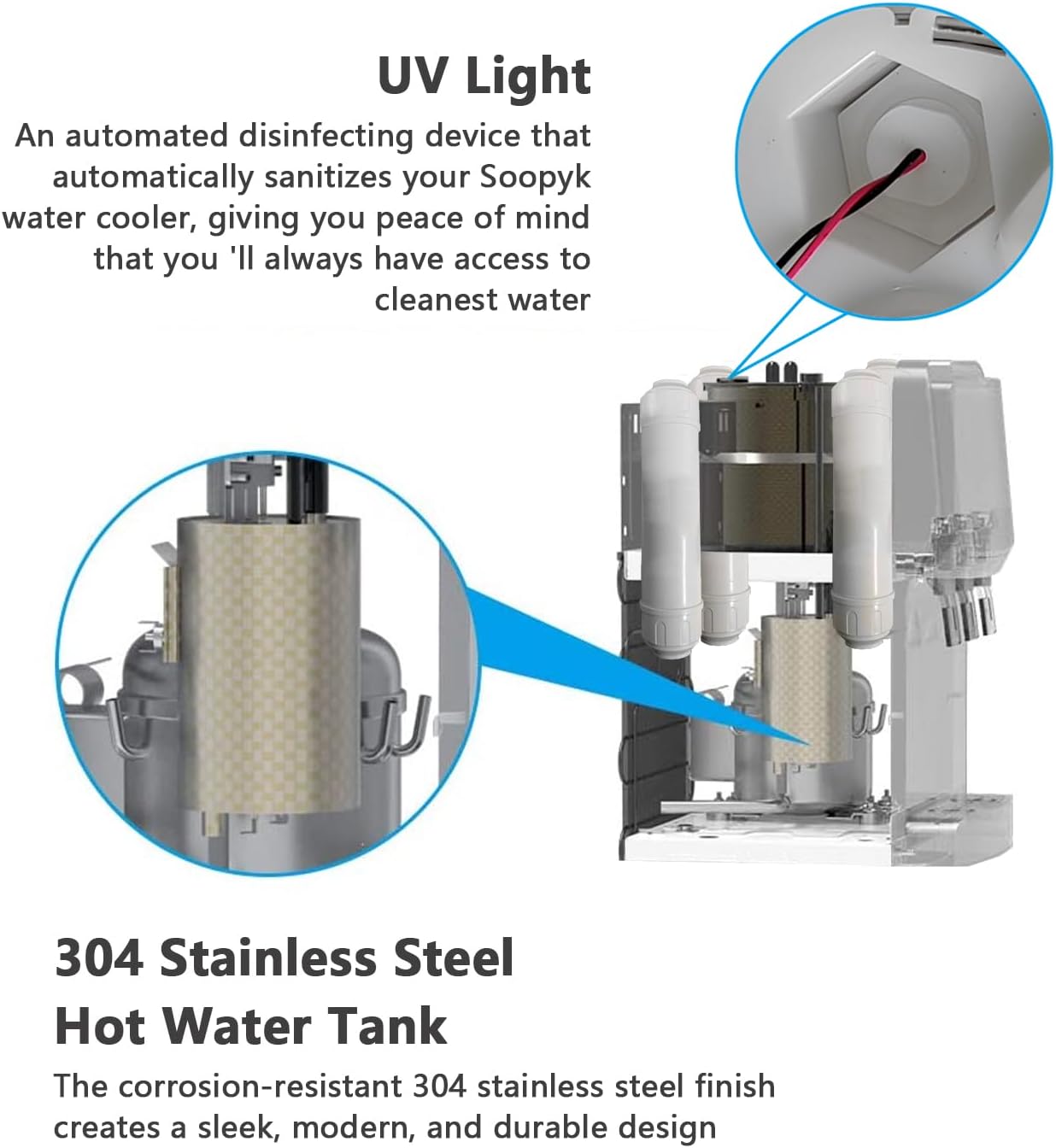

Image 7.1: Illustration of the UV light for sanitization and the stainless steel hot water tank.
7.2. Substitució del filtre
Els 4-stage filtration system requires periodic replacement to maintain water quality. The filter stages are PP, CTO, UF, and CTO.
Image 7.2: Detailed breakdown of the 4-stage. procés de filtració.
- Tanqueu el subministrament d'aigua al dispensador i desendolleu la unitat.
- Obriu el compartiment del filtre.
- Remove the old filters by twisting or unscrewing them.
- Introduïu els filtres nous, assegurant-vos que estiguin ben col·locats.
- Tanqueu el compartiment del filtre.
- Turn on the water supply and plug in the unit.
- Flush the system by dispensing several cups of water from each spout.
7.3. Neteja de la safata de degoteig
The removable drip tray should be emptied and cleaned regularly to prevent overflow and maintain hygiene.
- Carefully pull out the drip tray from the front of the dispenser.
- Buideu l'aigua acumulada.
- Wash the tray with mild soap and water, then rinse thoroughly.
- Dry the tray completely before reinserting it into the dispenser.
8. Solució De Problemes
If you encounter issues with your dispenser, refer to the table below for common problems and solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| Sense dispensació d'aigua. | Water supply off, clogged filter, kinked water line. | Check water supply valve. Replace filters. Inspect water line for kinks. |
| Aigua no prou calenta/freda. | Heating/cooling switch off, insufficient time to reach temperature, unit overloaded. | Ensure heating/cooling switches are on. Allow 15-30 minutes for water to reach desired temperature. Avoid continuous dispensing of large volumes. |
| Fuita de la unitat. | Loose connections, cracked tubing, full drip tray. | Check all water line connections. Inspect tubing for damage. Empty and clean drip tray. |
| Soroll inusual. | Compressor operation (normal), loose components. | A humming sound from the compressor is normal. If noise is excessive or unusual, contact customer support. |
If the problem persists after attempting these solutions, please contact SOOPYK customer support.
9. Especificacions
| Característica | Detall |
|---|---|
| Marca | SOOPYK |
| Número de model | FYT530-1-FBM |
| Color | Negre |
| Dimensions del producte (L x A x A) | 39.12 x 30.48 x 53.34 cm (15.4 x 12 x 21 inches approx.) |
| Material | Polipropilè (PP), acer inoxidable |
| Voltage | 115V~ |
| Freqüència nominal | 60 Hz |
| Potència de calefacció | 500W |
| Potència de refrigeració | 85W |
| Sortida d'aigua calenta | ≥90°C, 5 L/h |
| Sortida d'aigua freda | ≤10°C, 2 L/h |
| Refrigerant | R134a / 28g |
| Humitat relativa | ≤90% |
| Classe de protecció | I (Anti-Electric-Shock) |
| Tipus d'instal·lació | Taulell |
10. Garantia i Suport
Specific warranty details are not provided in this manual. Please refer to the product packaging or contact SOOPYK customer service for warranty information and support inquiries.
For technical assistance or to purchase replacement parts/filters, please visit the official SOOPYK weblloc web o poseu-vos en contacte amb la seva línia d'atenció al client.
