Bear Double Bottle Warmer and Sterilizer User Manual

1. Introducció

Thank you for choosing the Bear Double Bottle Warmer and Sterilizer. This appliance is designed to safely and efficiently warm baby bottles, sterilize feeding accessories, and heat baby food. Please read this manual thoroughly before use to ensure proper operation and maintenance.

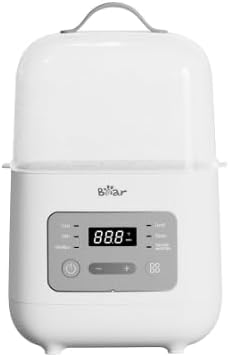

Image 1: The Bear Double Bottle Warmer and Sterilizer, featuring a white body, a clear lid, and a digital control panel with a display and buttons.

2. Informació important de seguretat

• Llegiu totes les instruccions abans d'utilitzar l'aparell.
• No submergiu l'aparell, el cable o l'endoll en aigua o altres líquids.
• És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
• Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
• Utilitzeu només els accessoris recomanats pel fabricant.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
• No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
• Cal extremar la precaució quan es mou un aparell que contingui líquids calents.
• Connecteu sempre primer l'endoll a l'aparell i després el cable a la presa de corrent. Per desconnectar-lo, gireu qualsevol control a la posició "off" i, a continuació, retireu l'endoll de la presa de corrent.
• No utilitzeu l'aparell per a un altre ús que el previst.
• Aquest aparell té un endoll polaritzat (una fulla és més ampla que l'altra). Per reduir el risc de descàrrega elèctrica, aquest endoll està pensat per encaixar en una presa de corrent polaritzada només d'una manera. Si l'endoll no encaixa completament a la presa de corrent, inverteix l'endoll. Si encara no encaixa, poseu-vos en contacte amb un electricista qualificat. No intenteu modificar l'endoll de cap manera.

3. Producte acabatview i Components

The Bear Double Bottle Warmer and Sterilizer consists of the following main components:

• Unitat principal: La base allotja l'element calefactor i el panell de control.
• Tauler de control: Features an LCD digital display and intuitive buttons for mode selection and temperature adjustment.
• Heating Chamber: Designed to accommodate two baby bottles simultaneously.
• Tapa: A clear cover to retain heat and steam during operation.
• Bottle Basket/Lifter: For safe placement and removal of bottles and accessories.

4. Configuració

1. Desembaleu tots els components i traieu qualsevol material d'embalatge.
2. Netegeu la unitat principal amb l'anunciamp cloth. Wash the lid and bottle basket with warm soapy water, rinse thoroughly, and dry.
3. Place the appliance on a stable, flat, heat-resistant surface, away from children.
4. Assegureu-vos que el cable d'alimentació estigui ben connectat a una presa elèctrica amb connexió a terra.

5. Instruccions de funcionament

The appliance offers multiple functions for various needs. Always ensure the appropriate amount of water is added to the heating chamber before starting any function.

5.1 Quick Warming

This mode rapidly heats milk to body temperature (approximately 37°C / 98.6°F) in 3 to 7 minutes, depending on milk volume and initial temperature.

1. Place the bottle(s) with milk into the heating chamber using the bottle basket.
2. Add water to the heating chamber, ensuring the water level is below the bottle opening but covers the milk level.
3. Col·loqueu la tapa a l'aparell.
4. Select the 'Quick Warm' function on the control panel. The digital display will show the target temperature.
5. The appliance will automatically shut off once the target temperature is reached. Carefully remove the bottle(s) using the basket.

5.2 24-Hour Keep Warm

This function maintains milk at a desired temperature for up to 24 hours, ideal for night feedings.

1. Place the bottle(s) with milk into the heating chamber.
2. Add water to the heating chamber as described in Quick Warming.
3. Col·loqueu la tapa a l'aparell.
4. Select the 'Keep Warm' function. Adjust the target temperature using the '+' and '-' buttons if necessary.
5. The appliance will maintain the set temperature. Always check milk temperature before feeding.

5.3 Steaming/Sterilization

Utilizes high-temperature steam to sterilize bottles, nipples, and other small feeding accessories, ensuring optimal hygiene.

1. Place clean, disassembled bottles and accessories into the heating chamber, ensuring they are arranged to allow steam circulation.
2. Add approximately 100-120ml of distilled water to the heating chamber.
3. Col·loqueu la tapa a l'aparell.
4. Select the 'Sterilize' function.
5. The appliance will generate steam to sterilize the items. Once complete, it will automatically shut off. Allow items to cool before handling.

5.4 Food Heating

Gently heats baby food jars or containers.

1. Place the baby food jar or container (ensure it is heat-safe) into the heating chamber.
2. Add water to the heating chamber, ensuring the water level is below the rim of the food container.
3. Col·loqueu la tapa a l'aparell.
4. Select the 'Food Heat' function. Adjust the desired temperature if needed.
5. Stir the food occasionally during heating and always check the temperature before feeding.

5.5 Descongelació

Safely thaws frozen breast milk or baby food.

1. Place the frozen milk bag or food container into the heating chamber.
2. Add water to the heating chamber as appropriate for the container size.
3. Col·loqueu la tapa a l'aparell.
4. Seleccioneu la funció «Descongelar».
5. Monitor the defrosting process. Once thawed, proceed with warming if necessary.

5.6 Constant Warming

This function provides a consistent, gentle warming for milk or food over a longer period.

1. Place the bottle(s) or food container into the heating chamber.
2. Afegiu aigua a la cambra de calefacció.
3. Col·loqueu la tapa a l'aparell.
4. Select the 'Constant Warm' function. Set the desired temperature.
5. The appliance will maintain the set temperature. Always check the temperature of contents before feeding.

6. Manteniment

6.1 Neteja

1. Desconnecteu sempre l'aparell i deixeu-lo refredar completament abans de netejar-lo.
2. Netegeu l'exterior de la unitat principal amb anuncisamp tela. No submergiu la unitat principal a l'aigua.
3. Wash the lid and bottle basket with warm, soapy water. Rinse thoroughly and dry.
4. To clean the heating chamber, use a soft brush or sponge with warm, soapy water. Rinse carefully, avoiding getting water into the electrical components.

6.2 Descalcificació

Mineral deposits (limescale) may build up in the heating chamber over time, especially in areas with hard water. Descale regularly to ensure efficient operation.

1. Barregeu 50 ml de vinagre blanc amb 100 ml d'aigua freda.
2. Aboqueu la solució a la cambra de calefacció.
3. Allow the solution to soak for 30 minutes to 1 hour, or until the limescale dissolves. For stubborn deposits, you may run the 'Sterilize' cycle with the solution.
4. Pour out the solution and rinse the heating chamber thoroughly with clean water several times.

7. Solució De Problemes

• L'aparell no s'encén: Assegureu-vos que el cable d'alimentació estigui ben connectat a una presa de corrent que funcioni. Comproveu si s'ha premut el botó d'engegada.
• Milk not warming sufficiently: Verify that the correct function and temperature are selected. Ensure enough water is in the heating chamber. The warming time depends on the initial temperature and volume of the milk.
• Sterilization not effective: Ensure the correct amount of water is used for sterilization (100-120ml). Make sure items are arranged to allow steam to circulate.
• Limescale buildup: Refer to the 'Descaling' section in Maintenance.
• Missatge d'error a la pantalla: Refer to the product's specific error code guide (if available in packaging) or contact customer support.

8. Especificacions
