Informació important de seguretat
Please read this instruction manual carefully before using the appliance and save it for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always ensure the appliance is placed on a stable, heat-resistant surface, away from walls and other appliances, to allow adequate air circulation.
- No submergiu l'aparell, el cable o l'endoll en aigua ni en cap altre líquid per evitar descàrregues elèctriques.
- Mantingueu els nens i les mascotes lluny de l'aparell durant el funcionament.
- No bloquegeu les reixetes d'entrada o sortida d'aire durant el funcionament.
- Desendolleu l'aparell de la presa de corrent quan no l'utilitzeu i abans de netejar-lo. Deixeu-lo refredar completament abans de manipular-lo.
- Do not operate the appliance if the cord or plug is damaged, or if the appliance malfunctions or has been damaged in any way. Contact customer support for assistance.
- The exterior surfaces may become hot during use. Use oven mitts when handling hot components.
- Aquest aparell està pensat només per a ús domèstic. No l'utilitzeu a l'aire lliure ni amb finalitats comercials.
Producte acabatview
The RAF Essential Air Fryer R.5340 is a versatile kitchen appliance designed for healthy cooking with minimal oil. It features a 14-liter capacity and 1800 watts of power, operating at 220V, 50Hz. The integrated temperature control allows for precise cooking.

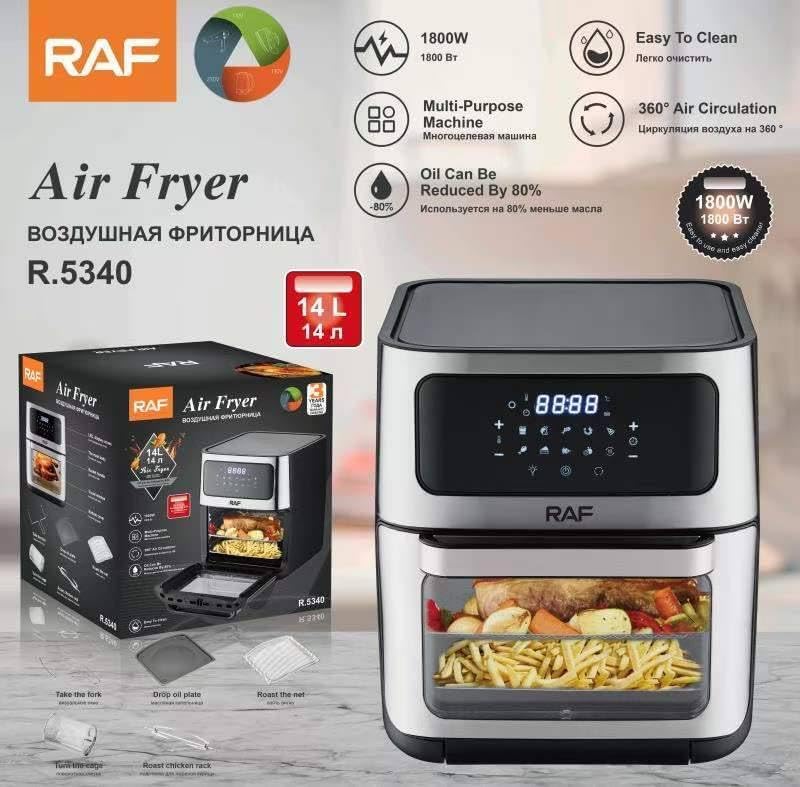

Image: The RAF Essential Air Fryer R.5340 shown alongside its retail packaging, highlighting its design and capacity.
Imatge: Un front clar view of the RAF Essential Air Fryer R.5340, showcasinel seu panell de control digital i la finestra de cocció transparent.
Image: The RAF Essential Air Fryer R.5340 with an overlay of its key features, including 1800W power, 14L capacity, 360-degree air circulation, and easy-to-clean design.
Components:
- Unitat principal amb panell de control digital
- Removable Cooking Basket/Tray
- Safata de goteig
- Cable d'alimentació
Configuració
- Desembalatge: Carefully remove all packaging materials, stickers, and labels from the air fryer. Retain the packaging for future storage or transport.
- Neteja inicial: Abans del primer ús, netegeu l'exterior de l'aparell amb un anunciamp cloth. Wash the removable cooking basket/tray and drip tray with warm, soapy water. Rinse thoroughly and dry all parts completely.
- Col·locació: Place the air fryer on a stable, level, and heat-resistant surface. Ensure there is at least 10 cm (4 inches) of clear space around the back and sides, and above the appliance, for proper ventilation. Do not place it near flammable materials or heat sources.
- Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. Assegureu-vos que el volumtage matches the specifications of the appliance (220V, 50Hz).
Instruccions de funcionament
Funcionament bàsic:
- Preparar menjar: Place your ingredients into the cooking basket/tray. Do not overfill the basket to ensure even cooking.
- Inserir cistella: Slide the cooking basket/tray firmly back into the air fryer until it clicks into place.
- Encès: Plug the appliance into the power outlet. The digital display will illuminate. Press the power button to turn on the air fryer.
- Establir temperatura i hora:
- Use the temperature control buttons (usually marked with '+' and '-') to adjust the desired cooking temperature. The RAF R.5340 features precise temperature control.
- Use the timer control buttons (also typically '+' and '-') to set the cooking duration.
- Comença a cuinar: Press the start button (often the power button again or a dedicated start icon) to begin the cooking process. The air fryer will start heating and circulating hot air.
- Sacsejar/Voltejar (opcional): For some foods, it is recommended to shake or flip the contents halfway through the cooking time to ensure even browning. Carefully pull out the basket, shake/flip, and reinsert. The air fryer will resume cooking automatically.
- Finalització: The air fryer will beep when the set cooking time has elapsed. Carefully pull out the basket and transfer the cooked food to a serving plate.
- Apagar: Premeu el botó d'engegada per apagar l'aparell i desendolleu-lo de la presa de corrent.
Preescalfament:
For best results, preheating the air fryer for 3-5 minutes at the desired cooking temperature is recommended before adding food.
Manteniment i Neteja
Regular cleaning ensures optimal performance and extends the lifespan of your RAF Essential Air Fryer. Always unplug the appliance and allow it to cool completely before cleaning.
Passos de neteja:
- Interior and Accessories: Remove the cooking basket/tray and drip tray. Wash them with warm, soapy water and a non-abrasive sponge. For stubborn food residue, soak them in warm water for about 10 minutes before cleaning. Rinse and dry thoroughly. These parts are generally dishwasher safe, but hand washing is recommended to prolong their lifespan.
- Exterior: Netegeu l'exterior de la fregidora amb anunciamp cloth. Do not use harsh abrasive cleaners or scouring pads, as they can damage the finish.
- Element de calefacció: If necessary, gently clean the heating element inside the air fryer with a soft brush to remove any food particles. Ensure the appliance is completely cool and unplugged.
- Emmagatzematge: Un cop neta i seca, guardeu la fregidora d'aire en un lloc fresc i sec.
Resolució de problemes
If you encounter any issues with your RAF Essential Air Fryer, please refer to the following common problems and solutions before contacting customer support.
| Problema | Causa possible | Solució |
|---|---|---|
| La fregidora d'aire no s'encén. | L'aparell no està endollat. La presa de corrent no funciona. Cistella no inserida correctament. | Assegureu-vos que el cable d'alimentació estigui ben connectat a una presa de corrent amb connexió a terra. Proveu la presa de corrent amb un altre aparell. Push the cooking basket firmly into the appliance until it clicks. |
| El menjar no es cuina de manera uniforme. | La cistella està massa omplerta. Menjar no sacsejat/girat. Incorrect temperature or time settings. | No ompliu massa la cistella; cuineu en lots més petits si cal. Sacsegeu o gireu el menjar a la meitat de la cocció. Adjust temperature and time according to recipe recommendations. |
| Fum blanc que surt de l’aparell. | Residus de greix d'un ús anterior. Aliments amb alt contingut en greixos que es cuinen. | Clean the cooking basket and drip tray thoroughly after each use. For high-fat foods, place a piece of aluminum foil at the bottom of the drip tray to catch excess oil. |
| El menjar no és cruixent. | Massa humitat en els aliments. No hi ha prou oli (per a certs aliments). | Assequeu els aliments abans de fregir-los a l'aire. Lightly spray or brush food with a small amount of oil for crispier results. |
Especificacions
| Marca: | RAF |
| Número de model: | R.5340 |
| Potència/Wattage: | 1800 watts |
| Capacitat: | 14 litres |
| Voltage: | 220 Volts |
| Freqüència: | 50 Hz |
| Material: | Alumini, plàstic |
| Dimensions del producte (P x A x A): | 40 x 40 x 40 cm |
| Pes de l'article: | 4 quilos |
| Característiques especials: | Control de temperatura |
Garantia i Suport
For detailed warranty information, please refer to the warranty card included with your purchase or the official RAF weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
If you require technical assistance or have questions not covered in this manual, please contact RAF customer support through their official channels. Do not attempt to repair the appliance yourself.
