Pure Classic C-D6 Music System User Manual

Introducció

The Pure Classic C-D6 is a versatile music system designed to provide a comprehensive audio experience. It integrates a CD player, DAB+/FM radio, Bluetooth connectivity, AUX input, and USB playback. This system features immersive stereo sound with 2x15W output from its 3-inch full-range speakers, and includes convenient functions such as an alarm and sleep timer. This manual provides detailed instructions for setting up, operating, and maintaining your Pure Classic C-D6 Music System.

Informació de seguretat

Llegiu atentament tots els avisos i instruccions de seguretat abans d'utilitzar aquest producte per garantir un funcionament segur i evitar danys. Conserveu aquest manual per a futures consultes.

• Font d'alimentació: Feu servir només l'adaptador de corrent subministrat amb la unitat. Assegureu-vos que el volumtage coincideix amb la vostra font d'alimentació local.
• Ventilació: No bloquegeu cap obertura de ventilació. Deixeu prou espai al voltant de la unitat per a un flux d'aire adequat.
• Aigua i humitat: No exposeu la unitat a la pluja, la humitat ni a líquids que gotegen o esquitxen. No col·loqueu objectes plens de líquids, com ara gerros, a sobre de la unitat.
• Calor: Mantingueu la unitat allunyada de fonts de calor com ara radiadors, registres de calor, estufes o altres aparells (inclosos amplificadors) que produeixen calor.
• Neteja: Desendolleu la unitat de la presa de corrent abans de netejar-la. Feu servir un drap suau i sec. No utilitzeu netejadors líquids ni aerosols.
• Manteniment: No intenteu atendre aquest producte vosaltres mateixos. Consulteu tots els serveis a personal de servei qualificat.

Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• Pure Classic C-D6 Music System
• Cable d'alimentació
• Control remot
• Manual d'usuari (aquest document)

Producte acabatview

The Pure Classic C-D6 features a classic design with modern functionality. Familiarize yourself with the main components and controls.

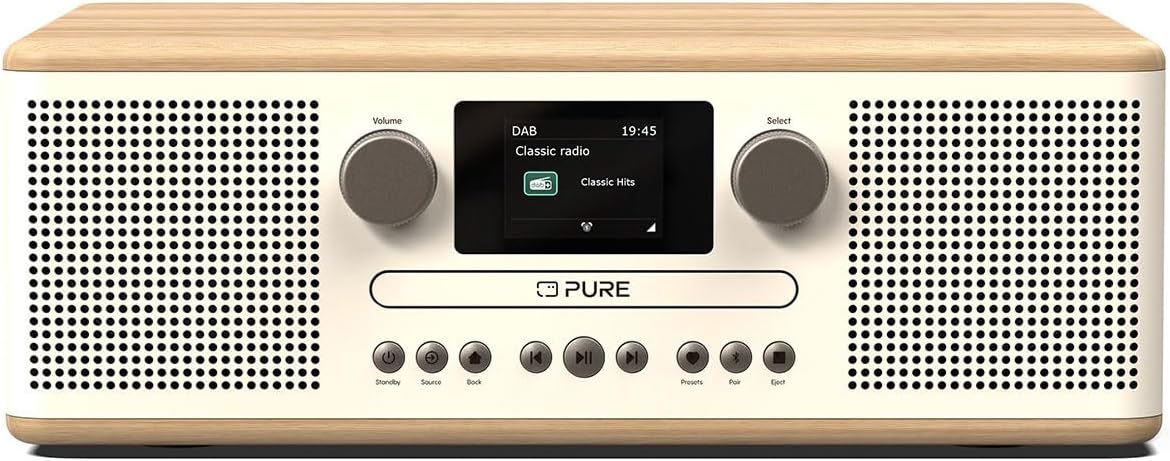

Figura 1: Davant view of the Pure Classic C-D6 Music System. This image displays the main unit with its central display screen, two large rotary knobs for volume and selection, and a row of control buttons below the CD tray. The system features a cotton white front panel and speaker grilles, complemented by light oak wood on the top and sides, highlighting its elegant design.

The system is crafted with a wood veneer finish, enhancing its aesthetic appeal and allowing it to blend seamlessly with various interior styles.

Figura 2: The Pure Classic C-D6 Music System positioned on a wooden countertop, showcasing its wood veneer top and sides. A smartphone is placed next to the unit, indicating its Bluetooth connectivity feature. The image emphasizes how the system's design complements modern home decor.

Equipped with two 3-inch full-range speakers, the Classic C-D6 delivers a robust 2x15W stereo sound, providing a rich and dynamic audio experience for all your listening needs.

Figura 3: A comparison image showing two Pure Classic C-D6 Music Systems: one in the cotton white with light oak finish, and another in a darker wood and black finish. This visual emphasizes the system's stereo sound capabilities and its availability in different aesthetic options.

Configuració

1. Desembalatge: Carefully remove the Pure Classic C-D6 from its packaging. Retain the packaging materials for future transport or storage.
2. Col·locació: Place the unit on a stable, flat surface. Ensure there is adequate ventilation around the unit. Avoid placing it near heat sources or in direct sunlight.
3. Connectar l'alimentació: Insert the power cable into the DC IN port on the back of the unit, then plug the other end into a wall outlet.
4. Antena: Extend the telescopic antenna fully for optimal DAB+ and FM radio reception.
5. Encesa inicial: Premeu el botó En espera button on the unit or remote control to turn on the system. The display will illuminate.

Instruccions de funcionament

Reproducció de CD

The integrated CD player supports standard audio CDs.

Figura 4: The Pure Classic C-D6 Music System with its CD tray extended, indicating readiness for disc insertion. The image shows the system on a kitchen counter, emphasizing its compact and functional design.

1. Insereix CD: Premeu el botó Expulsar button to open the CD tray. Place a CD with the label side facing up into the tray. Press Expulsar de nou per tancar la safata.
2. Seleccioneu la font: Premeu el botó Font button repeatedly until "CD" is selected on the display.
3. Reproducció: The CD will usually start playing automatically. If not, press the Reproduir/Pausa botó.
4. Controls: Utilitza el Saltar endavant i Saltar cap enrere buttons to navigate tracks. Press Reproduir/Pausa per aturar o reprendre la reproducció.

Ràdio DAB+/FM

Enjoy a wide range of digital and analog radio stations.

Figura 5: A close-up of a hand interacting with the control buttons on the Pure Classic C-D6 Music System. The display clearly shows "FM" and frequency information, indicating the radio function is active. This image highlights the user-friendly interface and the presence of a remote control for convenience.

1. Seleccioneu la font: Premeu el botó Font button to switch between DAB+ and FM radio modes.
2. Auto Scan (DAB+): In DAB+ mode, the system will automatically scan for available stations upon first use or if no stations are found.
3. Manual Tuning (FM): En el mode FM, feu servir la Seleccioneu knob to manually tune to a frequency or press Salta endavant/enrere for auto-scan to the next strong station.
4. Desa els valors predefinits: Per desar una emissora, sintonitzeu l'emissora desitjada i, a continuació, manteniu premut el botó Presets botó. Utilitza el Seleccioneu knob to choose a preset number, then press the knob to confirm. The system supports up to 30 presets.
5. Recuperació de presets: Premeu breument Presets i, a continuació, utilitzeu el botó Seleccioneu knob to choose and recall a saved station.

Connectivitat Bluetooth

Reprodueix àudio sense fil des del teu telèfon intel·ligent, tauleta o altres dispositius amb Bluetooth.

Figura 6: The Pure Classic C-D6 Music System on a wooden surface, with a smartphone placed nearby. The system's display shows "BT" and "Connected," indicating a successful Bluetooth connection. This image highlights the seamless wireless audio streaming capability of the device.

1. Seleccioneu la font: Premeu el botó Font button until "Bluetooth" is selected. The display will show "Pairing" or "Waiting for connection".
2. Activa el Bluetooth al dispositiu: On your smartphone or tablet, go to the Bluetooth settings and enable Bluetooth.
3. Maridatge: Cerca "Pure Classic C-D6" in the list of available devices and select it to pair. Once connected, the display will show "Connected".
4. Reproducció: Start playing audio on your connected device. The sound will be routed through the Pure Classic C-D6.

Entrada AUX

Connecteu dispositius d'àudio externs amb un cable d'àudio de 3.5 mm.

1. Connectar el cable: Plug one end of a 3.5mm audio cable into the AUX IN port on the back of the Pure Classic C-D6 and the other end into the headphone jack or audio output of your external device.
2. Seleccioneu la font: Premeu el botó Font button until "AUX" is selected.
3. Reproducció: Comença a reproduir àudio al dispositiu extern.

Reproducció USB

Reprodueix àudio files directament des d'una unitat flash USB.

1. Inseriu USB: Insert a USB flash drive into the USB port on the back of the unit.
2. Seleccioneu la font: Premeu el botó Font botó fins que se seleccioni "USB".
3. Reproducció: El sistema detectarà automàticament i començarà a reproduir àudio compatible files. Utilitzar el Saltar endavant i Saltar cap enrere botons per navegar per pistes.

Temporitzador d'alarma i son

The system includes an alarm function to wake you up and a sleep timer to automatically turn off the unit.

• Configuració d'alarma: Refer to the on-screen menu for alarm settings. You can typically set the alarm time, source (e.g., radio, buzzer), and volume.
• Configuració del temporitzador de repòs: Access the sleep timer function through the menu. You can set a duration (e.g., 15, 30, 60 minutes) after which the unit will automatically power off.

Manteniment

Proper care will ensure the longevity of your Pure Classic C-D6 Music System.

• Neteja: Use a soft, dry, lint-free cloth to clean the unit's surface. For stubborn marks, slightly dampRenta el drap amb aigua. No utilitzis productes de neteja abrasius, ceres ni dissolvents.
• Safata de CD: Keep the CD tray free of dust and debris. Avoid touching the lens inside the CD player.
• Emmagatzematge: Si guardeu la unitat durant un període prolongat, desendolleu-la de la presa de corrent i guardeu-la en un lloc fresc i sec.

Resolució de problemes

If you encounter issues with your Pure Classic C-D6, consult the following table for common problems and solutions.

Especificacions

Garantia i Suport

Pure products are designed and manufactured to the highest standards. For information regarding warranty coverage, technical support, or service, please visit the official Pure weblloc web o poseu-vos en contacte amb el seu servei d'atenció al client. Conserveu el comprovant de compra per a reclamacions de garantia.

Per obtenir la informació i els recursos de suport més recents, visiteu: www.pure.com
