Manual d'usuari del sistema de PA portàtil WinBridge S98

1. Introducció

The WinBridge S98 Portable PA System is a versatile and powerful 40-watt voice amplifier designed for clear and distortion-free sound amplification. Ideal for teachers, speakers, tour guides, and various indoor and outdoor events, it ensures your voice is heard clearly by audiences of up to 200 people across an area of 18,000 square feet. Its compact and portable design, coupled with multiple connectivity options and long battery life, makes it a reliable solution for all your audio ampnecessitats de lificació.

2. Contingut del paquet

Si us plau, reviseu el paquet amb cura per assegurar-vos que hi hagi tots els elements:

• 1 x WinBridge S98 Voice AmpUnitat lificadora
• 1 x micròfon d'auriculars sense fil
• 1 x cable d'àudio
• 1 x Cable de càrrega (Tipus C)
• 1 cinturó
• 1 x Manual d'usuari (aquest document)

Image: The WinBridge S98 Portable PA System, showing the main unit and the wireless headset microphone.

3. Producte acabatview

The WinBridge S98 features a robust design with intuitive controls and multiple input options.

3.1 Característiques de la unitat principal

• 40W Powerful Output: Delivers clear and loud audio.
• 4-inch Full Frequency Speaker: Ensures high-definition sound.
• Pantalla LED: Shows battery level and mode status.
• Three Individual Knobs: For adjusting microphone volume, speaker volume, and ECHO effect.
• Removable Leather Handle: Per a una fàcil portabilitat.
• Connectivitat múltiple: Supports Bluetooth 5.3, U disk (USB), TF card, AUX input, and wired microphone/instrument input.

Imatge: Primer pla view of the WinBridge S98 speaker, highlighting its 40W powerful output and 4-inch full frequency speaker for HD sound.

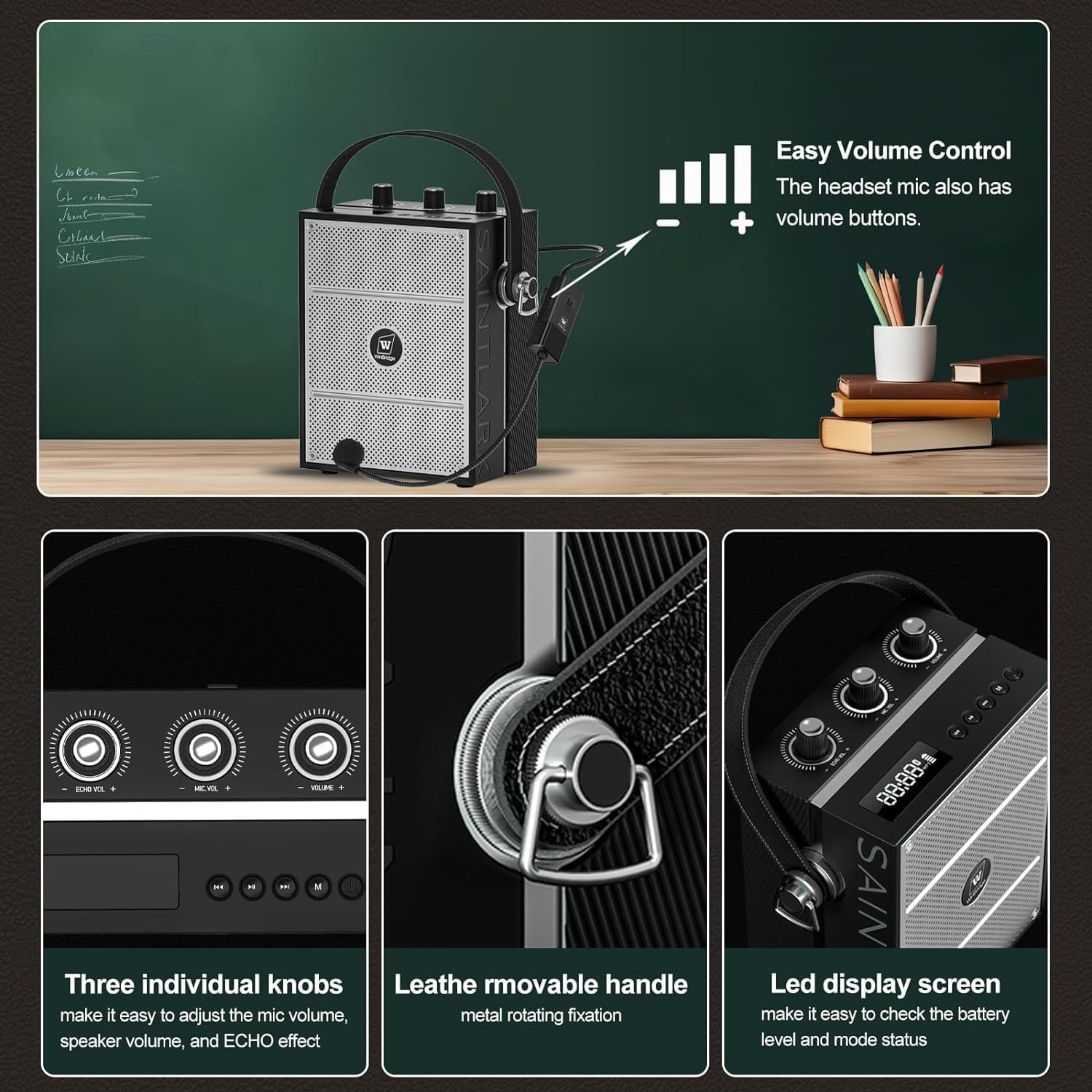

Imatge: Detallada view of the top panel of the WinBridge S98, showing the three individual control knobs for mic volume, speaker volume, and echo, along with the LED display screen and removable handle.

Image: The input panel of the WinBridge S98, illustrating support for wired microphone, Bluetooth 5.3, U disk, TF card, AUX input, and Guitar input.

3.2 Wireless Headset Microphone Features

• Tecnologia sense fil UHF: Provides stable signal and strong anti-interference capability.
• Lightweight & Comfortable: Can be worn on the head or around the neck.
• Botons de volum: Allows direct volume adjustment on the headset.
• Interval de funcionament: Up to 15 meters (approx. 49 feet).

Image: A teacher using the WinBridge S98 wireless headset microphone in a classroom setting, demonstrating its lightweight design and 15m wireless range.

4. Configuració i ús inicial

4.1 Càrrega del dispositiu

Before first use, fully charge the WinBridge S98 PA system and the wireless microphone.

1. Connect the provided charging cable to the Type-C port on the PA system and a USB power adapter (not included).
2. Connect the charging cable to the wireless microphone's charging port.
3. The LED indicator on both devices will show charging status. Charge until the indicator shows full.

A full charge provides 5-8 hours of amplification for the speaker and up to 5 hours for the headset microphone.

Image: The WinBridge S98 PA system with an illustration of its built-in 2600mAh rechargeable battery, indicating 5-8 hours of speaker playtime and up to 5 hours for the headset on a full charge.

4.2 Emparellatge del micròfon sense fil

The wireless microphone is usually pre-paired with the PA system. If re-pairing is needed:

1. Turn on both the PA system and the wireless microphone.
2. Ensure they are within close proximity (e.g., 1 meter).
3. The devices should automatically connect. If not, refer to the troubleshooting section or the specific pairing instructions in the quick start guide.

5. Instruccions de funcionament

5.1 Encès/Apagat

• To power on the PA system, press and hold the power button until the LED screen illuminates.
• Per apagar l'aparell, premeu i manteniu premut el botó d'engegada de nou fins que la pantalla s'apagui.
• For the wireless microphone, use its dedicated power switch.

5.2 Control de volum

• Volum dels altaveus: Use the main volume knob on the PA system to adjust the overall output volume.
• Volum del micròfon: Use the dedicated microphone volume knob on the PA system. The wireless headset also has volume buttons for convenient adjustment.
• ECHO Effect: Adjust the ECHO knob to add or remove echo from the microphone output.

5.3 Mode Selection and Connectivity

The WinBridge S98 supports various input modes:

• Mode Bluetooth:
  1. Turn on the PA system. It will automatically enter Bluetooth pairing mode (indicated on the LED screen).
  2. On your device (phone, tablet, etc.), enable Bluetooth and search for "S98".
  3. Select "S98" to connect. A confirmation sound will indicate successful pairing.


  Image: A hand holding a smartphone displaying Bluetooth settings, showing "S98" as a connected device, illustrating the Bluetooth connectivity feature of the WinBridge PA system.

• Mode de targeta USB/TF:

  Insert a USB flash drive or TF card into the respective port. The system will automatically switch to the corresponding mode and begin playing audio files.

• Mode d'entrada AUX:

  Connect an external audio source (e.g., laptop, MP3 player) to the AUX port using the provided audio cable. The system will automatically switch to AUX mode.
• Wired Microphone/Instrument Input:

  Connect a wired microphone or instrument (e.g., guitar) to the MIC1 or MIC2 input ports. Adjust the MIC volume knob as needed.



  Image: A person playing an acoustic guitar while another person uses a smartphone, with the WinBridge S98 PA system visible, demonstrating its capability to connect to instruments.

6. Manteniment i cura

• Neteja: Netegeu el dispositiu amb un drap suau i sec. No utilitzeu productes de neteja abrasius ni dissolvents.
• Emmagatzematge: Guardeu el sistema de megafonia en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Cura de la bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Si la guardeu durant un període llarg, carregueu-la fins a un 50% aproximadament cada pocs mesos.
• Manipulació: Manipuleu el dispositiu amb cura. Eviteu deixar-lo caure ni sotmetre'l a impactes forts.

7. Solució De Problemes

8. Especificacions

Image: The WinBridge S98 PA system being carried, with dimensions (14 cm width, 18 cm height, 9 cm depth) and weight (1.48 KG) overlaid, emphasizing its portability.

9. Garantia i Suport

For warranty information and customer support, please refer to the documentation included with your purchase or contact WinBridge directly through their official website or the seller on the platform where you purchased the product. Keep your proof of purchase for any warranty claims.

This product is verified by Transparency, ensuring authenticity. Each item has a unique code which is verified before shipping.

10. Escenaris d'ús

The WinBridge S98 Portable PA System is designed for a wide range of applications, including but not limited to:

• Teachers in classrooms
• Public speakers and presenters
• Guies turístics
• Yoga and fitness instructors
• Karaoke sessions
• Indoor and outdoor events
• Conferences and meetings
• Small performances (e.g., guitarists)

Image: A collage of images showing the WinBridge S98 PA system being used by teachers, elders, for parties, outdoors, and by dancers, highlighting its versatility.
