Manual d'usuari de la lluminària envoltant LED HYPERLITE de 4 peus

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your HYPERLITE 4ft LED Wraparound Light Fixture. Please read this manual thoroughly before installation and keep it for future reference. This fixture is designed to provide efficient and bright illumination for various indoor environments such as garages, closets, laundry rooms, and offices.

Image 1.1: The HYPERLITE 4ft LED Wraparound Light Fixture, showcasing el seu disseny elegant.

2. Informació de seguretat

AVÍS: Risc de descàrrega elèctrica. Desconnecteu l'alimentació al fusible o al disjuntor abans d'instal·lar o fer el manteniment.

• Llegiu totes les instruccions abans de la instal·lació.
• Ensure the main power supply is turned off before commencing any work.
• La instal·lació l'ha de dur a terme un electricista qualificat o una persona familiaritzada amb la construcció i el funcionament del producte i els perills que implica.
• No instal·leu en superfícies que no siguin estructuralment sòlides.
• No modifiqueu l'aparell de cap manera.
• Aquest aparell està dissenyat només per a ús interior.
• Assegureu-vos que totes les connexions estiguin segures i aïllades correctament.

3. Contingut del paquet

Verifiqueu que tots els components que s'enumeren a continuació s'inclouen al paquet:

• 1 x HYPERLITE 4ft LED Wraparound Light Fixture
• 1 x 59-inch Linking cable
• 1 x Flush connector
• 4 x Wall anchors
• 2 x Small pin cross machine screws
• 3 x Wire nuts
• 2 x End caps
• 4 x Large pointed pin cross wood screws

Image 3.1: Visual representation of the light fixture dimensions and all included accessories.

4. Característiques del producte

• Bright & Energy-Efficient: Delivers up to 6600 lumens using high-efficiency LED chips, offering significant energy savings compared to fluorescent lights.
• Adjustable Power (40W/50W/60W): Customize light output to suit different locations and preferences.
• Fàcil instal·lació: Slim design for flush mounting and a detachable small lid for quick access during installation.
• Disseny enllaçable: Connect up to 8 fixtures using the included 59-inch connection cable for wide-ranging illumination.
• Construcció duradora: Features a PC material lampshade for clear illumination and a long lifespan of up to 50,000 hours.
• Temperatura de color 5000K: Provides a cool white light, ideal for task-oriented environments.
• Llistat per ETL: Assegura el compliment dels estàndards de seguretat nord-americans.

Image 4.1: Key features of the HYPERLITE 4ft LED Wraparound Light, including adjustable wattage and certifications.

5. Configuració i instal·lació

Before beginning installation, ensure power is disconnected at the circuit breaker.

5.1. Passos generals d'instal·lació

1. Desembaleu amb cura l'aparell i tots els components.
2. Determineu la ubicació de muntatge desitjada.
3. Identify the appropriate installation method (Junction Box or Surface Mount).
4. Follow the specific instructions for your chosen method below.

5.2. Instal·lació de la caixa de connexions

1. Position the fixture over the junction box.
2. Secure the fixture to the junction box using the provided screws.
3. Connect the fixture wires to the building's electrical wires: black to black (live), white to white (neutral), and green to green/bare copper (ground) using wire nuts.
4. Assegureu-vos que totes les connexions estiguin ben ajustades i correctament aïllades.

5.3. Instal·lació de muntatge superficial

1. Mark the mounting points on the ceiling or wall using the fixture as a template.
2. Drill pilot holes at the marked locations. Insert wall anchors if mounting into drywall.
3. Feed the electrical wires through the designated opening in the fixture.
4. Secure the fixture to the surface using the provided wood screws.
5. Connect the fixture wires to the building's electrical wires: black to black (live), white to white (neutral), and green to green/bare copper (ground) using wire nuts.
6. Assegureu-vos que totes les connexions estiguin ben ajustades i correctament aïllades.

Image 5.1: Detailed steps for both Junction Box and Surface Mount installation methods.

5.4. Linking Multiple Fixtures

The HYPERLITE fixture is designed to be linkable, allowing you to connect up to 8 lights together for extended illumination.

1. Ensure power is off before linking fixtures.
2. Remove the end cap from one end of the first fixture and one end of the second fixture.
3. Connect the 59-inch linking cable between the two fixtures.
4. Repeat for additional fixtures, up to a maximum of 8.
5. Assegureu-vos que totes les connexions siguin segures.

Image 5.2: Illustration of how to link multiple fixtures using the provided cable.

6. Instruccions de funcionament

6.1. Adjustable Wattage (40W/50W/60W)

This fixture features adjustable power settings, allowing you to select between 40W, 50W, and 60W to control the brightness. The wattage selection switch is located on the fixture itself.

1. Ensure the power to the fixture is turned off before adjusting the wattage.
2. Localitza el wattage selection switch on the side or end of the fixture.
3. Slide the switch to your desired wattage setting (40W, 50W, or 60W).
4. Restore power to the fixture. The light will operate at the selected wattage.

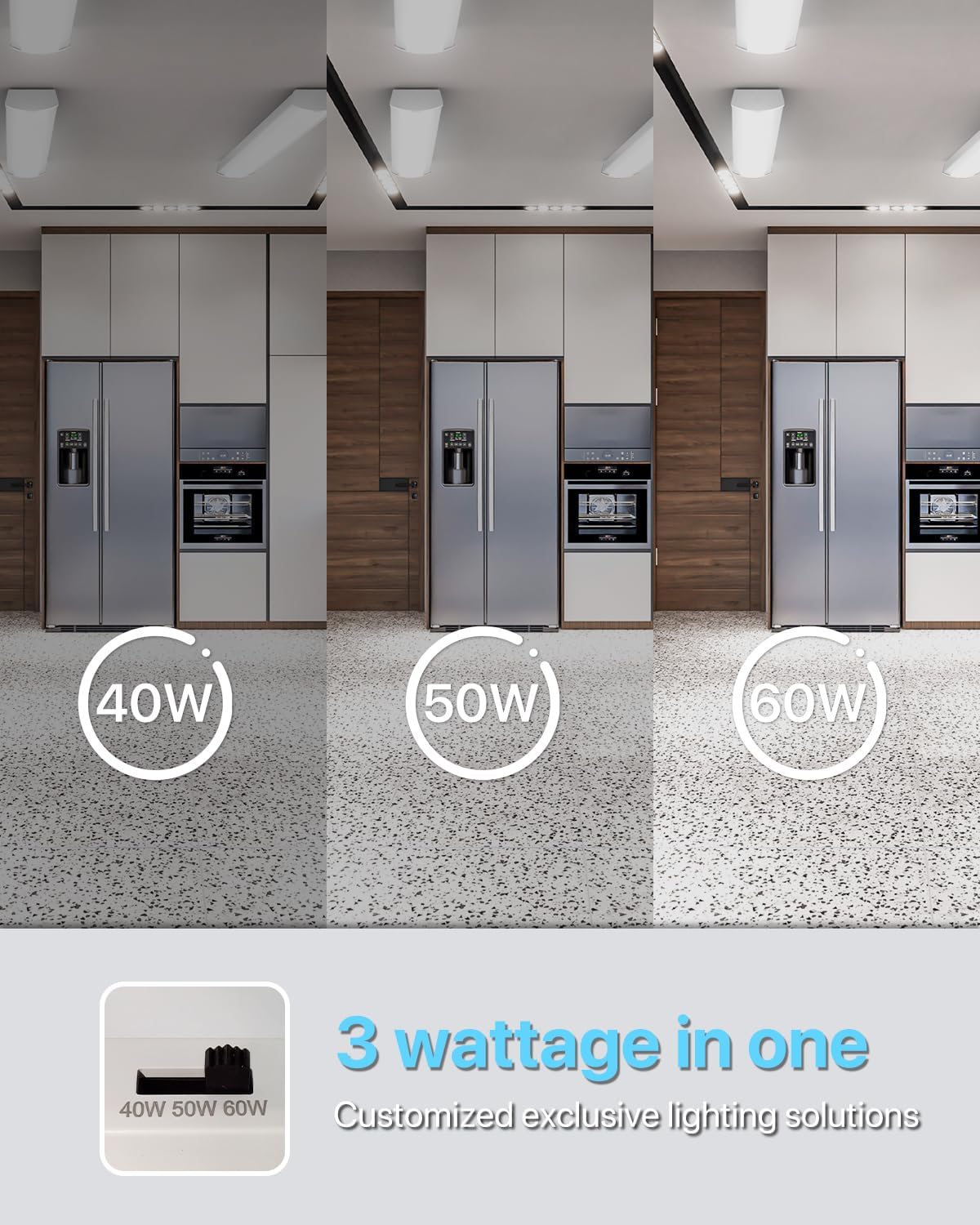

Image 6.1: Visual demonstration of the adjustable wattage feature, showing different brightness levels.

7. Manteniment

Regular maintenance ensures optimal performance and longevity of your LED fixture.

7.1. Neteja

1. Ensure the power to the fixture is turned off and the fixture has cooled down before cleaning.
2. Netegeu l'exterior de l'aparell amb un drap suau iamp tela.
3. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
4. Assegureu-vos que l'aparell estigui completament sec abans de restablir el corrent.

7.2. Small Lid Removal for Access

The fixture features a small detachable lid for easy access to internal components or for maintenance.

1. Assegureu-vos que l'alimentació estigui apagada.
2. Gently slide the small lid out from the end of the fixture.
3. To reattach, align the lid with the grooves and slide it back into place until it snaps securely.

Image 7.1: Instructions for removing the small lid for maintenance or access.

8. Solució De Problemes

Si teniu problemes amb el vostre dispositiu, consulteu els següents problemes i solucions habituals:

If the problem persists after trying these solutions, please contact HYPERLITE customer service.

9. Especificacions

10. Garantia i assistència

10.1. Informació de la garantia

The HYPERLITE LED Wraparound Light Fixture is backed by a 3 any de garantiaAquesta garantia cobreix els defectes de materials i de fabricació en condicions d'ús normal. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.

10.2. Atenció al client

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact HYPERLITE customer service. Our dedicated team is committed to providing satisfactory solutions.

Please visit the official HYPERLITE website or refer to your purchase documentation for the most current contact information.
