1. Introducció
Thank you for choosing the DB Drive WDX8G2.4 8-inch Subwoofer. This high-performance subwoofer is engineered to deliver powerful and precise bass, enhancing your audio experience in various applications. Designed for durability and optimal sound reproduction, the WDX8G2.4 features a robust construction suitable for both sealed and high-output vented enclosures. Please read this manual thoroughly before installation and operation to ensure proper use and maximize the performance and longevity of your subwoofer.
2. Característiques del producte
The DB Drive WDX8G2.4 subwoofer incorporates advanced design and materials for superior performance:
- Manipulació d'alta potència: 1,500 watts maximum power, 750 watts nominal RMS power.
- Dual Voice Coil Design: Features a 2.5-inch, 4-layer dual-4-ohm anodized aluminum high-temperature voice coil for flexible wiring options and robust power handling.
- Optimized for Enclosures: Designed for high-output vented enclosures but also suitable for sealed enclosures.
- Construcció duradora: Includes a double-stitched foam surround, non-pressed paper cone, dual poly-cotton dampeners, and a die-cast aluminum vented basket for maximum excursion and heat dissipation.
- Connexions segures: Equipped with large-gauge compression speaker terminals.
- Protective Magnet Cover: Enhances durability and provides a sleek appearance.
- Resposta de freqüència àmplia: Operates within a frequency range of 25 Hz to 275 Hz.

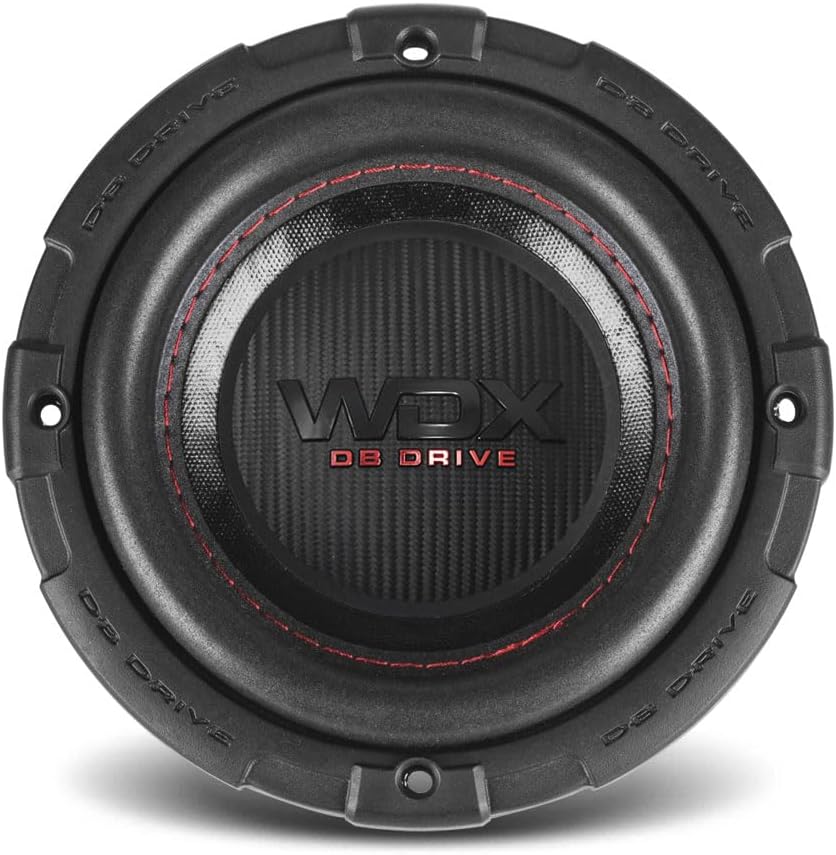

Figura 2.1: Frontal view of the DB Drive WDX8G2.4 8-inch subwoofer, showcasing el con i els seus voltants.
3. Configuració i instal·lació
Una instal·lació correcta és crucial per al rendiment i la longevitat del vostre subwoofer. Es recomana que la instal·lació la realitzi un professional qualificat.
3.1 Enclosure Selection
The WDX8G2.4 is optimized for high-output vented (ported) enclosures but can also be used effectively in sealed enclosures. The choice of enclosure will depend on your desired bass characteristics and available space. Consult with an audio professional for optimal enclosure design and volume.
3.2 Dimensions de muntatge
- Profunditat de muntatge: 6.3 polzades (16.0 cm)
- Diàmetre de tall: 7.32 polzades (18.6 cm)
- Diàmetre exterior: 8.78 polzades (22.3 cm)
Ensure the mounting surface is rigid and free from obstructions. Use appropriate tools for cutting the mounting hole to the specified diameter.
3.3 Wiring the Dual 4-Ohm Voice Coils
The WDX8G2.4 features dual 4-ohm voice coils, offering flexibility in wiring configurations to match your amprequisits d'impedància del transformador.
- Cablejat en paral·lel (2 ohms): Connect the positive terminals of both voice coils together, and the negative terminals of both voice coils together. Then connect these combined positive and negative terminals to the amplifier. This configuration results in a 2-ohm load.
- Cablejat en sèrie (8 ohms): Connect the positive terminal of one voice coil to the negative terminal of the other voice coil. Then connect the remaining free positive and negative terminals to the amplifier. This configuration results in an 8-ohm load.
Assegureu-vos sempre el vostre amplifier is stable at the chosen impedance. Use high-quality, large-gauge speaker wire for all connections to minimize power loss and ensure optimal performance. Secure all connections firmly using the compression speaker terminals.
Figura 3.1: posterior view of the DB Drive WDX8G2.4 subwoofer, highlighting the magnet structure and compression terminals.
4. Instruccions de funcionament
Once installed, proper operation of your subwoofer involves careful adjustment of your amplifier and head unit settings.
- Configuració de guany: Estableix el ampguany del lificador correctament per coincidir amb el volum de sortidatage of your head unit. Start with the gain at minimum and slowly increase it until you hear distortion, then back off slightly. Never use the gain control as a volume knob.
- Filtre de pas baix (LPF): Feu servir el filtre de pas baix del vostre amplifier or head unit to ensure the subwoofer only reproduces low frequencies. A typical setting for an 8-inch subwoofer might be between 80 Hz and 120 Hz, but this can vary based on your full-range speakers and personal preference.
- Filtre subsònic: Si el teu amplifier has a subsonic filter, enable it and set it just below the tuning frequency of your ported enclosure (if applicable) to protect the subwoofer from over-excursion at very low frequencies.
- Intensificació dels sons més greus: Use bass boost sparingly, if at all. Excessive bass boost can lead to distortion and potential damage to the subwoofer.
- Període d'entrada: Allow a break-in period of approximately 20-30 hours of moderate listening before pushing the subwoofer to its limits. This allows the suspension components to loosen up and perform optimally.
5. Manteniment
The DB Drive WDX8G2.4 subwoofer is designed for durability and requires minimal maintenance.
- Neteja: Gently wipe the cone and surround with a soft, dry cloth to remove dust. Avoid using harsh chemicals or excessive moisture.
- Condicions ambientals: Protegiu el subwoofer de la llum solar directa, de les temperatures extremes i de la humitat excessiva.
- Inspecció: Periodically inspect the speaker terminals and wiring for secure connections and any signs of wear or corrosion.
6. Solució De Problemes
Si teniu problemes amb el subwoofer, consulteu els problemes i solucions més comuns següents:
| Problema | Causa possible | Solució |
|---|---|---|
| No hi ha so del subwoofer |
|
|
| Distorted or Weak Bass |
|
|
| Sobreescalfament del subwoofer |
|
|
If these steps do not resolve the issue, please contact DB Drive customer support or a certified car audio technician.
7. Especificacions
| Paràmetre | Valor |
|---|---|
| Nom del model | WDX8G2.4 |
| Tipus d'altaveu | Subwoofer |
| Maneig de potència màxima | 1500 watts |
| Nominal (RMS) Power Handling | 750 watts |
| Resposta de freqüència | 25 Hz a 275 Hz |
| SPL (Sensibilitat) | 81 dB |
| Diàmetre de la bobina de veu | 2.5 polzades |
| Configuració de la bobina de veu | Doble 4 ohms |
| Material del con | Non-pressed paper |
| Material de la cistella | Die-cast aluminum (vented) |
| Profunditat de muntatge | 6.3 polzades (16.0 cm) |
| Diàmetre de tall | 7.32 polzades (18.6 cm) |
| Diàmetre exterior | 8.78 polzades (22.3 cm) |
| Dimensions del producte (P x A x A) | 20.3P x 17.8A x 12.7H centímetres |
| Pes | 7.76 kg |
8. Garantia i Suport
Specific warranty details for the DB Drive WDX8G2.4 subwoofer are typically provided with the product packaging or can be found on the official DB Drive weblloc web. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.
For technical support, warranty inquiries, or service, please contact DB Drive customer service directly. Refer to the contact information provided on the manufacturer's webdocumentació del lloc o del producte.
