LogiLink LED017

LogiLink LED017 LED Desk Lamp Manual d'usuari

Model: LED017

1. Introducció

Thank you for choosing the LogiLink LED017 LED Desk Lamp. This manual provides essential information for the safe and efficient use of your new desk lampLlegiu atentament aquestes instruccions abans d'utilitzar-les i conserveu-les per a futures consultes.

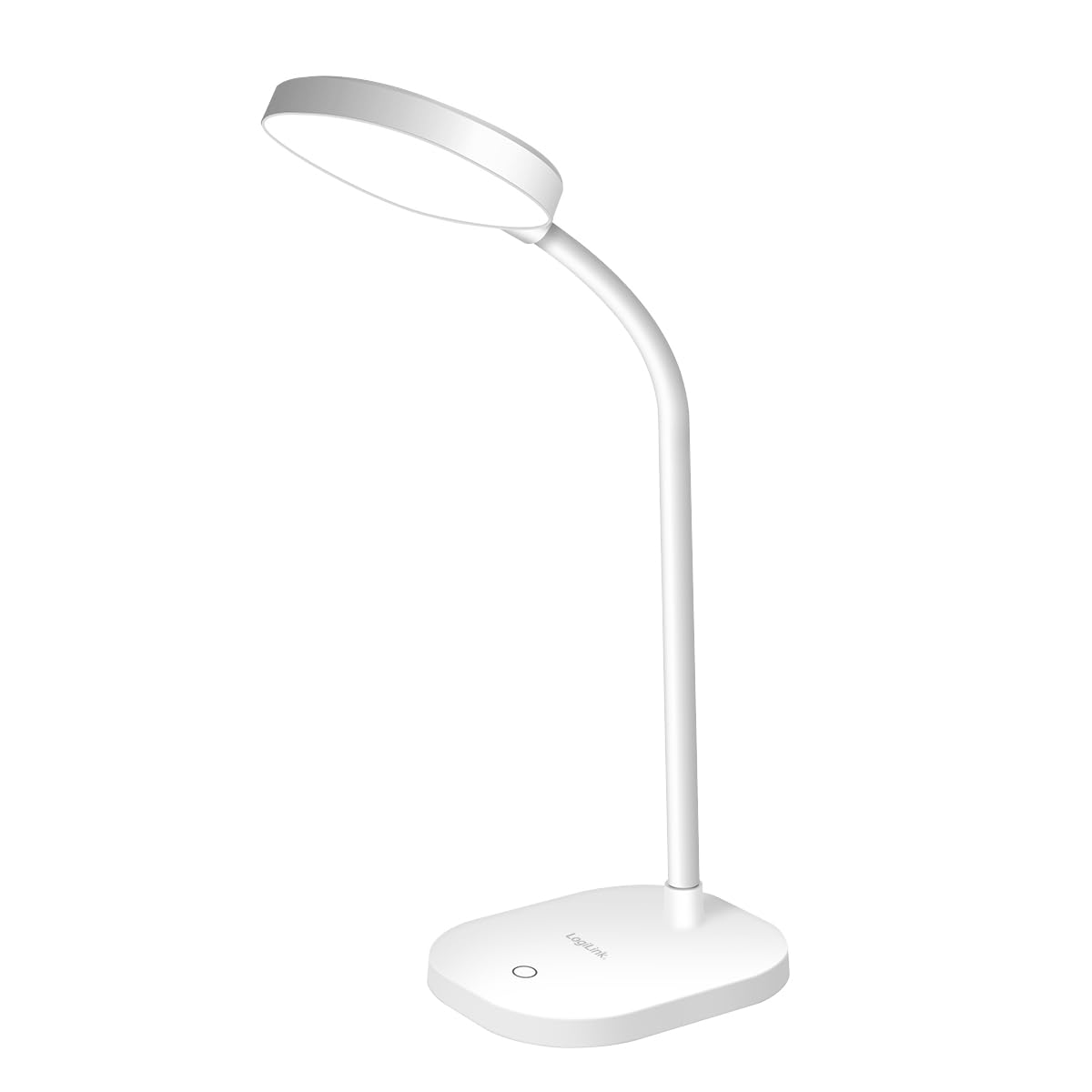

LogiLink LED017 LED Desk Lamp, davant view

Image 1.1: LogiLink LED017 LED Desk Lamp

This image shows the LogiLink LED017 LED Desk Lamp from a front perspective, highlighting its compact design and flexible gooseneck.

2. Característiques del producte

The LogiLink LED017 LED Desk Lamp is designed for optimal illumination and user comfort. Key features include:

LogiLink LED017 LED Desk Lamp with Eye-Caring features

Image 2.1: Eye-Caring Features

This image illustrates the eye-caring benefits of the lamp, highlighting its flicker-free, no ghosting, and uniform lighting capabilities.

3. Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

LogiLink LED017 LED Desk Lamp embalatge

Image 3.1: Product Packaging

This image displays the retail packaging of the LogiLink LED017 LED Desk Lamp, mostrant la lamp and its key features on the box.

4. Instruccions de configuració

  1. Desembalar: Traieu amb cura la lamp i tots els accessoris de l'embalatge.
  2. Col·locació: Col·loca la lamp on a stable, flat surface such as a desk or table. Ensure the non-slip base is securely positioned.
  3. Connectar l'alimentació: Insert the USB-C end of the power cable into the USB-C port located on the back of the lampla base.
  4. Font d'alimentació: Connect the other end of the USB-C cable to a compatible USB power adapter (5V/1A recommended, not included) or a USB port on a computer.
  5. Ajustar coll de cisne: Gently bend the flexible gooseneck to position the lamp cap com es desitgi.
LogiLink LED017 LED Desk Lamp Port USB-C

Image 4.1: USB-C Power Port

Aquesta imatge ofereix un primer pla view of the USB-C power input port located on the base of the lamp.

5. Instruccions de funcionament

The LogiLink LED017 lamp features intuitive touch control for easy operation.

  1. Encès/apagat: Toqueu lleugerament la icona d'engegada a la lamp's base to turn the lamp on. Touch it again to turn the lamp apagat.
  2. Ajusta la brillantor: Quan la lamp is on, repeatedly touch the power icon to cycle through the three available brightness levels (Low, Medium, High).
  3. Posicionament: Adjust the flexible gooseneck to direct the light precisely where needed. The 360° flexibility allows for various angles and heights.
LogiLink LED017 LED Desk Lamp showing 3 brightness levels

Image 5.1: Brightness Levels

This image demonstrates the three distinct brightness levels of the LogiLink LED017 LED Desk Lamp, from dim to bright.

LogiLink LED017 LED Desk Lamp with flexible design

Image 5.2: Flexible Gooseneck

This image highlights the flexible gooseneck design of the lamp, allowing users to adjust the light direction easily.

6. Manteniment

Per garantir la longevitat i el rendiment òptim del vostre lamp, seguiu aquestes senzilles pautes de manteniment:

7. Solució De Problemes

If you encounter any issues with your LogiLink LED017 lamp, please refer to the following troubleshooting guide:

ProblemaCausa possibleSolució
Lamp no s'encén.
  • Sense font d'alimentació.
  • Connexió de cable fluixa.
  • Adaptador d'alimentació defectuós.
  • Assegureu-vos que el cable USB-C estigui connectat a una font d'alimentació que funcioni.
  • Check that the USB-C cable is securely plugged into both the lamp i l'adaptador de corrent.
  • Try a different USB power adapter (5V/1A) or USB port.
Els nivells de brillantor no canvien.
  • Incorrect touch operation.
  • Ensure you are lightly tapping the touch sensor. Repeated taps cycle through brightness levels.
Lamp parpelleja.
  • Font d'alimentació inestable.
  • Ensure the power adapter provides stable 5V/1A output. Try a different power source.

8. Especificacions

ModelLED017
MarcaLogiLink
Font de llum16 x SMD 2835 LEDs
Poder5 W
Entrada5 V / 1 A
Flux lluminós240 lm
Temperatura de color5000 K
Nivells de brillantor3 (adjustable via touch control)
Flexibilitat de coll de cisne360°
Classe de proteccióIP20
Font d'alimentacióUSB-C
Consum en espera0.01 W
Dimensions (L x A x A)11.8 x 10 x 42.5 cm
Pes233.5 g
MaterialAlumini (base)
ColorBlanc
Classe d'eficiència energèticaF (Enllaç EPREL)
LogiLink LED017 LED Desk Lamp Etiqueta energètica

Image 8.1: Energy Efficiency Label

This image displays the EU energy efficiency label for the LogiLink LED017 LED Desk Lamp, indicating its energy class F.

9. Informació de seguretat

Please read and follow these safety precautions to prevent injury or damage to the product:

10. Garantia i Suport

LogiLink products are manufactured with quality and reliability in mind. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official LogiLink weblloc.

For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact LogiLink customer service through their official weblloc web o la informació de contacte proporcionada amb el vostre producte.
