1. Introducció

Thank you for choosing the PowerSmart Self Propelled Gas Lawn Mower. This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your new lawn mower. Please read this manual thoroughly before operating the machine and keep it for future reference.

The PowerSmart B8621S features a powerful Briggs and Stratton 550e 140cc 4-cycle OHV engine, a durable 21-inch steel deck, and versatile 3-in-1 cutting options (bagging, mulching, and side discharge). Its rear-wheel drive self-propelled system enhances traction and performance on various terrains.

Figure 1.1: PowerSmart 21-Inch Self Propelled Gas Lawn Mower. This image shows the complete lawn mower with its handle extended and grass bag attached, ready for use.

2. Informació de seguretat

Prioritzeu sempre la seguretat quan feu servir equips elèctrics. Si no seguiu les instruccions de seguretat, podeu patir lesions greus o danys materials.

• Read and understand the entire manual before operating the mower.
• Utilitzeu equips de protecció individual (EPI) adequats, incloent-hi protecció ocular, protecció auditiva i calçat resistent.
• Keep hands, feet, and clothing away from rotating parts and discharge openings.
• No feu servir mai la tallagespa sobre herba mullada o pluja.
• Ensure the area is clear of debris, rocks, and other objects that could be thrown by the blade.
• Handle fuel with extreme care. Store fuel in approved containers and refuel outdoors in a well-ventilated area.
• No permeteu que els nens o les persones sense formació facin servir la tallagespa.
• Always turn off the engine and disconnect the spark plug wire before performing any maintenance or clearing blockages.

3. Muntatge

Your PowerSmart lawn mower is designed for quick and easy assembly, often requiring no tools.

1. Desembalatge: Traieu amb cura tots els components de l'embalatge. Assegureu-vos que hi hagi totes les peces que figuren a la llista d'embalatge.
2. Muntatge del mànec: Unfold the handle and secure it in the upright position using the provided knobs or levers. Ensure all cables are properly routed and not pinched.
3. Accessori per a bossa d'herba: Assemble the grass bag if necessary, then attach it to the rear discharge opening of the mower.
4. Afegeix oli de motor: Locate the oil fill cap/dipstick. Fill the engine with the recommended type and amount of engine oil (typically SAE 30 or 10W-30, refer to engine manual for exact specifications). Do not overfill.
5. Afegeix combustible: Ompliu el dipòsit de combustible amb gasolina nova sense plom. No utilitzeu combustible E85 o E15.

Figure 3.1: The mower's handle can be folded for compact storage, indicating its ease of assembly and disassembly for transport or storage.

4. Funcionament

4.1. Arrencada del motor

The Briggs and Stratton 550e engine is equipped with Prime 'N Pull for easy starting.

1. Assegureu-vos que el cable de la bugia estigui ben connectat.
2. Push the primer bulb 3-5 times (or as recommended by the engine manufacturer) until fuel is visible in the bulb.
3. Stand behind the mower, firmly grasp the starter handle, and pull the rope with a rapid, continuous motion until the engine starts.

Figura 4.1: Primer pla view of the Briggs and Stratton 140cc engine, highlighting its design and components for starting.

4.2. Ajust de l'alçada de tall

The mower features a single-lever 6-position height adjustment for precise cutting.

• With the engine off, locate the height adjustment lever near the wheels.
• Pull the lever outwards and move it to the desired cutting height position. Ensure all wheels are set to the same height.
• The 6 positions allow for cutting heights suitable for various grass types and conditions.

Figure 4.2: Detail of the 6-position single-lever height adjustment mechanism on the mower's wheel, allowing for easy changes to cutting height.

4.3. Self-Propelled Operation

The rear-wheel drive self-propelled system provides improved traction and reduces effort during mowing.

• To engage the self-propel function, squeeze the self-propel bail bar towards the main handle.
• Release the bail bar to disengage the self-propel function and stop the mower's forward motion.
• The mower operates at a single speed of approximately 3.9-4.2 km/h.

Figure 4.3: A person is shown operating the PowerSmart self-propelled lawn mower on a lawn, demonstrating its ease of use with the rear-wheel drive system.

4.4. 3-in-1 Cutting Options

Your mower offers three versatile cutting options: bagging, mulching, and side discharge.

• Ensacat: Attach the grass bag to collect clippings for disposal or composting.
• Mulching: Remove the grass bag and close the side discharge chute. The mower will finely cut and redistribute clippings back onto the lawn as natural fertilizer.
• Descàrrega lateral: Attach the side discharge chute to direct clippings away from the mower. This is useful for taller grass or when bagging is not desired.

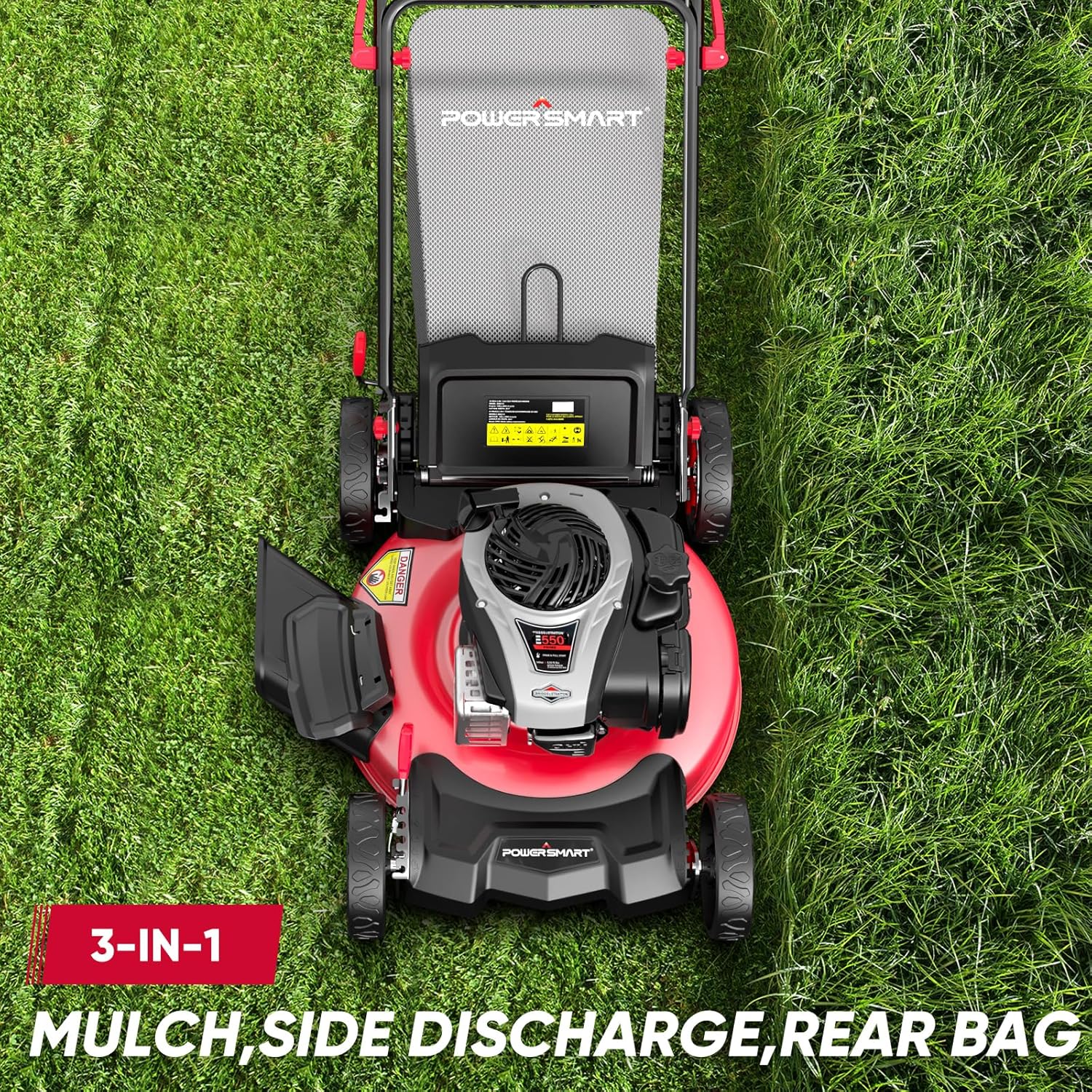

Figura 4.4: Despeses generals view of the mower illustrating its 3-in-1 functionality, highlighting options for mulching, side discharge, and rear bagging.

5. Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la tallagespa. Apagueu sempre el motor i desconnecteu el cable de la bugia abans de realitzar qualsevol manteniment.

• Oli de motor: Check oil level before each use and change according to the engine manual's schedule (typically after the first 5 hours, then every 25-50 hours).
• Filtre d'aire: Inspect and clean the air filter regularly. A dirty air filter can reduce engine performance. Replace if damaged.
• Bujía: Inspect the spark plug annually. Clean or replace as needed to ensure reliable starting.
• Cura de la fulla: Inspect the cutting blade for sharpness and damage before each use. A dull blade tears grass, leading to an unhealthy lawn. Sharpen or replace as necessary.
• Neteja: After each use, clean the underside of the mower deck to prevent grass buildup, which can impede cutting performance and cause rust.
• Emmagatzematge: For long-term storage, drain the fuel tank or use a fuel stabilizer. Clean the mower thoroughly and store it in a dry, protected area. The mower's foldable handle allows for compact storage.

Figura 5.1: Detallada view of the Briggs and Stratton engine, showing areas relevant for maintenance such as the air filter cover and oil fill point.

6. Solució De Problemes

7. Especificacions

8. Garantia i Suport

PowerSmart stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your product or visit the official PowerSmart weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.

Should you encounter any issues or require assistance, PowerSmart offers extensive support:

• PowerSmart has over 500 certified repair centers located across the U.S.
• Full replacement parts are available through the PowerSmart headquarters in Itasca, Illinois.
• For any issues, please contact PowerSmart customer service directly.

Per obtenir la informació de contacte i els recursos d'assistència més actualitzats, visiteu la Botiga PowerSmart a Amazon o el responsable del fabricant weblloc.
