1. Producte acabatview
The TROND 20W USB C Travel Power Strip (Model TD-PS-US24S) is a versatile and compact power solution designed for both home and travel use. It features an ultra-thin flat plug, multiple outlets, and fast USB charging capabilities to efficiently power your devices.
Image: The TROND 20W USB C Travel Power Strip, a compact white unit with a 5ft ultra-thin flat plug, shown ready for use.
2. Característiques clau
- Endoll pla que estalvia espai: 0.33-inch ultra-thin flat head design fits into tight spots behind furniture.
- 20W Fast USB-C Charging: Dedicated USB-C port for rapid charging of compatible devices.
- Solució d'alimentació 7 en 1: 3 AC wide outlets, 2 USB-A ports, and 2 USB-C ports for simultaneous charging of up to 7 devices.
- Disseny muntable a la paret: Features a mounting hole for secure installation on walls or furniture.
- Apte per a viatges: Compact size and wide-range voltage support (120V-240V) make it ideal for travel, including cruise ships (no surge protection).
3. Configuració i instal·lació
3.1 Connecting to a Wall Outlet
The TROND power strip features an ultra-thin flat plug designed to fit in narrow spaces. Simply plug the power strip's flat plug into any standard 120V-240V AC wall outlet. The 45° angled design ensures it does not block adjacent receptacles.

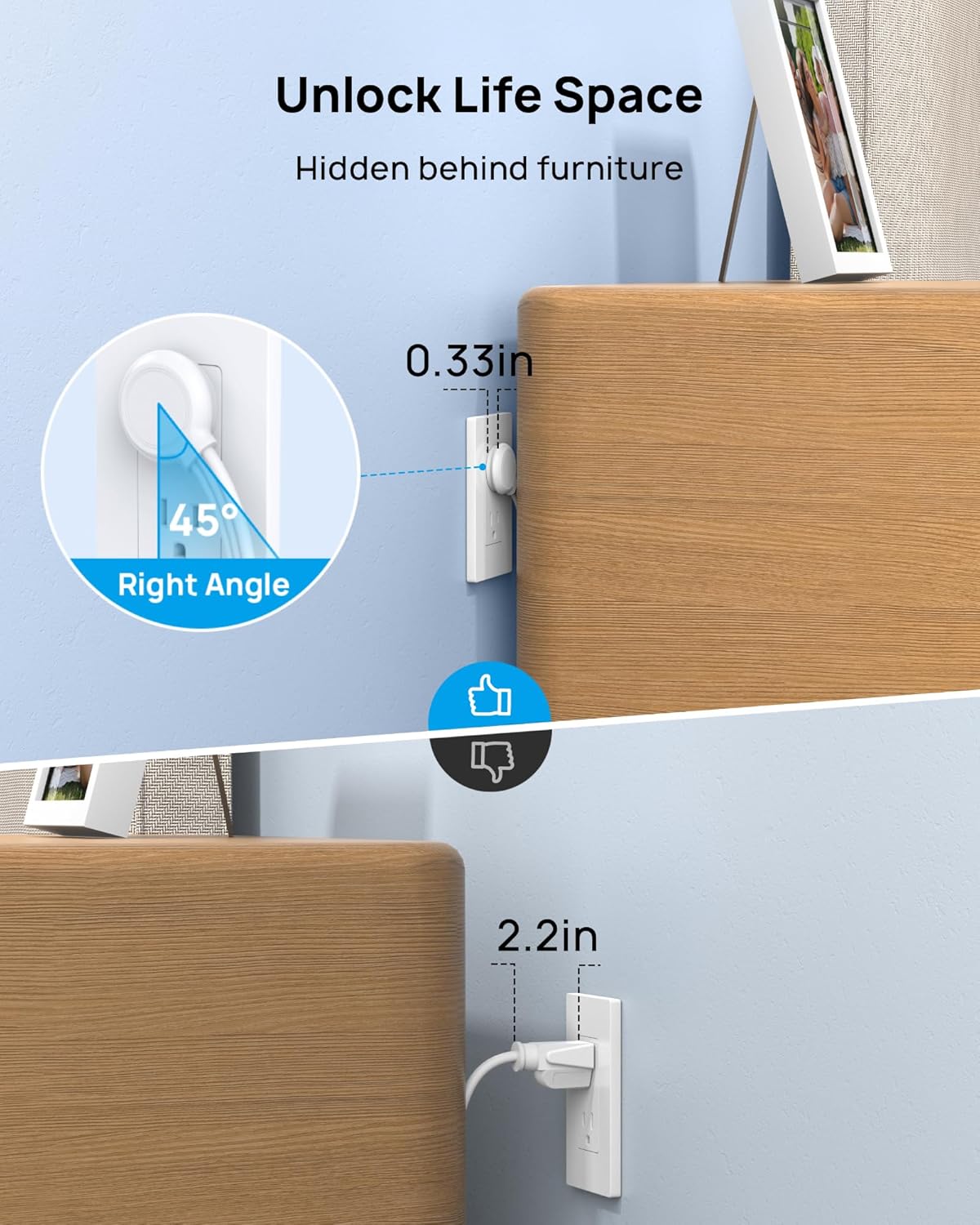

Image: A close-up showing the 0.33-inch ultra-thin, 45-degree angled flat plug of the TROND power strip fitting seamlessly behind a piece of furniture, contrasting with a standard plug that protrudes significantly.
3.2 Muntatge a la paret (opcional)
For a more permanent setup, the power strip can be wall-mounted. Locate the mounting hole on the back of the unit. Use a suitable screw (not included) to secure the power strip to a wall, nightstand, dresser, or other desired surface. Four rubber bottoms on the unit also help prevent slipping on flat surfaces.
Image: The TROND power strip is shown mounted on a wall next to a television, with its cable neatly routed. A circular inset highlights the mounting hole on the back of the unit.
4. Instruccions de funcionament
4.1 Ús de preses de corrent altern
Plug your devices directly into the 3 AC wide outlets. The 3-sided design allows for larger adapters without blocking adjacent outlets. The maximum power supported is 1250W (125V~10A).
4.2 Ús dels ports de càrrega USB
The power strip includes 2 USB-A ports and 2 USB-C ports. The dedicated 20W USB-C 1 port (labeled "PD") offers fast charging for compatible devices. The built-in intelligent charging technology automatically detects and delivers the optimal charging speed for your devices, ensuring both speed and safety.
Image: The TROND power strip is shown charging an iPhone 15 via its 20W USB-C port, with a visual indicator of 20W charging speed. Text on the image states "Charge an iPhone 15 to 50% in 26 Minutes".
Nota: For 20W charging speed, only one device should be plugged into the PD port. Multi-USB output has a 15W shared maximum.
5. Especificacions del producte
| Característica | Detall |
|---|---|
| Número de model | TD-PS-US24S |
| Material | UL94 V-0 Flame Retardant PC+ABS |
| Entrada Voltage | CA 100-250V, 50/60Hz |
| Potència nominal | 1250 W (125 V/10 A) |
| Preses de corrent altern | 3 |
| USB-C PD Output (Green) | 5 V/3 A, 9 V/2.22 A, 12 V/1.67 A (20 W màx.) |
| Sortida USB-C2 | 5 V/3 A (15 W màxim) |
| Sortida USB-A1/A2 | 5 V/2.4 A (12 W màxim) |
| Multi USB Output (Shared Max) | 15W |
| Dimensions del producte | 3.07 x 1.73 x 1.57 polzades |
| Pes de l'article | 7.4 unces |
| Longitud del cable | 5 peus |
| Característiques especials | 20W USB C Travel Power Strip, No Surge Protection |
6. Travel and Cruise Essentials
The compact size (3.07*1.73*1.57 inches) and wide voltage compatibility (120V-240V) make this power strip an ideal travel companion. It is designed without surge protection, making it safe for use on cruise ships where surge protectors are often prohibited.
Image: The TROND power strip is displayed in the foreground with a large cruise ship sailing on the ocean in the background, emphasizing its suitability as a cruise essential. The text "Non surge protector" is visible.
7. Manteniment
To ensure optimal performance and longevity of your TROND power strip, follow these maintenance guidelines:
- Mantingueu la unitat seca i allunyada de la humitat.
- Netegeu l'exterior amb un drap suau i sec. No utilitzeu netejadors líquids ni aerosols.
- Avoid exposing the power strip to extreme temperatures.
- Do not disassemble or attempt to repair the unit yourself.
8. Solució De Problemes
If you encounter any issues with your TROND power strip, please refer to the following common troubleshooting steps:
- Sense energia: Ensure the power strip is securely plugged into a working wall outlet. Test the wall outlet with another device to confirm it has power.
- Device Not Charging (USB): Verify that your device's charging cable is properly connected to both the device and the power strip's USB port. Ensure the device is compatible with the charging specifications (e.g., 20W PD for fast charging). If using the 20W PD port, ensure only one device is connected to that specific port for maximum speed.
- La presa de CA no funciona: Check if the device plugged into the AC outlet is functioning correctly. Ensure the total wattagLa potència de tots els dispositius connectats no supera els 1250 W.
- Loose Fit in Wall Outlet: If the power strip feels loose in the wall outlet, ensure the outlet itself is not worn out. Consider using a different outlet.
If problems persist, please contact TROND customer support.
9. Vídeos oficials de productes
TROND TD-PS-US24S Travel Power Strip with USB C Ports
Video: An official product video from TROND showcasing the features and benefits of the TD-PS-US24S Travel Power Strip, including its compact design, USB-C ports, and flat plug.
TROND Electrical Outlet Extender 360 Rotating Plug
Video: An official product video from TROND demonstrating the TROND Electrical Outlet Extender, highlighting its 360-degree rotating plug feature for flexible placement.
10. Garantia i Suport
All TROND products come with an 18-month product warranty and a 30-day money-back guarantee. For any questions, technical support, or warranty claims, please visit the TROND Official Store on Amazon o contactar directament amb el seu servei d'atenció al client.
