1. Introducció
Thank you for choosing the Villastar Pool Heat Pump. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new pool heater. Please read this manual thoroughly before use and retain it for future reference.
Figure 1: Villastar Pool Heat Pump Model YC-005
This image displays the main unit of the Villastar Pool Heat Pump, featuring its compact design, front fan, and digital display. The power cord and water connections are visible on the side.
2. Informació de seguretat
Seguiu sempre les precaucions de seguretat següents per evitar lesions o danys a la unitat.
- Ensure the unit is installed by a qualified professional if you are not familiar with plumbing and electrical work.
- Do not operate the unit if any part is damaged or if the power cord is frayed.
- Mantingueu els nens i les mascotes allunyats de la unitat durant el funcionament.
- Ensure proper ventilation around the unit. Do not block the fan or air vents.
- Always disconnect power before performing any maintenance or troubleshooting.
- The unit features automatic leakage protection, low-voltage switch, and high/low temperature protection for enhanced safety.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats en desembalar-los:
- Villastar Pool Heat Pump Unit (Model YC-005)
- Inlet and Outlet Joints
- Water Pump Unions
- Mànega Clamps
- Corrugated Pipes (Hoses)
- Manual d'usuari
4. Configuració i instal·lació
The Villastar Pool Heat Pump is designed for easy installation with 1-1/4" water pipe connections. No special plumbing or electrical work is typically needed for standard setups.
4.1 Selecció del lloc
- Place the unit on a stable, level surface near your pool and existing filtration system.
- Assegureu-vos una circulació d'aire adequada al voltant de la unitat.
- The unit operates between 23°F to 109.4°F air temperature.
4.2 Connexió de la unitat
- Prepare Auxiliary Materials: Gather all necessary pipes, joints, and clamps. Ensure you have a filter pump and the swimming pool ready.
- Adjunteu Clamps to Pipes: Feu lliscar la mànega clamps onto the corrugated pipes.
- Connect Heat Pump Joints: Securely attach the heat pump inlet and outlet joint fittings to the corresponding ports on the heat pump unit.
- Connect Water Pump Union: Connect the water pump union to the pipe leading from your filter pump.
- Connect Pipes to System: Connect the corrugated pipes from the heat pump to your filter pump and then to the pool. Ensure all connections are tight using the hose clamps per evitar fuites.
- Remove Air from System: Before powering on, add water to the system to remove any trapped air. This is crucial for proper operation.
Video 1: Villastar Above Ground Pool Heat Pump Easy to Install
This video demonstrates the step-by-step process of connecting the Villastar pool heat pump to an existing pool filtration system, including preparing materials, attaching hoses, and ensuring proper water flow.
Video 2: Villastar Mini Swimming Pool Heat Pump for Above-Ground Pool Overview
Aquest vídeo ofereix una visió generalview of the Villastar Mini Swimming Pool Heat Pump, showcasing its features and compact size, and briefly touching upon its installation process.
5. Instruccions de funcionament
The Villastar Pool Heat Pump features an intuitive LED control panel for easy temperature and mode adjustments.
5.1 Tauler de control acabatview
Figure 2: Control Panel for Villastar Pool Heat Pump
This image highlights the digital LED display and control buttons on the unit, including power, mode selection, and temperature adjustment buttons.
- Botó d'encesa: Encén/apaga la unitat.
- Fletxes amunt/avall: Adjust the desired water temperature.
- Botó Mode (M): Switches between heating mode, cooling mode, and automatic mode (heating + cooling).
- The LED screen displays the current pool water temperature.
5.2 Initial Startup and Temperature Setting
- Encès: Plug in the unit. The display will show "OFF". Press the Power button to start the unit.
- View Temperatura: The set temperature will flash three times, then the actual water temperature will be displayed.
- Canvia el mode: Press the "M" key to cycle through heating mode (sun icon), cooling mode (snowflake icon), and automatic mode (both icons).
- Ajustar la temperatura: Use the Up or Down arrow keys to set your desired water temperature. The unit will automatically work to reach and maintain this temperature.
The unit efficiently warms pools up to 5,000 gallons, maintaining water temperatures between 59°F-104°F for heating and 46°F-82°F for cooling.
Video 3: Villastar Pool Heat Pump Display and Operation
This video demonstrates how to power on the unit, view the current temperature, switch between heating and cooling modes, and adjust the desired temperature using the control panel.
6. Manteniment
Regular maintenance ensures optimal performance and longevity of your Villastar Pool Heat Pump.
- Clean Fan and Vents: Periodically inspect and clean the fan blades and air intake/exhaust vents to ensure unobstructed airflow.
- Comprovació de les connexions d'aigua: Regularly inspect all pipe connections for leaks and tighten clamps segons sigui necessari.
- Hivernització: If you live in an area with freezing temperatures, ensure the unit is properly winterized by draining all water from the system to prevent damage.
- Servei professional: For complex issues or annual checks, consider professional servicing.
7. Solució De Problemes
Aquí teniu alguns problemes comuns i les seves possibles solucions:
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | No power, tripped breaker, loose connection. | Check power supply, reset breaker, ensure secure connections. |
| Pool not heating/cooling | Incorrect temperature setting, low water flow, air in system, unit too small for pool size. | Verify settings, check filter pump operation, bleed air from system, allow more time for larger pools. |
| Soroll inusual de la unitat | Debris in fan, loose components, internal issue. | Inspect fan for obstructions, check for loose parts. If persistent, contact support. |
| Fuga d'aigua | Loose pipe connections, damaged seals. | Apretar la mànega clamps, inspect seals for damage. |
For further assistance, please contact Villastar customer support.
8. Especificacions

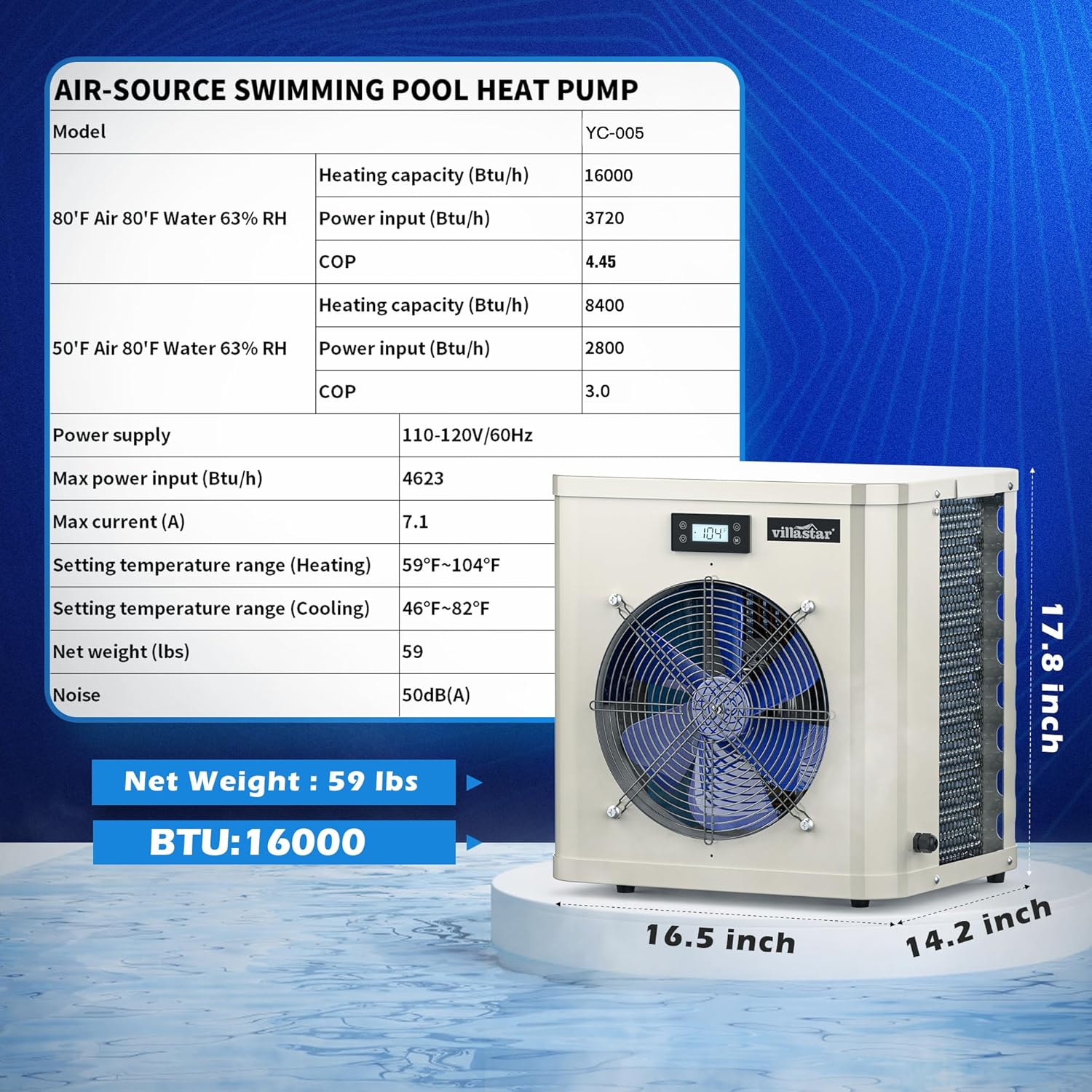

Figure 3: Air-Source Swimming Pool Heat Pump Specifications
This image provides a detailed table of technical specifications for the YC-005 model, including heating capacity, power input, COP, temperature ranges, and dimensions.
| Característica | Detall |
|---|---|
| Model | YC-005 |
| Capacitat de calefacció (BTU/h) | 16,036 (at 80°F Air, 80°F Water, 63% RH) |
| Power Input (BTU/hr) | 3,599 (at 80°F Air, 80°F Water, 63% RH) |
| COP | 4.45 (at 80°F Air, 80°F Water, 63% RH) |
| Mida de piscina recomanada | Fins a 5,000 galons |
| Rang de temperatura de calefacció | 59 °C - 104 °C |
| Rang de temperatura de refrigeració | 46 °C - 82 °C |
| Temperatura de l'aire de funcionament | 23 °C - 109.4 °C |
| Font d'alimentació | 110-120V/60Hz |
| Corrent màxim | 7.1 A |
| Pes net | 67.9 lliures |
| Dimensions del producte | 15 x 16.5 x 20 polzades |
| Nivell de soroll | 50 dB(A) |
| Fabricant | villastar |
| País d'origen | Xina |
9. Garantia i Suport
Villastar is committed to providing exceptional products and customer service.
- Plans de protecció: Extended protection plans are available for purchase (e.g., 2-Year, 3-Year Protection Plans).
- Devolucions: The product is eligible for 30-day easy returns.
- Atenció al client: Villastar offers 24-hour online support to assist with any questions or issues you may encounter.
- For specific warranty details or to contact support, please refer to the contact information provided with your purchase or visit the official Villastar store.
