Manual d'usuari del suport per a bicicletes elèctriques CRAVOT CyberRack E2

Introducció

The CRAVOT CyberRack E2 is a heavy-duty hitch-mounted e-bike rack designed to transport two electric bicycles safely and efficiently. With a robust capacity and user-friendly features, it ensures a secure journey for your bikes. This manual provides essential information for proper setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your CyberRack E2.

Informació de seguretat

• Always ensure all bolts and connections are tightened securely before each use and periodically during long trips.
• Do not exceed the maximum weight capacity of 200 lbs total, or 100 lbs per e-bike.
• Verify that bikes are properly secured to the rack before driving.
• Be aware of the increased length and width of your vehicle when the rack is installed, especially when turning or backing up.
• Avoid contact between the rack and vehicle exhaust to prevent damage to the rack or bikes.
• Ensure proper clearance between the bikes and the vehicle's rear lights and license plate.

Què hi ha a la caixa

• CyberRack E2 bike rack with ramp

Muntatge i muntatge

The CyberRack E2 is designed for straightforward assembly. Follow these steps to attach the rack to your vehicle.

Attaching the Rack to Your Vehicle

• Insert the main hitch arm of the CyberRack E2 into your vehicle's 2-inch receiver.
• Align the hitch pin holes and insert the provided threaded bolt.
• Securely tighten the threaded bolt using a 24mm socket. This step is crucial for eliminating wobble and ensuring stability.
• Insert the safety pin through the end of the threaded bolt to prevent accidental loosening.

Image: Securely connecting the CyberRack E2 to a 2-inch vehicle hitch receiver.

Operation: Loading and Unloading Bicycles

The CyberRack E2 features a convenient ramp and secure strapping system for easy bike loading.

Procés de càrrega

• Prepareu el bastidor: Remove the ratcheting posts from the vertical support bars and place them nearby. This prevents scratching your bike during loading.
• Adjunteu la Ramp: Inseriu la ramp into the designated receiver slot on either side of the rack, depending on which bike you are loading first. Secure it with the provided pin.
• Load the First Bike: For optimal stability, load the heavier e-bike first onto the rack. Roll the bike up the ramp until its wheels are seated in the rack's trays.
• Secure the First Bike: Reattach a ratcheting post to the vertical bar and secure it to your bike's seat post or frame. The padded clamps protect your bike's finish. Tighten the post until the bike is stable.
• Secure Tires: Adjust the tire chalks (if applicable) to snugly fit against the tires. Use the ratcheting straps to firmly secure both the front and rear tires to the rack trays. Ensure spokes are not caught in the straps.
• Load the Second Bike: Traieu la ramp and attach it to the other side of the rack. Repeat the loading and securing process for the second e-bike.

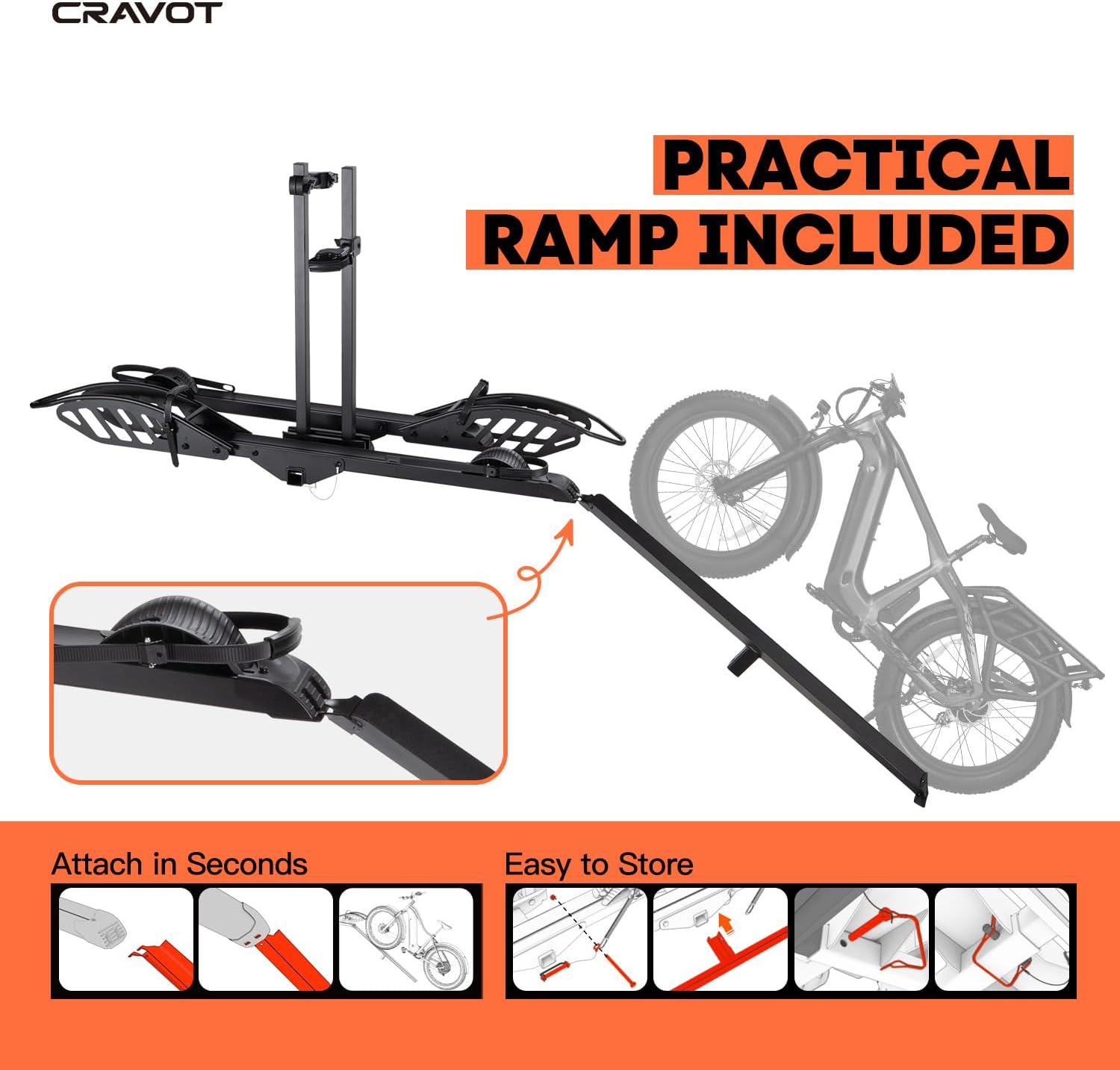

Image: The practical ramp simplifies loading heavy e-bikes onto the CyberRack E2.

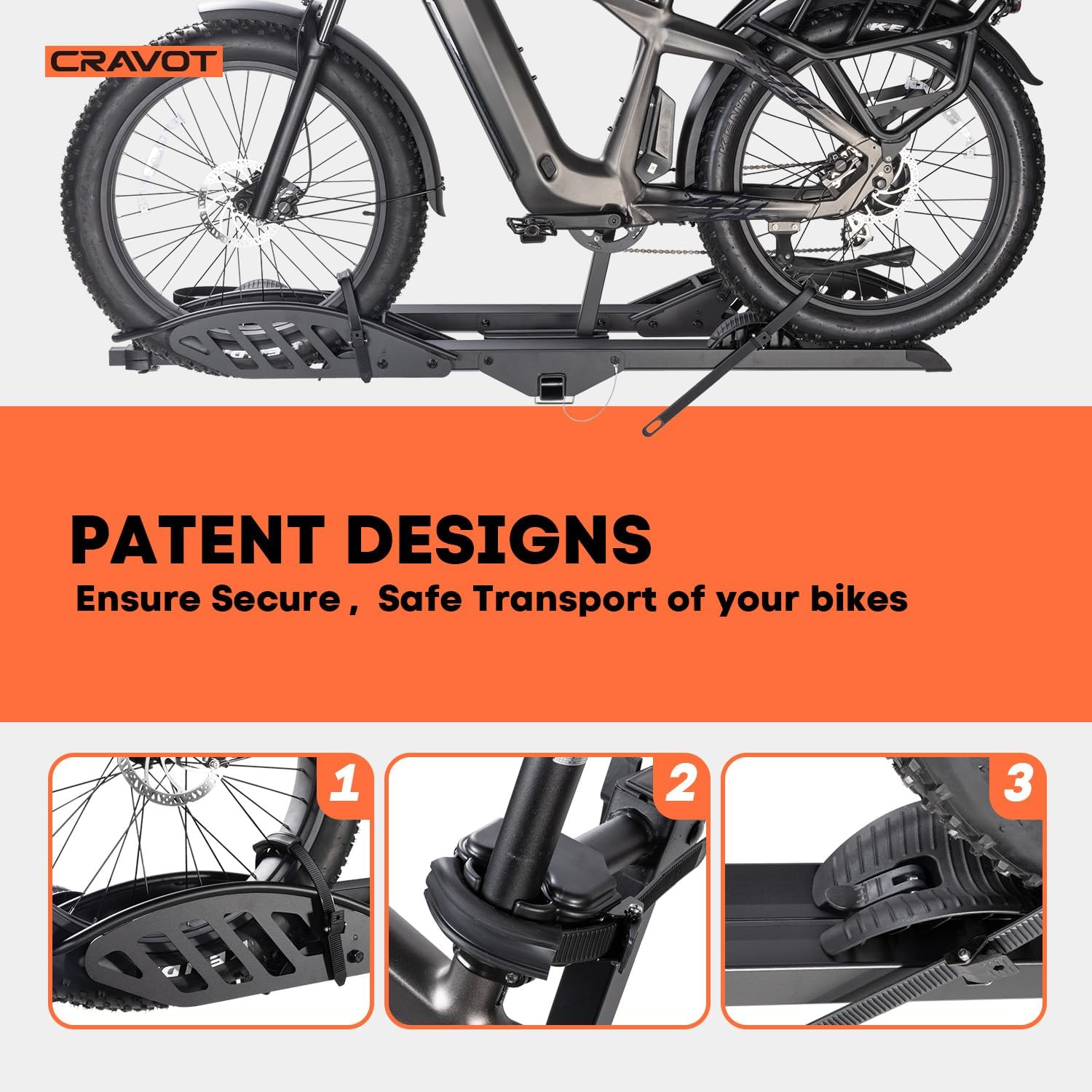

Image: Patent designs ensure secure and safe transport of your bikes with three-point ratcheting strap system.

Característiques clau

• Capacitat: The ebike rack with a ramp, accommodating up to 200lbs in total, or 100lbs per ebike or bike. It fits any vehicle equipped with a 2-inch receiver and accommodating ebikes up to 5'' wide and with a wheelbase up to 50''.
• Enhanced Compatibility & Stability: Our updated 2-inch rack now includes a V-shaped front wheel cradle, accommodating a variety of tire sizes. The vertical rod's connecting block features a semi-enclosed design. With its sturdy bolt system and shock-absorbing threads, this hitch rack ensures unparalleled stability on any terrain. Refer to our easy-to-follow manual or download the E-manual for hassle-free installation.
• Superior Protection & Modern Design: Bid farewell to concerns about scratches with our bike rack. Our design eliminates harmful hooks that can damage your bike's finish. Instead, we secure your bikes at three points using a ratchet strap-tightening system, guaranteeing stability during transport. We've added soft padding and rubber covers where the rack meets the bike, ensuring safe transport even on the toughest roads. Discover the new standard in bike transport.
• Foldable & Simple to Install: Enjoy the convenience of our lightweight, foldable electric bike rack. Crafted from durable aluminum and steel, it's easy to store and transport. With a coating resistant to 1000 hours of salt spray, our rack offers top-notch anti-rust capabilities, ensuring it's weatherproof. The ramp can be installed effortlessly and can be neatly tucked away on the rack when not in use. Simplify your bike transport with our innovative design.
• Qualitat garantida: Our bike rack provides support with two secure bars per bike. As the original manufacturer, we confidently provide spare parts and a 1-year warranty.

Image: The CyberRack E2 supports up to 200 lbs total and fits fat tires up to 5 inches wide.

Image: The CyberRack E2 accommodates a max wheelbase of 50 inches and features a convenient foldable design.

Manteniment

• Regularly inspect all bolts, pins, and connections for tightness. Tighten as needed.
• Clean the rack periodically with mild soap and water to remove dirt, road grime, and salt. Rinse thoroughly and dry completely.
• Lubricate moving parts, such as hinges and ratcheting mechanisms, with a silicone-based lubricant to ensure smooth operation.
• Store the rack in a dry, covered area when not in use to prevent rust and prolong its lifespan.
• Check the condition of all rubber padding and straps. Replace any worn or damaged components to maintain secure bike transport.

Resolució de problemes

Especificacions del producte

Garantia i Suport

The CRAVOT CyberRack E2 comes with a 1-year warranty from the original manufacturer. We are committed to providing quality products and support.

For further assistance, spare parts, or warranty claims, please contact CRAVOT customer support through the retailer's platform or the official CRAVOT weblloc.
