Vente-unique NAZARIO Aluminum Swinging Gate Instruction Manual

1. Informació de seguretat

Si us plau, llegiu atentament totes les instruccions abans de la instal·lació i l'ús. Si no seguiu aquestes instruccions, podeu patir lesions o danys al producte.

• Sempre utilitzeu l'equip de protecció individual (EPI) adequat, com ara guants i ulleres de seguretat, durant la instal·lació.
• Assegureu-vos que la zona d'instal·lació estigui lliure d'obstacles i perills.
• Two people are recommended for installation due to the size and weight of the gate.
• Verify that the mounting surface (posts, walls) is structurally sound and capable of supporting the gate's weight and operational forces.
• Mantingueu els nens i les mascotes allunyats de la zona d'instal·lació.
• Do not attempt to modify the gate or its components, as this may compromise its structural integrity and void the warranty.
• Regularly inspect the gate for any signs of wear, damage, or loose components.

2. Contingut i components del paquet

Before beginning installation, ensure all parts are present and undamaged. Refer to the list below and the accompanying diagrams.

2.1. Equips inclosos

• Aluminum Gate Panel (1 unit)
• Maneta (1 unitat)
• Key Lock (1 unit)
• Stop Buffer (1 unit)
• Claus (5 unitats)
• Mounting Hardware (hinges, fasteners - specific quantities may vary, refer to packaging)

2.2. Component Overview

The NAZARIO gate consists of a robust aluminum panel designed for durability and privacy. Key components include the gate frame, horizontal slats, integrated handle, and key lock mechanism.

Figura 1: Explotat view of the NAZARIO gate components, illustrating the main panel, hinges, handle, and lock assembly.

Figura 2: Dimensional diagram of the NAZARIO gate, showing overall length (103 cm), overall height (150 cm), gate panel height (145 cm), and depth (4.6 cm).

3. Guia d'instal·lació

This section provides general steps for installing your Vente-unique NAZARIO swinging gate. Professional installation is recommended for optimal safety and performance.

3.1. Eines necessàries (no incloses)

• Drill and appropriate drill bits for your mounting surface
• Nivell
• Cinta mètrica
• Llapis o retolador
• Wrenches or socket set
• Joc de tornavís
• Guants i ulleres de seguretat

3.2. Comprovacions prèvies a la instal·lació

1. Inspect Site: Ensure the opening width is suitable for the 103 cm gate length, allowing for hinge and latch mechanisms. The height should accommodate the 150 cm overall height.
2. Check Posts/Walls: Confirm that the existing or new gate posts/walls are sturdy, plumb, and capable of supporting the gate's weight (21 kg) and repeated swinging motion.
3. Desempaquetar components: Traieu amb cura tots els components de l'embalatge i verifiqueu-los amb la llista de contingut del paquet.

3.3. Passos d'instal·lació

1. Attach Hinges to Gate: Securely fasten the hinges to the designated points on the gate frame using the provided hardware. Ensure they are aligned correctly for the desired swing direction (inward opening).
2. Position Gate: With assistance, hold the gate in its desired closed position within the opening. Use shims or blocks to maintain the correct ground clearance (e.g., 2.8 cm as indicated in Figure 2).
3. Mark Hinge Locations: Mark the precise locations for the hinges on the gate post or wall. Use a level to ensure the gate is plumb.
4. Perforar forats pilot: Drill pilot holes at the marked locations on the post/wall, ensuring the drill bit size is appropriate for the mounting hardware.
5. Mount Hinges to Post/Wall: Attach the hinges to the post/wall using the appropriate fasteners. Do not fully tighten all fasteners until the gate swing is verified.
6. Test Swing: Carefully open and close the gate to ensure it swings freely and clears the ground and surrounding structures. Adjust hinge positions if necessary.
7. Install Handle and Lock: Follow the specific instructions for assembling and installing the handle and key lock mechanism onto the gate panel. Ensure the latch aligns with the strike plate on the receiving post.
8. Install Stop Buffer: Mount the stop buffer on the ground or receiving post to prevent the gate from swinging past its closed position.
9. Ajustament final: Once satisfied with the gate's operation, securely tighten all hinge and lock mechanism fasteners.

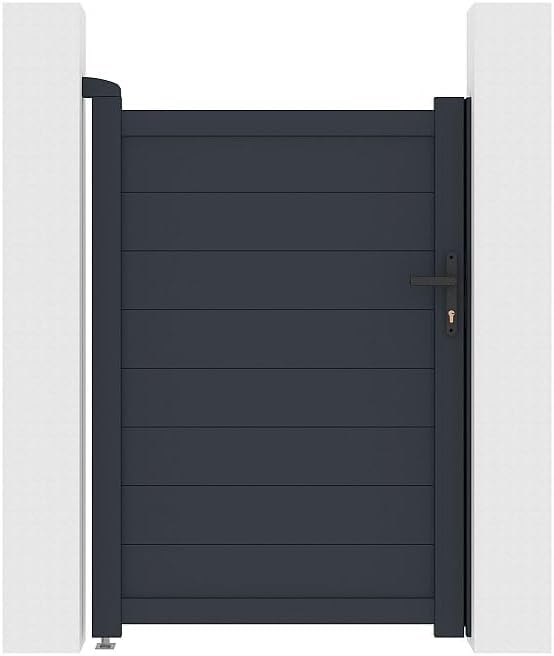

Figura 3: The NAZARIO gate fully installed and closed, demonstrating its appearance and fit.

Figura 4: The NAZARIO gate partially open, illustrating its inward swing capability.

4. Instruccions de funcionament

The NAZARIO gate is designed for simple manual operation.

4.1. Opening the Gate

1. Desbloquejar: If locked, insert one of the provided keys into the lock cylinder and turn to unlock.
2. Disengage Latch: Press or turn the handle to disengage the latch from the strike plate.
3. Swing Open: Gently push or pull the gate to swing it open. The gate is designed to open inwards with a maximum angle of 100 degrees.

4.2. Closing the Gate

1. Swing Closed: Gently pull or push the gate until it reaches the closed position against the stop buffer.
2. Engage Latch: Ensure the latch mechanism engages securely with the strike plate.
3. Bloqueig: Insert the key into the lock cylinder and turn to lock the gate. Remove the key and store it in a safe place.

5. Manteniment

Regular maintenance will ensure the longevity and smooth operation of your NAZARIO gate.

• Neteja: Clean the aluminum surfaces periodically with a soft cloth and mild soapy water. Avoid abrasive cleaners or harsh chemicals that could damage the anthracite thermolacquered finish. Rinse thoroughly with clean water and dry.
• Lubricació de la frontissa: Apply a silicone-based lubricant to the hinges every 6-12 months, or more frequently in harsh environments, to ensure smooth operation and prevent squeaking.
• Mecanisme de bloqueig: Periodically spray a small amount of graphite lubricant into the keyhole to maintain smooth lock operation.
• Comprovació de fixació: Annually inspect all mounting fasteners and hinge screws. Tighten any that have become loose.
• Inspecció de danys: Check for any signs of corrosion, dents, or structural damage. Address any issues promptly to prevent further deterioration.

6. Solució De Problemes

This section addresses common issues you might encounter with your NAZARIO gate.

7. Especificacions

Detailed technical specifications for the Vente-unique NAZARIO aluminum swinging gate.

8. Garantia i Suport

Vente-unique products are manufactured to high-quality standards. For specific warranty details, please refer to the documentation included with your purchase or visit the official Vente-unique weblloc.

8.1. Atenció al client

If you encounter any issues or have questions regarding your NAZARIO gate, please contact Vente-unique customer support. You can find contact information on the brand's official weblloc web o a través de la vostra plataforma de compra.
