PAWGETHER Gravity Automatic Pet Water Dispenser

Introducció

The PAWGETHER Gravity Automatic Pet Water Dispenser is designed to provide a continuous and fresh water supply for your beloved pets. Operating on a gravity-fed system, it eliminates the need for electricity or batteries, offering a low-maintenance and energy-efficient hydration solution. This manual provides essential information for setup, operation, maintenance, and troubleshooting to ensure optimal performance and the well-being of your pet.

Image: The PAWGETHER Gravity Automatic Pet Water Dispenser, a white unit with a clear water reservoir, shown with a cat.

Components

Your PAWGETHER Gravity Automatic Pet Water Dispenser includes the following parts:

• Water Reservoir (3.5L): Transparent container for water storage.
• Unitat base: Houses the water dish and filter compartment.
• Magnetic Piston: Innovative design for leak-proof water flow control.
• Cartutx de filtre: One 3-layered filter for water purification.
• Water Dish: The area where pets drink from.

Image: Close-up of the transparent water reservoir, highlighting its clear design for easy monitoring of water levels.

Imatge: Detallada view of the magnetic piston mechanism, which ensures leak-proof operation and smooth water flow.

Image: An exploded diagram illustrating the three layers of the filtration system: microporous cotton, activated carbon, and filter barrier.

Instruccions de configuració

Follow these steps to set up your pet water dispenser:

1. Desempaquetar components: Traieu amb cura totes les peces de l'embalatge.
2. Preparació del filtre: It is recommended to soak the filter cartridge in water for 5-10 minutes before first use.
3. Muntar el filtre: After soaking, place the filter cartridge firmly into the designated groove in the base unit.
4. Omplir el dipòsit d'aigua: Fill the transparent water reservoir with clean, fresh water.
5. Attach Reservoir to Base: Invert the filled water reservoir and securely attach it to the base unit. The magnetic piston will automatically regulate water flow into the dish.
6. Position Dispenser: Place the assembled dispenser on a flat, stable surface, ensuring the 4 anti-slip bottom pads are in contact with the floor to prevent sliding or tipping.

Image: A hand pouring water into the transparent reservoir of the dispenser.

Image: The water reservoir, base, and filter unit disassembled, demonstrating ease of cleaning.

Instruccions de funcionament

The PAWGETHER Gravity Automatic Pet Water Dispenser operates automatically once set up:

• Subministrament automàtic d'aigua: Water will automatically flow from the reservoir into the water dish as your pet drinks, maintaining a consistent water level. The magnetic piston ensures smooth flow without spills.
• Gran capacitat: The 3.5-liter capacity reservoir can last approximately 4-6 days for small pets and 3-5 days for big pets, reducing the frequency of refills.
• Continuous Hydration: This system ensures your pet always has access to fresh water, ideal for busy pet owners or when you are away from home for short periods.

Video: A demonstration of the PAWGETHER Gravity Automatic Pet Feeder and Water Dispenser Set in operation, showing how both units automatically dispense food and water for pets.

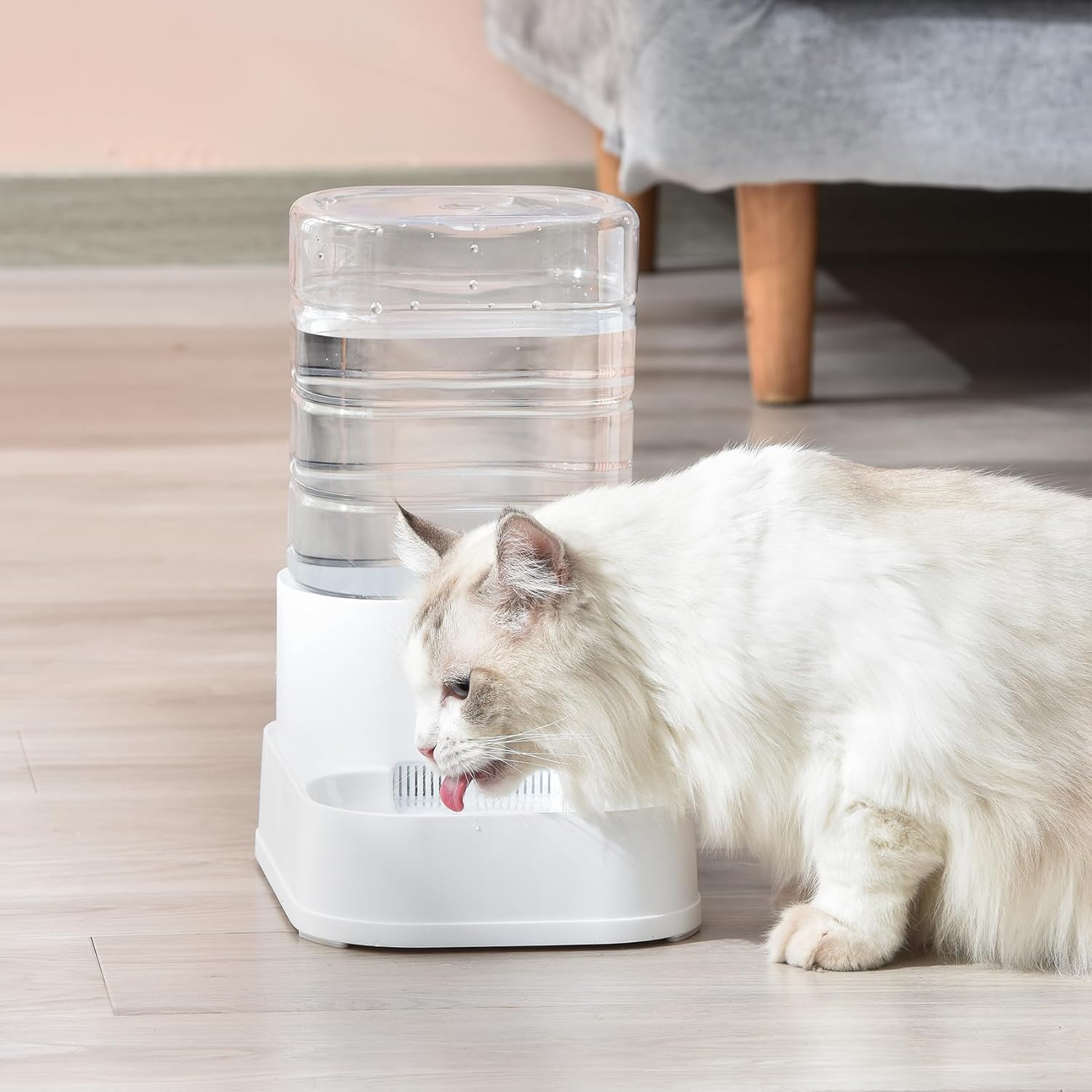

Image: A cat drinking water from the dispenser's water dish.

Image: A diagram illustrating the optimal water depth of 0.58 inches in the water dish to prevent overflow.

Manteniment i Neteja

Regular cleaning and maintenance are crucial for your pet's health and the longevity of the dispenser:

• Desmuntatge fàcil: The dispenser is designed with removable parts for easy disassembly and cleaning.
• Neteja: Hand wash all parts with mild soap and water. Do not wash with hot boiling water.
• Substitució del filtre: It is recommended to replace the filter once a month to ensure continuous pure and healthy drinking water. Official replacement filters can be purchased by searching for "B0D4TQ42H5".
• Seguretat del material: Made of Food-Grade PP Material, reducing the risk of issues like cat black chin and ensuring overall pet safety.

Image: The main components of the dispenser, including the reservoir and base, shown disassembled and submerged in water, illustrating the ease of cleaning.

Image: A detailed diagram showing the three layers of the filtration system and how water passes through them for purification.

Resolució de problemes

If you encounter any issues with your dispenser, refer to the following common problems and solutions:

• No es dispensa aigua:
  • Ensure the magnetic piston is correctly seated and not obstructed.
  • Check if the filter cartridge is properly installed and not clogged. Soaking the filter before use can help.
  • Verify the water reservoir is filled and securely attached to the base.
• Leaks or Spills:
  • Confirm the magnetic piston is fully engaged and the reservoir is tightly sealed to the base.
  • Ensure the dispenser is placed on a level surface.
• Dispenser Instability:
  • Check that all four anti-slip bottom pads are clean and making full contact with the floor.
  • Ensure the dispenser is not placed on an uneven surface.
• Water Quality Concerns:
  • Replace the filter cartridge monthly as recommended.
  • Regularly clean all parts of the dispenser to prevent bacterial growth and residue buildup.

Especificacions

Image: A visual representation of the product's dimensions, including overall height, length, and width, as well as the water dish dimensions.

Garantia i Suport

PAWGETHER is committed to providing high-quality products and excellent customer service. Your PAWGETHER Gravity Automatic Pet Water Dispenser comes with a 1 any de garantia.

For any inquiries, technical support, or warranty claims, please contact PAWGETHER customer service. We are dedicated to crafting products and providing services by combining scientific pet-parenting lifestyle and aesthetic design for pets, aiming to create a harmonious life among humans and pets.

Correu electrònic oficial: suport@pawgethersmart.com
