1. Introducció
This manual provides instructions for the installation, operation, and maintenance of your Ortofon Concorde Music Red Phono Cartridge. The Concorde Music Red is designed for high-fidelity audio reproduction and features a tool-free installation system for S-shaped tonearms with removable headshells.
Figura 1.1: Davant view of the Ortofon Concorde Music Red Phono Cartridge. This image displays the cartridge with its red stylus tip and the "CONCORDE MUSIC" branding.
2. Configuració i instal·lació
The Ortofon Concorde Music Red is engineered for easy, tool-free installation on S-shaped tonearms that feature a removable headshell. Follow these steps for proper setup:
- Preparació: Ensure your turntable is powered off and unplugged. Carefully remove any existing cartridge or headshell from the tonearm.
- Adjunt: Align the Concorde Music Red cartridge with the S-shaped tonearm's bayonet connector. Gently push and twist the cartridge clockwise until it locks securely into place. No additional tools or wiring are required for this connection.
- Ajust de la força de seguiment: The recommended tracking force for the Concorde Music Red is typically 1.8 grams. Refer to your turntable's manual for instructions on how to set the tracking force accurately. Use a digital tracking force gauge for best precision if available.
- Ajust antipatinatge: Set the anti-skate mechanism on your tonearm to match the tracking force (e.g., 1.8 on the anti-skate dial if tracking force is 1.8g). This helps prevent uneven wear on the stylus and improves stereo balance.
- Stylus Guard Removal: Before playing a record, carefully remove the clear stylus guard by pulling it straight forward.
Figura 2.1: Diagram illustrating the tool-free installation and optimized design for S-shaped tonearms. This image highlights the cartridge's features and ease of attachment.

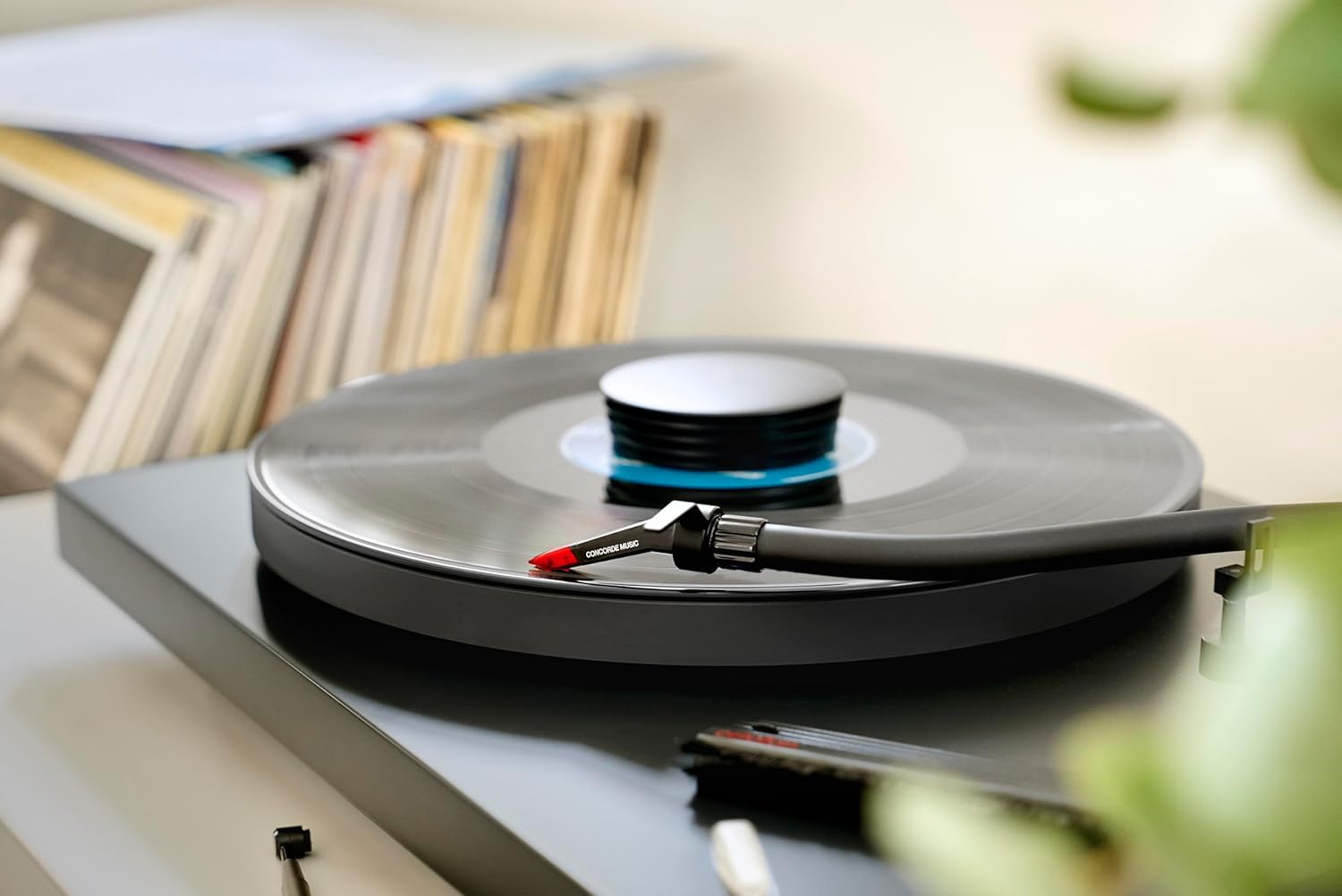

Figura 2.2: The Concorde Music Red cartridge mounted on a turntable's S-shaped tonearm, ready for playback. The image shows the cartridge in its operational position over a vinyl record.
3. Funcionament
Once installed and adjusted, operating the Ortofon Concorde Music Red is straightforward:
- Encès: Engega el tocadiscos i l'àudio ampmés viu.
- Registre del lloc: Carefully place a vinyl record on the turntable platter.
- Braç inferior: Use the tonearm lift mechanism to gently lower the stylus onto the lead-in groove of the record. Avoid dropping the tonearm manually, as this can damage the stylus or record.
- Reproducció: The cartridge will begin to track the grooves, and audio will be reproduced through your sound system.
- Final de la reproducció: At the end of the record, use the tonearm lift to raise the stylus from the record surface. Return the tonearm to its rest.
4. Manteniment
Proper maintenance ensures optimal performance and extends the lifespan of your cartridge and stylus:
- Neteja del llapis: Regularly clean the stylus using a soft brush designed for stylus cleaning. Always brush from back to front, never side to side. This removes dust and debris that can degrade sound quality and damage records.
- Neteja de discos: Keep your vinyl records clean. Dust and grime on records can transfer to the stylus, affecting playback and causing wear.
- Inspecció del llapis: Periodically inspect the stylus for wear or damage. A worn stylus can cause significant damage to your records. If the stylus appears bent, chipped, or excessively worn, it should be replaced.
- Emmagatzematge: When not in use, always place the stylus guard back on the cartridge to protect the stylus from accidental damage.
5. Solució De Problemes
If you encounter issues with your Ortofon Concorde Music Red cartridge, consider the following common solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense so o so molt baix |
|
|
| Distorted sound or skipping |
|
|
| Soroll de brunzit |
|
|
6. Especificacions
Key technical specifications for the Ortofon Concorde Music Red Phono Cartridge:
- Model: Concorde Music Red
- Tipus de cartutx: Imant mòbil (MM)
- Tipus de llapis: El·líptica
- Recommended Tracking Force: 1.8 grams
- Coil System: Silver-plated oxygen-free copper, quad-coil system with Ortofon split pole pins
- Color: Vermell
- Pes de l'article: 0.635 unces (aproximadament 18 grams)
- Dimensions del producte: 2.56 x 1.89 x 1.1 polzades (6.5 x 4.8 x 2.8 cm)
7. Stylus Upgrade Path
The Ortofon Concorde Music series offers an upgrade path for enhanced audio performance. You can upgrade your Concorde Music Red cartridge by simply replacing the stylus with higher-tier styli from the Concorde Music series, up to the Concorde Music Black LVB 250.
- Concorde Music Red: Entry-level, elliptical stylus.
- Concorde Music Blue: Improved performance with a nude elliptical stylus.
- Concorde Music Bronze: Further enhanced sound with a fine line stylus.
- Concorde Music Black: Advanced performance with a Shibata stylus.
- Concorde Music Black LVB 250: Top-tier performance with a Nude Shibata stylus and a boron cantilever.
Figura 7.1: Visual representation of the Ortofon Concorde Music cartridge series, illustrating the different models and their respective styli, from Red to Black LVB 250.
8. Garantia i Suport
For warranty information and technical support, please refer to the official Ortofon website or contact your authorized dealer. Keep your purchase receipt as proof of purchase may be required for warranty claims.
Ortofon Official Weblloc: www.ortofon.com
