Introducció
This manual provides essential information for the safe and efficient use of your LENCENT 7-in-1 USB Wall Power Strip, Model PA037EU-2A2C. Please read these instructions carefully before use and retain them for future reference.

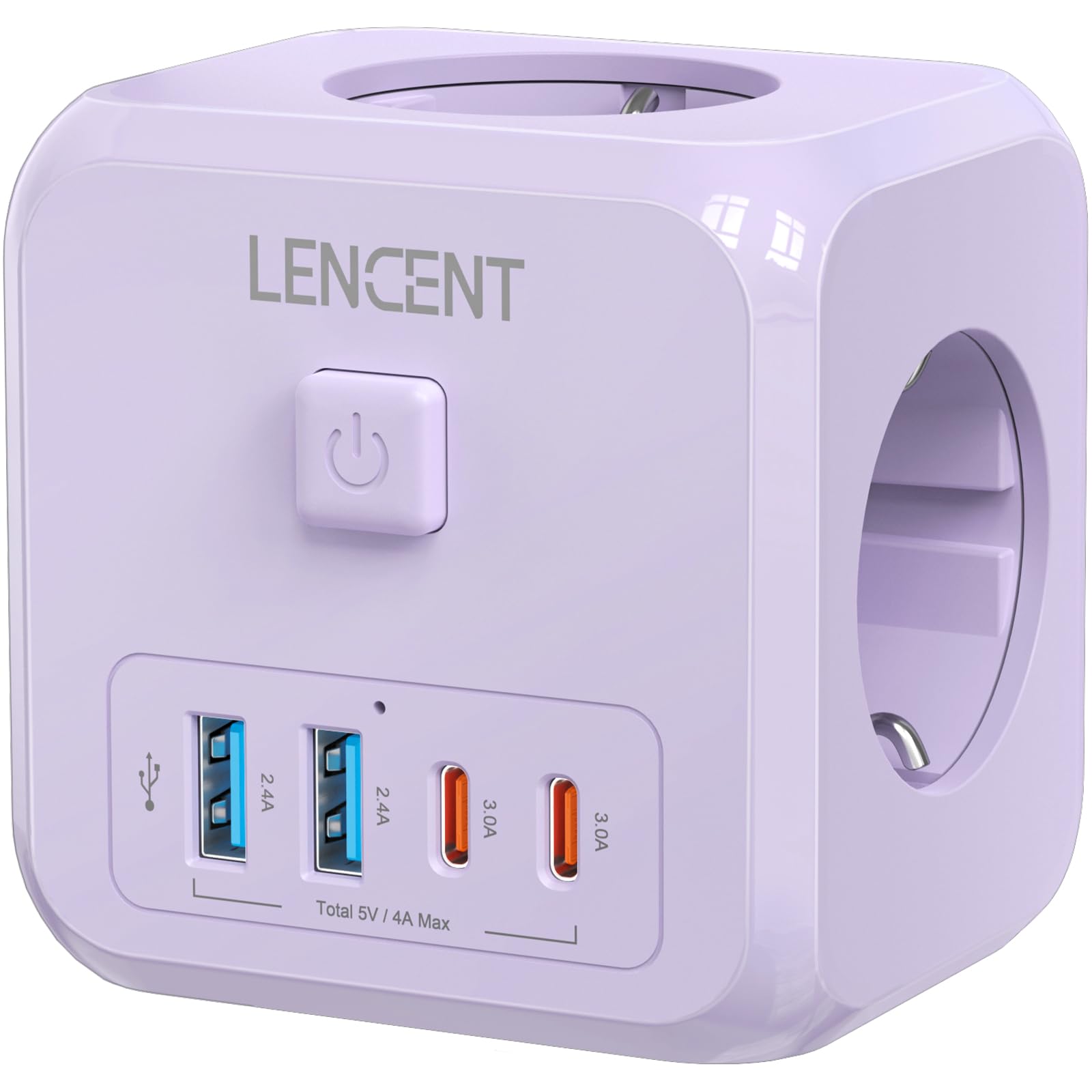

Image: The LENCENT 7-in-1 USB Wall Power Strip, highlighting its multiple ports.
Instruccions de seguretat
- Potència màxima: Do not exceed the maximum power rating of 4000W. Overloading can cause damage to the device and pose a fire hazard.
- Només per a ús interior: This power strip is designed for indoor use in dry locations. Do not use it in wet or damp ambients.
- Fire Retardant Material: El casing is made from 750℃ PC fire-retardant material for enhanced safety.
- Proteccions integrades: The device includes multiple built-in protections such as overvoltage protection, child protection, and overheat protection.
- No desmunteu: No intenteu obrir ni modificar el reglet d'endolls. Encarregueu-vos de tot el manteniment a personal qualificat.
- Mantenir allunyat dels nens: Guardeu el dispositiu fora de l'abast dels nens.
Image: Visual representation of the power strip's multiple safety protections and 4000W capacity.
Característiques del producte
The LENCENT PA037EU-2A2C offers versatile charging capabilities with its compact design:
- Connectivitat 7 en 1: Features 3 standard European AC outlets, 2 USB-A ports, and 2 USB-C ports.
- Sortida USB-A: Each USB-A port provides a maximum current of up to 2.4A.
- Sortida USB-C: Each USB-C port provides 5V/3A, 15W.
- Sortida USB total: Combined total output for all USB ports is 5V/4.0A Max.
- Non-Blocking Design: Spaced outlets prevent larger plugs from obstructing adjacent sockets.
- Interruptor d'alimentació integrat: A convenient on/off switch allows you to control power to all connected devices.
- Compacte i portàtil: With dimensions of 7.7 x 6.3 x 7.7 cm and a weight of 182g, it is easy to carry and install.
Imatge: Detallada view de la configuració de ports 7 en 1.
Image: Illustration of the non-blocking design, allowing multiple plugs to be used simultaneously.

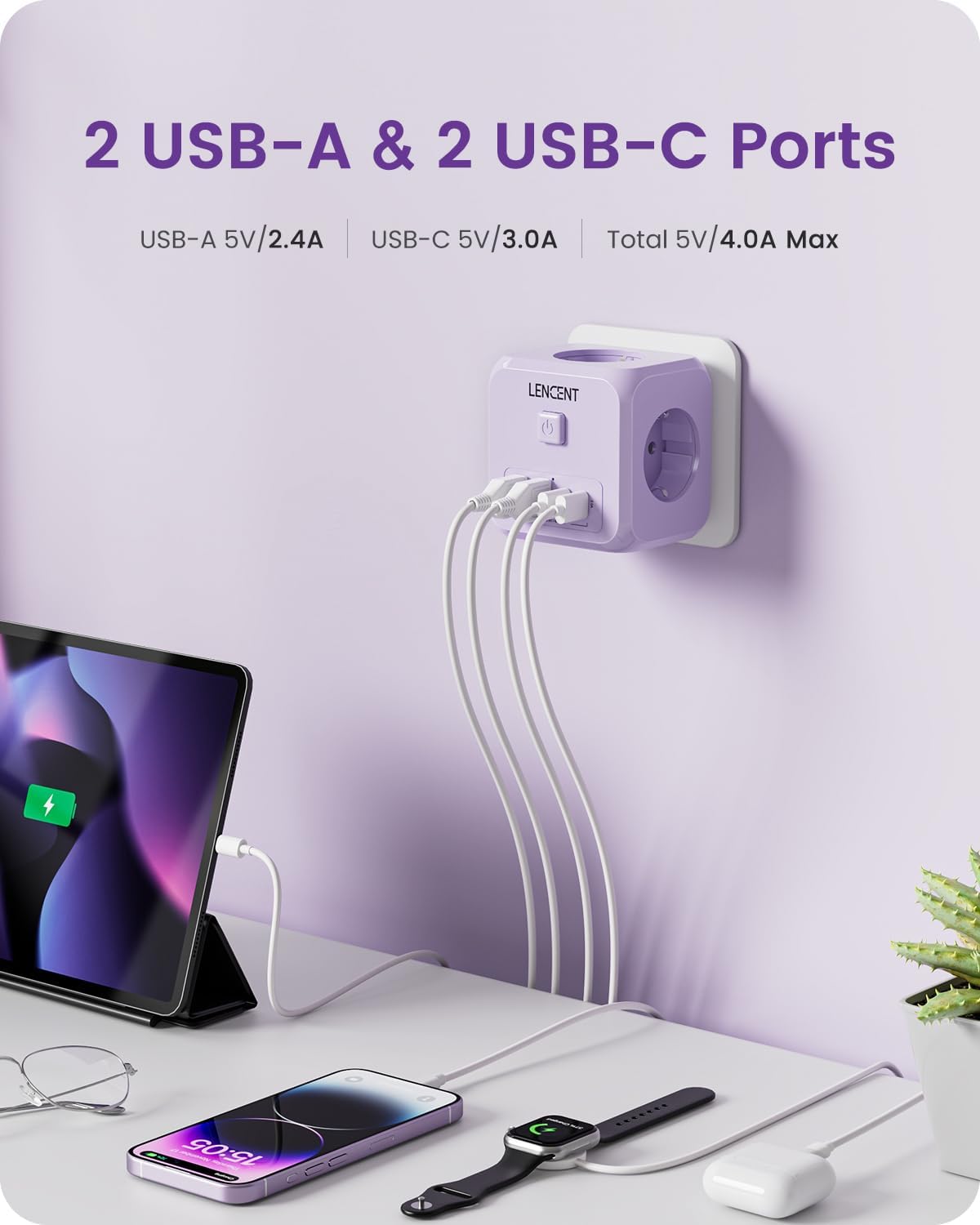

Image: The power strip actively charging various electronic devices via its USB-A and USB-C ports.
Image: The compact size and dimensions of the power strip.
Configuració
- Unpack the LENCENT 7-in-1 USB Wall Power Strip from its packaging.
- Locate a standard European wall socket.
- Plug the power strip directly into the wall socket, ensuring a secure connection.
- The power strip is now ready for use.
Instruccions de funcionament
- Dispositius de connexió: Plug your electronic devices into the available AC outlets, USB-A ports, or USB-C ports.
- Encès/apagat: Press the integrated power switch located on the top of the cube to turn the power strip on or off. An indicator light will illuminate when the power strip is active.
- Càrrega: Once powered on, your connected devices will begin charging or receive power.
- Estalvi d'energia: Use the power switch to turn off the power strip when not in use to save electricity.
Manteniment
- Neteja: Always unplug the power strip from the wall socket before cleaning. Wipe the exterior with a dry, soft cloth. Do not use liquid cleaners, aerosols, or abrasive materials.
- Emmagatzematge: Quan no l'utilitzeu durant períodes prolongats, guardeu el reglet en un lloc fresc i sec, allunyat de la llum solar directa i de la humitat.
- Inspecció: Periodically inspect the power strip for any signs of damage, such as frayed cables or cracked casing. If damage is found, discontinue use immediately and contact customer support.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Sense energia als dispositius. | Power strip is not plugged in securely. Integrated switch is off. Wall socket is not functional. | Ensure the power strip is fully inserted into the wall socket. Press the power switch to the 'on' position. Test the wall socket with another device. |
| Els dispositius no es carreguen a través dels ports USB. | Incorrect cable. Damaged cable. Device not compatible. Total USB output exceeded. | Use a compatible and undamaged USB cable. Ensure your device supports USB charging. Reduce the number of devices charging simultaneously if total output is exceeded. |
| La regleta d'endolls té calor. | Normal operation under load. Overload. | A slight warmth is normal. If it feels excessively hot, immediately unplug all devices and the power strip. Check if the total power consumption exceeds 4000W. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | LENCENT |
| Número de model | PA037EU-2A2C |
| Color | Violeta |
| Preses de corrent altern | 3 (Europe Type) |
| Ports USB-A | 2 (5V/2.4A màx. per port) |
| Ports USB-C | 2 (5V/3A, 15W Max per port) |
| Sortida USB total | 5V / 4.0A Màx |
| Potència màxima | 4000W |
| Voltage | 250 V |
| Material | 750℃ PC Fire-Retardant |
| Dimensions (L x A x A) | 7.7 x 6.3 x 7.7 cm |
| Pes | 182 grams |
| Característiques especials | USB Connector, Indicator light, On/Off switch, Non-blocking design, Multiple safety protections |
Informació de la garantia
The LENCENT PA037EU-2A2C comes with a Garantia del fabricant de 2 anys. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the official LENCENT weblloc o contacteu amb el servei d'atenció al client.
Atenció al client
For any questions, technical assistance, or warranty claims, please contact LENCENT customer service through the following channels:
- Oficial Weblloc: Visita el LENCENT Brand Store per a informació de contacte i preguntes freqüents.
- Amazon Chat: If purchased via Amazon, you can use the Amazon chat support feature for assistance.
Please have your product model number (PA037EU-2A2C) and purchase details ready when contacting support.
