Introducció
This user manual provides detailed instructions for the operation, installation, and maintenance of your Acekool Portable Air Conditioner. Please read this manual thoroughly before using the appliance and retain it for future reference.
Producte acabatview
Figure 1: Acekool Portable Air Conditioner and its remote control.
The Acekool Portable Air Conditioner is a versatile 3-in-1 unit designed to cool, dehumidify, and circulate air as a fan. It features an 8000 BTU ASHRAE cooling capacity, suitable for rooms up to 350 sq.ft. Key features include an LED control panel, remote control, sleep mode, and a 24-hour timer.
Què hi ha a la caixa
Figura 2: Tots els components inclosos al paquet del producte.
- 1 x Unitat d'aire condicionat portàtil
- 1 x Kit de finestra
- 1 x Connector de mànega
- 1 x Window Kit Adapter
- 1 x Mànega d'escapament
- 1 x Tub de desguàs
- 1 x comandament a distància
- 1 x cargols de fixació
- 1 x Manual d'usuari
Configuració i instal·lació
Follow these steps for proper setup and installation to ensure optimal performance of your portable air conditioner.
Figure 3: Visual guide for exhaust hose and window kit installation.
- Connecteu el connector de la mànega a un extrem de la mànega d'escapament.
- Connecteu l'adaptador del kit de finestres a l'altre extrem de la mànega d'escapament.
- Attach the hose connector to the exhaust air outlet of the air conditioner unit.
- Extend the adjustable window kits to fit your window in place and tighten the nuts.
- Install the window partitions to fit the window (suitable for horizontal or vertical slide windows).
- Insert the exhaust hose adapter into the window kit, then install the ventilation tube to the window partitions.
Video 1: Official product video demonstrating the features and setup of the 8000 BTU Air Conditioner.
Instruccions de funcionament
Tauler de control i control remot
Figure 4: LED Touch Panel with Remote Control functionality.
The unit can be operated using the LED touch control panel on top of the unit or the included wireless remote control. The control panel provides easy access to all functions.
Modes de funcionament
Figure 5: Three-in-one modes: Cool, Dry, and Fan.
- Mode fresc: Provides powerful cooling for rooms up to 350 sq.ft., with adjustable temperature settings from 61°F to 88°F.
- Mode sec (deshumidificador): Removes up to 45 pints of moisture per day, helping to reduce humidity in the room. Features self-evaporation technology.
- Mode de ventilador: Circulates air with two adjustable wind speeds (Low/High) without cooling.
Característiques addicionals
- Mode de repòs: Activates energy-saving operation with an ultra-low noise level of 50 dB for undisturbed sleep. Activated by pressing Increase and Speed simultaneously.
- Temporitzador de 24 hores: Allows you to customize the cooling duration to suit your schedule.
- Auto Air Swing: Features automatic horizontal swing wind and manual vertical wind for widespread oscillation, cooling every corner of your room.

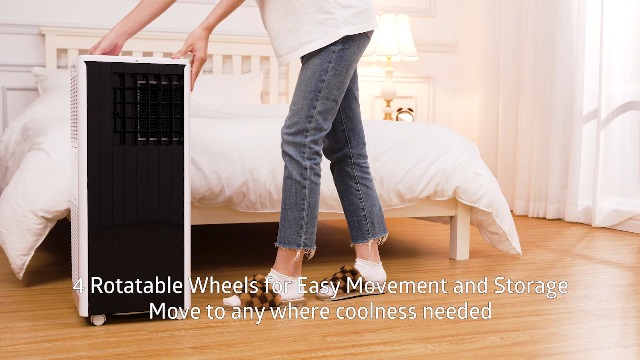

- Portabilitat: Equipped with 4 rotatable wheels for easy movement and storage.
Figure 6: Airflow direction control with automatic horizontal swing and manual vertical adjustment.
Manteniment
Neteja del filtre d'aire
Regular cleaning of the air filter is essential for maintaining the efficiency and longevity of your air conditioner.
Figure 7: Detachable and washable air filter location.
Figure 8: Cleaning the filter screen directly under water.
- Locate the air filter on the side of the unit.
- Gently pull out the filter screen.
- Wash the filter screen directly under running water.
- Deixeu que el filtre s'assequi completament a l'aire abans de tornar-lo a inserir a la unitat.
- Reinsert the dry filter screen back into its slot.
Drenatge de la unitat
The unit features self-evaporation technology, which atomizes condensed water. However, in high humidity environments, manual draining may be required. Use the provided drain pipe for this purpose.
Figure 9: Drainage hole for excess water removal.
Resolució de problemes
If you encounter any issues with your Acekool Portable Air Conditioner, please refer to the following common troubleshooting steps. For problems not listed here, contact customer support.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | No hi ha subministrament d'alimentació; cable d'alimentació no connectat; interruptor automàtic saltat. | Ensure unit is plugged into a working outlet; Check circuit breaker; Press the power button. |
| La unitat no refreda eficaçment | Air filter is dirty; Exhaust hose not properly installed; Room size too large; Doors/windows open. | Clean the air filter; Ensure exhaust hose is securely connected and vented outside; Close all doors and windows; Verify room size is within specifications. |
| La unitat és sorollosa | Unit not on a flat surface; Obstruction in fan/air intake. | Col·loqueu la unitat sobre una superfície plana i estable; comproveu si hi ha obstruccions i traieu-les. |
| Fuga d'aigua | Drain plug not secured; Water tank full (in high humidity). | Ensure drain plug is tightly closed; Drain the water tank if full. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Acekool |
| Model | Portable Air Conditioner (0XHWSTFL001) |
| Potència de refrigeració | 8000 BTU (ASHRAE) / 5000 BTU (DOE) |
| Àrea de cobertura | Fins a 350 peus quadrats. |
| Funcions | Cool, Dehumidify, Fan |
| Capacitat de deshumidificació | 45 pintes/dia |
| Nivell de soroll | 45 dB (50 dB in Sleep Mode) |
| Voltage | 115 Volts |
| Wattage | 699 watts |
| Refrigerant | R32 |
| Dimensions (P x A x A) | 11.3" x 11.7" x 27.4" |
| Pes de l'article | 47.5 lliures |
Garantia i Suport
Your Acekool Portable Air Conditioner comes with a standard manufacturer's warranty. For detailed warranty information, product support, or service inquiries, please refer to the warranty card included in your package or visit the official Acekool website. You can also contact customer support through the retailer where you purchased the product.
Per obtenir més informació i suport, visiteu el Botiga Acekool a Amazon.
